For just $ 11.29 , buy ZOTEK ZT102 Portable Auto-ranging Digital Multimeter – Black / Blue from the wholesale webshop online.

Specifications

Retail Packaging Plastic Box
Gross Weight 0.336kg
Volume Weight 0.185kg
Length 16.500cm
Width 10.000cm
Height 5.000cm
Weight 0.300kg
With Retail Packaging Yes

Product Description

ZOTEK ZT102 Portable Auto-ranging Digital Multimeter – Black / Blue
  • Auto ranges

  • True RMS

  • 550V protection in resistance, capacitance and frequency ranges

  • Large LCD display, max display 6000 counts

  • Sample rate: 3 times per second

  • Backlight

  • Data hold

  • Polarity identification

  • Low voltage indication

  • 10A high current and low current measurement

  • Auto power off

  • Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance

  • Diode and continuity testing, temperature, frequency and duty cycle

    * Frequency: 1Hz to 10MHz

    * Temperature: -20°C to 1000°C (-4°F to 1832°F)

    * Capacitance: 10pF to 6000uF

    * AC volts: 0.1mV to 750V

    * DC volts: 0.1mV to 1000V

    * AC current: 0.1uA to 10A

    * DC current: 0.1uA to 10A

    * Resistance: 0.1Ω to 60MΩ

    * Duty cycle: 1% to 99%

Specification:

  • Capacitance: 10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)

  • DC volts: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

  • AC volts: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

  • DC current: 600uA/6000uA(±1.5%+3), 60mA/600mA(±1.5%+3), 10A(±1.5%+3)

  • AC current: 600uA/6000uA(±1.5%+3), 60mA/600mA(±1.5%+3), 10A(±1.5%+3)

  • Resistance: 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3)

  • Temperature: <400°C ±(1.0%+5), ≥400°C±(1.5%+15)<752°F ±(1.0%+5), ≥752°F±(1.5%+15)

  • Frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)

  • Duty cycle: 1% to 99% (±1%)

  • Measurement mode: Double-integral style A/D transform

  • Over range indication: OL

  • Working environment: 0°C~40°C, relative humidity <80%

  • Supply power: 3V (1.5V AAA batteries * 2 Pcs)

  • Size: 130 x 65 x 30mm

  • Weight: 130g

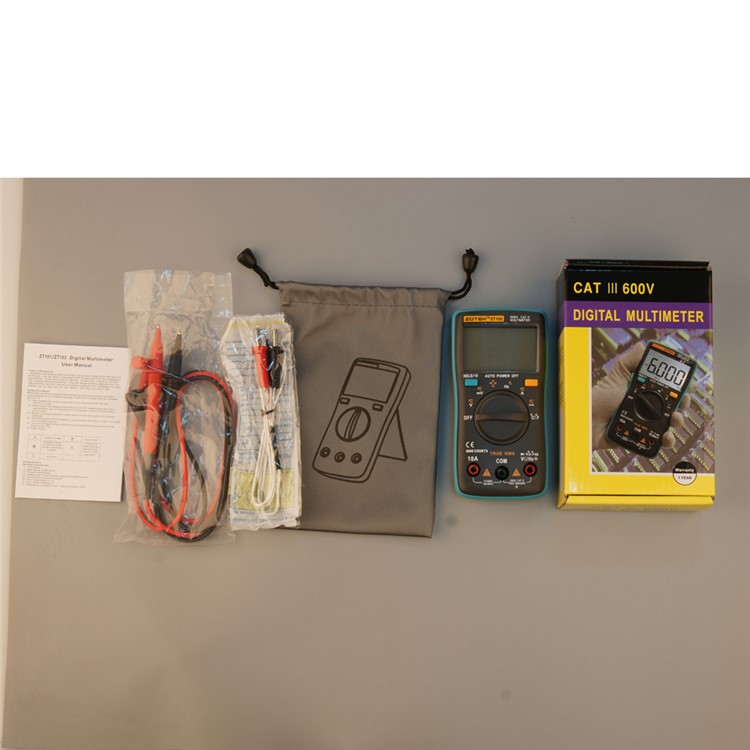

Package included:

  • 1 x ZOTEK ZT102 Portable Auto-ranging Digital Multimeter
  • 2 x Test Lead
  • 2 x 1.5V AAA Battery
  • 1 x Temperature Probe
  • 1 x Pouch

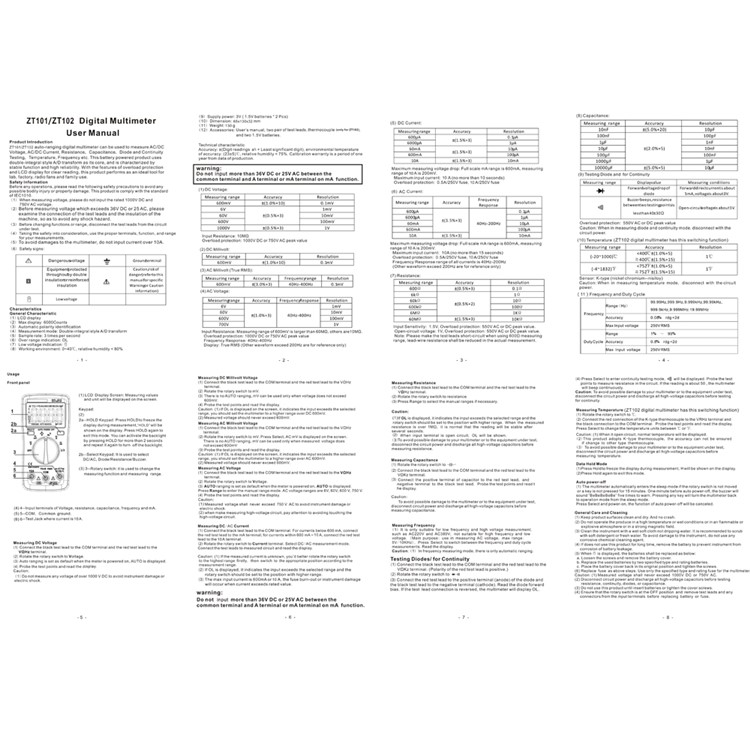

  • 1 x User Manual

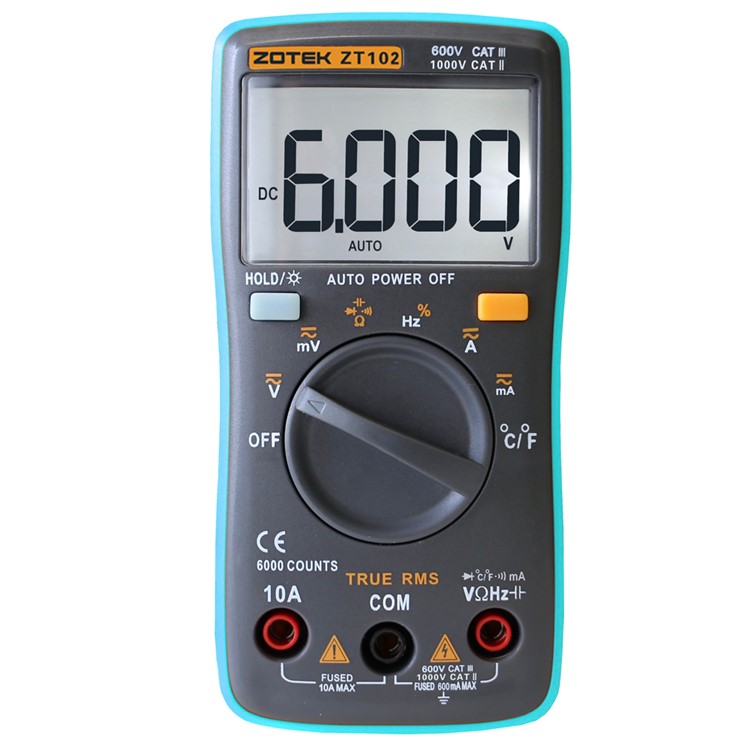

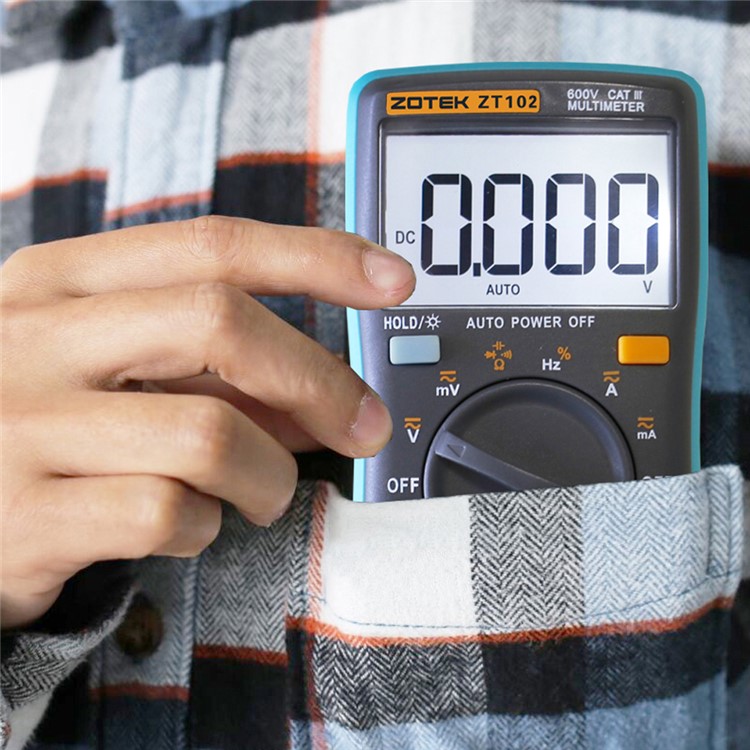

ZOTEK ZT102 Portable Auto-ranging Digital Multimeter - Black / Blue-1
