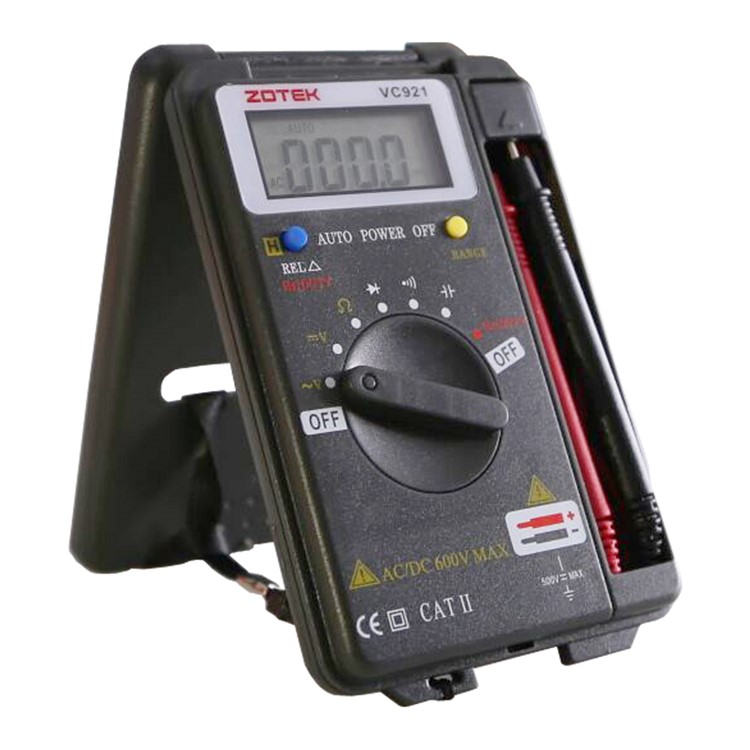

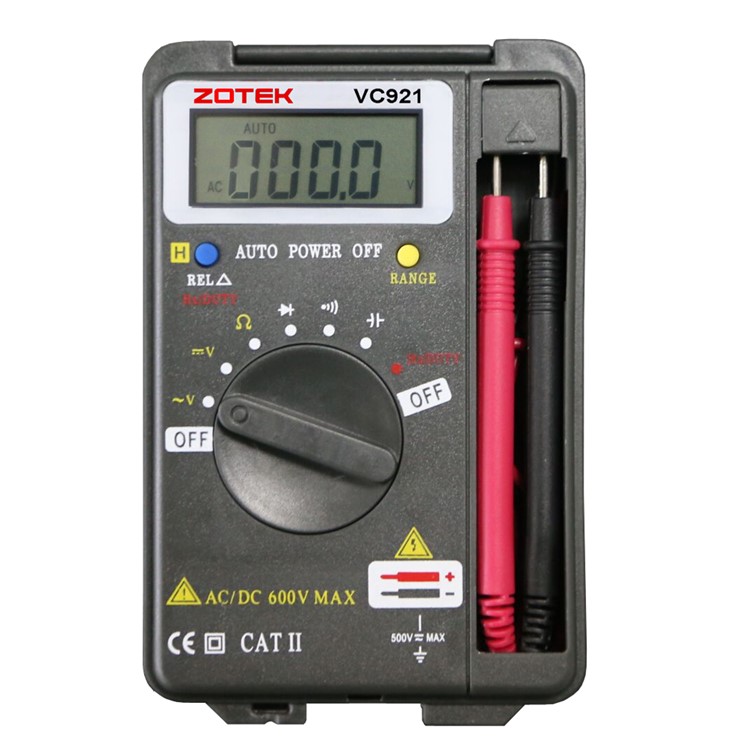

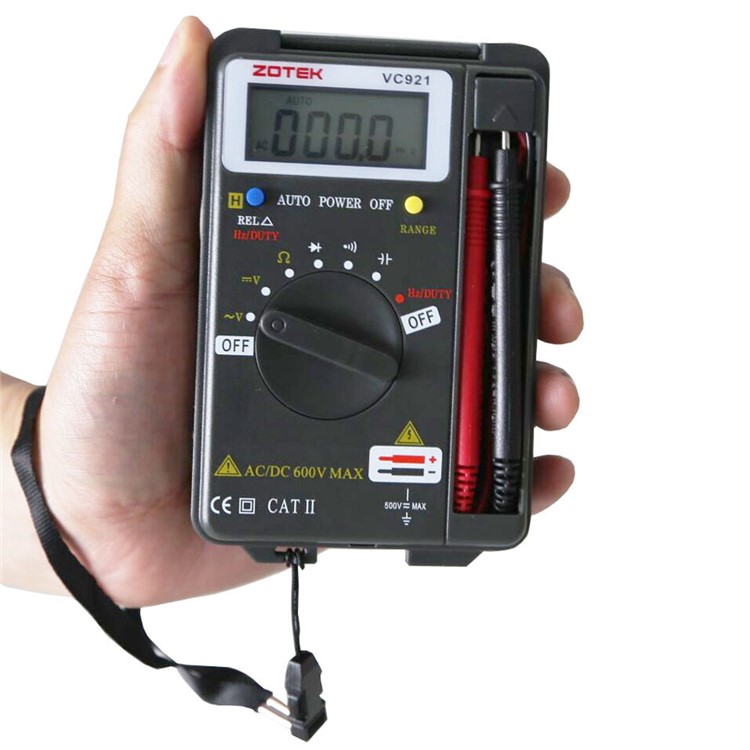

ZOTEK VC921 Auto-Ranging Digital Multimeter – Black

• Auto ranges

• 550V protection in resistance, capacitance and frequency ranges

• Max display 4000 counts

• Sample rate: 3 times per second

• Data hold

• Relative measurement

• Polarity identification

• Low voltage indication

• Auto power off

• Main measurements: AC/DC voltage, resistance, capacitance

• Diode and continuity testing, frequency and duty cycle

  * Frequency: 1Hz to 10MHz

  * Capacitance: 10pF to 4000uF

  * AC volts: 0.1mV to 750V

  * DC volts: 0.1mV to 1000V

  * Resistance: 0.1Ω to 40MΩ

Specification:

• Capacitance: 4nF (±5.0%+4), 40nF (±2.5%+4), 400nF/4.000uF/40.00uF/400.0uF/1000uF

• /4000uF（±3.5%+4）

• DC volts: 400mV/4V/40V (±0.5%+4), 400V/600V (±0.8%+4)

• AC volts: 400mV (±1.5%+4), 4V/40V/400V (±1.2%+4), 600V (±1.5%+4)

• Resistance: 400Ω/4K/40K/400K/4M (±0.8%+4), 40MΩ (±2.0%+4)

• Frequency: 99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)

• Duty cycle: 0.1% to 99.9 % (±0.08%+2)

• Measurement mode: △Σ mode

• Over range indication: OL

• Working environment: 0°C-40°C, relative humidity <80%

• Supply power: 3V (1.5V AAA batteries * 2 Pcs)

• Size: 80 x 120 x 19mm

• Weight: 126g
