For just $ 16.47 , buy ZOTEK VC902 1000A Autoranging Digital Clamp Meter from the wholesale webshop online.

Specifications

Retail Packaging Plastic Box
Gross Weight 0.616kg
Volume Weight 0.292kg
Length 12.300cm
Width 5.300cm
Height 20.000cm
Weight 0.550kg
With Retail Packaging Yes

Product Description

ZOTEK VC902 1000A Autoranging Digital Clamp Meter
  • Auto/manual ranges

  • True RMS measurement

  • 550V protection in resistance and capacitance ranges

  • Large LCD display, MAX display 6000 counts

  • Sample rate: 3 times per second

  • Backlight

  • Data hold

  • Polarity identification

  • Low voltage indication

  • 1000A high current measurement, low current measurement

  • Auto power off

  • Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Temperature, Frequency and duty cycle

  * Frequency: 1Hz to 10MHz

  * Temperature: -20°C to 1000°C(-4°F to 1832°F)

  * Capacitance: 10pF to 6000uF

  * AC volts: 0.1mV to 750V

  * DC volts: 0.1mV to 1000V

  * AC current: 0.1uA to 1000A

  * DC current: 0.1uA to 6000uA

  * Resistance: 0.1Ω to 60MΩ

  * Duty cycle: 1% to 99%

Specifications:

  • Frequency: 5/50/500/5k/50k/500k/5M/10M (±0.1+3)

  • Temperature: <400°C ±(1.0%+5), ≥400°C±(1.5%+15)<752°F ±(1.0%+5), ≥752°F±(1.5%+15)

  • Capacitance: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)

  • DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

  • AC volt: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

  • DCA: 600uA/6000uA(±0.8%+10)

  • ACA: 600uA/6000uA(±0.8%+10), 60A/600A/1000A(±2%+30)

  • Resistance: 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3)

  • Duty cycle: 1% to 99%(±1%)

  • Measurement mode: Double-integral style A/D transform

  • Over range indication: OL

  • Working environment: 0~40°C, relative humidity < 80%

  • Supply power: 3V (1.5V AA batteries x 2 Pcs)

  • Dimension: 280 x 70 x 45mm

  • Weight: 510g

Package included:

  • 1 x ZOTEK VC902 1000A Autoranging Digital Clamp Meter
  • A Pair of Test Leads
  • 1 x Temperature Probe
  • 2 x 1.5V AA Battery
  • 1 x Bag
  • 1 x User Manual

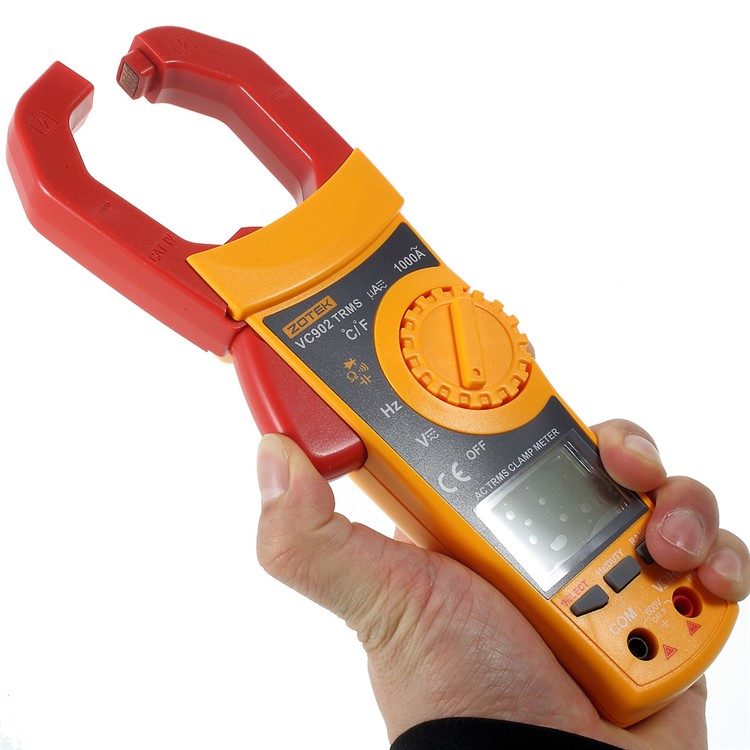

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-1

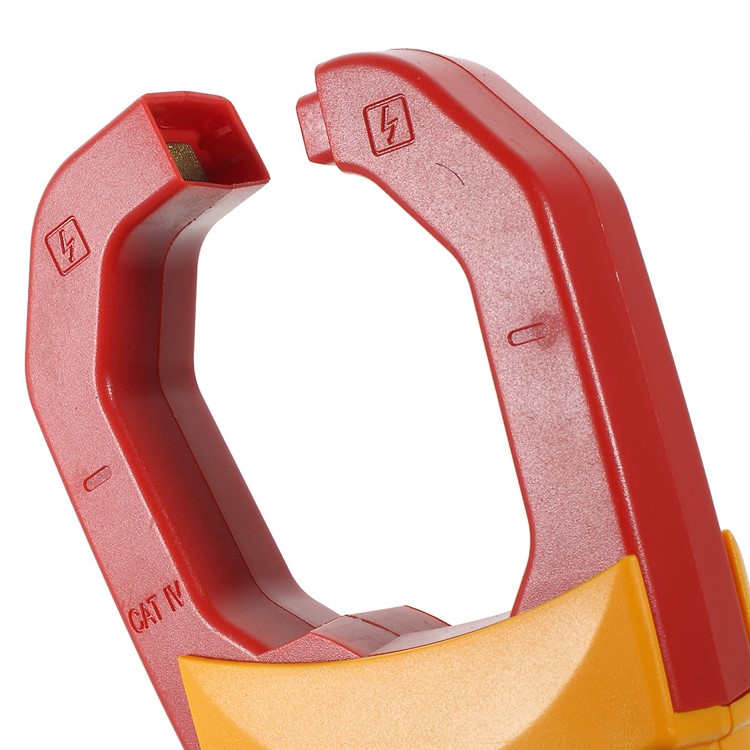

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-2

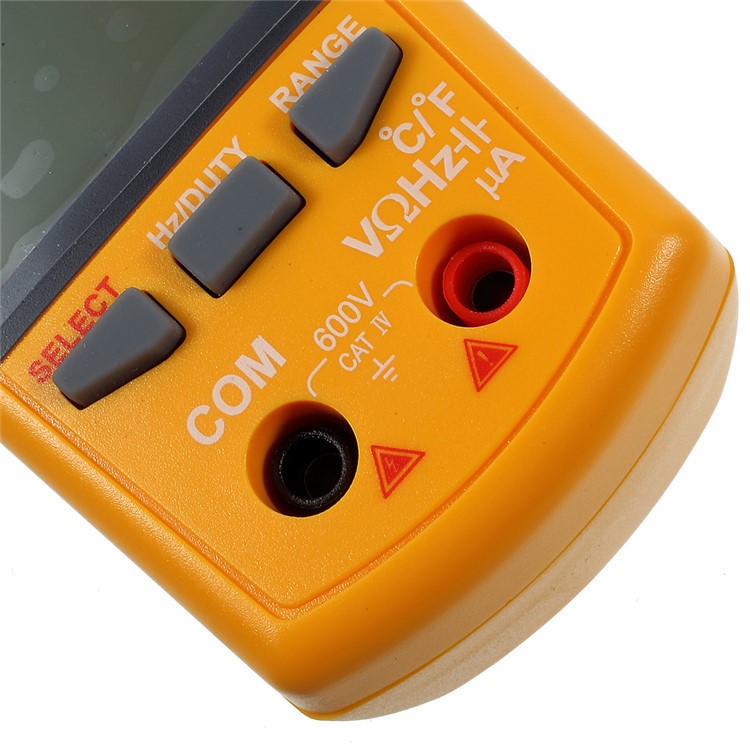

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-3

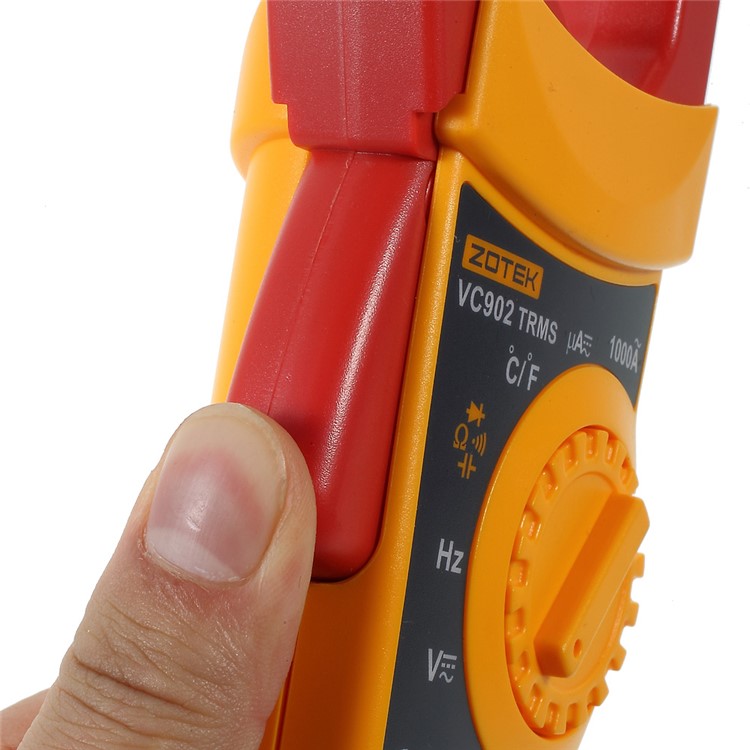

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-4

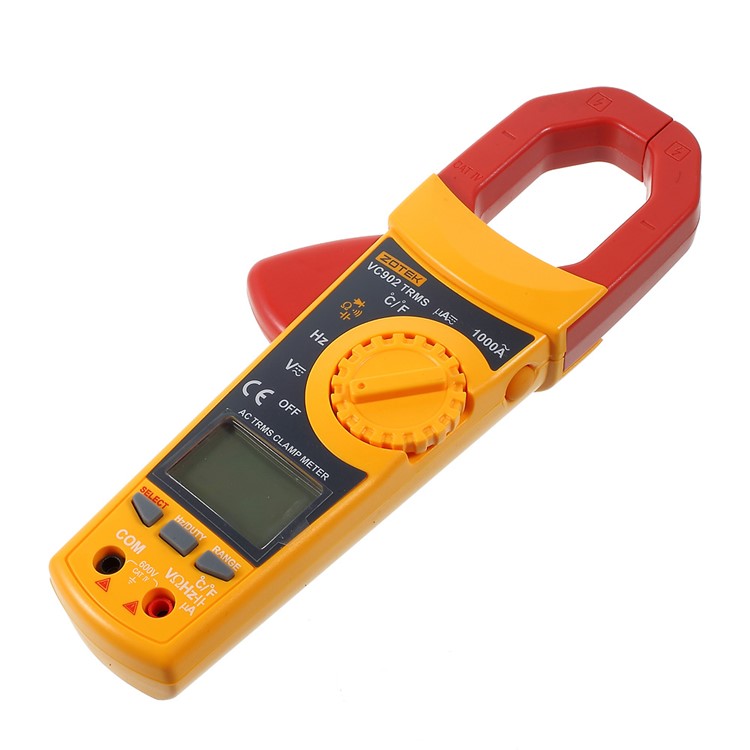

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-5

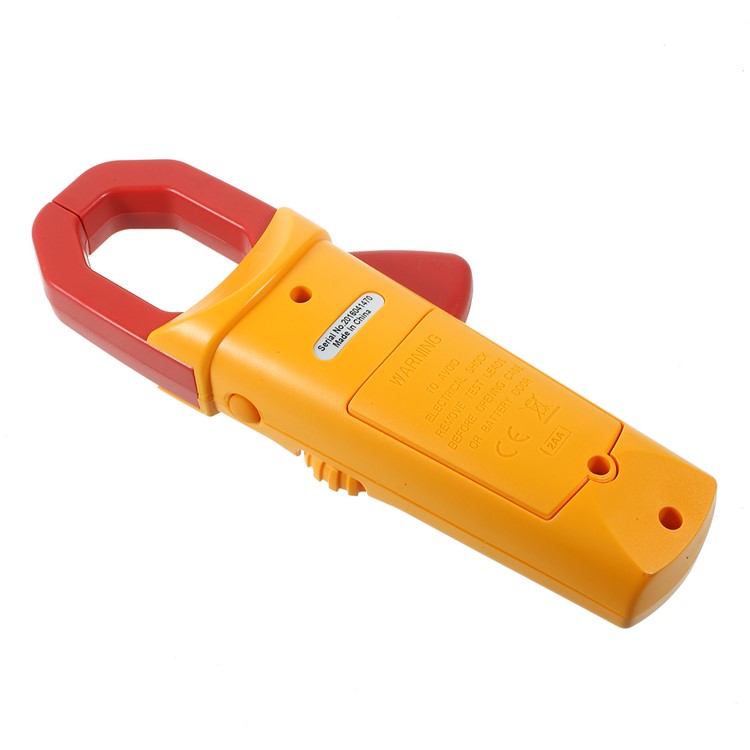

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-6

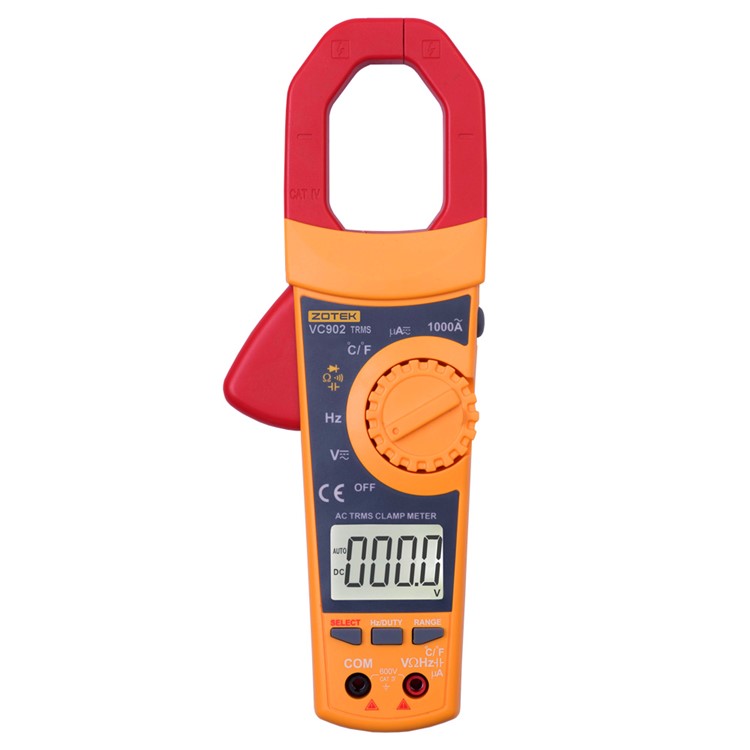

ZOTEK VC902 1000A Autoranging Digital Clamp Meter-7
