For just $ 13.70 , buy ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple from the wholesale webshop online.

Specifications

Retail Packaging Plastic Box
Gross Weight 0.582kg
Volume Weight 0.292kg
Length 12.300cm
Width 5.300cm
Height 20.000cm
Weight 0.520kg
With Retail Packaging Yes

Product Description

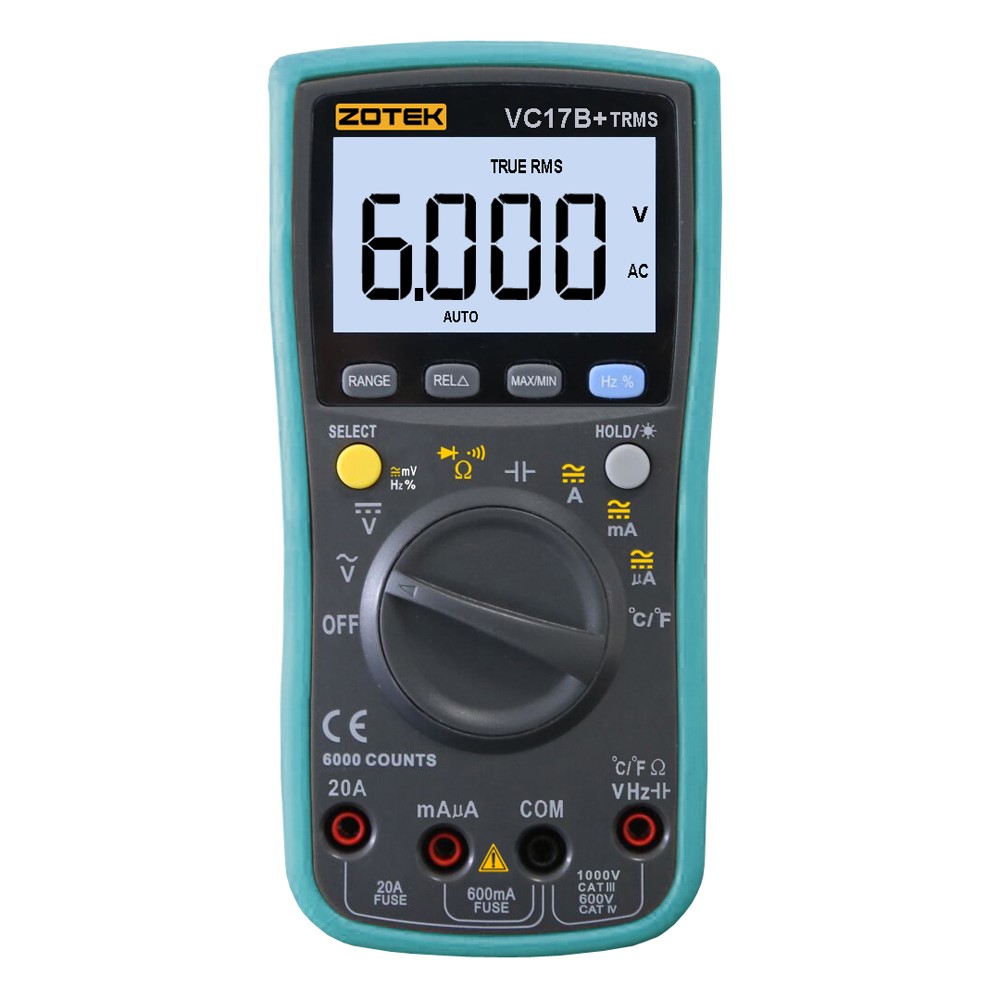

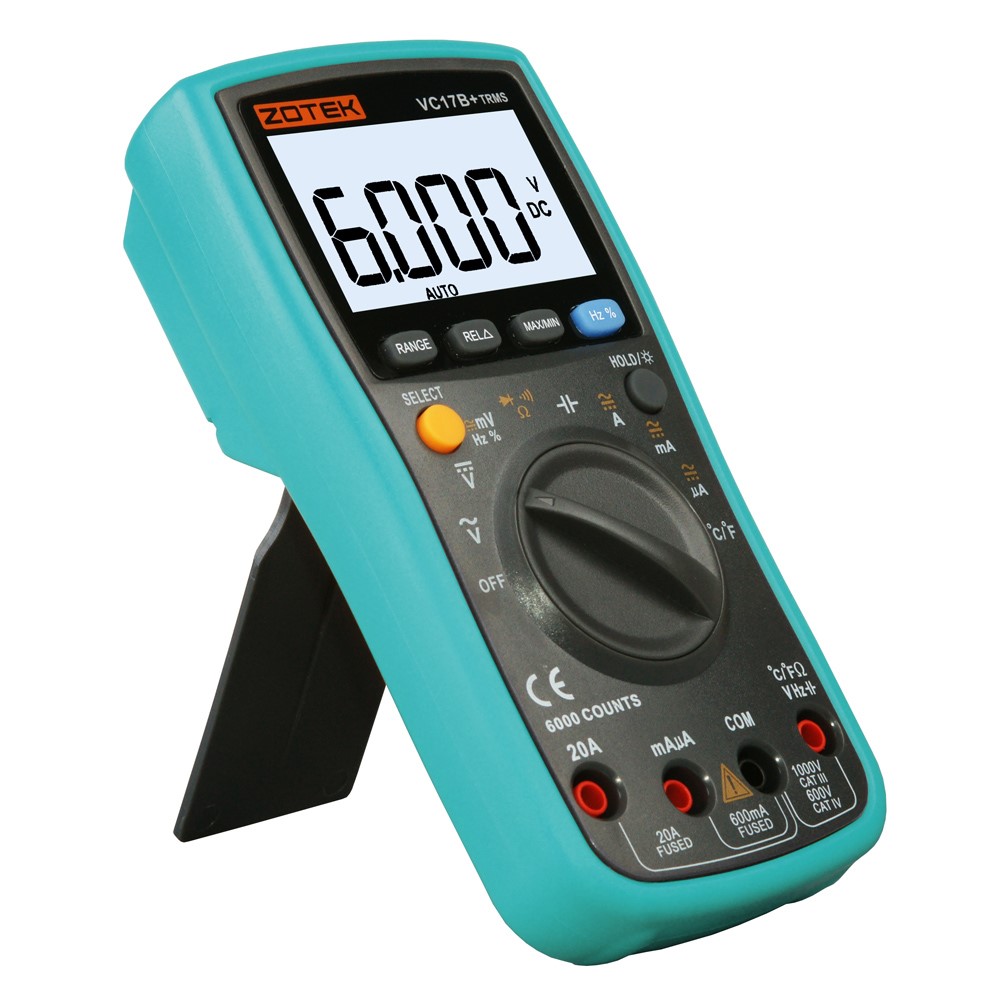

ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple

ZOTEK VC17B+ Auto/Manual Ranging digital multimeter using double-integral style A/D transform as the core, can be used to measures AC/DC voltage, AC/DC current, resistance, capacitance, Diode and continuity testing, temperature, frequency and etc. It is characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading. It is an ideal tool for lab, factory, radio fans and family use.

  • Auto/manual ranging function

  • True RMS measurement

  • 550V protection in resistance and capacitance ranges

  • Large LCD display with backlight, display 6000 counts (max.)

  • Sample rate: 3 times per second

  • Max/Min data hold

  • Polarity identification

  • Low voltage indication

  • 20A high current measurement is available

  • Auto power off can be cancelled manually

  • Main measurements: AC/DC Voltage, AC/DC current, resistance, capacitance, diode and continuity testing, frequency and duty cycle

  • -Frequency: 1Hz to 20MHz

  • -Temperature: -20°C to 1000°C(-4°Fto 1832°F)

  • -Capacitance: 10pF to 6000uF

  • -AC volts: 0.1mV to 750V

  • -DC volts: 0.1mV to 1000V

  • -AC current: 0.1uA to 20A

  • -DC current: 0.1uA to 20A

  • -Resistance: 0.1Ω to 60MΩ

  • -Duty cycle: 1% to 99%

Specifications:

  • Frequency: 5/50/500/5k/50k/500k/5M/20M (±0.1+3)

  • Temperature: <400°C ±(1.0%+5), ≥400°C±(1.5%+1), <752°F ±(1.0%+5), ≥752°F±(1.5%+15)

  • Capacitance: 10nF(±5.0+20), 100nF/1uF/10uF/100uF(±2.0%+5), 1000uF/10000uF(±5.0%+5)

  • DC volt: 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

  • AC volt: 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

  • ACA/DCA: 600uA/6000uA(±1.5%+3), 60mA/600mA/20A(±1.5%+3)

  • Resistance: 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3)

  • Duty cycle: 1% to 99%(±1%)

  • Measurement mode: Double-integral style A/D transform

  • Over range indication: OL

  • Working environment: 0~40°C, relative humidity: < 80%

  • Supply power: 3V (1.5V AA batteries * 2 Pcs)

  • Dimension: 180*90.5*45mm

  • Weight: 420g (excluding battery)

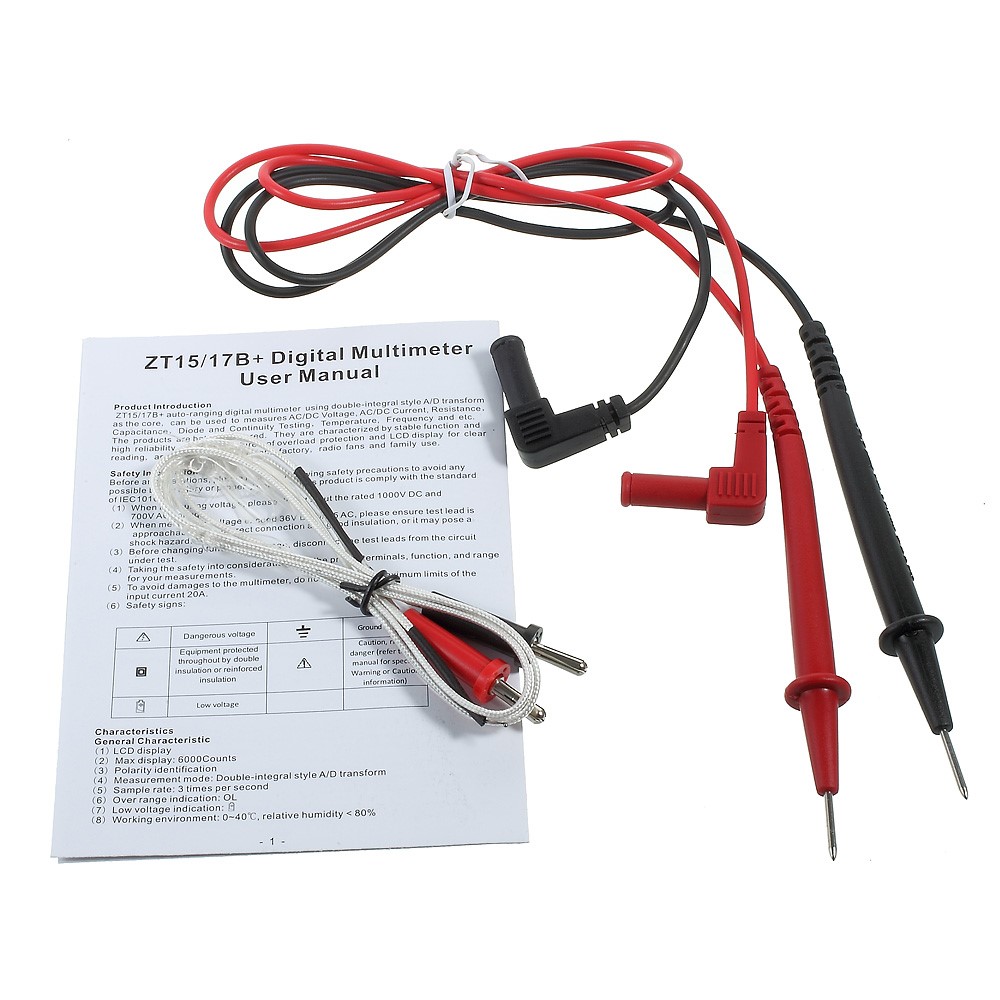

Package included:

  • 1 x ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter
  • 1 x TP01K Thermocouple
  • 2 x 1.5V Batteries
  • 1 x Shockproof Cover
  • 1 Pair of Test Leads
  • 1 x User Manual
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-1
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-2
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-3
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-4
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-5
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-6
ZOTEK VC17B+ Auto/Manual Ranging LCD Display Multimeter with Thermocouple-7
