For just $4.25 , buy ZL180 200A Car Jump Starter Heavy Duty Split Charging Battery Booster with 2 Pin Footprint and 2 Terminals – DC 12V from the wholesale webshop online.

Product Description

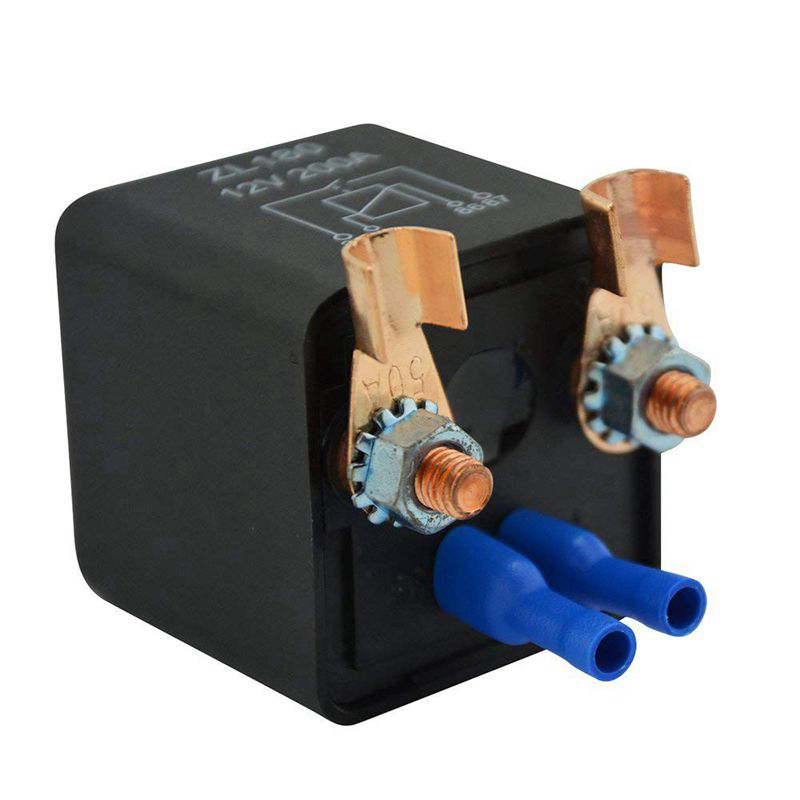

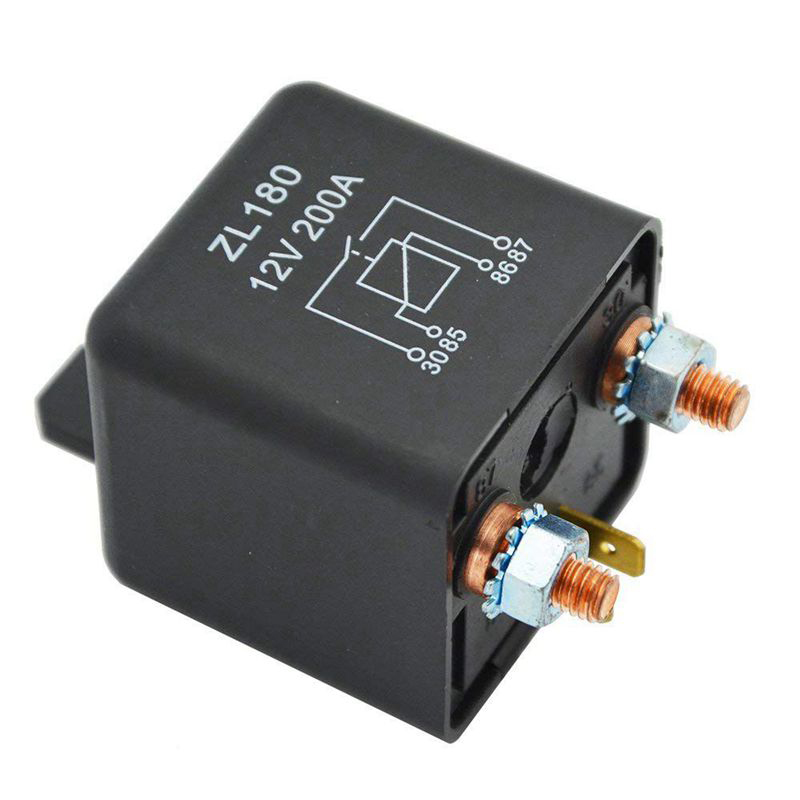

ZL180 200A Car Jump Starter Heavy Duty Split Charging Battery Booster with 2 Pin Footprint and 2 Terminals – DC 12V
  • 200A High current carrying capacity, ideal for universal 12V applications

  • With 2-pin footprint + 2 terminal accessories

  • With hundreds of uses, such as starter kills, dome light supervision, trunk release, polarity change, and power door lock/actuator control

  • High-quality material, which provides durable, firm, and stable contact load

Specifications:

  • Material: Plastic

  • Temperature range: -30℃ to +80℃

  • Vibration resistance: 10-55Hz, 1.5mm

  • Impact resistance:

  • Surgery extreme: 10g

  • Damage control: 100g

  • Humidity: 40% to 85%

  • Insulation resistance:100m Ohm min at 500 VDC

  • Safety standard: CCEE

  • Dielectric strength between open contacts: 500VAC (for one minute/s)

  • Between contact and coil:: 750VAC (for one minute/s)

  • Operating time: 15ms

  • Release time: 10ms

Contact Details:

  • Contact material: AgSnO12

  • Contact form: Normally open

  • Contact ratings: None: 200A 14/28VDC

  • Contact resistance: 100m Max at DC 6V 1A

  • Max switching current: 500A (5ms)

  • Max switching voltage: 75VDC

  • Max switching power: 2000W

  • Expected lifespan: 100,000 operations (at 30 operations/min)

  • Mechanical life: 10,000,000 operations

Coil Details:

  • Rated voltage (VDC): 12V

  • Coil resistance (4,8W/2,4W): 30/60

  • Max let voltage (VDC): 6.0-8.0

  • Mix message (VDC): 1.2-3.6

  • Max applicable voltage (VDC): 15.6

Package included:

  • 1 x Relay

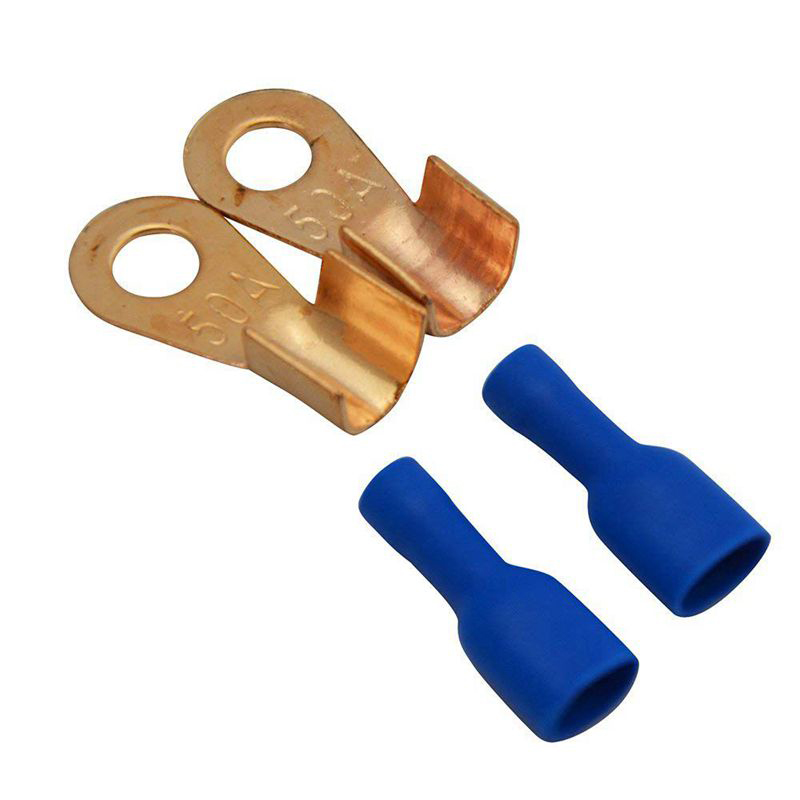

  • 2 x Blue Terminals

Specifications

Brand N/A
ColorStyle A
Gross Weight 0.123kg
Volume Weight 0.020kg
Package Length 4.500cm
Package Width 4.500cm
Package Height 4.500cm
One Package Weight 0.110kg
With Retail Packaging No
