Price:
$ 307.69

Free Shipping

For just $ 307.69 , buy YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun – CN Plug / 220V Voltage from the wholesale webshop online.

Specifications

Certificate CCC, CE, FCC, RoHS
Plug CN Standard Plug
Retail Packaging Colored Box
Voltage AC 220V
Gross Weight 6.384kg
Volume Weight 1.065kg
Length 23.500cm
Width 15.100cm
Height 13.400cm
Weight 5.700kg
With Retail Packaging Yes

Product Description

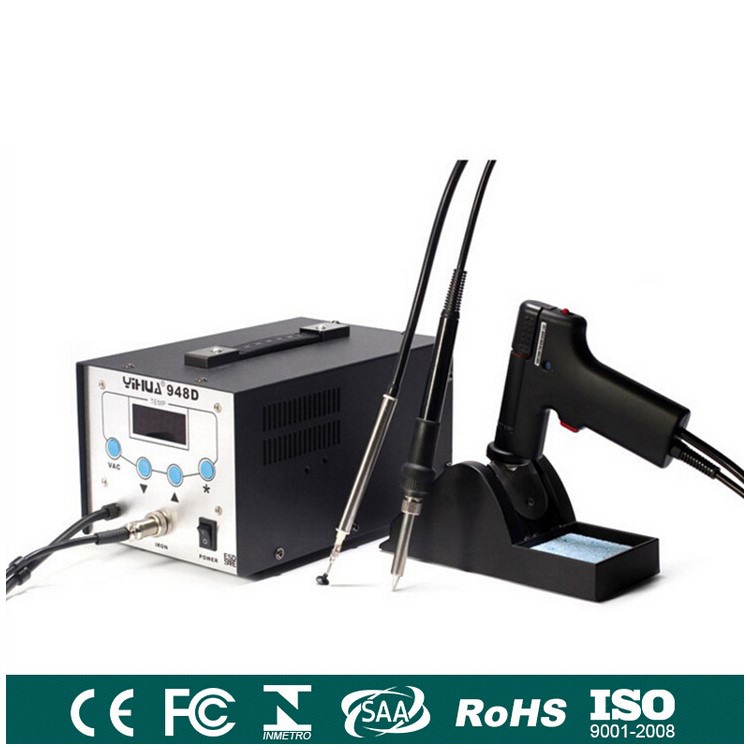

YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun – CN Plug / 220V Voltage

The high-frequency soldering station adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual desoldering gun and soldering iron temperatures with real-time temperature correction. Miraculous temperature compensation speeds allow minimal temperature error for temperature stability and compensation speeds vastly superior to similar products.

  • Adopt brand new environmental material, exclusive molding

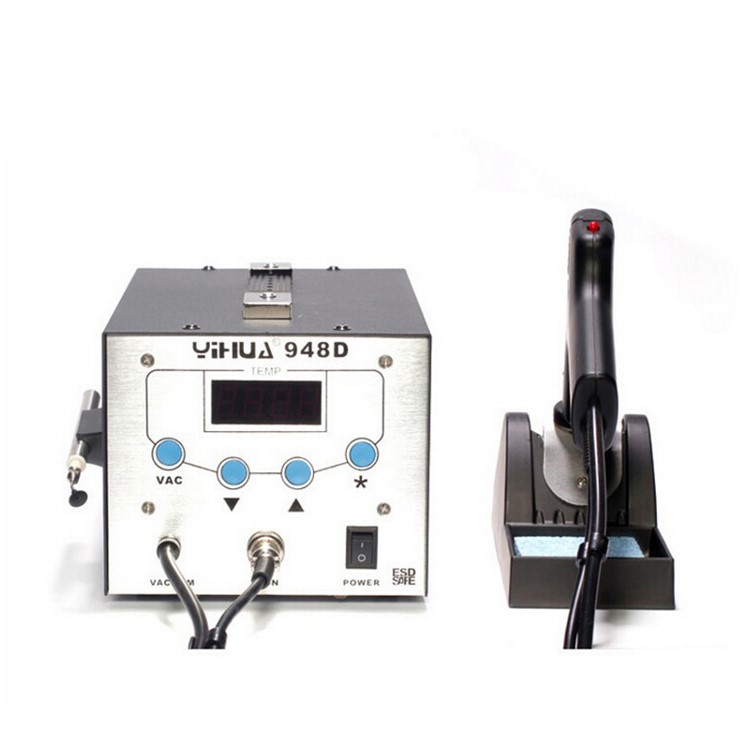

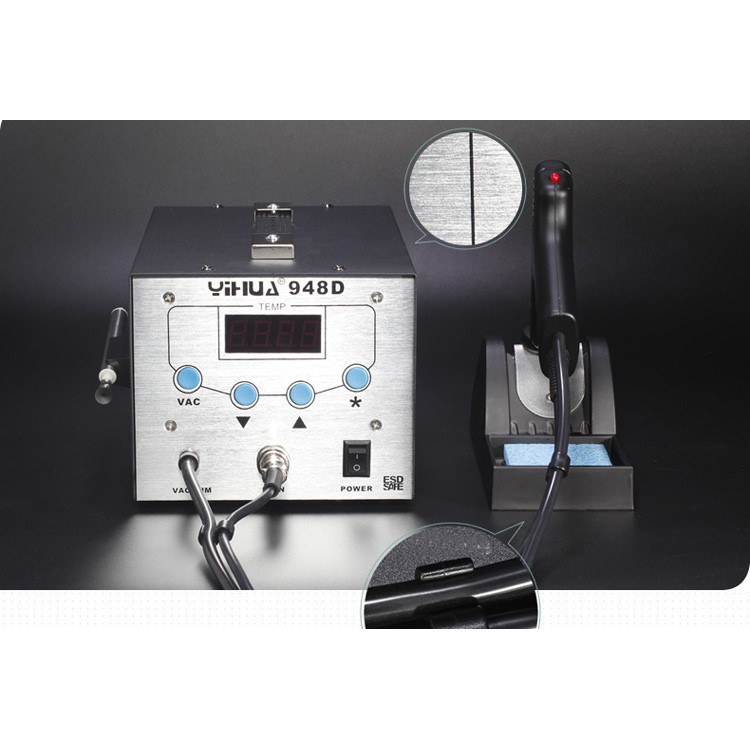

  • Front silver brushed metal panel with LED display

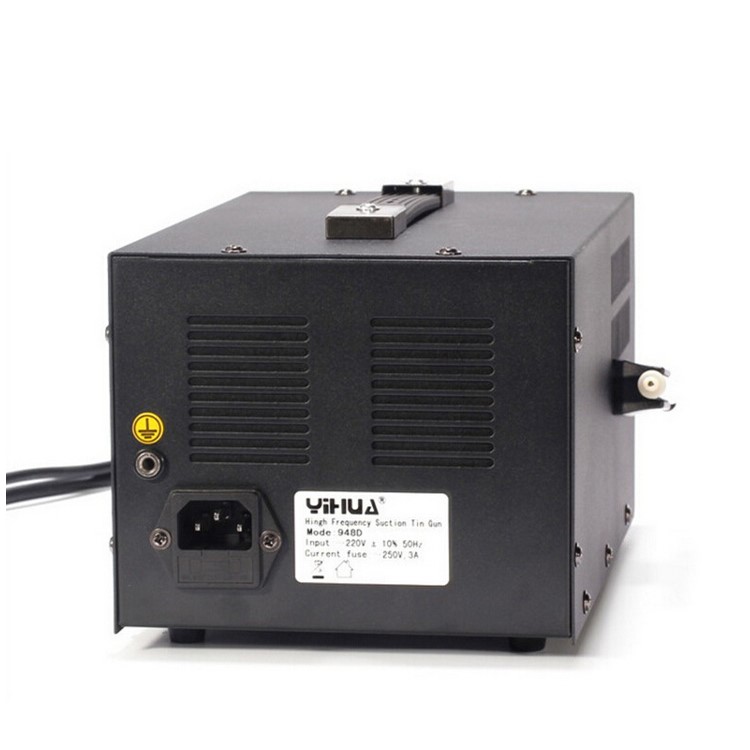

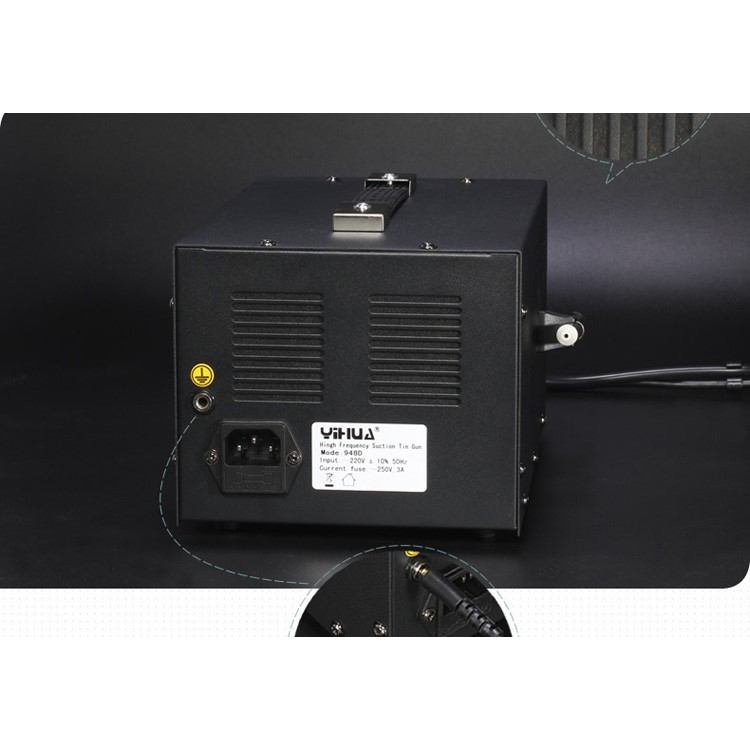

  • The heat-dissipation holes on the back with built-in dustproof & noise reduction mesh

  • High-frequency eddy current heating for fast warming and temperature returning

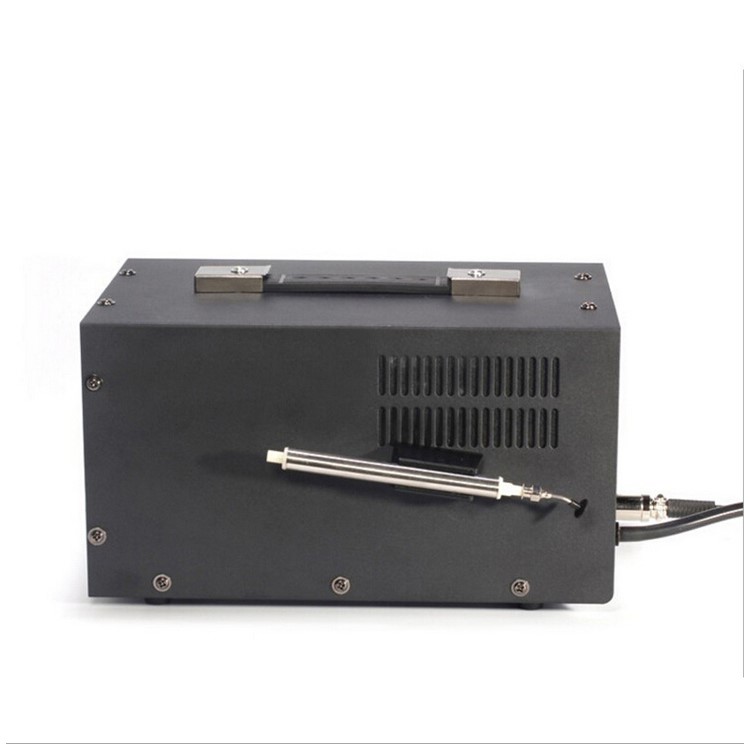

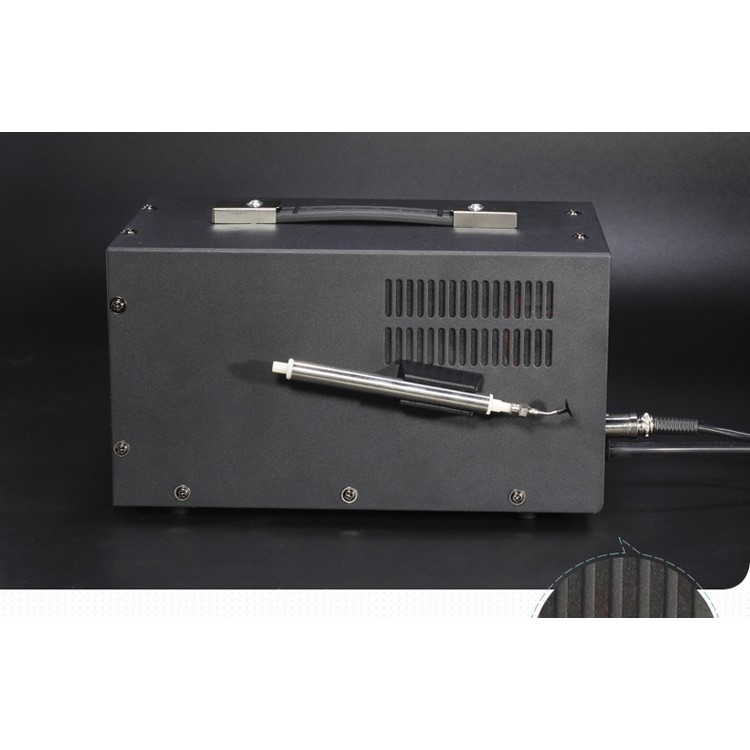

  • Equipped with a suction pen to help remove IC

  • Anti-static design, prevent electrostatic component damage or leakage

  • Portable built-in vacuum with strong suction does away with external vacuum systems

  • High precision SMT dual-panel process

  • CE, RoHS, FCC and CCC certified

Functions:

  • Celsius / Fahrenheit temperature display

  • 1-99 minutes sleep function

  • 1-30 minutes timing shutdown function

  • Password lock function

  • Digital temperature correction

Specification:

  • Model: 948D

  • Input Voltage: 220V or 110V

  • Temperature Correction Range: 392°F ~ 896°F/200°C ~ 480°C

  • Power: 130W (for desoldering suction gun); 90W (for soldering iron station)

  • Working Environment Temperature: 0°F ~ 104°F/ 0°C ~ 40°C

  • Storage Temperature: -68°F ~ 176°F/-20°C ~ 80°C

  • Storage Humidity: 35% ~ 45%

  • Nozzle to Ground Resistance: <2Ω

  • Nozzle to Ground Potential : <2mV

Package included:

  • 1 x 90W High-frequency Soldering Station
  • 1 x Soldering Iron with Silicone Cord

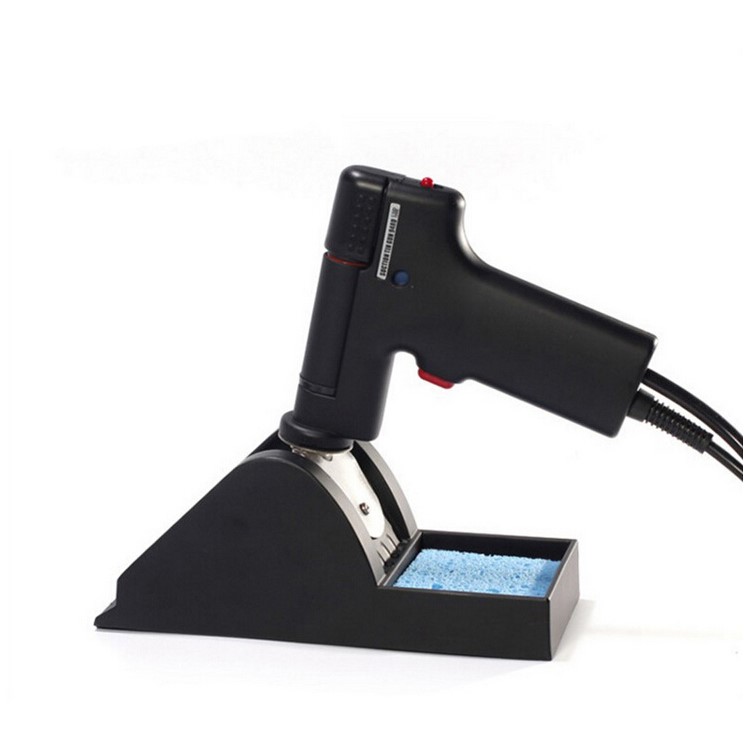

  • 1 x 130W Desoldering Suction Gun with Silicone Cord
  • 1 x Vacuum Pick Up Pen with Silicone Cord
  • 1 x Soldering Iron & Desoldering Gun Stand

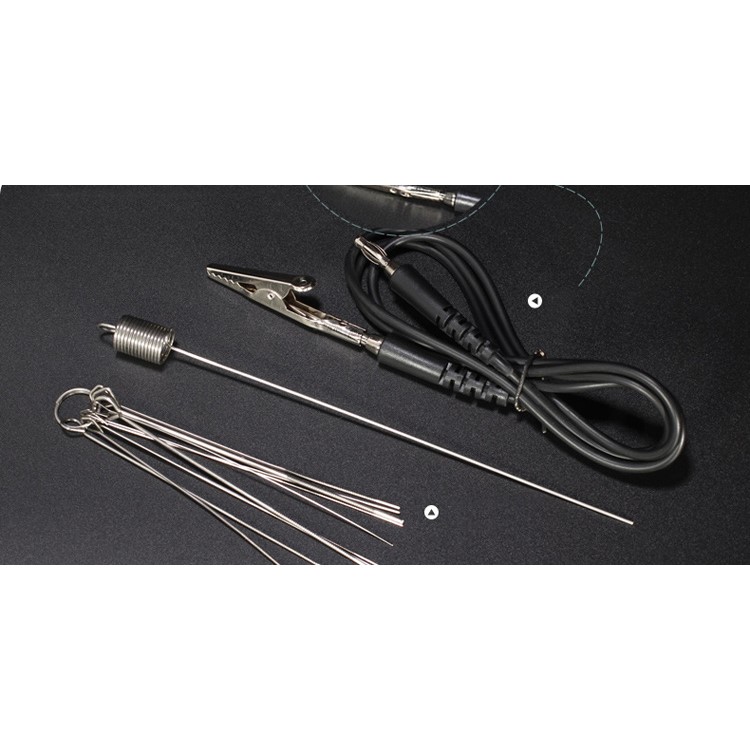

  • 1 x Earth Wire
  • 1 x Stainless Steel Nozzle Cleaner (Long)
  • 1 Set of Stainless Steel Cleaning Pins (Short)
  • 1 x CN Plug Power Cord
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-1
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-2
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-3
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-4
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-5
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-6
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-7
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-8
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-9
YIHUA 948D 3-In-1 High Frequency Electric Suction Tin Gun - CN Plug / 220V Voltage-10
