For just $ 26.38 , buy YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station – 220V from the wholesale webshop online.

Specifications

Retail Packaging Colored Box
Voltage AC 220V
Gross Weight 2.464kg
Volume Weight 0.333kg
Length 15.000cm
Width 11.000cm
Height 9.000cm
Weight 2.200kg
With Retail Packaging Yes

Product Description

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station – 220V
  • The YIHUA-939D employs microchip-PID programming for high-speed 200ms real-time tracking of soldering iron tip temperatures, with real-time calibration! It comes with fast temperature compensation function, which ensures stable temperature and it can reduce greatly the temperature error. The constant temperature digital soldering station suits to all kinds of environmental extremes. It also has automatic fault detection and alarm functions

  • The unit employs an imported high power heating element for fast temperature compensation, especially useful for large joint welding, welding repairs, and difficult desoldering work, in additional to general welding applications and soldering small sized components

  • An anti-static design effectively prevents damage to delicate components

  • Soldering iron handle wire employs a high temperature silicone wire (undamaged when 300o soldering tip contacts silicone wire for 30 seconds)

  • This soldering station comes with a blue ferroalloy soldering iron base for durability

  • This product is CE approved

  • Note: The default plug of power cord is CN standard. And a plug adapter would be included according to your country.

Specification:

  • Model: YIHUA-939D

  • Rated voltage: AC 220V±10% 50Hz

  • Output power: 75W

  • Working environment: 0~40°C  relative humidity <80%

  • Storage environment: -20~80°C relative humidity <80%

  • Operating voltage: AC 26V±10% 50Hz

  • Temperature range: 200°C~450°C

  • Temperature stability: ±3°C(Static)

  • Display type: Red LED display

  • Temperature correction type: Digital PID correction

  • PID Temperature correction cycle: 200ms

  • Heating elements: Imported heater

  • Tip-to-Ground impedance: <2Ω

  • Tip-to-Ground voltage: <2mV

  • Dimensions: 14.5 x 12 x 8cm

  • Weight: 2.16kg

Package included:

  • 1 x YIHUA 939D Digital Display Soldering Station
  • 1 x Soldering Iron Handle (Include Iron Tips and Heater)
  • 1 x Iron Holder
  • 1 x High Temperature Resistant Sponge
  • 1 x Manual
  • 1 x Power Plug

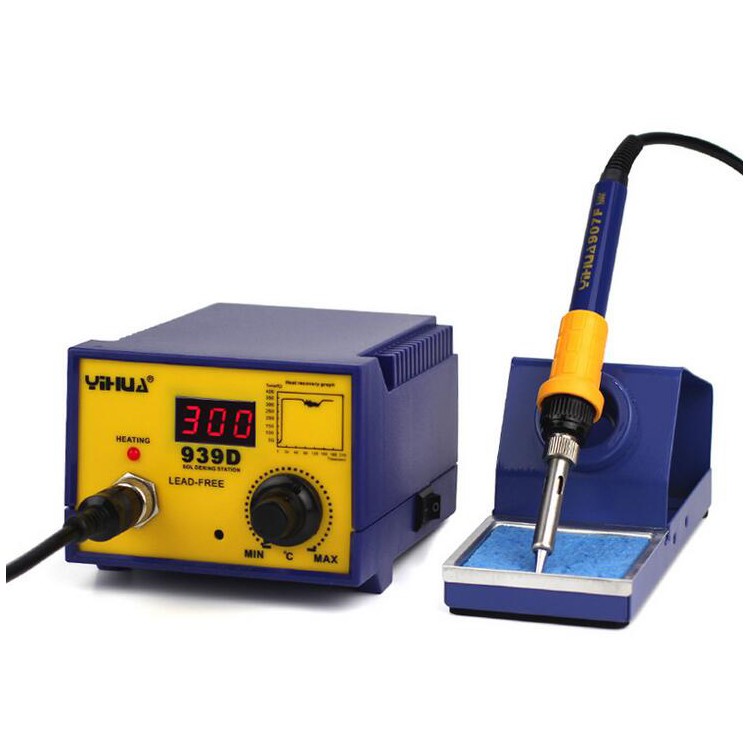

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station - 220V-1

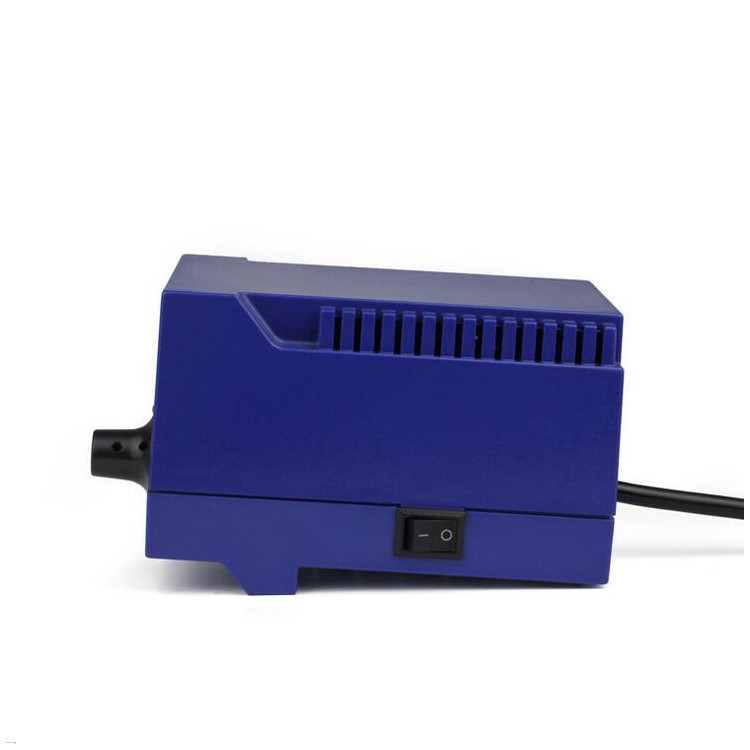

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station - 220V-2

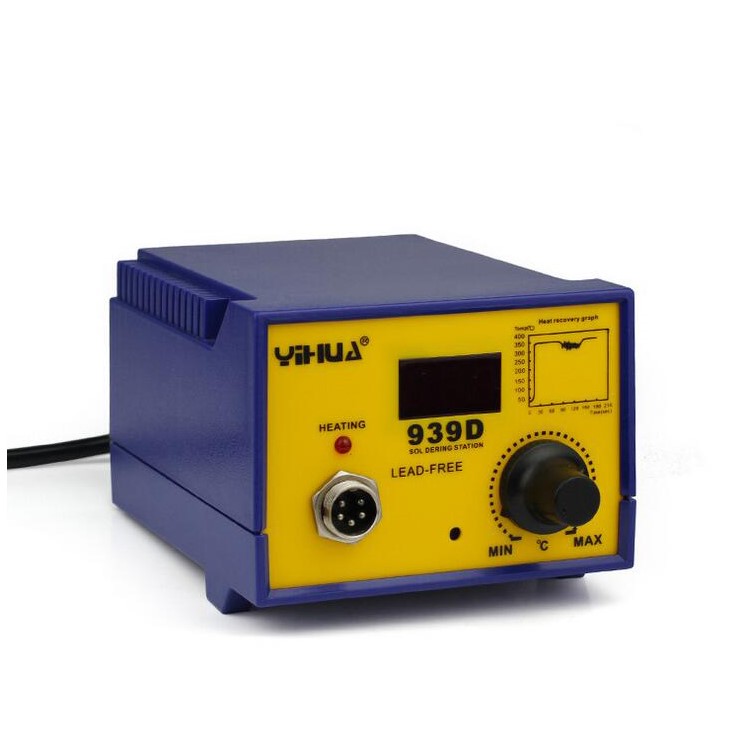

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station - 220V-3

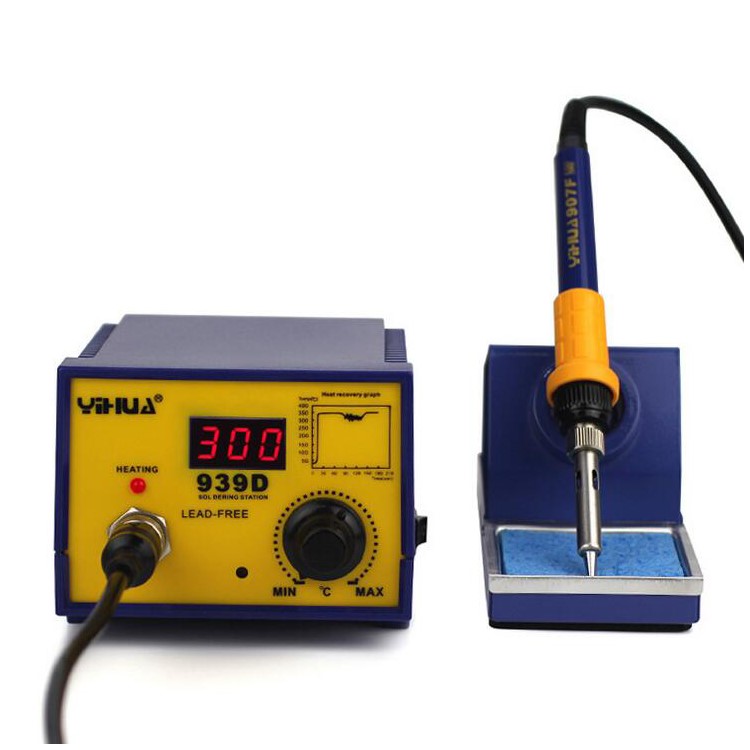

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station - 220V-4

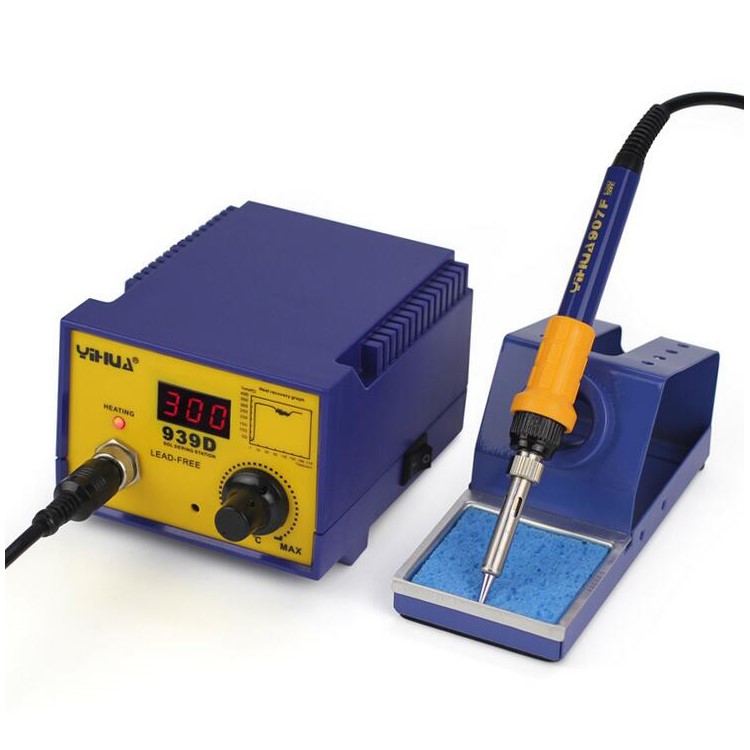

YIHUA 939D High-power Digital Display Soldering Station Anti-static Welding Station - 220V-5
