Price:
$ 114.37

Free Shipping

For just $ 114.37 , buy YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply – CN Plug / AC 220V from the wholesale webshop online.

Specifications

Certificate CCC, CE, FCC, RoHS
Color Blue
Plug CN Standard Plug
Retail Packaging Colored Box
Voltage AC 220V
Gross Weight 4.424kg
Volume Weight 1.307kg
Length 25.300cm
Width 18.600cm
Height 12.400cm
Weight 3.950kg
With Retail Packaging Yes

Product Description

YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply – CN Plug / AC 220V
  • Rework station + hot air gun + power supply 3-in-1 design

  • Glass fiber double-sided board, with the latest SMD technology

  • 4-LED display to show the temperature of hot air gun and soldering station, voltage and current

  • 4-digit display for output current, more precise

  • Coupled with the PID program, the temperature can be precisely controlled

  • The handle wire uses high temperature-resistant silicone material

  • Equipped with 5V USB quick output interface, can charge cellphone or MP3 etc digital devices

  • CE, RoHS, FCC and CCC certified, safe and reliable

Functions:

  • Celsius / Fahrenheit temperature display

  • Digital temperature correction

  • Manual & automatic function switch for hot air gun

  • 10 minutes sleep function for soldering iron

  • Power supply output & test switch

Specification:

  • Model: 853D

  • Power consumption: ≤800W

  • Dimensions: 253mm x 186mm x 124mm±5mm

  • Weight: 3.95kg

  • Working temperature: 0°C ~ 40°C / 32°F ~ 104°F

  • Storage temperature: -20°C ~ 80°C / -4°F ~ 176°F

  • Storage humidity: 35% – 45%

  • Hot Air Gun:

  • Power: 650W

  • Temperature range: 100°C ~ 480°C / 212°F ~ 896°F

  • Temperature stability: ±1°C (static)

  • Airflow type: brushless fan gentle wind

  • Airflow: ≤120L/min

  • Handle wire material: silicone

  • Rework Station:

  • Power: 60W

  • Temperature range: 200°C ~ 480°C / 392°F ~ 896°F

  • Temperature stability: ±2°C (static)

  • Iron heater material: imported high-power heater

  • Tip to ground voltage: <2mV

  • Tip to ground impedance: <2Ω

  • Handle wire material: silicone

  • Power Supply:

  • Power: 30W

  • Output Voltage: DC 0-15V

  • Output Current: 0-2A

  • Load stability: <0.01%±2mv

  • Temperature coefficient: <300ppm/°C

  • Ripple dB: <1mvrms (virtual value)

Package included:

  • 1 x Soldering Rework Station with Hot Air Gun
  • 1 x Soldering Iron
  • 1 x Soldering Iron Stand
  • 1 x Cleaning Sponge
  • 4 x Nozzles (φ5, φ8, φ10, 13×13)
  • 1 x IC Extraction Tool
  • 1 x Test Lead Cable
  • 1 x Power Cord
  • 1 x User Manual

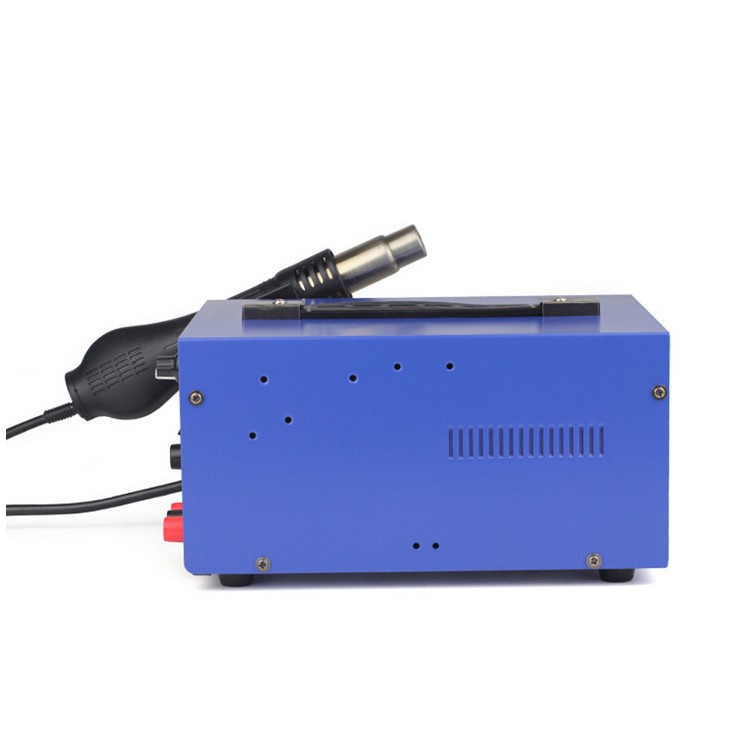

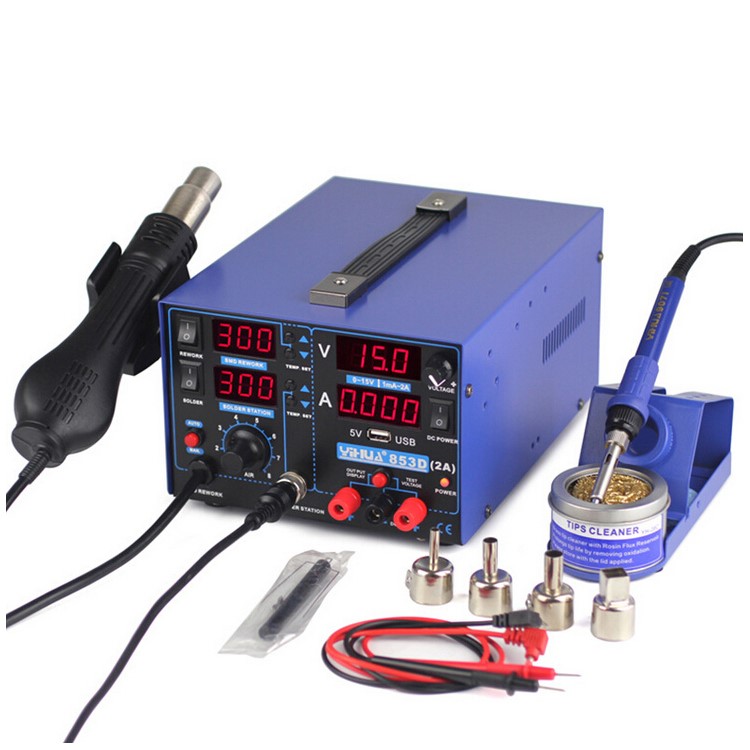

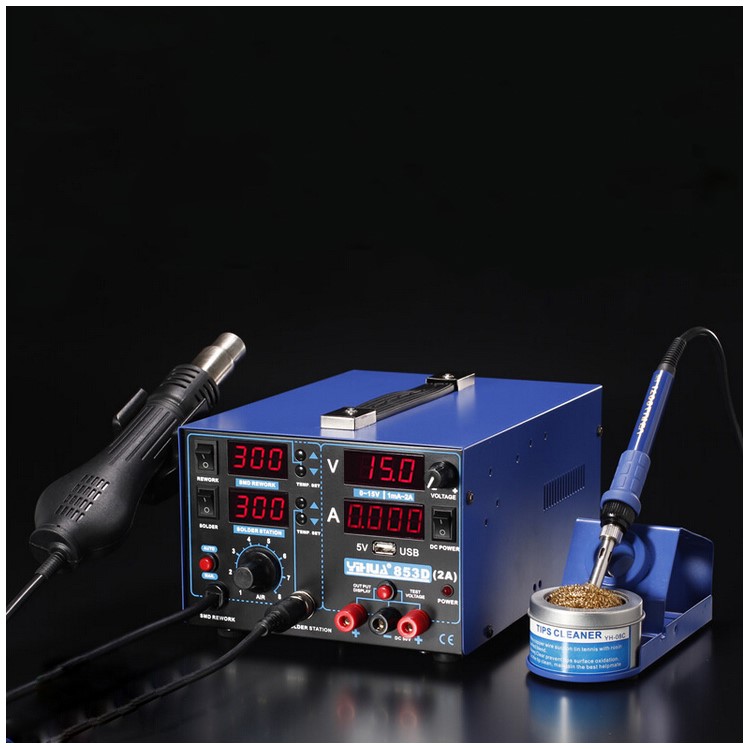

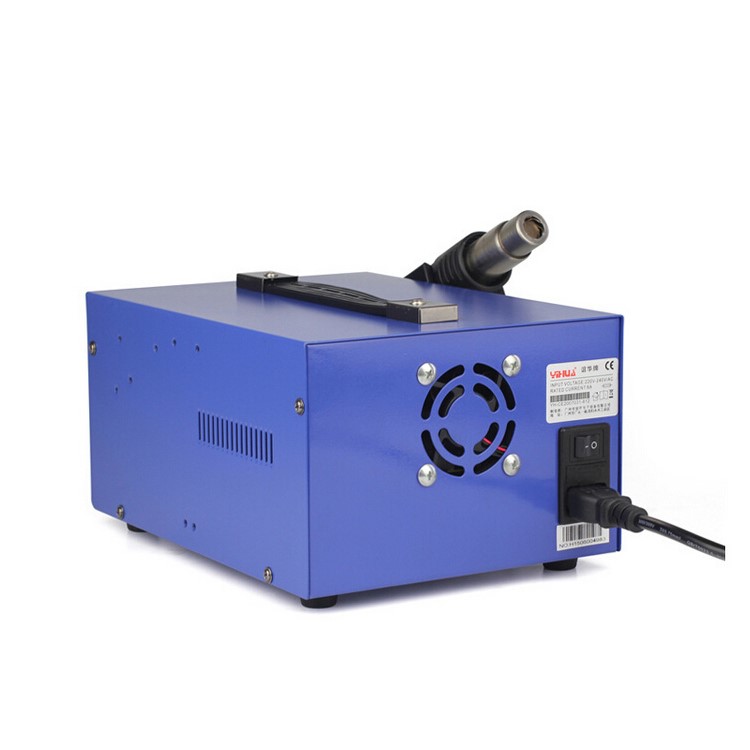

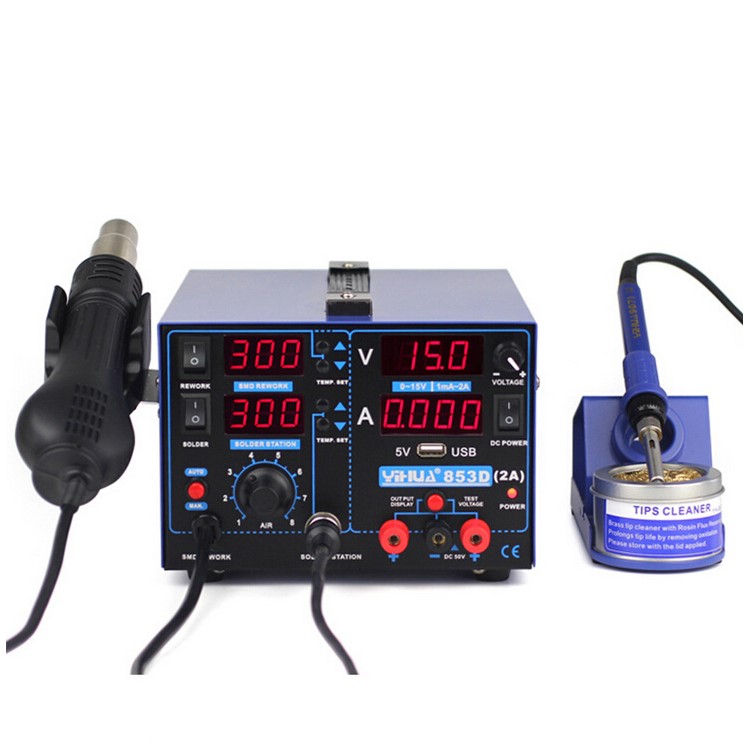

YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply - CN Plug / AC 220V-1
YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply - CN Plug / AC 220V-2
YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply - CN Plug / AC 220V-3
YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply - CN Plug / AC 220V-4
YIHUA 853D 2A USB 3-In-1 4-LED Soldering Rework Station Hot Air Gun with Power Supply - CN Plug / AC 220V-5
