Price:
$ 92.08

Free Shipping

For just $ 92.08 , buy YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply – CN Standard Plug / 110V from the wholesale webshop online.

Specifications

Certificate CCC, CE, FCC, RoHS
Plug CN Standard Plug
Retail Packaging Colored Box
Voltage AC 110V
Gross Weight 2.576kg
Volume Weight 1.163kg
Length 26.800cm
Width 12.500cm
Height 15.500cm
Weight 2.300kg
With Retail Packaging Yes

Product Description

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply – CN Standard Plug / 110V
  • Cellphone radio frequency detection function, with 4.2V 2A/19V 5A fixed output

  • Function set lock effectively prevents change of output parameters or change caused by misuse

  • Three storage memories can store three sets of frequently used parameters for easy retrieval

  • Output state memory function: when the memory switch is turned on, it can retain the output status before the power switch is turned off

  • High voltage stability, small ripple factor, excellent short circuit protection, and over-current protection

  • Designed for use in laboratories, schools, production lines, and electronic repair

  • With CE, RoHS, FCC, and CCC certification

Specification:

  • Model:  3005D

  • Output power:  150W

  • Voltage: 220V AC±10% 50H

  • Voltage Output: 0-30V

  • Current Output: 0-5A

  • Operating temperature: 0°C -40°C

  • Relative humidity < 80%

  • Storage temperature: -10C – 70C

  • Relative humidity < 70%

  • Voltage output accuracy: ±0.02V

  • Voltage ripple coefficient: <300PPM/C

  • Ripple noise:<1% Vrms

  • OCP current value: 0-5A, accuracy: ±0.01A

  • Signal frequency: 30-1800MHz

  • Signal intensity: >10dBM

  • Size: 268 x 125 x 155±5mm (L x W x H)

Package included:

  • 1 x YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply
  • 1 x Power Cord
  • 1 x User Manual

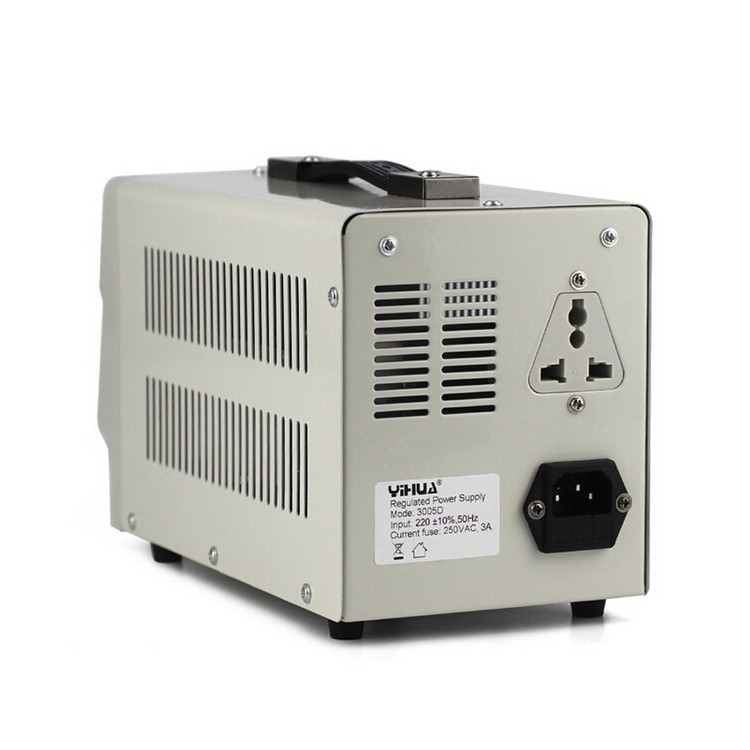

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply - CN Standard Plug / 110V-1

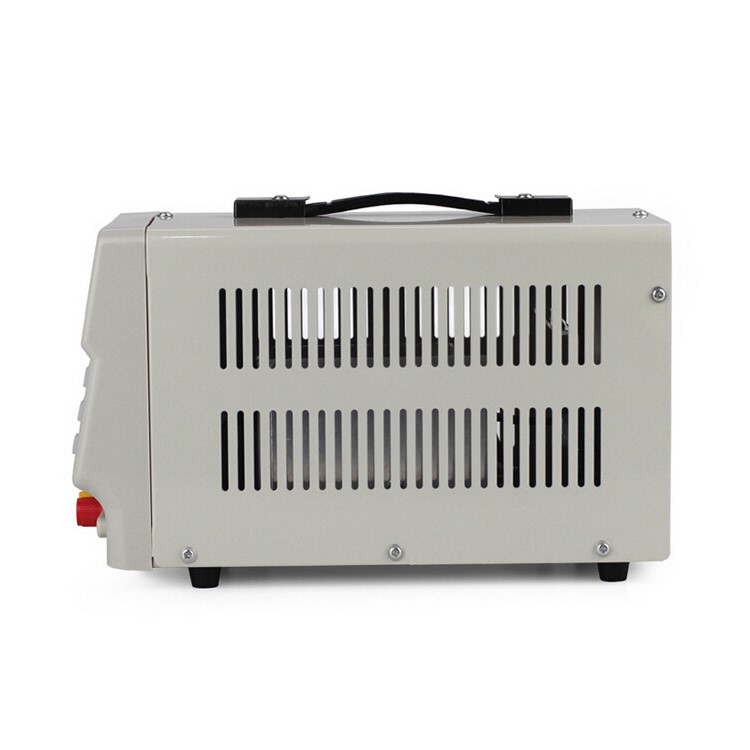

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply - CN Standard Plug / 110V-2

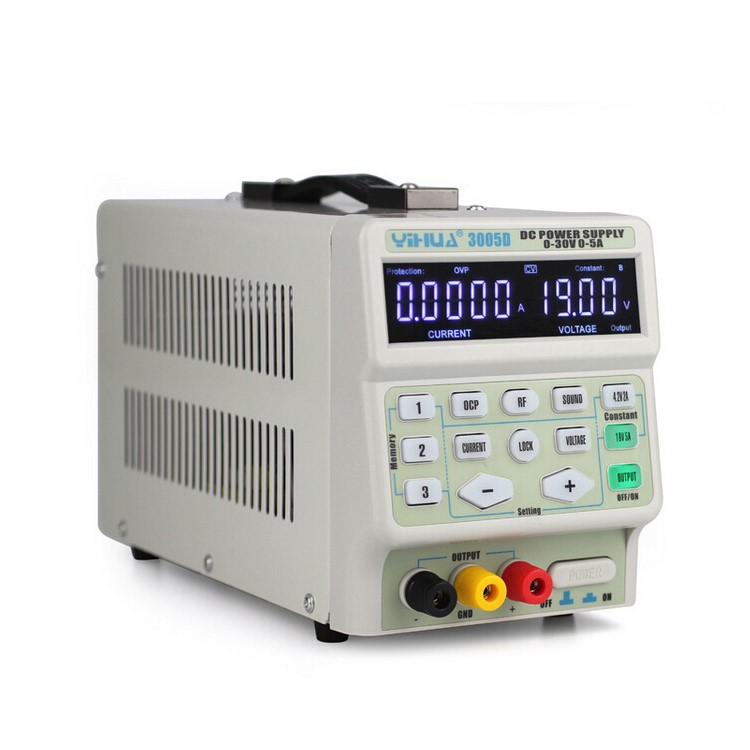

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply - CN Standard Plug / 110V-3

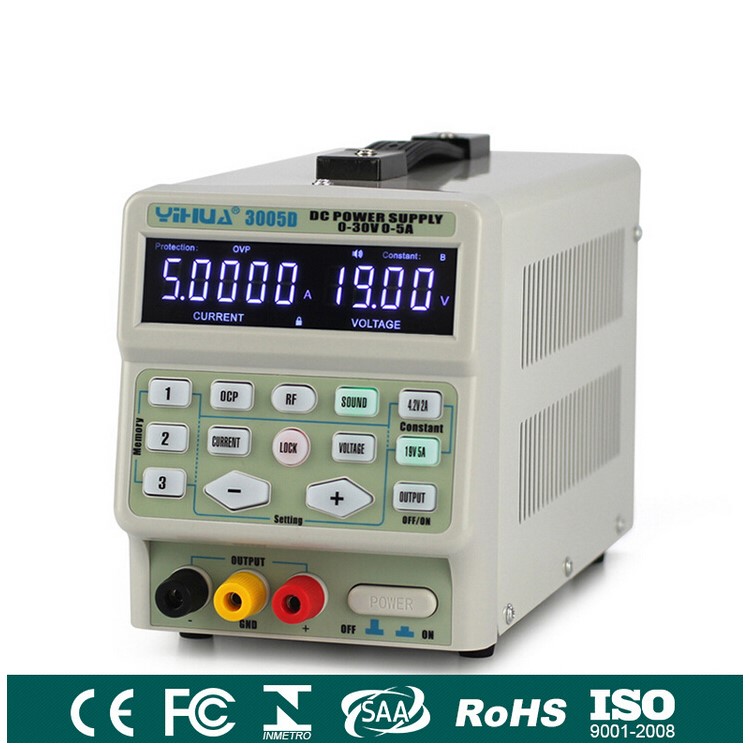

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply - CN Standard Plug / 110V-4

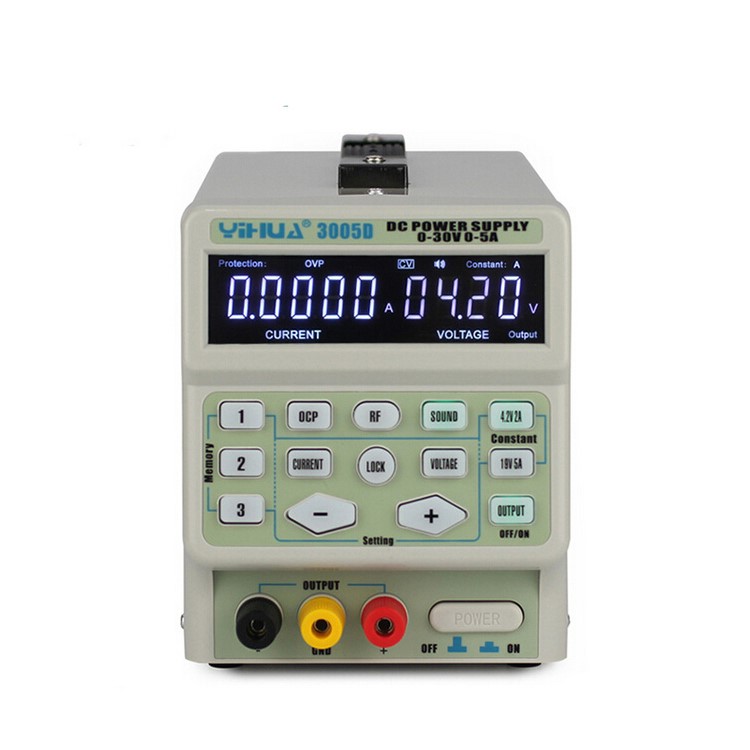

YIHUA 3005D 30V 5A Digital Adjustable Regulated Stabilizer DC Power Supply - CN Standard Plug / 110V-5
