Price:
$170.25

Free Shipping

For just $170.25 , buy UNI-T UTi120S 2.4 inch TFT Digital Display Industrial Hand-Held Infrared Thermal Imager from the wholesale webshop online.

Product Description

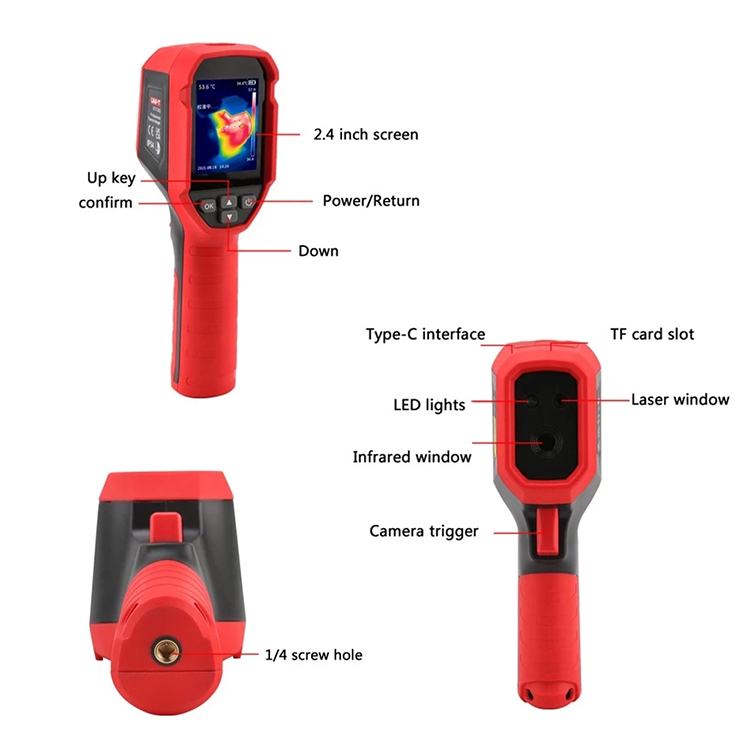

UNI-T UTi120S 2.4 inch TFT Digital Display Industrial Hand-Held Infrared Thermal Imager
  • Easy to use, rugged enough to pass IP54 and 2m drop tests

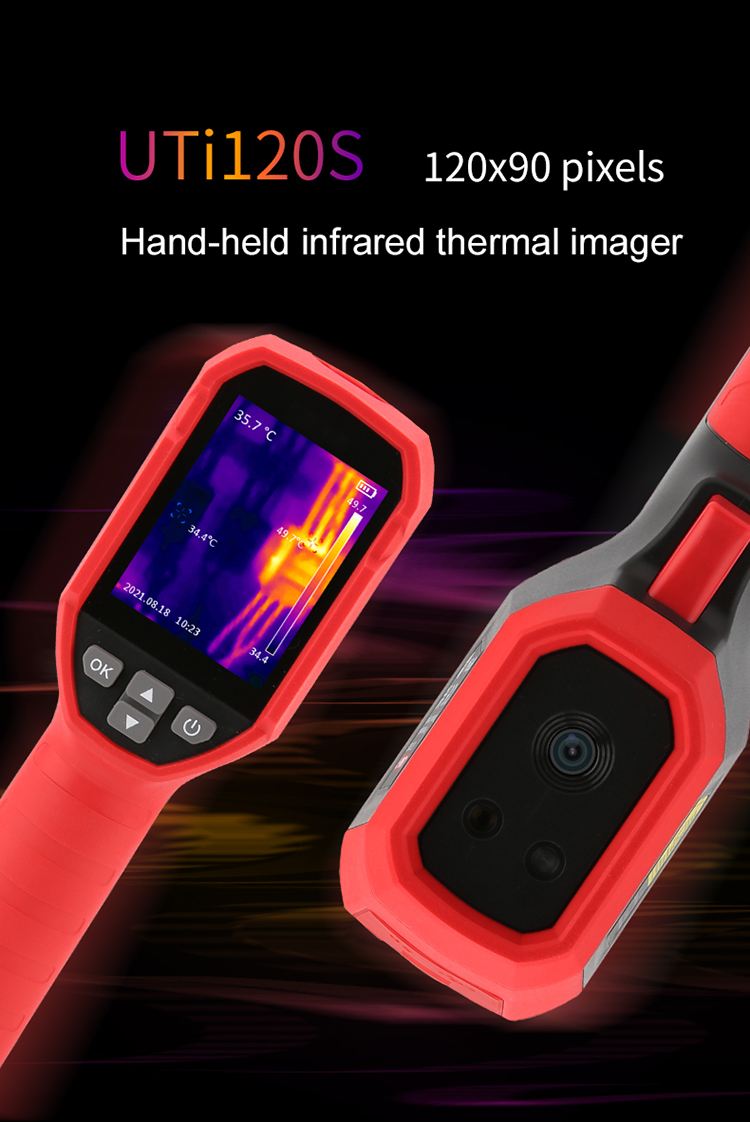

  • 120×90 pixels hand-held infrared thermal imager

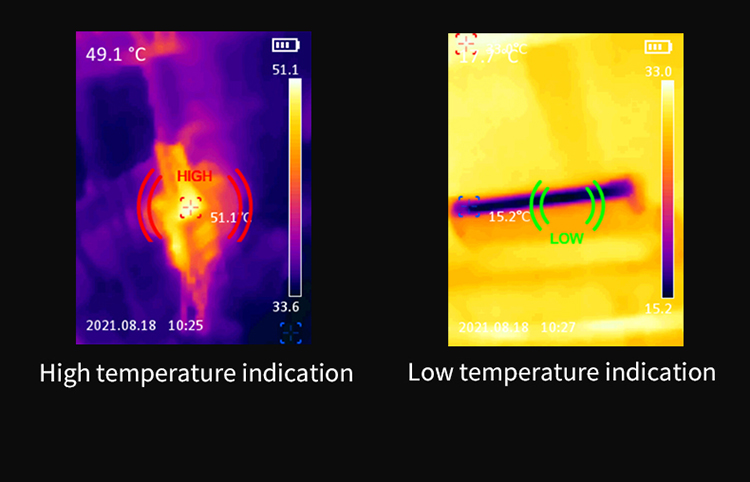

  • With high and low temperature alarm

  • Measuring range from -20 to 400℃

Specification:

General Characteristics
IR resolution 120×90 pixels

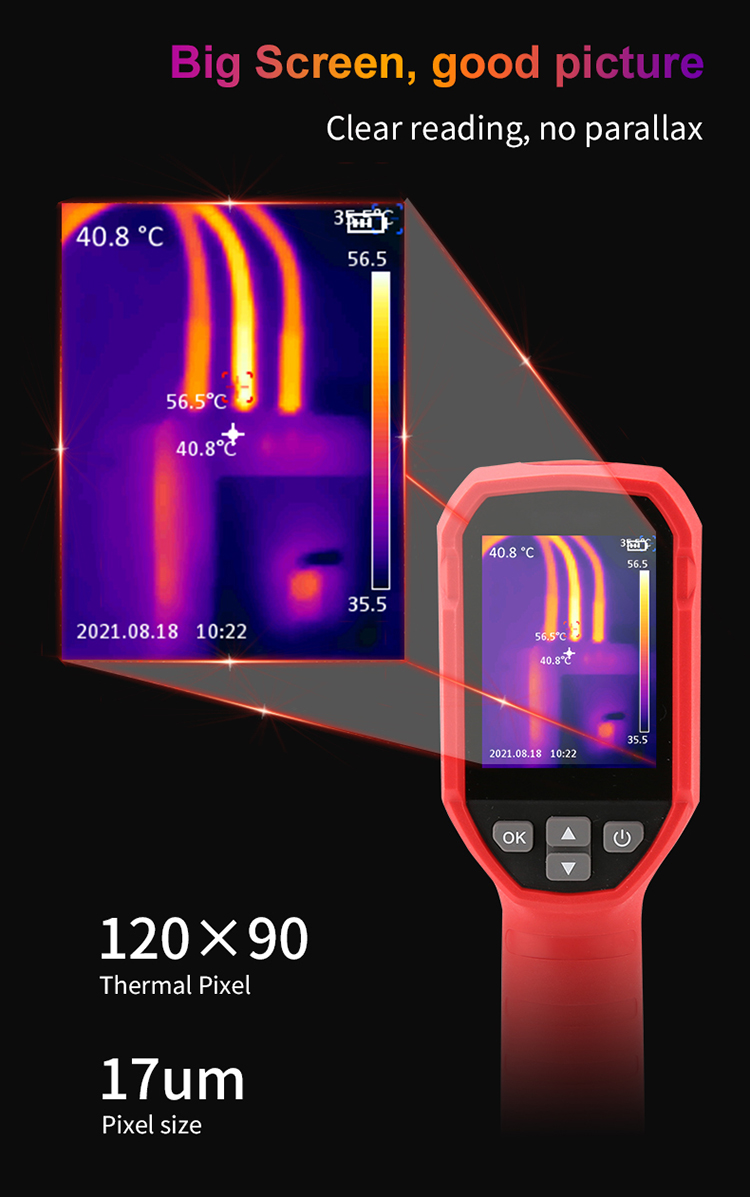

Screen Display 2.4" TFT
Field of view (FOV) 50°x38°

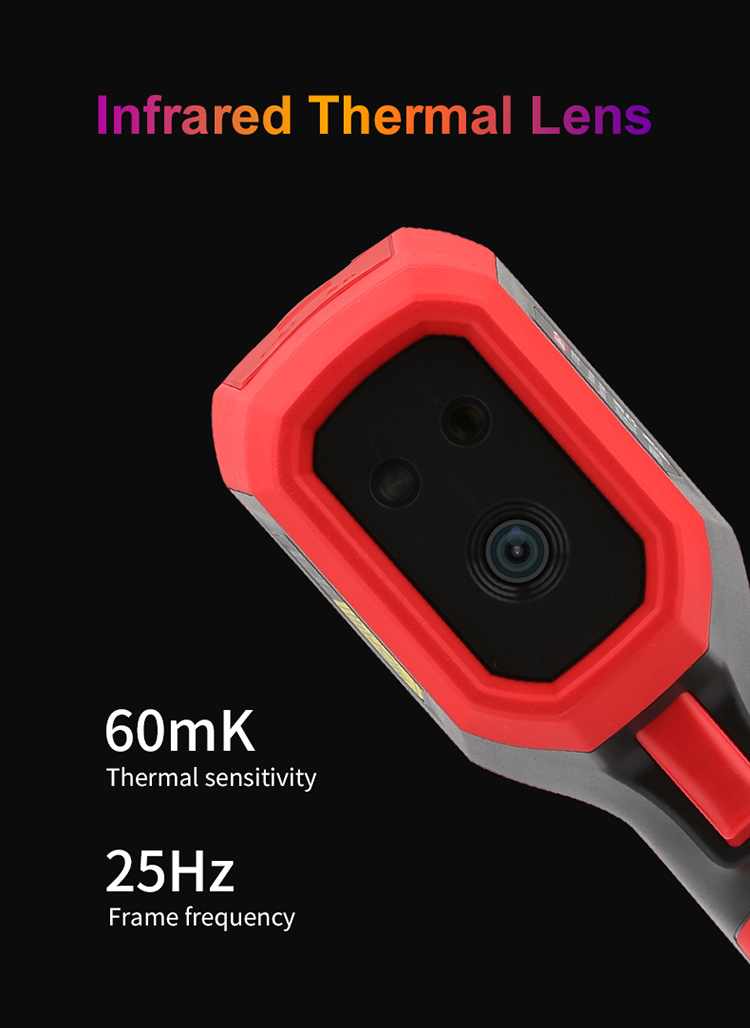

Thermal sensitivity (NETD) 60mk
Spatial resolution (IFOV) 7.3mrad
Focus Focus free
Frame rate 25Hz
Object Temperature range  -20~400℃
Measurement accuracy ±2℃ or ±2% whichever is greater

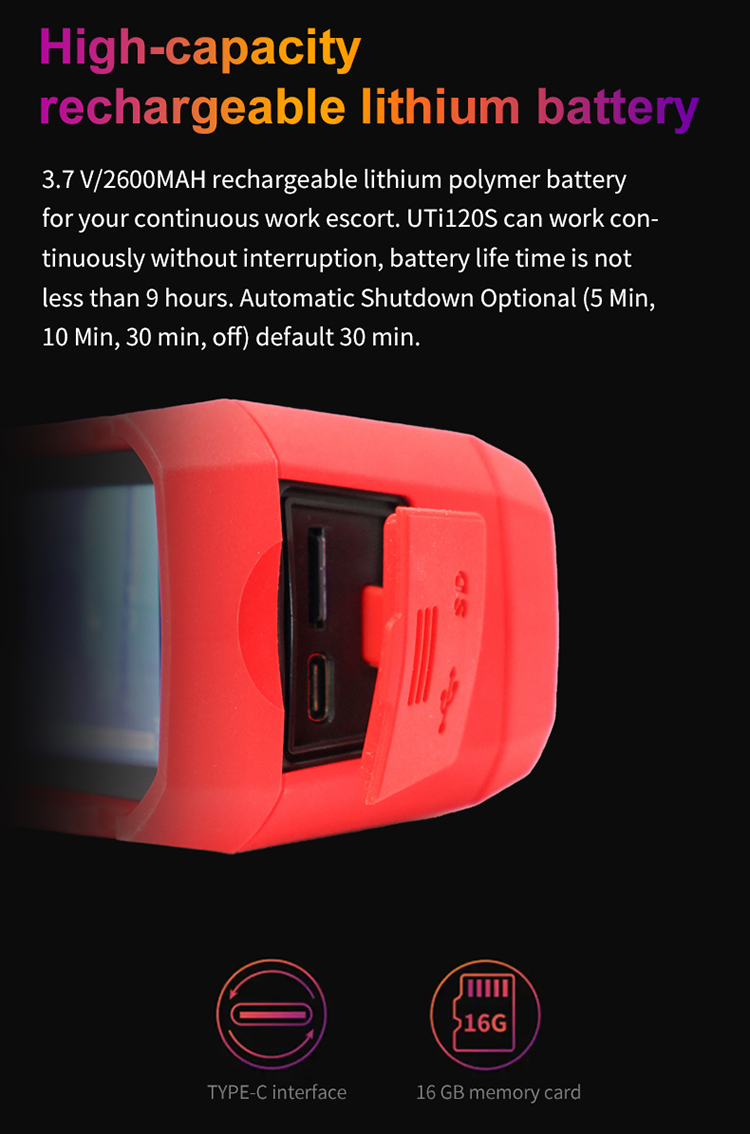

Battery operating time  8hours
Functions
Palettes 6
Emissivity Adjustable (0.01-0.99)
Image Model Thermal
LED Yes

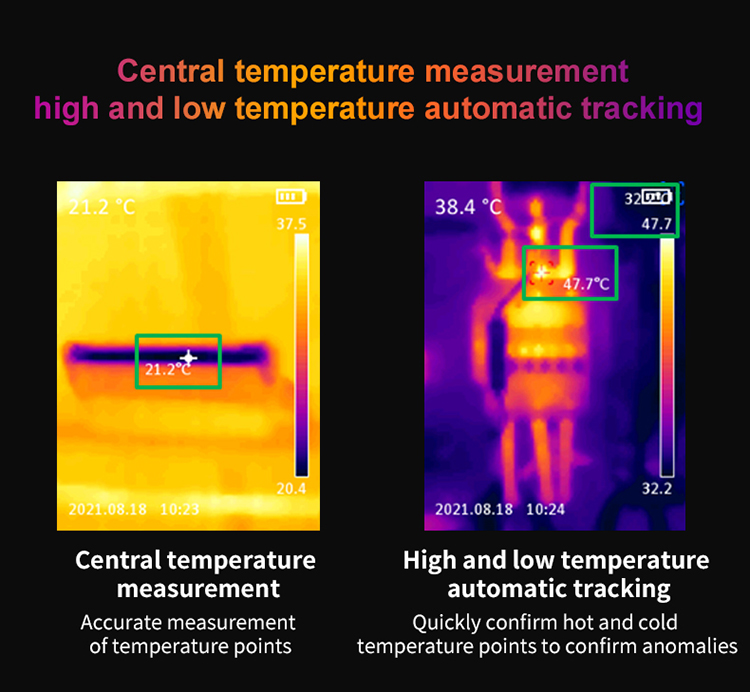

Auto tracking for Lo/Hi temperature Yes

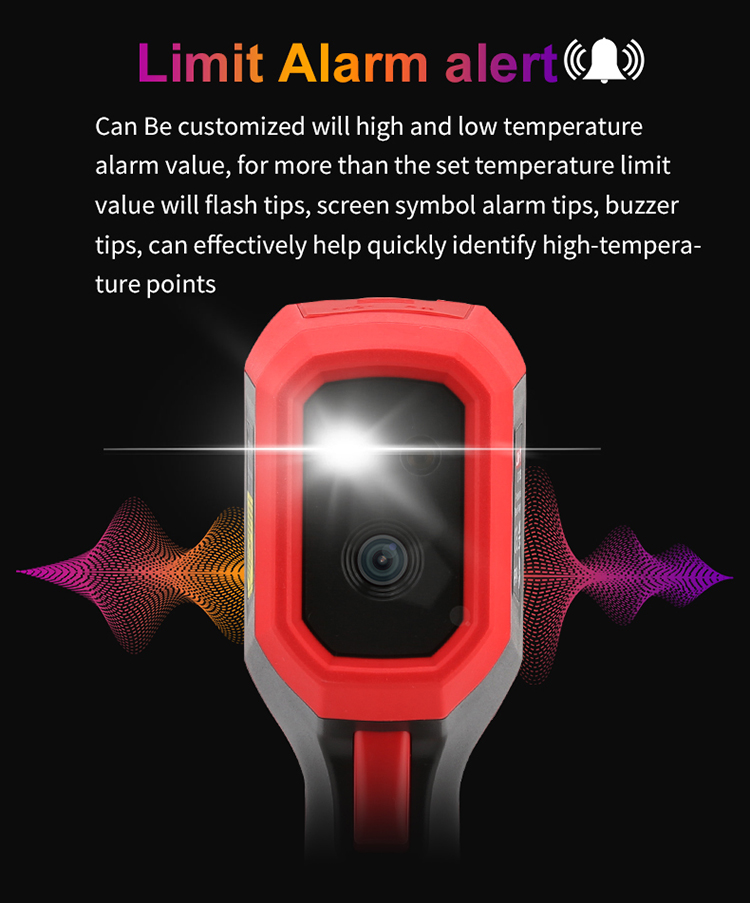

Alarm Yes
Storage 16G TF Card

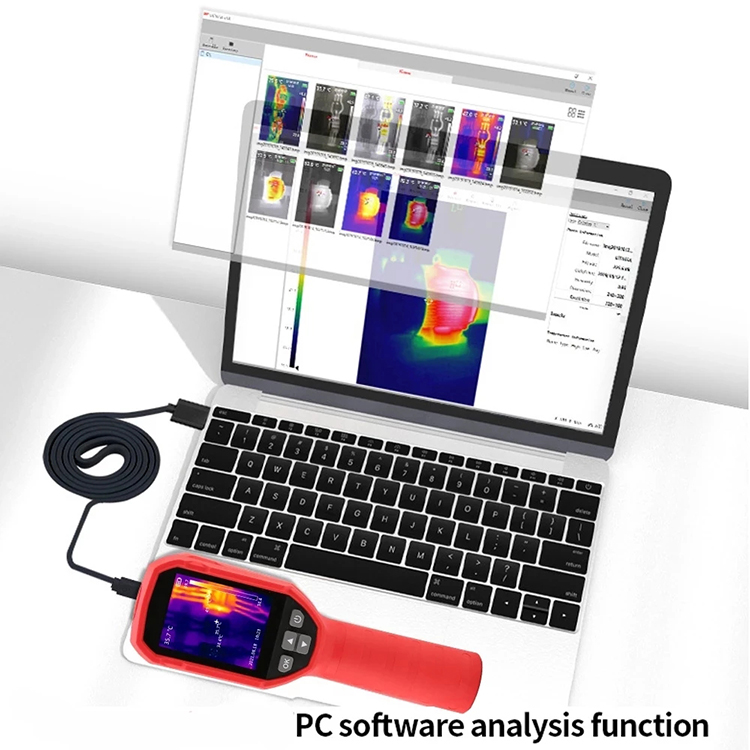

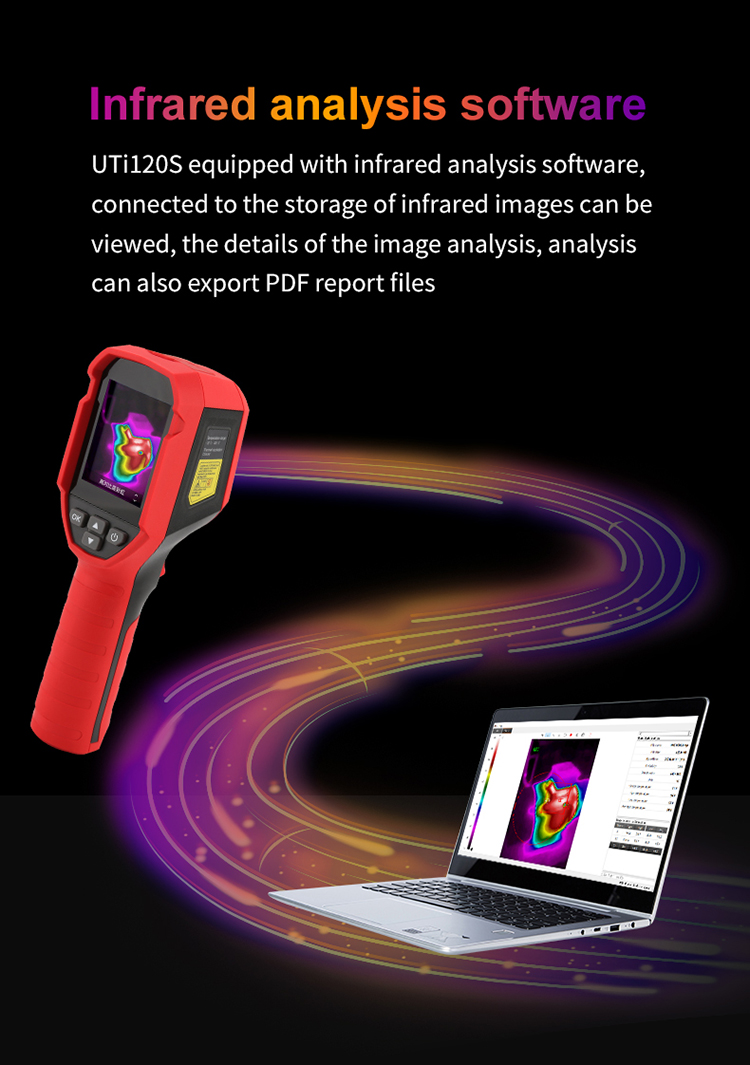

PC software Analysis
Protection IP54/2m
Communication interface Type-C
Package
Product net size 196 x 63 x 75mm
Product net weight 310g

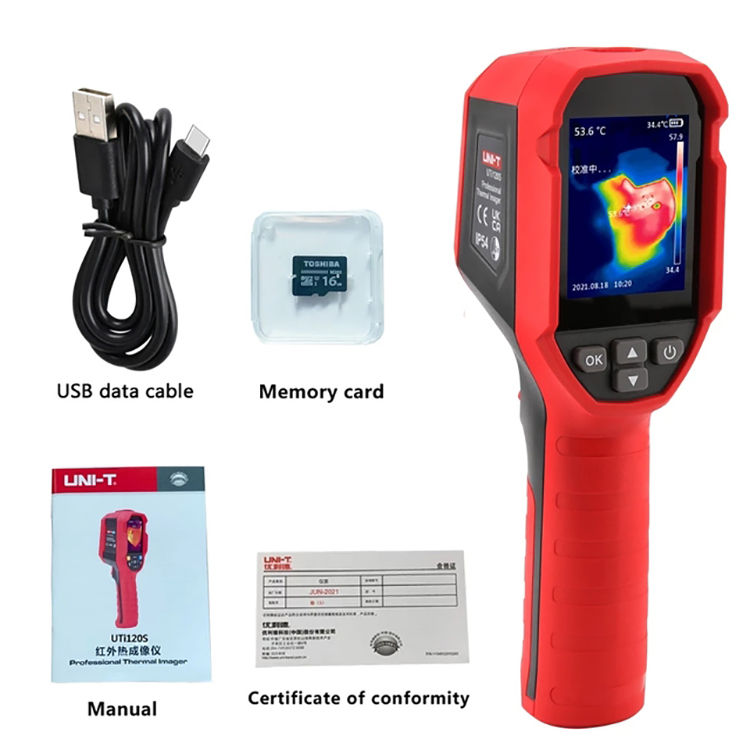

Package included:

  • 1 x Infrared Thermal Imager
  • 1 x Memory Card
  • 1 x Cable
  • 1 x Certificate
  • 1 x English and Chinese User Manual

Specifications

Brand N/A
Retail Packaging Colored Box
Gross Weight 0.622kg
Volume Weight 0.691kg
Package Length 24.500cm
Package Width 14.000cm
Package Height 9.000cm
One Package Weight 0.555kg
With Retail Packaging Yes
