Price:
$ 26.57

Free Shipping

For just $ 26.57 , buy TENDA TEG1008D 8 Ports 1000M Gigabit Ethernet Switch 10/100/1000Mpbs Ethernet Network Switch – EU Plug from the wholesale webshop online.

Specifications

Certificate CE, FCC, RoHS
Plug EU Plug
Retail Packaging Colored Box
Gross Weight 0.694kg
Volume Weight 1.344kg
Length 20.000cm
Width 20.000cm
Height 15.000cm
Weight 0.620kg
With Retail Packaging Yes

Product Description

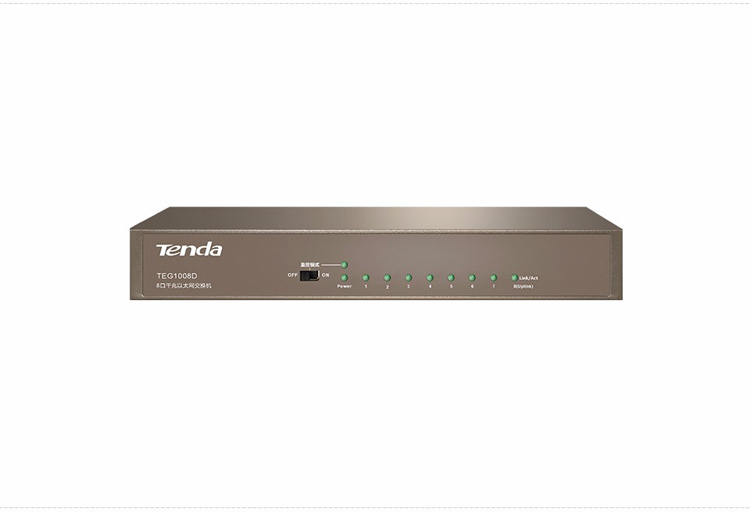

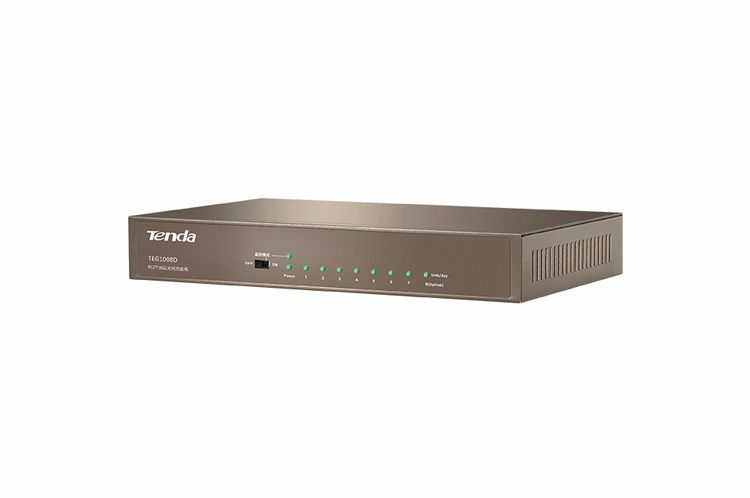

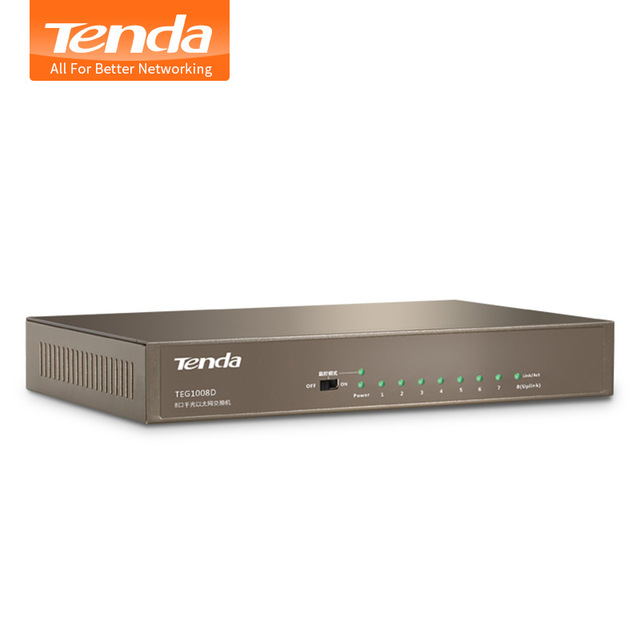

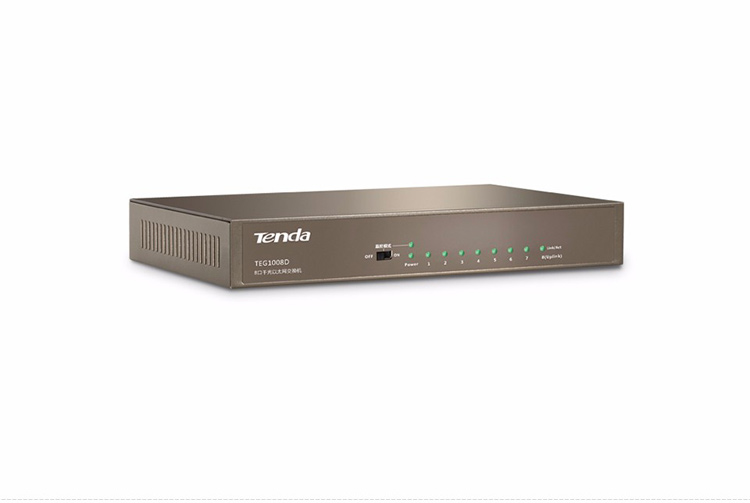

TENDA TEG1008D 8 Ports 1000M Gigabit Ethernet Switch 10/100/1000Mpbs Ethernet Network Switch – EU Plug

TEG1008D is an unmanaged gigabit switch with 8 10/100/1000 Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance. Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With built -in latest Broadcom chip, fan-less design, TEG1008D is the ideal choice for small & medium enterprises, schools, small offices to upgrade gigabit network.

  • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standard

  • Provides 8 10/100 / 1000Mbps auto-negotiation RJ45 ports

  • Plug and play without configuration

  • Provides up to 16Gbps back panel bandwidth and supports non-blocking wire-speed forwarding

  • Provides LEDs to easily monitor link speed, activity and find problems in time

  • Supports IEEE802.3x full duplex flow control and half duplex backpressure flow control

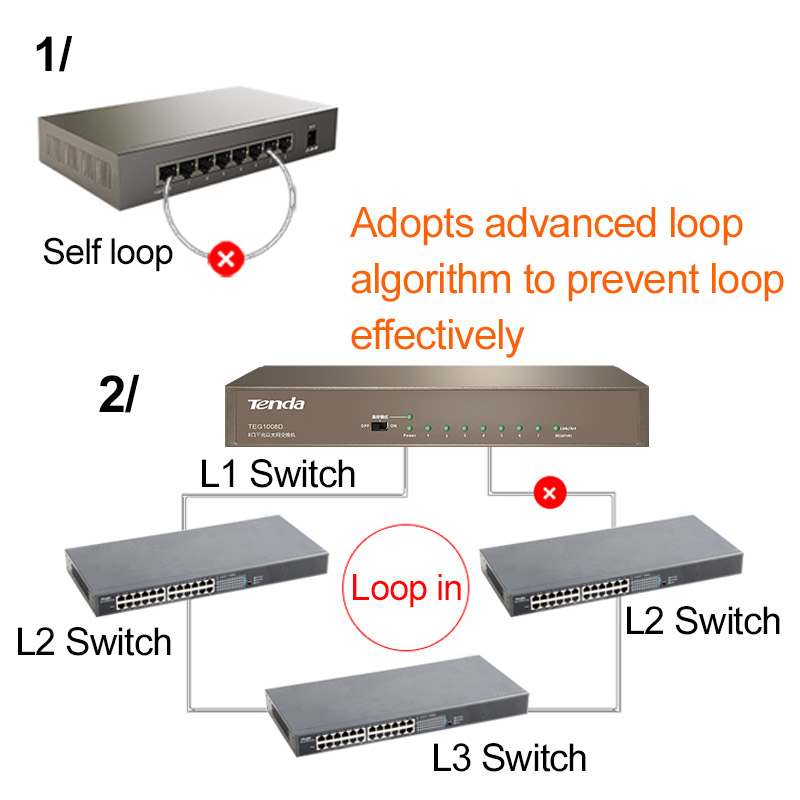

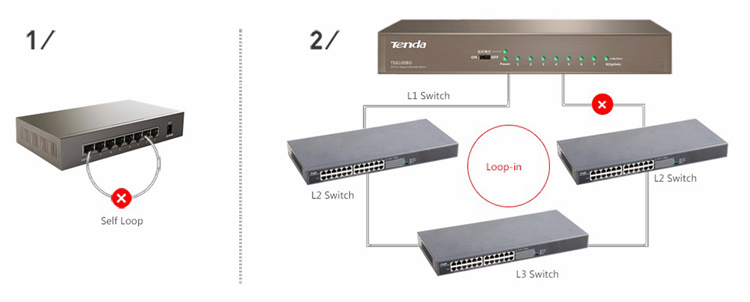

  • Supports loop detection and loop prevention

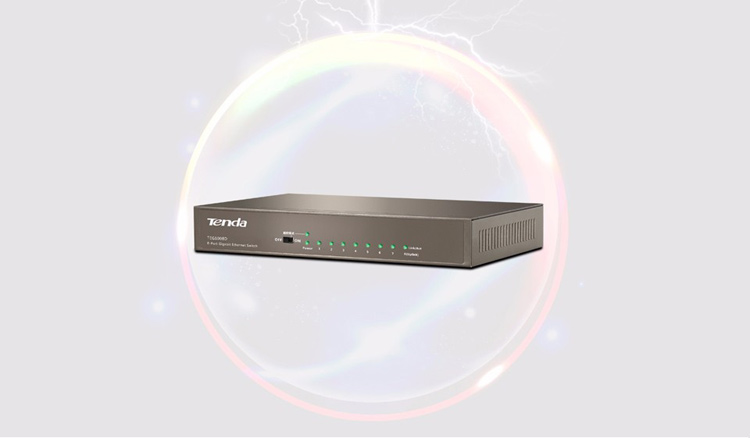

  • Supports up to 4KV lightning-proof for each port

  • Support desk & wall-mounting installation

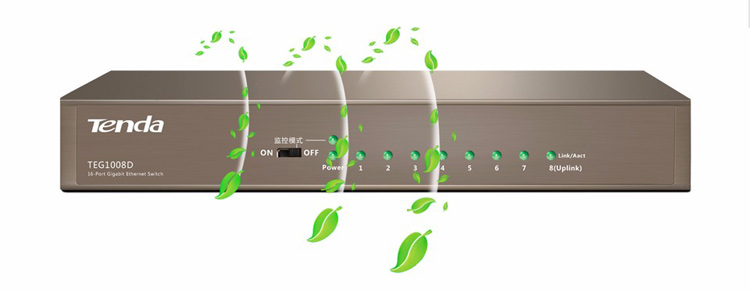

  • Full-metal & larger shell ensure effective cooling

Specification:

  • Model: TEG1008D

  • Standards: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x

  • Transmission rate Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)

  • Network media: Category 5 or more recommended (≤ 100m) UTP / STP

  • Port: 8 * 10/100 / 1000Mbps adaptive RJ45 port

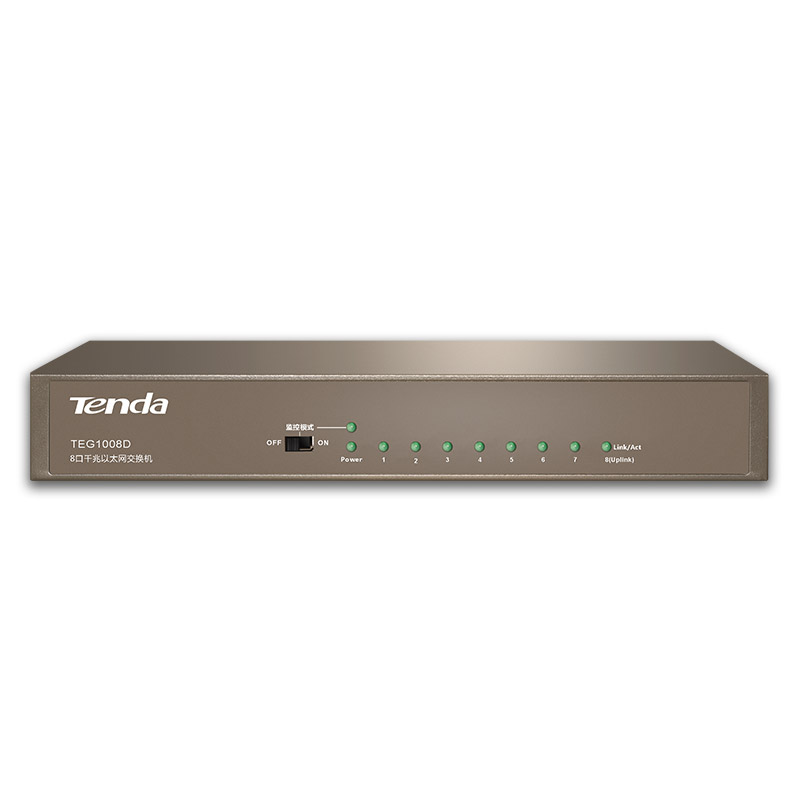

  • Indicators: 1 * Power light, 1 * monitor mode light, 8 * Link / Act lamp

  • Forwarding and filtering: Store and forward

  • MAC address table: 4K

  • Throughout: 11.9Mbps

  • MAC address learning: TRUE

  • Packet forwarding rate: 10BASE-T: 14881pps / port 100BASE-TX: 148810pps / port 1000BASE-T: 1488100pps / port

  • Backplane bandwidth: 16Gbps

  • Power input: 100 ~ 240V AC, 50 / 60Hz

  • Power output: 9V DC, 1A

  • Temperature operating temperature: -10°C ~ 45°C Storage temperature: -40°C ~ 70°C

  • Humidity operating humidity: 10% to 90% RH non-condensing

  • Storage humidity: 5% to 90% RH non-condensing

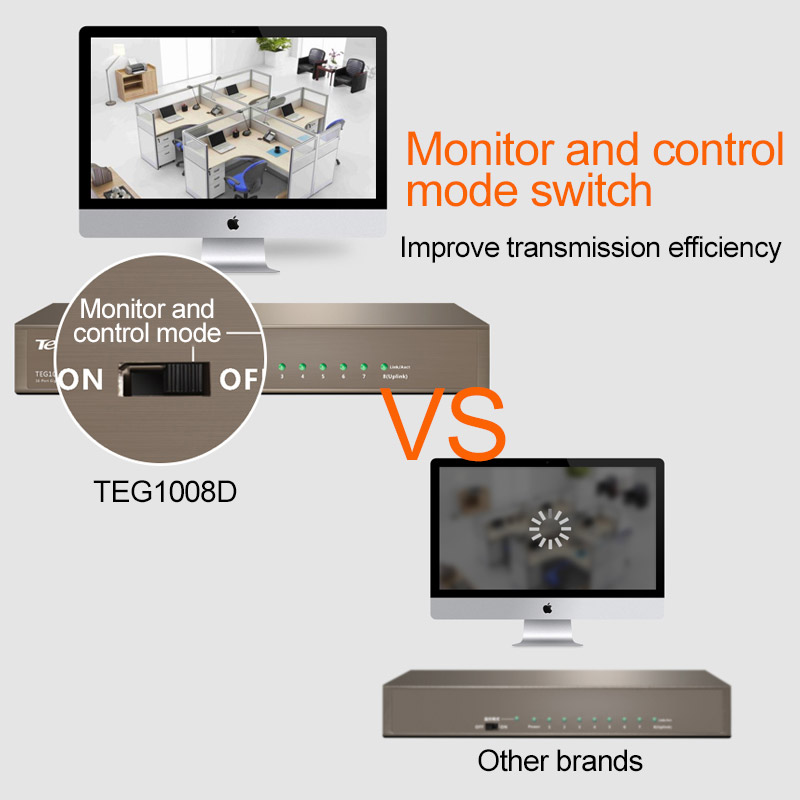

  • Port anti-ring: Through the front panel monitoring mode switch to control.

  • ON: Switch ports 1-7 are isolated from each other, but are interworking with port 8

  • OFF: Interfaces of the switch 1-8 are interconnected.

  • Port lightning protection: support port lightning 4KV, support ring or lower loop protection

  • Overall dimensions: (L x W x H) 186.7mm x 106.7mm x 33.3mm

  • Certification: CE, FCC and RoHS

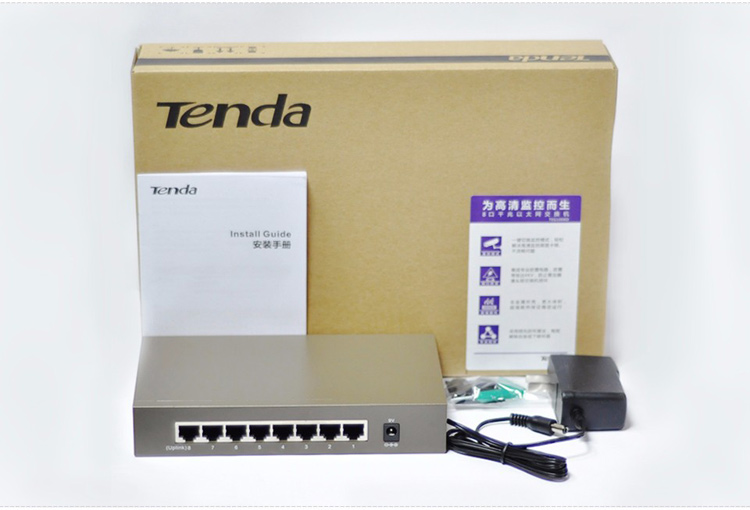

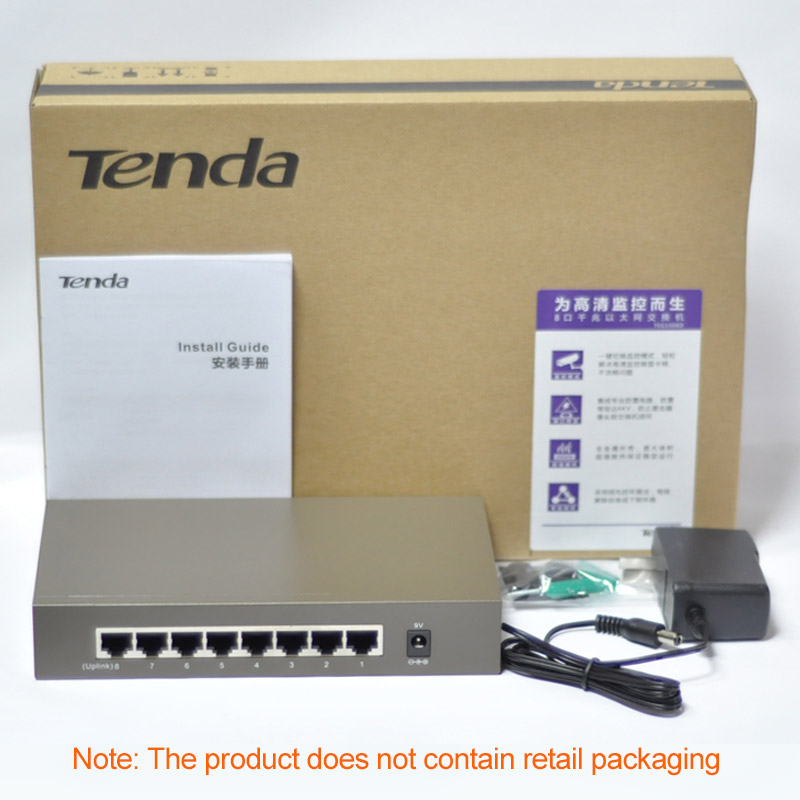

Package included:

  • 1 x TENDA TEG1008D 8 Ports 1000M Gigabit Ethernet Switch
  • 1 x Power Adapter
  • 1 x Quick Installation Guide
  • Accessories only, device not included
