Price:
$ 14.09

Free Shipping

For just $ 14.09 , buy TENDA TEG1005D 5 Ports 1000M Gigabit Ethernet Switch 10/100/1000Mpbs Ethernet Network Switch – EU Plug from the wholesale webshop online.

Specifications

Certificate CE, FCC, RoHS
Plug EU Plug
Retail Packaging Colored Box
Gross Weight 0.293kg
Volume Weight 0.672kg
Length 20.000cm
Width 15.000cm
Height 10.000cm
Weight 0.262kg
With Retail Packaging Yes

Product Description

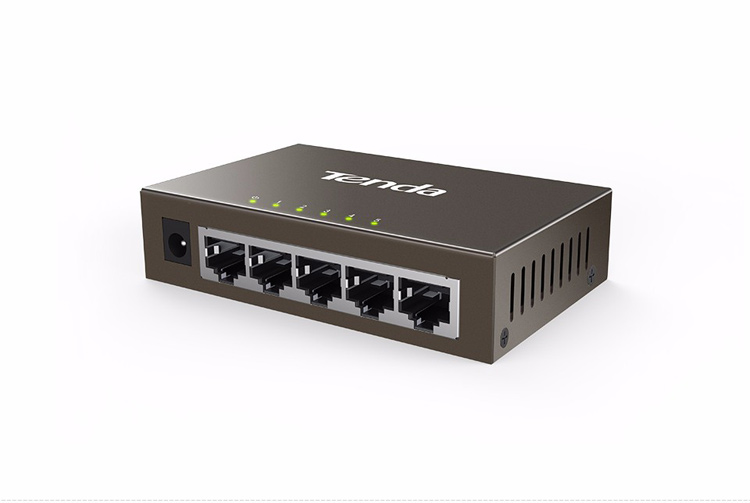

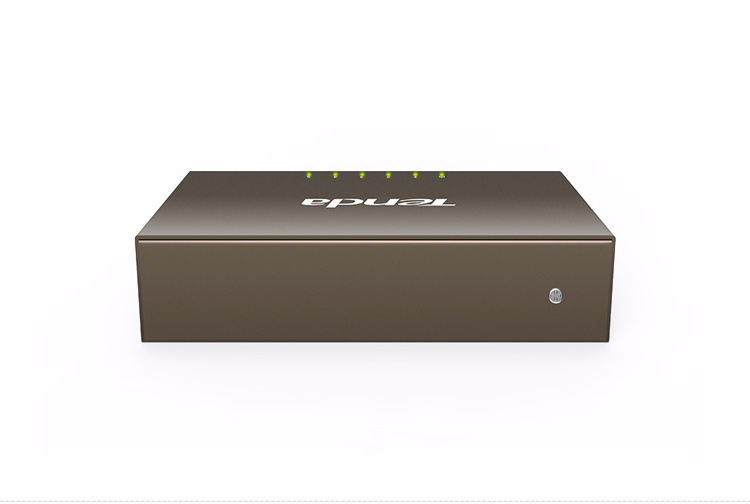

TENDA TEG1005D 5 Ports 1000M Gigabit Ethernet Switch 10/100/1000Mpbs Ethernet Network Switch – EU Plug
  • Integrated with professional a lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability

  • Extraordinary heat dissipation: a housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance

  • 5 * 10/100/1000Mbps auto-negotiation RJ45 ports that support line-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7×24

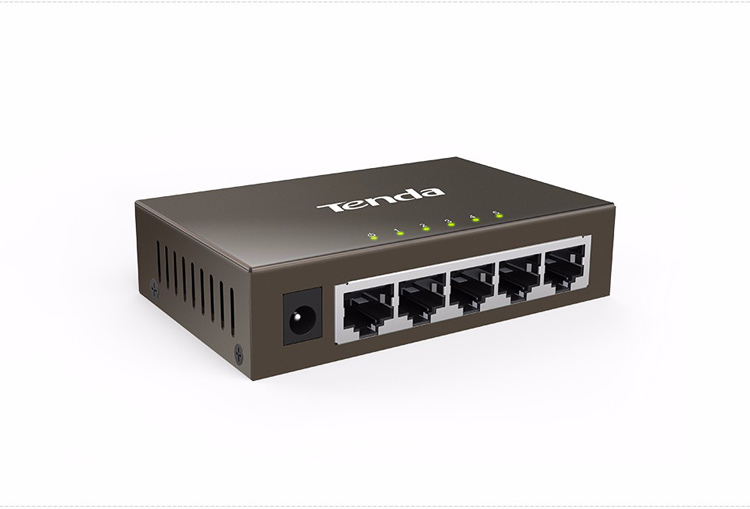

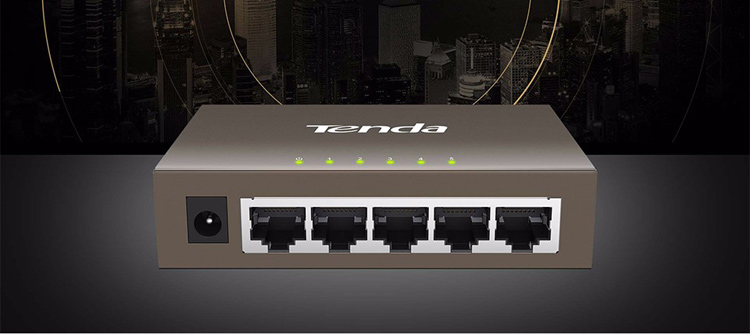

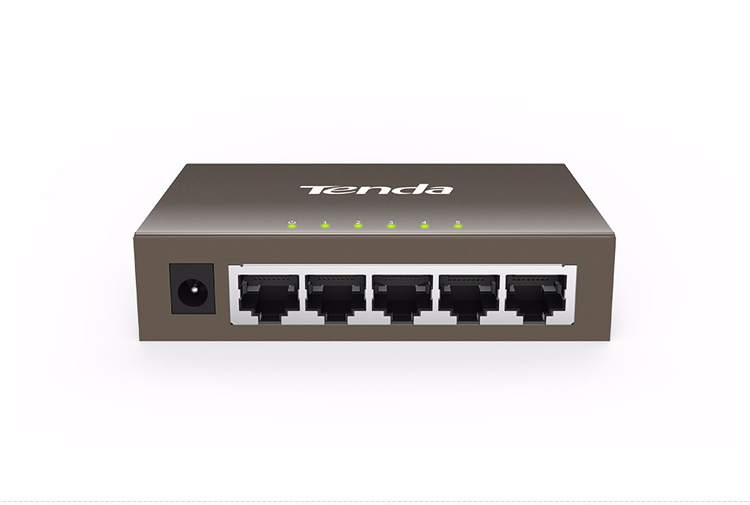

  • User-friendly design RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box

Specification:

  • Model: TEG1005D

  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab

  • Data transfer rate:

  • -Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex)

  • -100M Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex)

  • -1000M Ethernet: 2000Mbps (full duplex)

  • Network media: Category 5 or more recommended (≤100m) UTP / STP

  • Number of ports: 5 * 10/100 / 1000Mbps adaptive RJ45 port

  • Port features: Support port lightning 6KV

  • Indicators: 1 * Power light, 5 * Link / Act lamp

  • Forwarding mechanism: Store and forward

  • MAC address table: 2K

  • MAC address learning: Automatic learning / aging

  • Forwarding rate:

  • -10BASE-T: 14881pps / port

  • -100BASE-TX: 148810pps / port

  • -1000 BASE-T: 1488100pps / port

  • Backplane bandwidth: 10Gbps

  • Power input: 100 ~ 240V AC, 50 / 60Hz

  • Power output: 5V DC, 0.6A

  • Temperature operating temperature: -10°C ~ 45°C

  • Storage temperature: -40°C ~ 70°C

  • Humidity operating humidity: 10% to 90% RH (non-condensing)

  • Storage humidity: 5% to 90% RH (non-condensing)

  • Dimensions (L x W x H): 100mm x 64mm x 25mm

  • Certification: CE, FCC and RoHS

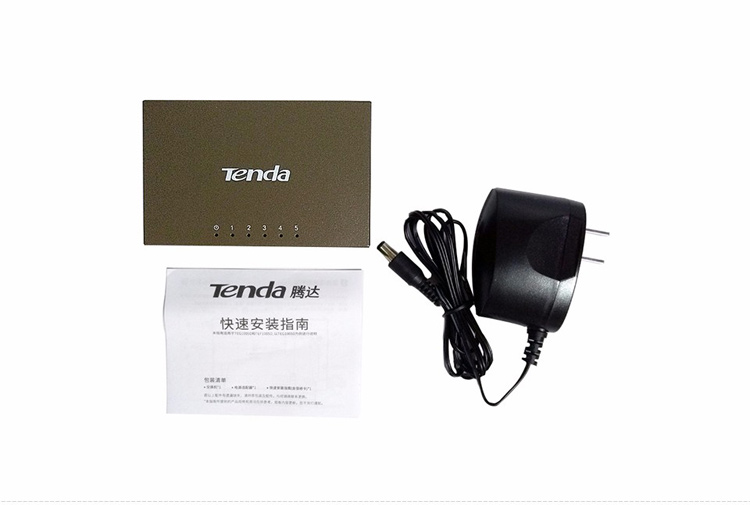

Package included:

  • 1 x TENDA TEG1005D 5 Ports 1000M Gigabit Ethernet Switch 10/100/1000Mpbs Ethernet Network Switch
  • 1 x Power Adapter
  • 1 x Quick Installation Guide
  • Accessories only, device not included
