Price:
$ 10.48

Free Shipping

For just $ 10.48 , buy TENDA SG105 5-Port High Stability Desktop Gigabit Switch for Home Office School Dormitory – US Plug from the wholesale webshop online.

Specifications

Certificate CE, FCC, RoHS
Plug US Plug
Retail Packaging Colored Box
Gross Weight 0.174kg
Volume Weight 0.224kg
Length 10.000cm
Width 10.000cm
Height 10.000cm
Weight 0.155kg
With Retail Packaging Yes

Product Description

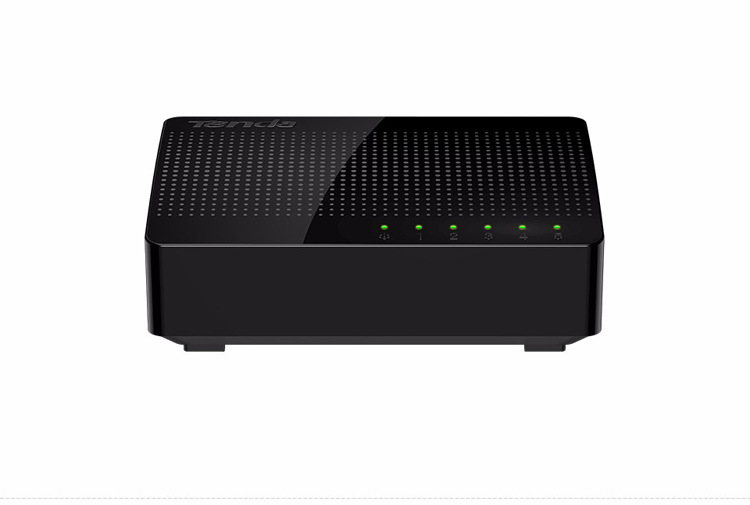

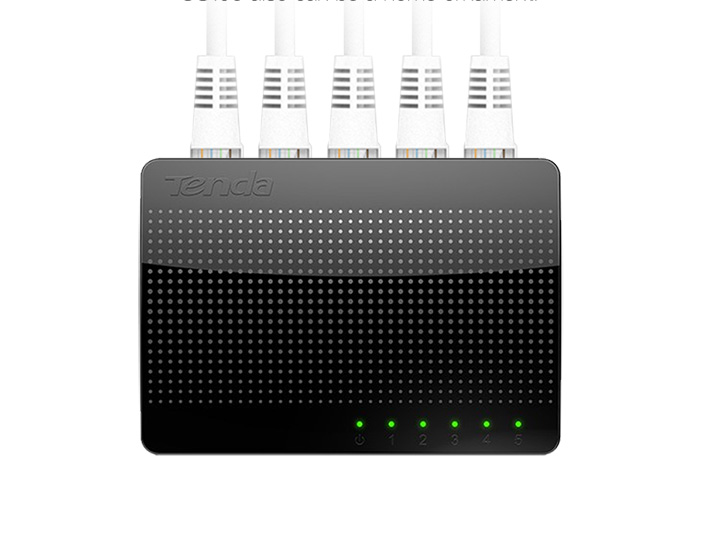

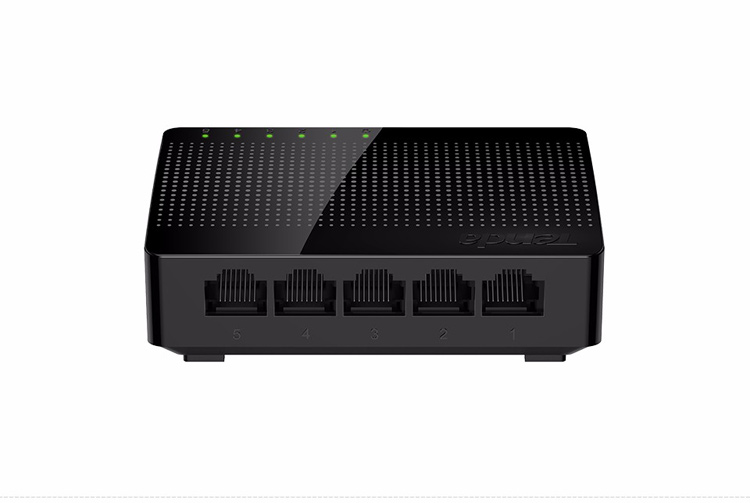

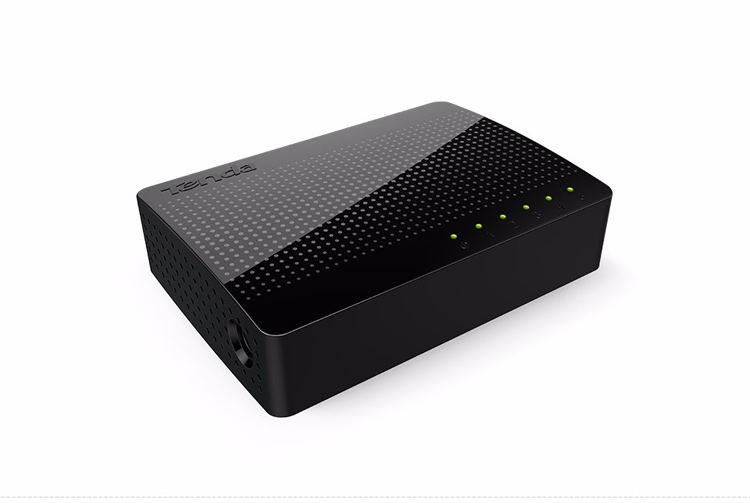

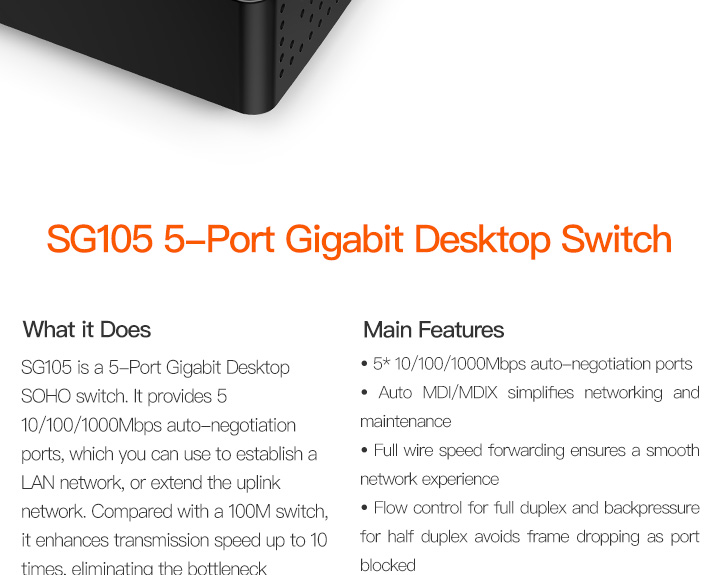

TENDA SG105 5-Port High Stability Desktop Gigabit Switch for Home Office School Dormitory – US Plug

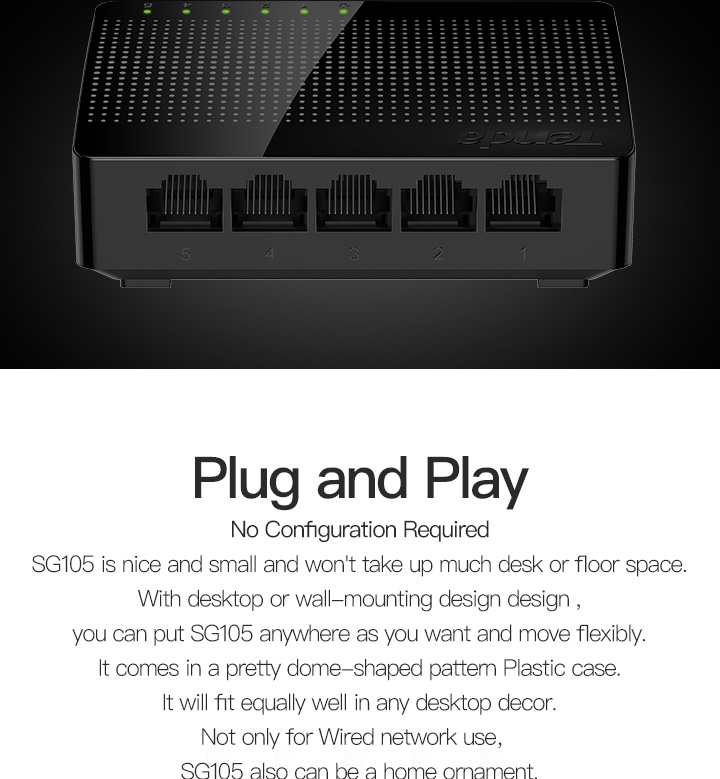

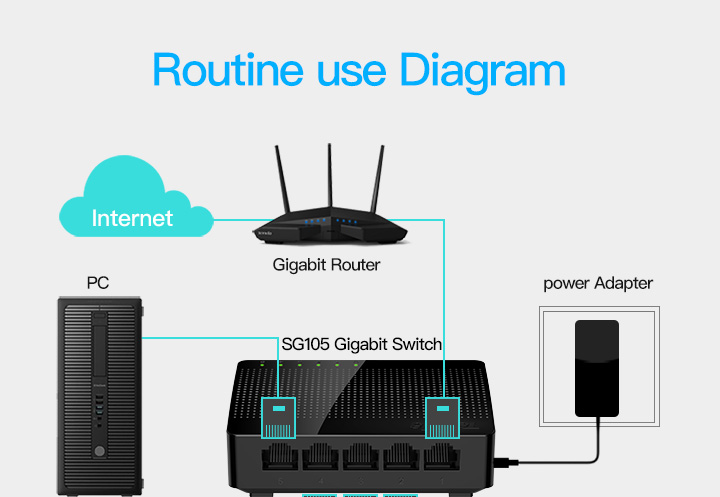

SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.

  • 5 * 10/100/1000Mbps auto-negotiation ports

  • Auto MDI / MDIX simplifies networking and maintenance

  • Full wire speed forwarding ensures a smooth network experience

  • Flow control for full duplex and backpressure for half duplex, avoids frame dropping as port blocked

  • Adopts store-and-forward mechanism and provides 2K MAC address table

  • 9K Jumbo frame improves the forwarding speed of large data

  • Adopts green and environmental ABS material, improving heat resistance and heat dissipation

  • Allows IP camera accessing and provides a running and clear image

  • Supports desktop installation and wall-mounting

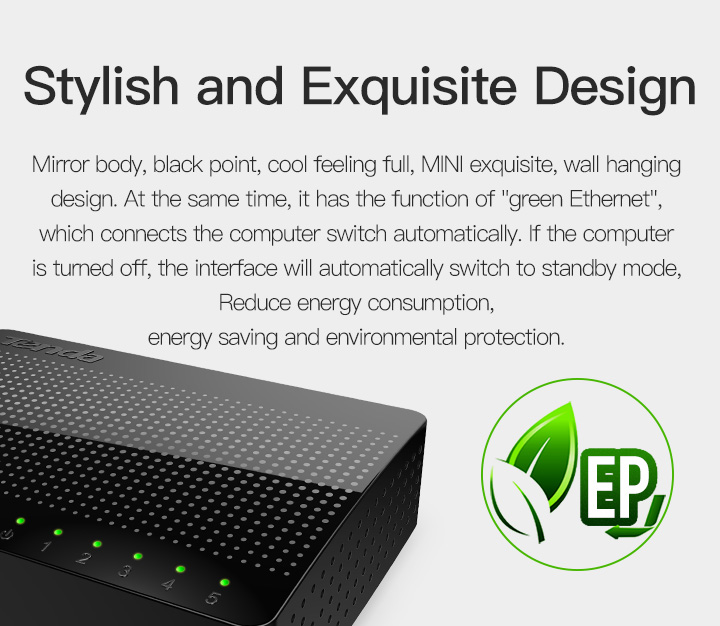

  • Mini, stylish and exquisite design, won't take up much desk or floor space

Specification:

  • Model: SG105

  • Transfer rate: 10/100/1000M

  • Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

  • Fixed ports: 5 * 10/100/1000Mbps auto-negotiation RJ45 Ethernet ports, supports auto-flip

  • Transmission media: 10BASE-T: 3 class lines or better; 100BASE-TX / 1000BASE-T: 5 kinds of lines, super-Category 5 or better

  • LED: 5 * 10/100/1000Mbps Link / Act connection / status lights; 1 * power supply lamp

  • Forwarding rate 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps

  • Switching features: Store and forward mode; MAC address self-learning and updating; 10Gbps backplane bandwidth

  • Power input: AC220V 50Hz

  • Power output: 5V / 0.6A

  • Temperature operating: 0°C ~ 45°C

  • Storage temperature: -40°C ~ 70°C

  • Humidity Operating: 10% to 90% non-condensing

  • Storage humidity: 5% to 90% non-condensing

  • System Requirements: Supports IEEE802.3 / u / x / ab network devices; network adapter; Windows 10, Windows 8, Windows7, windows XP, Linux, MAC OS

Package included:

  • TENDA SG105 5-Port High Stability Desktop Gigabit Switch
  • 1 x Power Adapter
  • 1 x Quick Installation Guide (including warranty card)
  • Accessories only, other items not included
