For just $22.99 , buy SUNSHINE P-1502TN DC Power Supply Adjustable Constant Temperature Voltage / Current Measurement for Phone Maintenance – EU Plug from the wholesale webshop online.

Product Description

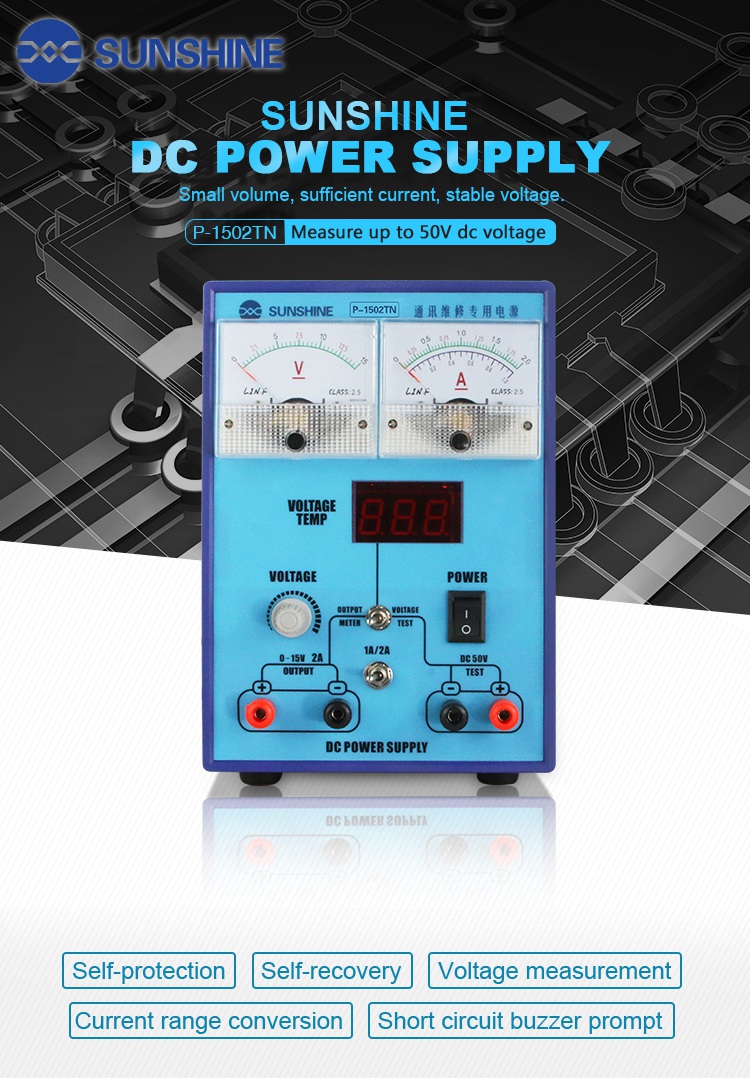

SUNSHINE P-1502TN DC Power Supply Adjustable Constant Temperature Voltage / Current Measurement for Phone Maintenance – EU Plug

DC Power Supply is widely used in various environments such as institutions laboratories, automated test equipment, electronic test equipment, factory production line etc.

  • More powerful core chip: High-speed and efficient performance

  • Short circuit protection and overcurrent protection, high voltage stability

  • Small ripple factor, show the current more finely

  • With a range of 0-5V/O-15V, the current has a 2A/0.5A range

  • 0-5V file is more conducive to the safe use of mobile phones

  • Choose different ranges depending on the usage

Specifications:

Brand SUNSHINE
Model P-1502TN
Product DC power supply
Size 140*170*208mm
Weight 1.665kg
Measure the voltage 50V (Maximum)
Measure the current 1A/2A
Voltage  110/220±10%  50Hz/60Hz
Working terms temperature -10℃ ~ 40℃
Working terms humidity <90%
Storage conditions temperature -20°C~80°C
Storage conditions humidity <80%
Output voltage 0-15V
Load stability ≤0.01%+2mV
Recovery time ≤100uS
Ripple noise ≤1mV Rms (valid value)
Temperature coefficient ≤300PPm/°C
Protect starting current >standard values 10%

How to use:

  • 1. Plugged in
  • 2. Will the power switch to "ON" position, the power supply
  • 3. The toggle switch to " output according to" the edge
  • 4. The VOLTAGE regulation knob to the required output VOLTAGE value
  • 5. The left two terminal voltage required for the output value, red for position, black for negative
  • 6. Normal machine: the positive connection phone positive, negative phones connect the cathodeIntelligent machines: the positive connection phone positive and negative connection phone next to the cathode and negative interface, the cathode connecting two interfaces
  • 7. Toggle switch to the voltage measurement when the edge, pens and lines to connect the output interface, the digital display shows for you measured voltage (note: the voltage measuring range: 0-50V)
  • 8. GSM signal test: the phone is in a state of emission, lattive beating strength

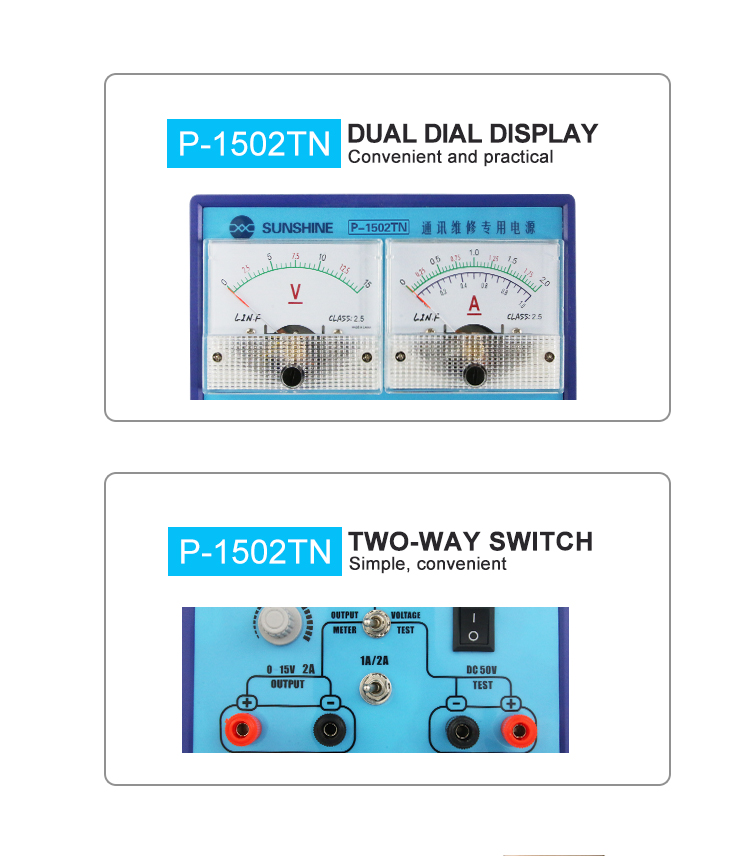

  • 9. 500MA, 2A current switching device: upward: 2A scale, the downside: 500MA scale, on table computers, mobile phones and other electronic product maintenance, ma dial 500 for slight leakage phone design

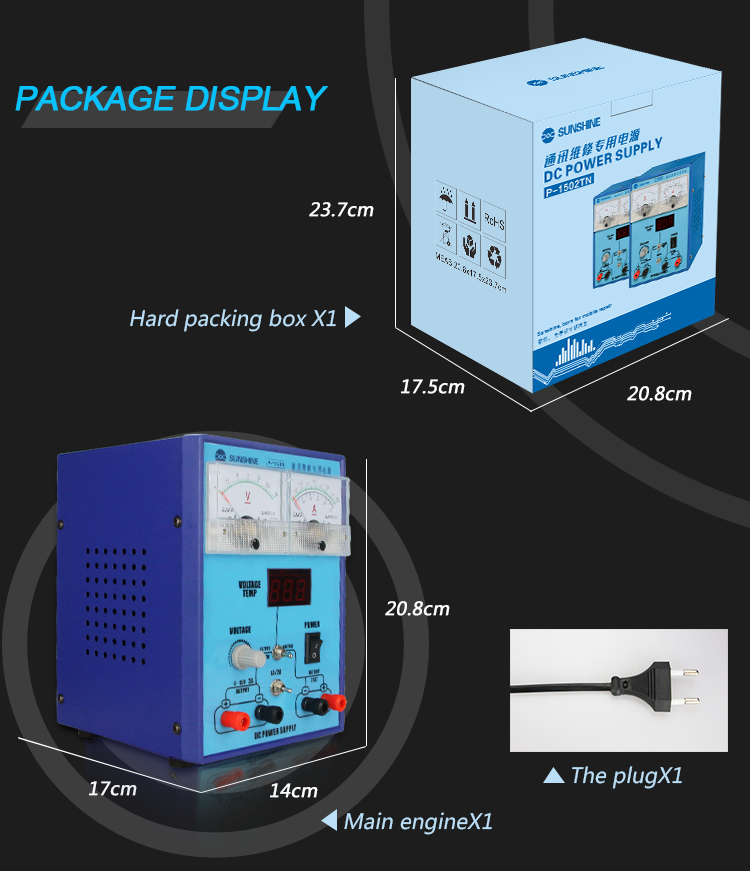

Package included:

  • 1 x Regulated DC Power Supply
  • 1 x Power Line

Specifications

Adapter Plug EU Plug
Brand SUNSHINE
Gross Weight 2.106kg
Volume Weight 1.932kg
Package Length 23.700cm
Package Width 20.800cm
Package Height 17.500cm
One Package Weight 1.880kg
With Retail Packaging No
