Price:
$ 59.12

Free Shipping

For just $ 59.12 , buy SDI Splitter 1×8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs – US Plug from the wholesale webshop online.

Specifications

Port Others
Retail Packaging Paper Box
Gross Weight 0.749kg
Volume Weight 0.109kg
Length 23.000cm
Width 8.500cm
Height 2.500cm
Weight 0.669kg
With Retail Packaging Yes

Product Description

SDI Splitter 1×8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs – US Plug

1 x 8 SDI splitter allows 1 SDI, HD-SDI or 3G-SDI video source to 8 SD-SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It supports 2.97Gbps bandwidth, and supports lossless transmission over long distances.

  • 1 SDI input signal split to 8 SDI displays

  • Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format

  • Built-in cable equilibrium, clock recovery and drive

  • Supports resolutions up to 1920×1080@60Hz

  • Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals

  • Supports 5-12V wide voltage input

Specifications:

  • Frequency Bandwidth: 3Gbps

  • SDI Splitter Input Ports: 1 x BNC Female input port

  • SDI Splitter Output Ports: 8 x BNC Female output ports

  • Power Supply: DC 5V 1A

  • ESD Protection Human Body Model: ± 8kV (air-gap discharge); ± 4kV (contact discharge)

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

  • Relative Humidity: 20 ~ 90% RH (Non-condensing)

  • Power Consumption (Max): 1.5W

  • Size: 23 x 8.5cm

  • Weight: 476g

Package included:

  • 1 x HD Video Converter
  • 1 x 5V/1A DC Power Adapter – US Plug
  • 1 x User Manual

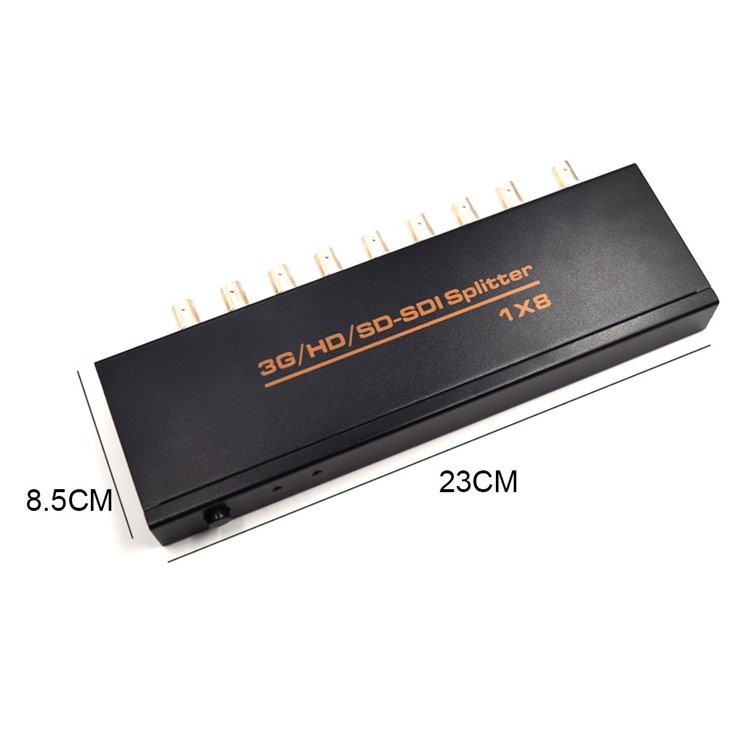

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-1

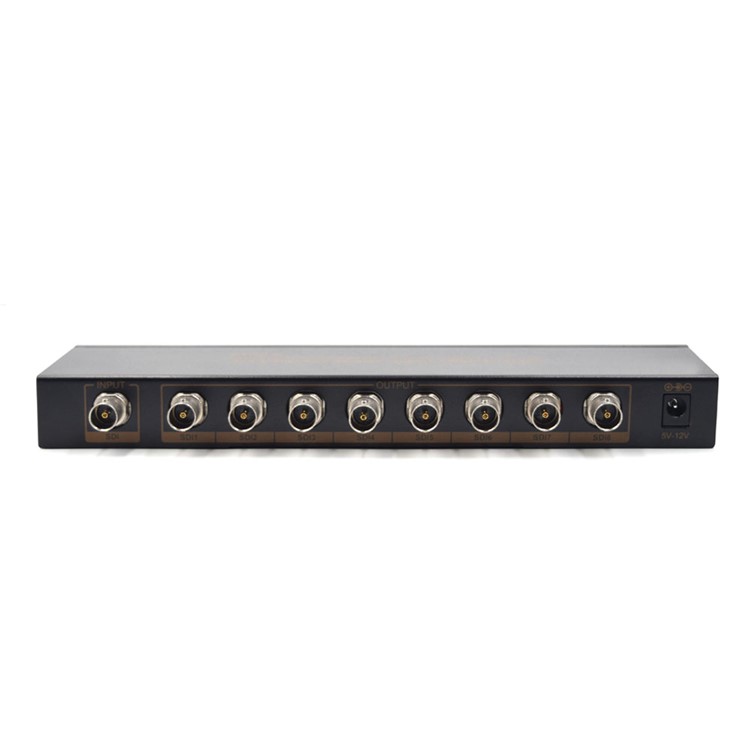

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-2

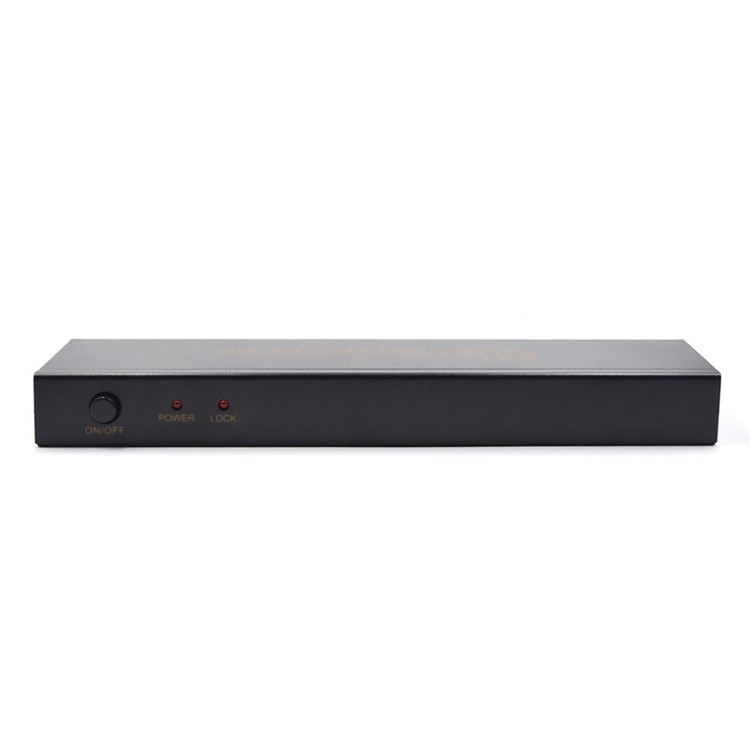

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-3

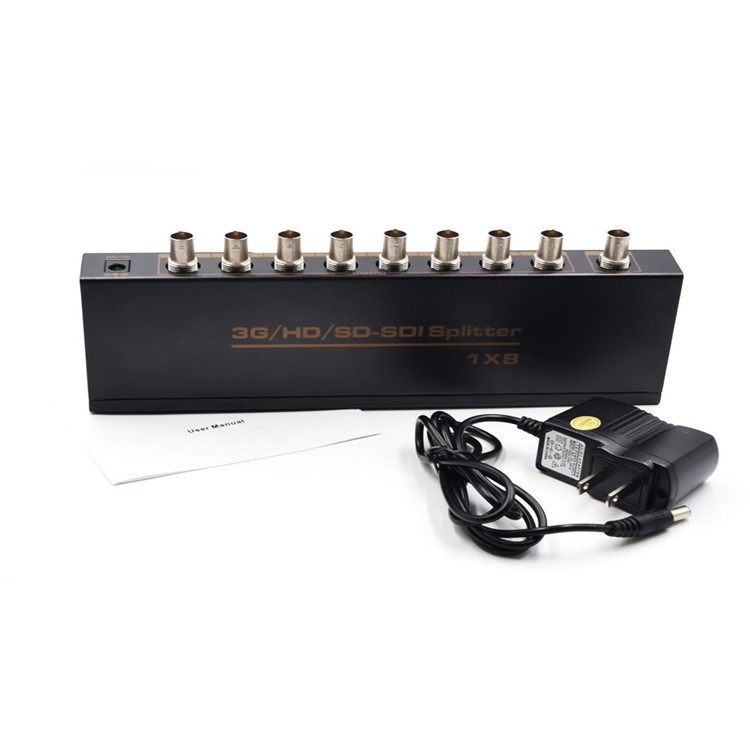

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-4

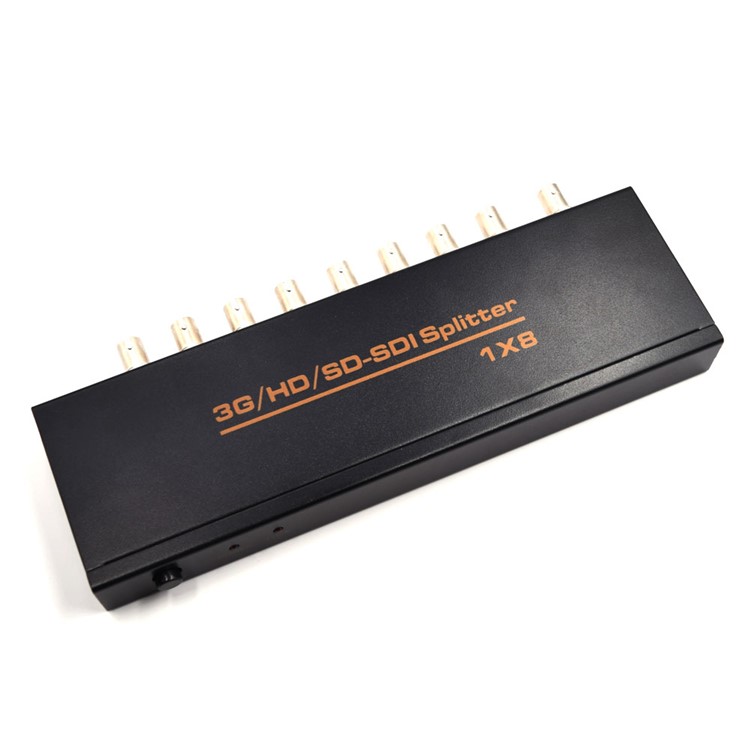

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-5

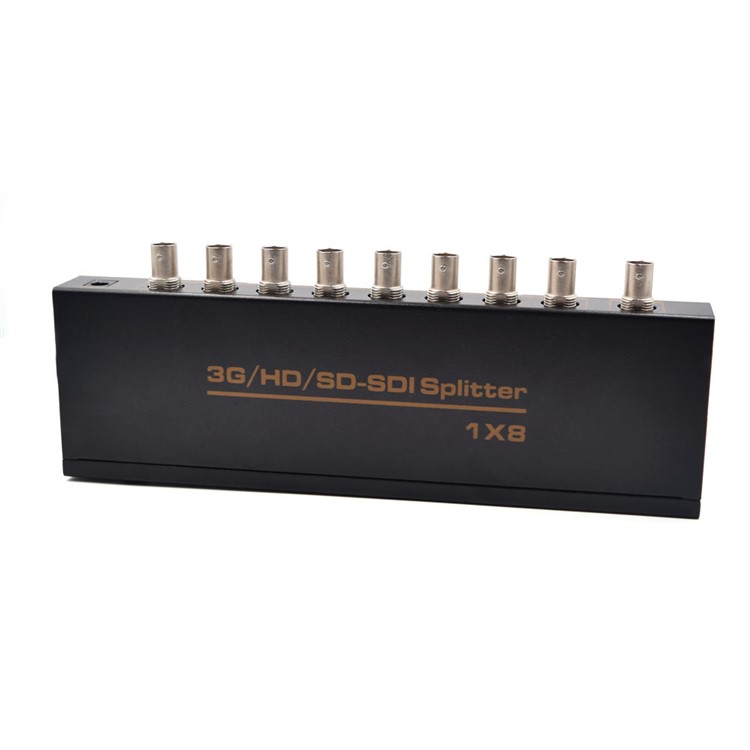

SDI Splitter 1x8, Supports SD-SDI/HD-SDI/3G-SDI, 1 Input 8 Outputs - US Plug-6
