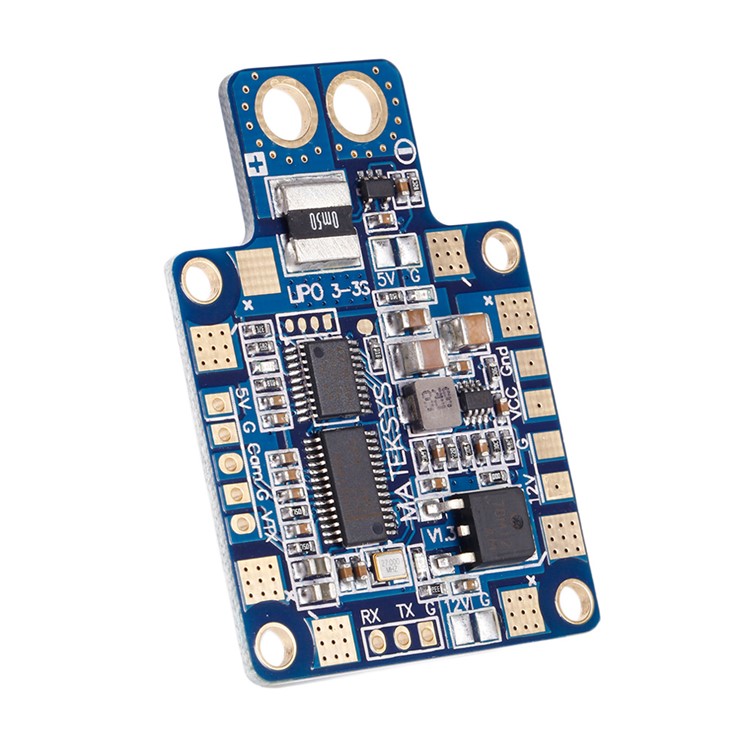

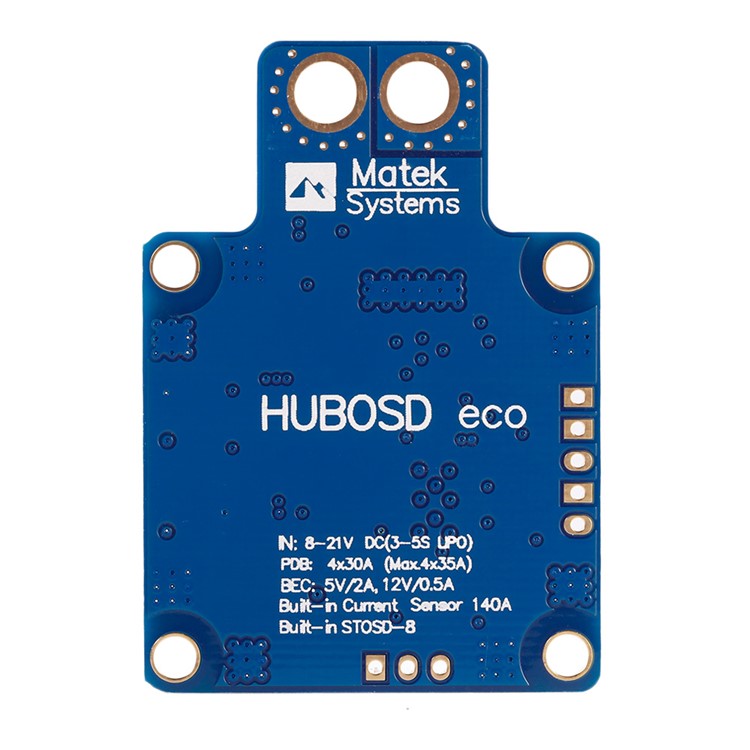

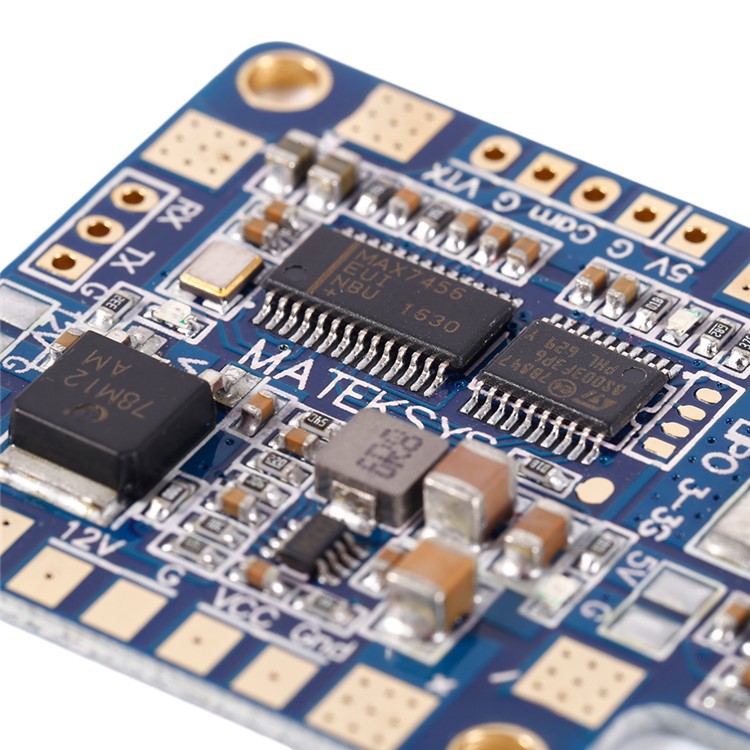

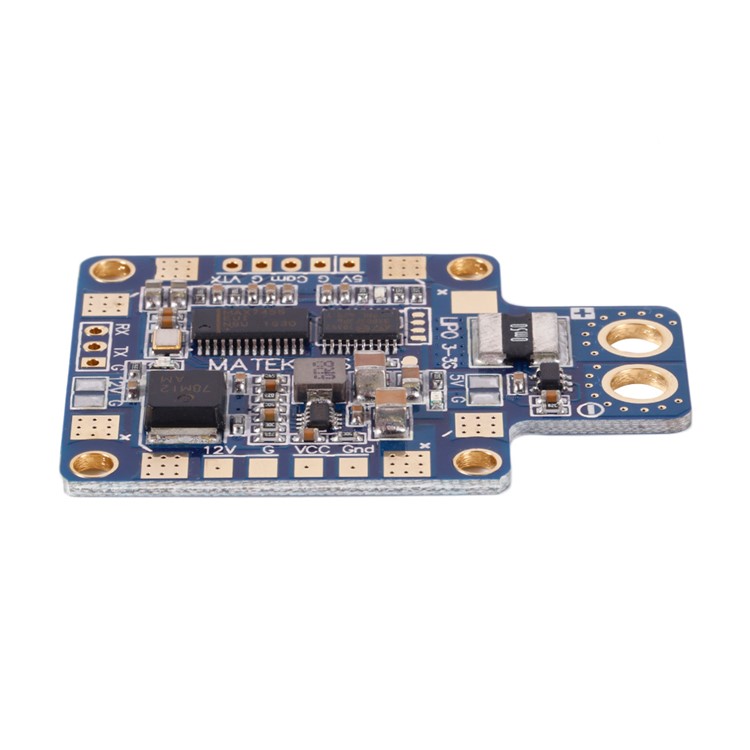

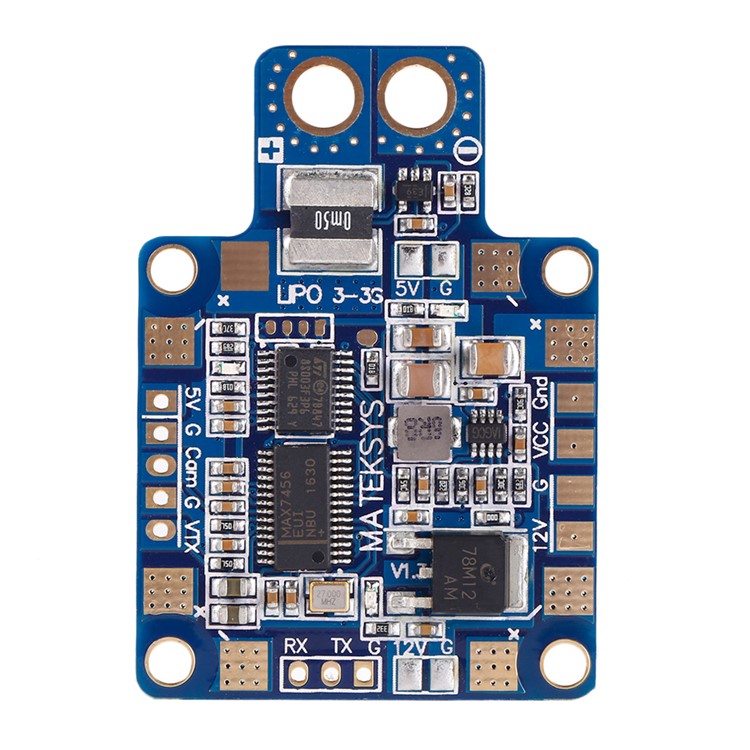

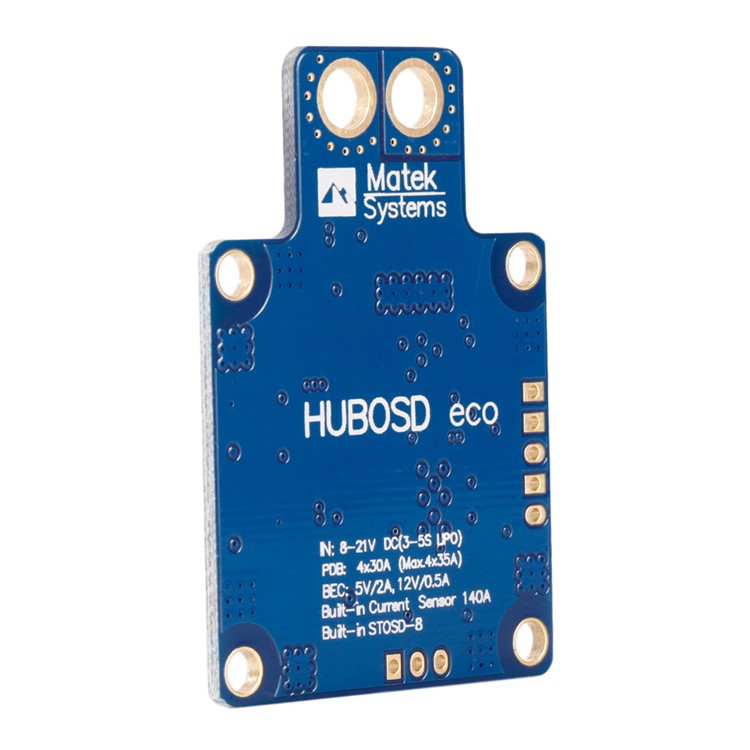

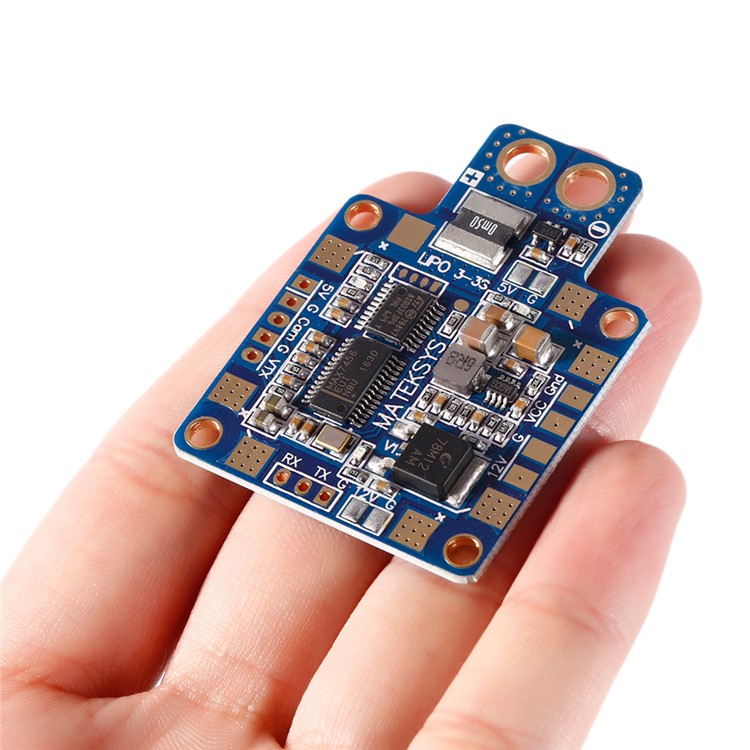

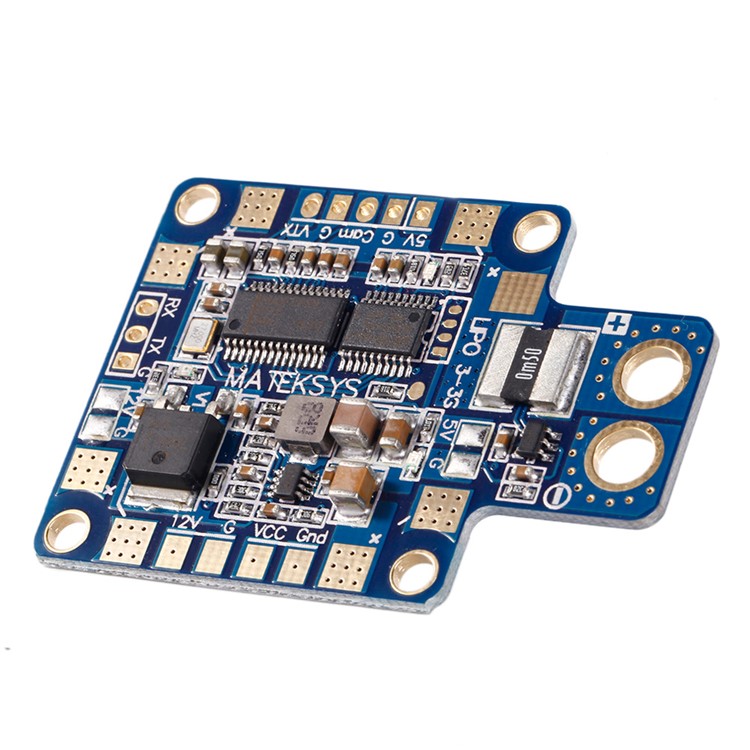

OCDAY Matek HUBOSD eco X Power Distributon Board Hub OSD PDB Current Sensor
  • Dual BEC X Type

  • The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 4-layer PCB

  • It is a multifunctional HUB with PDB, BEC 5V/2A & 12V/500mA, current sensor 140A, STOSD8

  • The BEC 12V is linear regulator, no LC Filter needed

  • Built-in STOSD8 can support Plug & Play, no complicated settings needed

  • Specially made for the mini FPV quad

Specifications:

General

  • Input voltage range (3S-5S operation): 8 – 21V DC

  • PDB: 4 x 30A (Max.4x35A)

  • Regulated 5V and 12V outputs

  • Current Sensor 140A

  • Built-in STOSD8

Physical

  • 2oz copper, 4-layer &1.6mm PCB

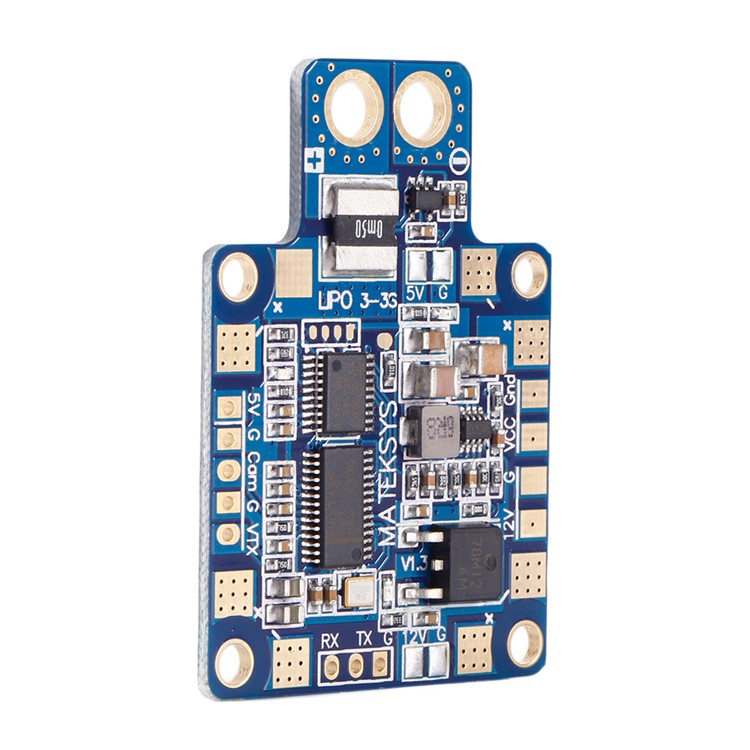

  • 1 x battery input, 4 x ESC outputs, 2 x BEC 5V outputs, 2 x BEC 12V outputs

  • Camera signal & Gnd pads, Video Transmitter Signal & Gnd pads

  • 1 x Serial port (RX, TX, G)

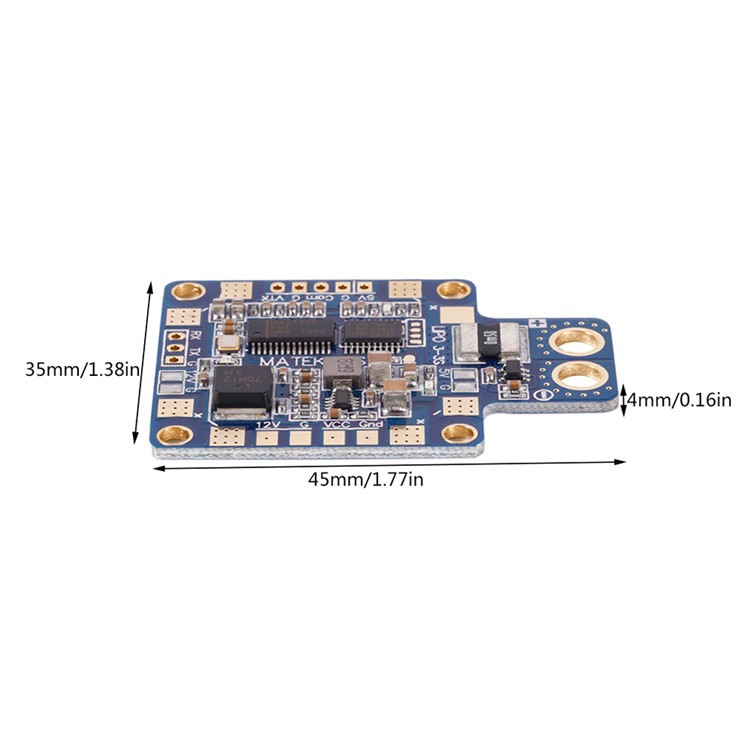

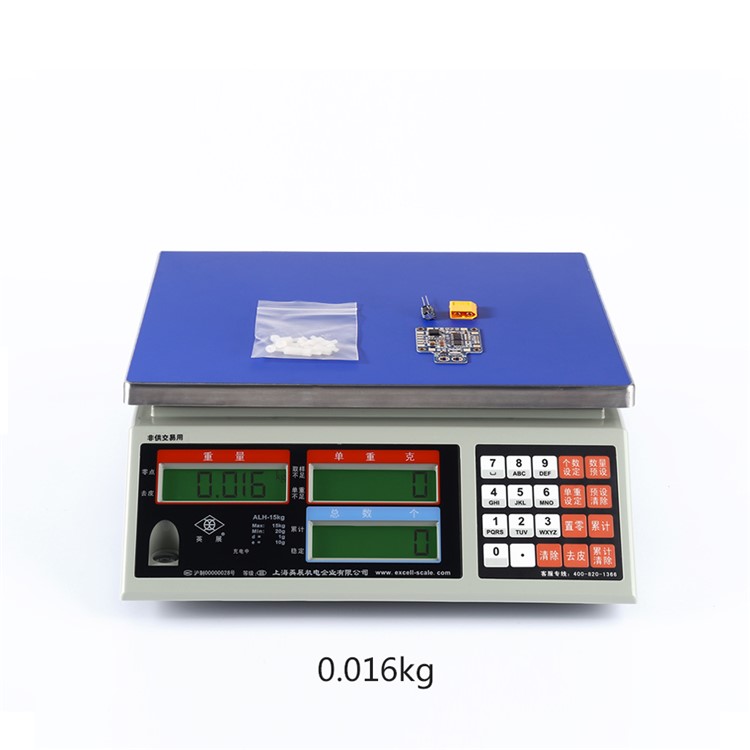

  • Dimensions: 51x36x4mm, Weight: 9g

  • Mounting holes 30.5mm square spacing, Φ3mm

PDB(ESC Outputs)

  • Continuous current: 30A per output

  • Peak current(10 seconds/minute): 35A per output

BEC 5V Outputs

  • Designed for RC Receivers, Flight controllers, OSD, and Servos

  • DC/DC synchronous buck regulator

  • Voltage: 5.0 +/- 0.1VDC

  • Continuous current: 2 Amps (Max.2.5A 10s/minute)

  • Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)

  • Short-circuit tolerant (5 seconds/minute)

BEC 12V Outputs

  • Linear regulator, very low noise. LC Filter is needless

  • Designed for Video TX or FPV camera

  • Voltage: 12.0 +/- 0.3VDC (4~5S operation)

  • Continuous current: 500mA@16V IN, 400mA@20V IN

  • Short-circuit tolerant (2 seconds/minute)

  • If the battery is 3S LiPo, Output voltage=3S LiPo voltage – 1V

Current Sensor

  • 140A

  • If current >140A, STOSD display 140A

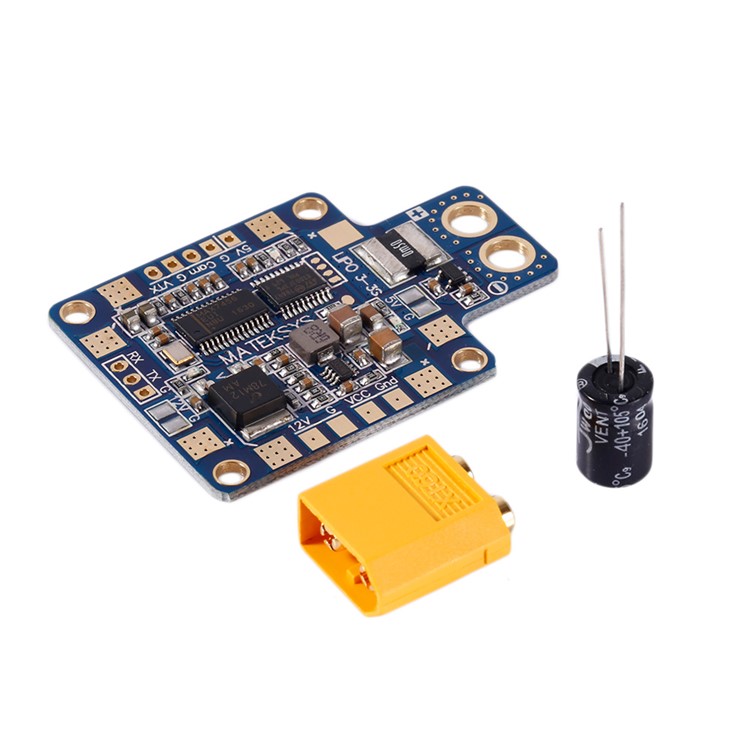

Package included:

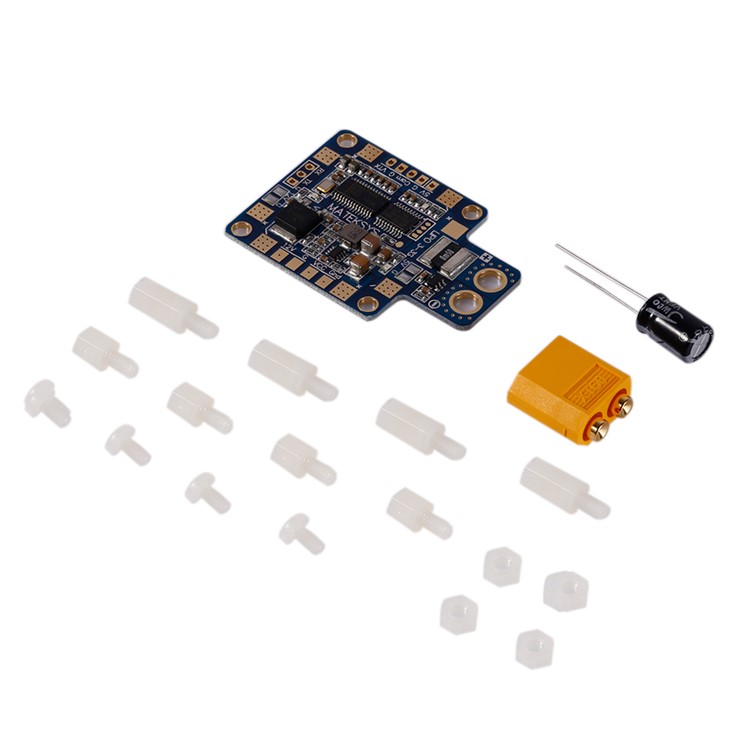

  • 1 x OCDAY Matek HUBOSD eco X Power Distributon Board Hub OSD PDB Current Sensor
