$ 4.53

Free Shipping

For just $ 4.53 , buy New LCD Digital Power Programmable Timer 16A Time Relay Switch from the wholesale webshop online.


Gross Weight 0.082kg
Volume Weight 0.086kg
Length 8.000cm
Width 8.000cm
Height 6.000cm
Weight 0.073kg
With Retail Packaging No

Product Description

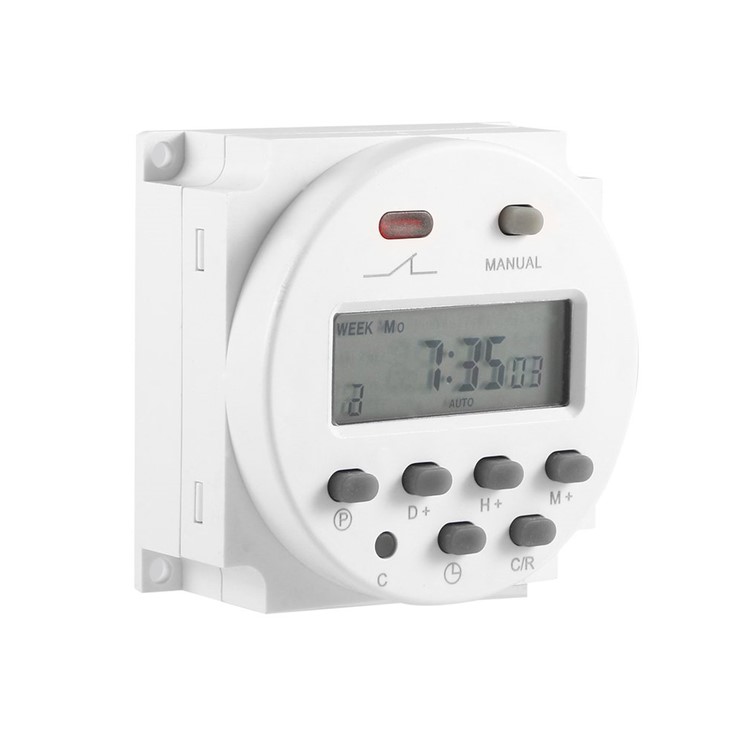

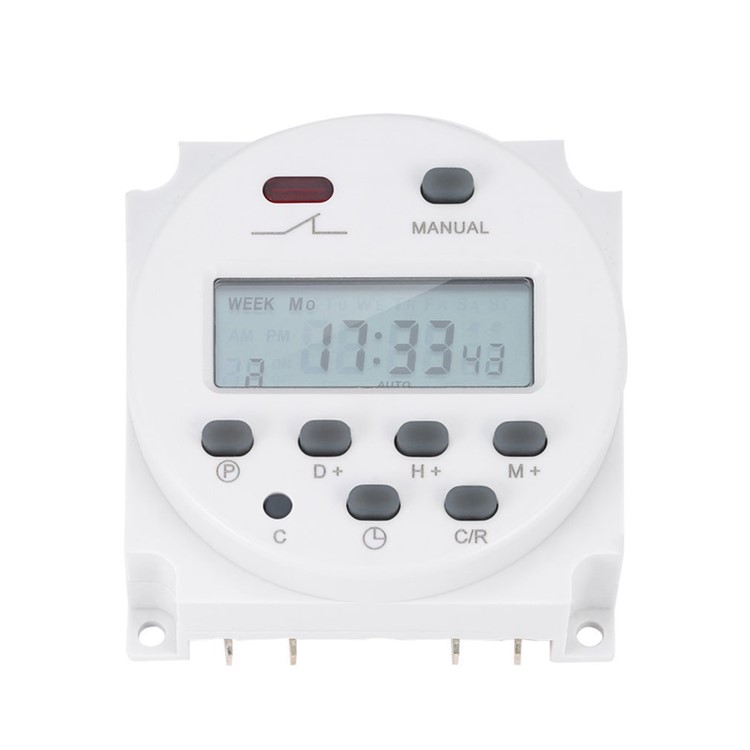

New LCD Digital Power Programmable Timer 16A Time Relay Switch
  • Installation method is screw, connector connection

  • 12 hours and 24 hours systems are optional

  • Compact, lightweight & easy to carry

  • You can take it anywhere for emergency use

  • Buttons on the timer for your convenient operation

  • Key Button: clock, timer, day, h+(setting the hours), m+(setting the minutes), manual override, reset


  • 1. Before starting the program, the timer should be charged for at least 5 minutes as the inbuild battery may be of no battery.

  • 2. Before setting the program, press the key button reset, to clear the memorize data for the new instructions.

  • 3. After the program is made, please insert the timer to the plug. Then connect the electric appliance to the timer.

  • 4. The on and off can be set eight times each day, which can be set as follow:

  • -First option: Sunday

  • -Second option: from Monday to Friday

  • -Third option: Saturday and Sunday(weekend)

  • -Fourth option: from Monday to Saturday(working days)

  • -Fifth option: Monday, Wednesday, Friday

  • -Sixth option: Tuesday, Thursday, Saturday

  • -Seventh option: from Monday to Wednesday

  • -Eighth option: from Wednesday to Saturday


  • Theory: Digital

  • Type: Mini

  • Cut out(MM): Φ64

  • Fitting depths (mm): 21

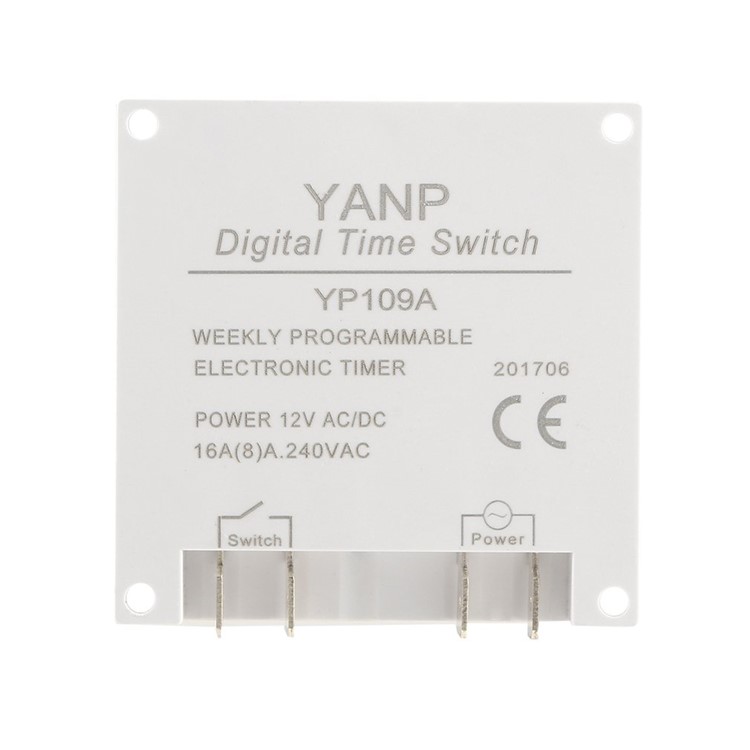

  • Power: 16A(8)A. 220V AC

  • Current consumption without load: 0.015mA

  • Resistive load (LVD. IEC) 16A /220V AC

  • Inductive load: 0.68A /220V AC

  • incandescent lamp load: 1000W

  • Switching current: 16A/24V DC

  • Operation accuracy: Type(±)1s/day

  • Ambient temperature: -10℃~55℃

  • Shortest switching time: 1min

  • Shortest switching interval: 1min

  • Number of channel: 1

  • Number of memory spaces: 17

  • Type of connection: Plug in

  • According to: EN60730-1

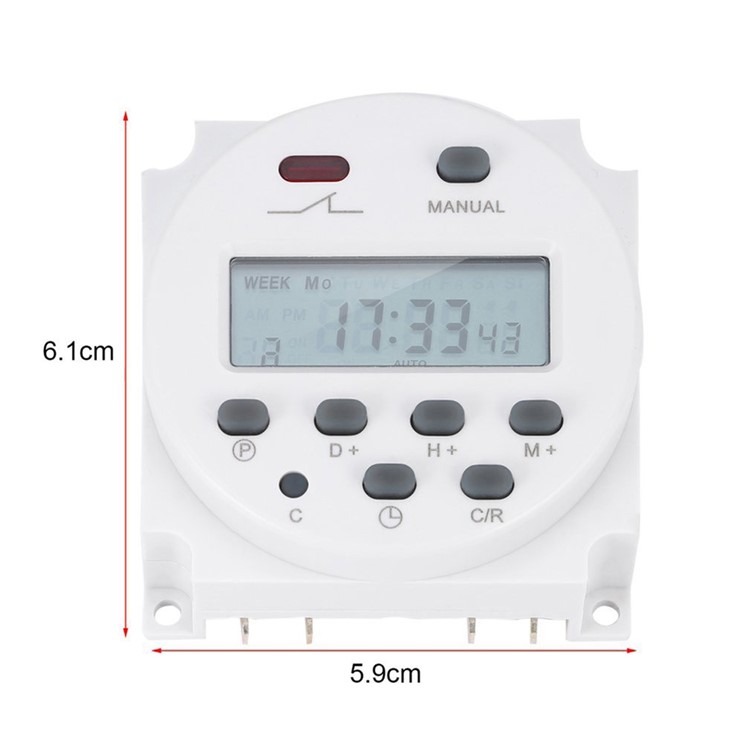

  • Item size: 61 x 59 x 31mm

  • Net weight: 79g

  • Color: White

Package included:

  • 1 x Programmable Timer Switch
  • Other things not included
