Price:
$ 27.35

Free Shipping

For just $ 27.35 , buy Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter – EU Plug from the wholesale webshop online.

Specifications

Plug EU Plug
Port 3.5mm, HDMI, Toslink
Retail Packaging Paper Box
Gross Weight 0.280kg
Volume Weight 0.021kg
Length 9.500cm
Width 4.300cm
Height 2.300cm
Weight 0.250kg
With Retail Packaging Yes

Product Description

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter – EU Plug

The Mini HDMI to SDI + Audio + Spdif Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. Also it allows 3.5mm audio and Spdif signal output with power amplifier and headphone. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and displaying your work on SDI display.

  • Shows HDMI source on SDI display. Extract audio from HDMI signal to 3.5mm and Spdif

  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s

  • Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

  • Converts HDMI signal to SDI:

  • – 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

  • – 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

  • – 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

  • – Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Specifications

  • Input Port: 1 x HDMI

  • Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI) ;1 x 3.5mm audio;1 x Spdif Toslink

  • SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s

  • In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60

  • ESD Protection Human Body Model: ±8kV (air-gap discharge), ±4kV (contact discharge)

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

  • Relative Humidity: 20 ~ 90% RH (Non-condensing)

  • Power Supply: DC 5V

  • Power Consumption (Max): 5W

  • Dimension: 80mm x 41mm x 25 mm

  • Weight: 150g

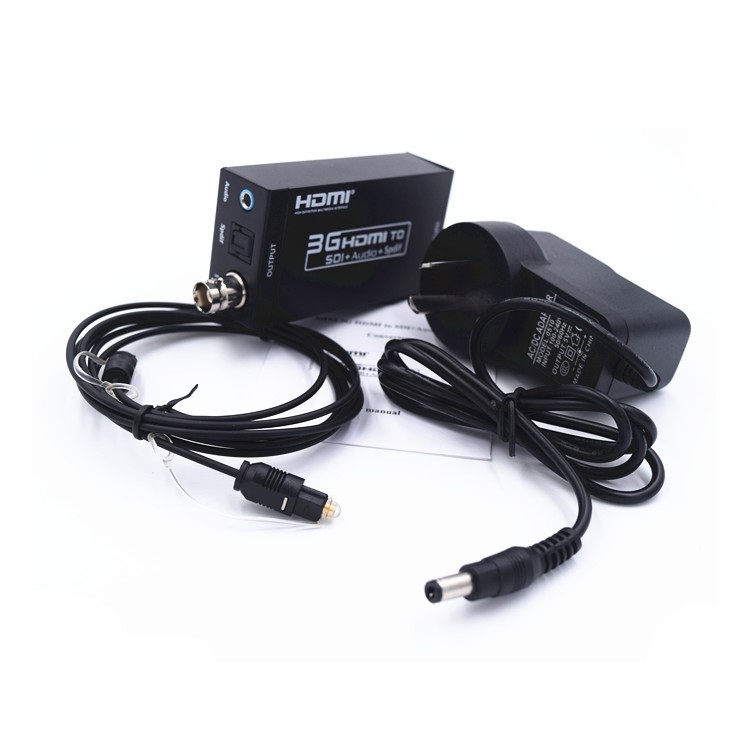

Package included:

  • 1 x Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter
  • 1 x 5V/1A DC Power Adapter
  • 1 x Spdif Toslink Optical Cable
  • 1 x User Manual

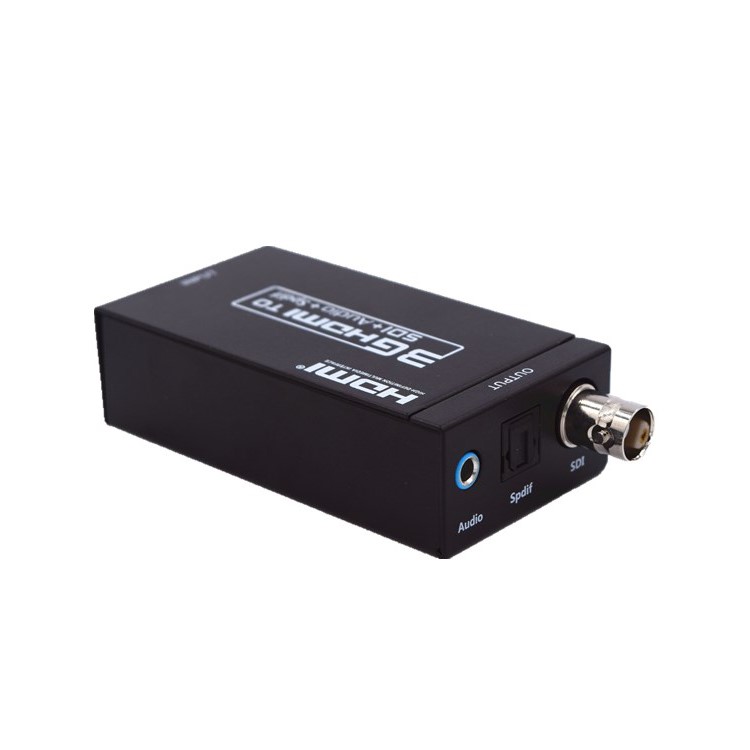

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-1

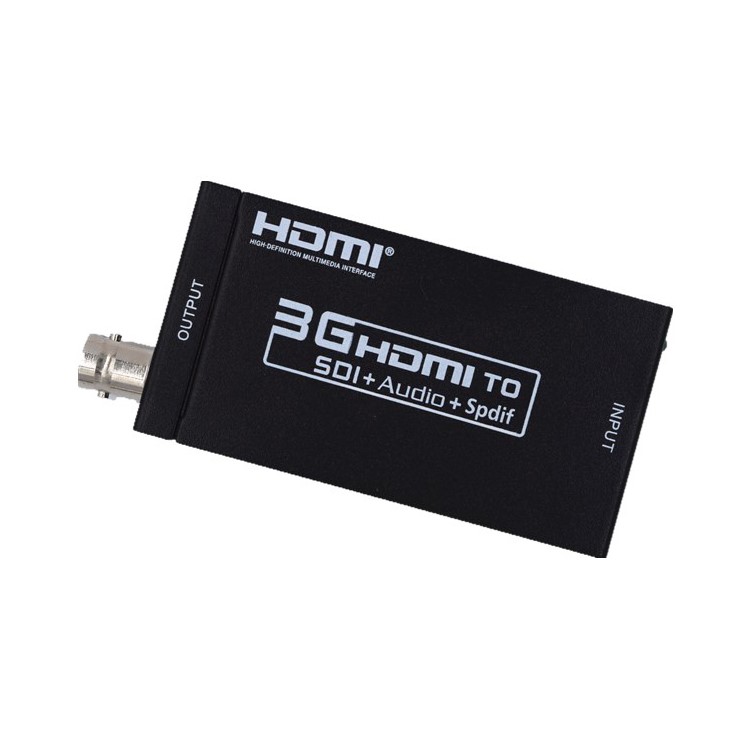

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-2

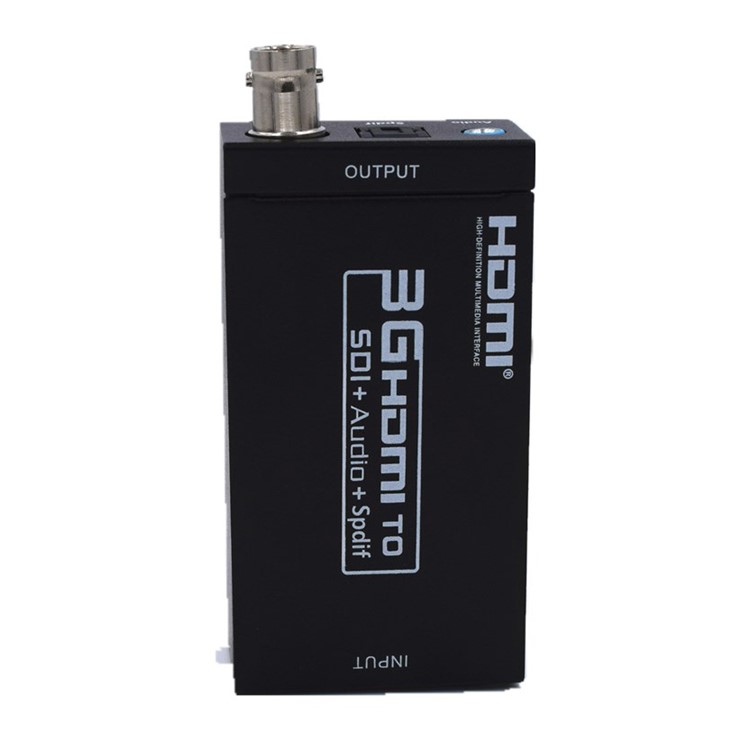

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-3

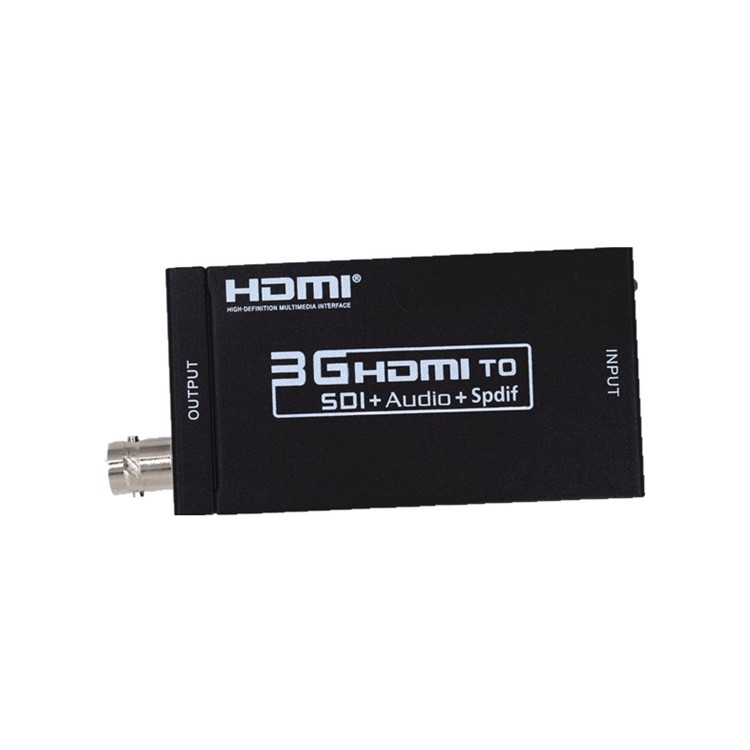

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-4

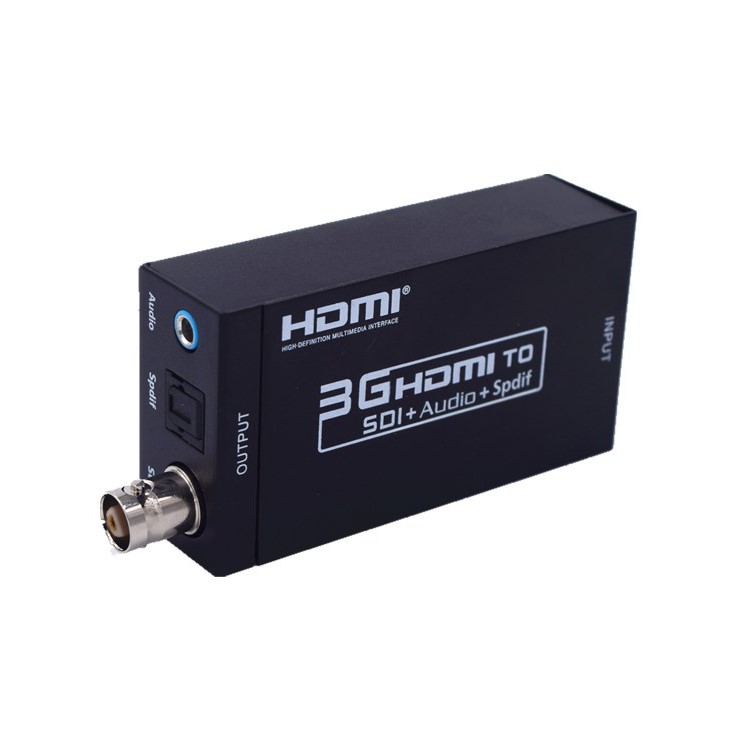

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-5

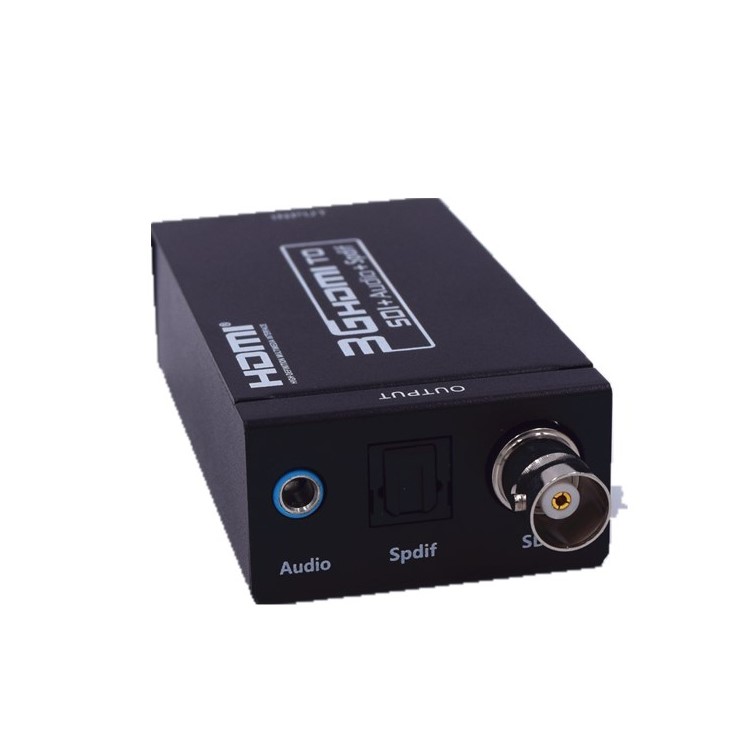

Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-6
Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-7
Mini 3G HDMI to SDI + Spdif Toslink + 3.5mm Audio Converter - EU Plug-8
