Price:
$ 16.87

Free Shipping

For just $ 16.87 , buy HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting – EU Plug from the wholesale webshop online.

Specifications

Plug EU Plug
Port HDMI
Retail Packaging Paper Box
Gross Weight 0.338kg
Volume Weight 0.025kg
Length 8.500cm
Width 6.500cm
Height 2.000cm
Weight 0.302kg
With Retail Packaging Yes

Product Description

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting – EU Plug
  • One HDMI input converter to one HDMI + one SPDF+ one R/L audio out

  • Output audio support: SPDIF+R/L analog audio output

  • Support full HD 1080P, full 3D, 4K*2K resolution

  • Support ARC function: Without adding one extra HDMI Cable, it can reverse the audio to the AV amplifier by HDMI cable connection with HD TV while the HD TV receive the audio and video content

  • HDMI working in dual mode, can reduce the number of ports

  • HDMI to achieve the synchronization of audio signal separation. There are ADV / 2.0CH / 5.1CH three kinds of audio mode options

  • LED indication: when source or sink is working, LED will light

  • No loss of quality

  • Installs in minutes

  • Need DC5V/1A power supply

Specification:

  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

  • Support video color format: 24bit/deep color 30bit,36bit

  • Audio output: L/R+SPDIF

  • Max bandwidth: 300MHz

  • Max baud rate: 9.0Gbps

  • Input/Output TMDS signal: 0.5-1.5Volts p-p(TTL)

  • Input/Output DDC signal: 5Volts p-p (TTL)

  • Input cable distance: ≤15m AWG26 HDMI standard cable

  • Output cable distance: ≤20m AWG26 HDMI standard cable

  • Max working current: 500mA

  • Power adapter: Input: AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A

  • Operating Temperature range: (-10 to +55°C)

  • Storage Temperature range: -20 to +60°C

  • Operating Humidity range: 10 to 90%RH (No Condensation)

  • Storage Humidity range: 5 to 95%RH (No Condensation)

  • Dimension (L x W x H): 84.5 x 61.8 x 21mm

  • Weight: 135g

Package included:

  • 1 x HDMI Audio Extractor
  • 1 x 5V Power Adapter
  • 1 x User Manual

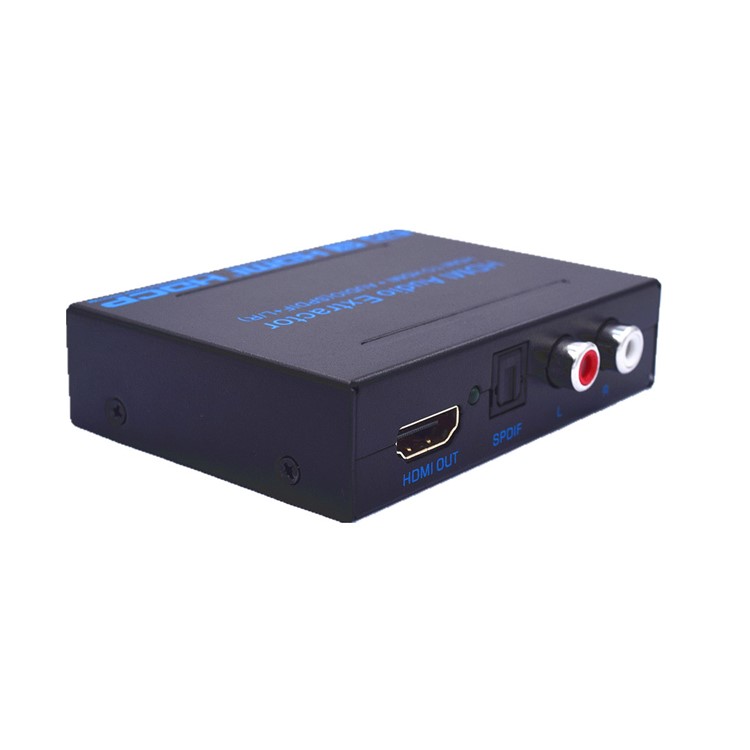

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting - EU Plug-1

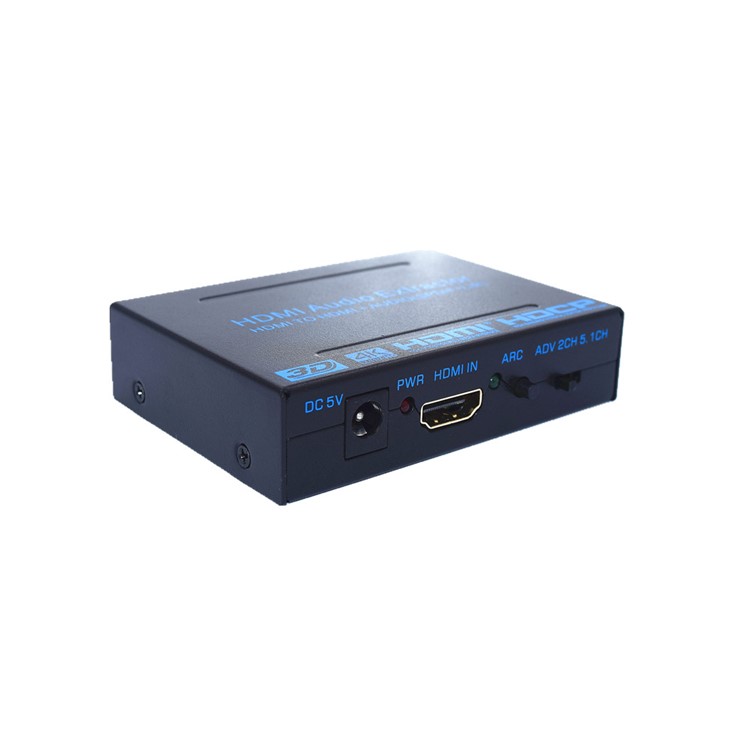

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting - EU Plug-2

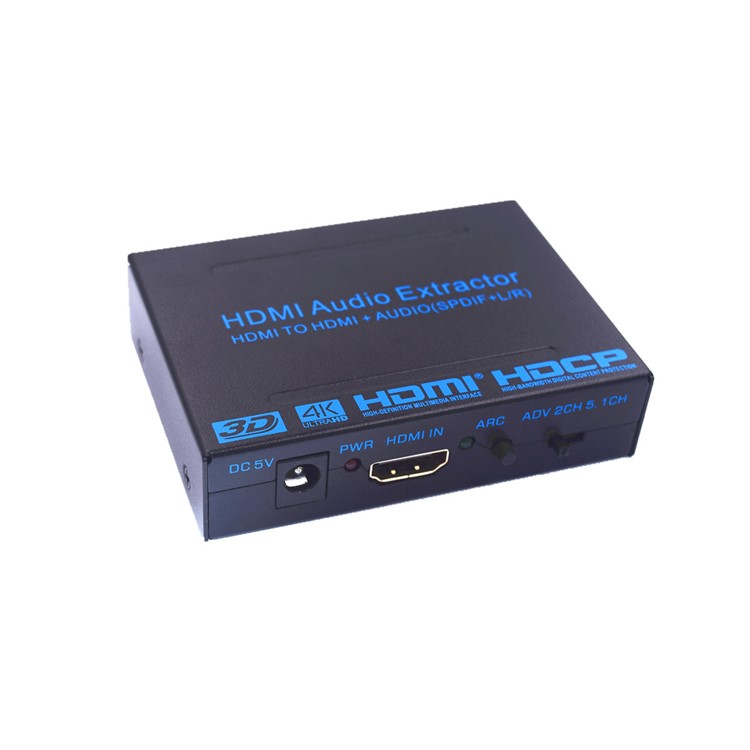

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting - EU Plug-3

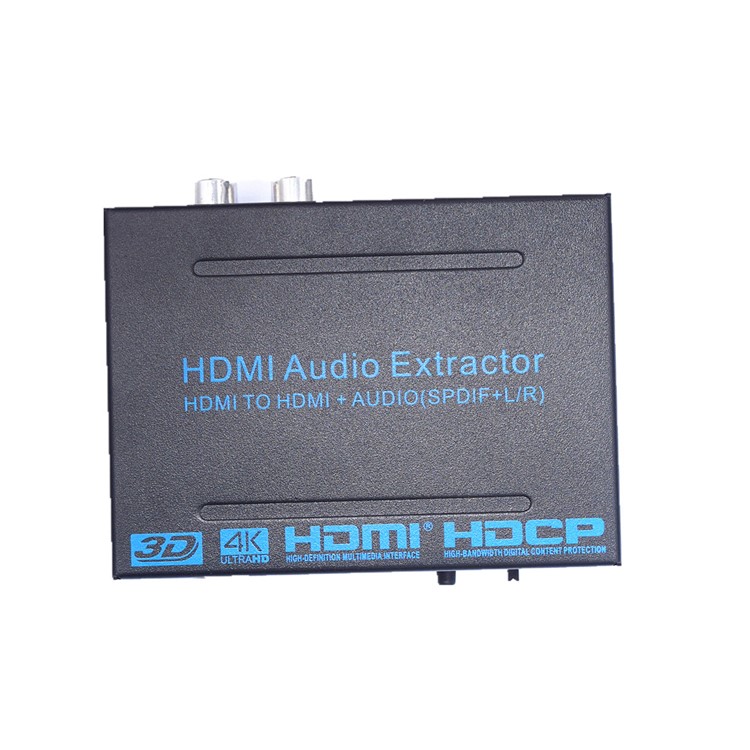

HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting - EU Plug-4
HDMI Audio Extractor, HDMI to HDMI + Audio (SPDIF+R/L), Support ARC 4K EDID Setting - EU Plug-5
