Price:
$ 205.77

Free Shipping

For just $ 205.77 , buy GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter – EU Plug from the wholesale webshop online.

Specifications

Plug EU Plug
Port Others, VGA
Retail Packaging Paper Box
Gross Weight 0.627kg
Volume Weight 0.473kg
Length 22.000cm
Width 16.000cm
Height 6.000cm
Weight 0.560kg
With Retail Packaging Yes

Product Description

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter – EU Plug

Based on the GBS 8219(XRGB BOX), newly released XVGA BOX(RGB, MDA, CGA,EGA to VGA converter) was launched of an innovative industrial video converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA, CGA, EGA signal to VGA signal, and was widely for various kinds of FHKD, such as digital control machine tool display, DCS display, injection molding machine, analytical instrument, specialized display of navigation and import production line, armamentarium, specialized display of airport, railway and financial facility, special size display.

  • Input horizontal frequency rate 12KHz to 40KHz automatically recognized

  • Support RGB and YPbPr

  • Support interlaced scanning and line by line scanning

  • Support vertical resolution from line 200 to line 600 automatically recognized

  • Support variable horizontal resolution automatically recognized

  • Support RGBHV (separate sync), RGBS (composite sync), automatically recognized

  • Output resolution: 800*600/60Hz standard VGA or custom-resolution

Specification:

  • Input signal format support:

    -Video Support: MDA, CGA, EGA, RGB, RGB Sog, RGBS, RGBHV, YPbPr

    -Interface support: 9-pin, 3-pin, 6-pin, 14 pin, 20 pin, 25 pin and other irregular interfaces

    -Input parameters: Simulation: 0.5-1.0 / TTL: 3-5V

  • Scan mode: Interlace / Progressive

  • Output signal format support:

    -Support format: Standard VGA, resolution of 800 * 600 / 60Hz or custom resolution

    -Output interface: D-Sub 15-pin standard VGA interface

  • Power: DC 12V 1A

Package included:

  • 1 x GBS8239 XVGA Box RGB RGBHV to VGA Industrial Video Intelligent Converter
  • 1 x Power Cable
  • Accessories only, other items not included

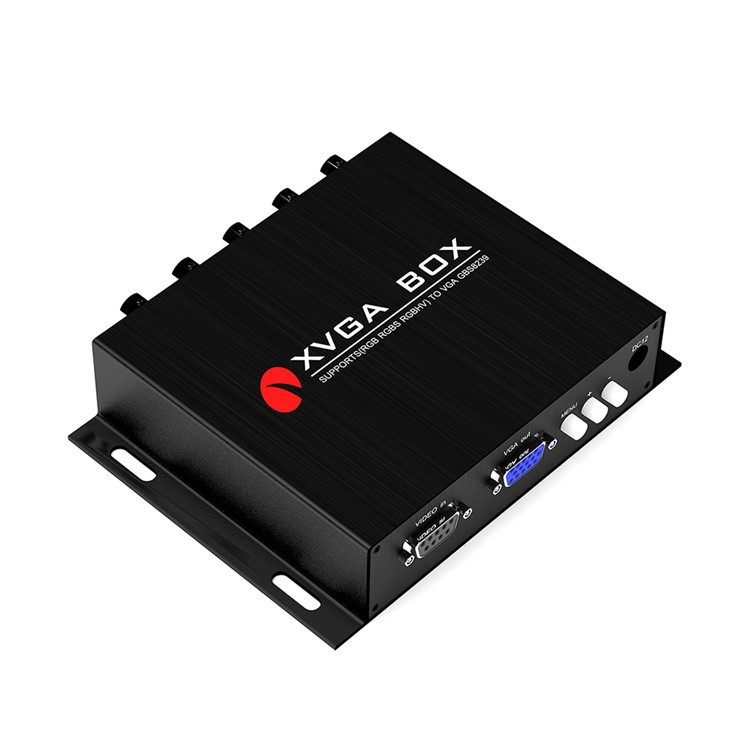

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-1

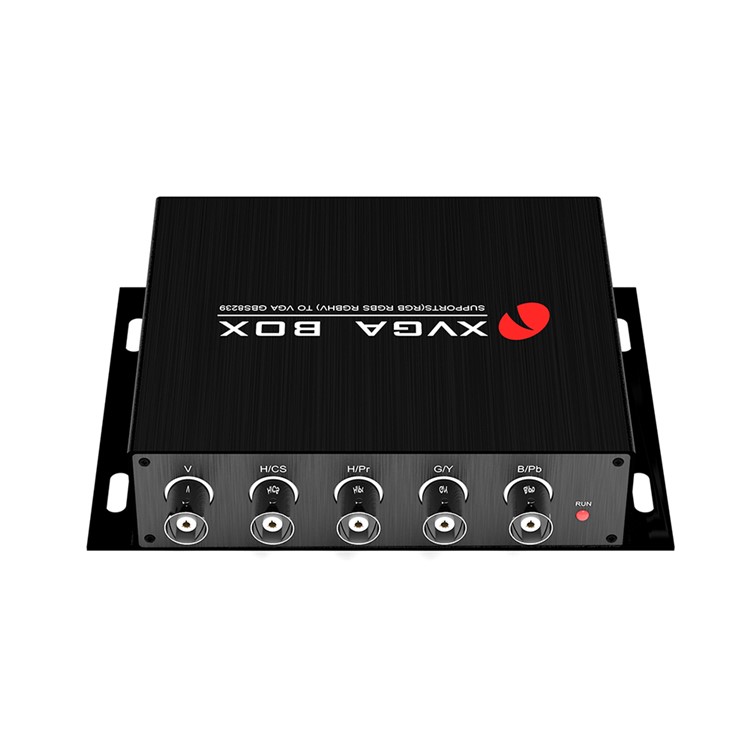

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-2

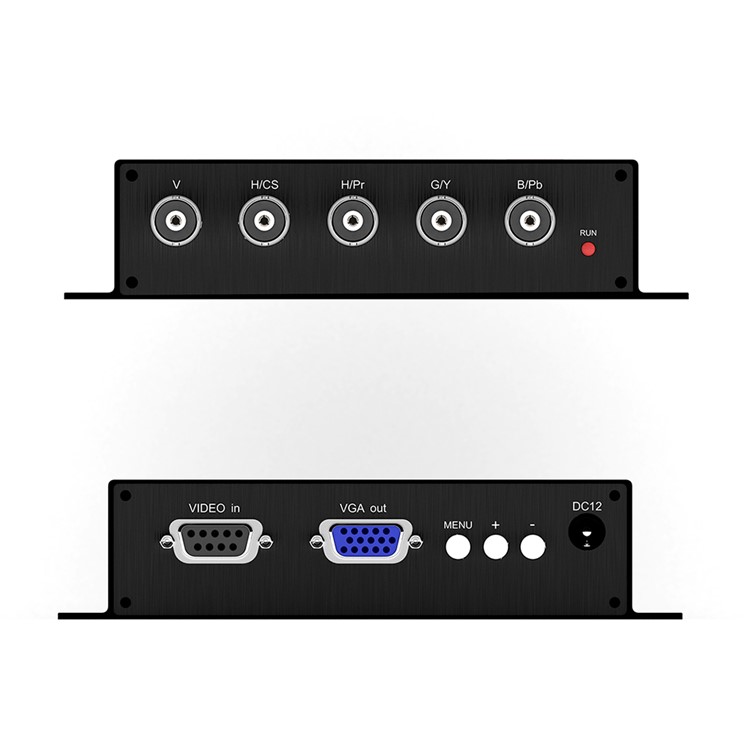

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-3

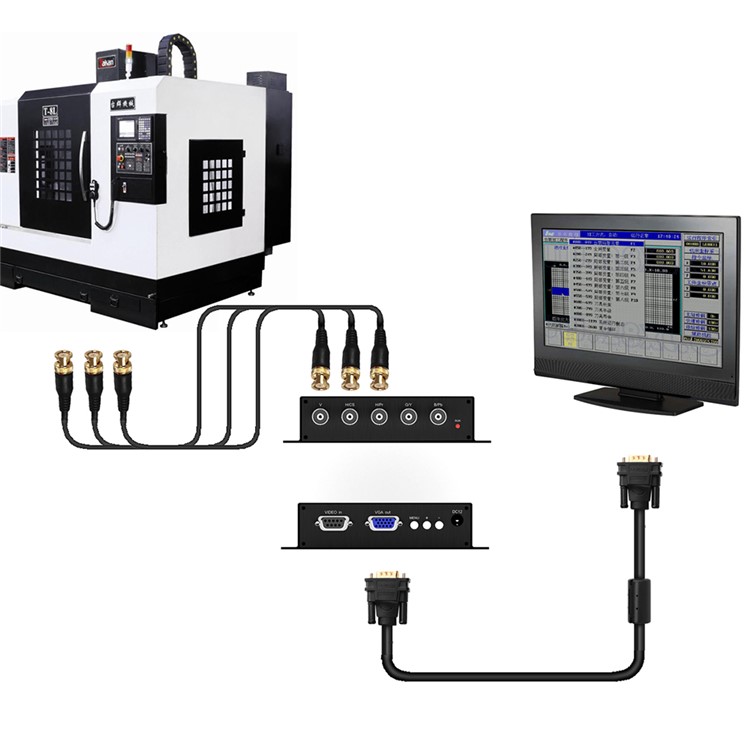

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-4

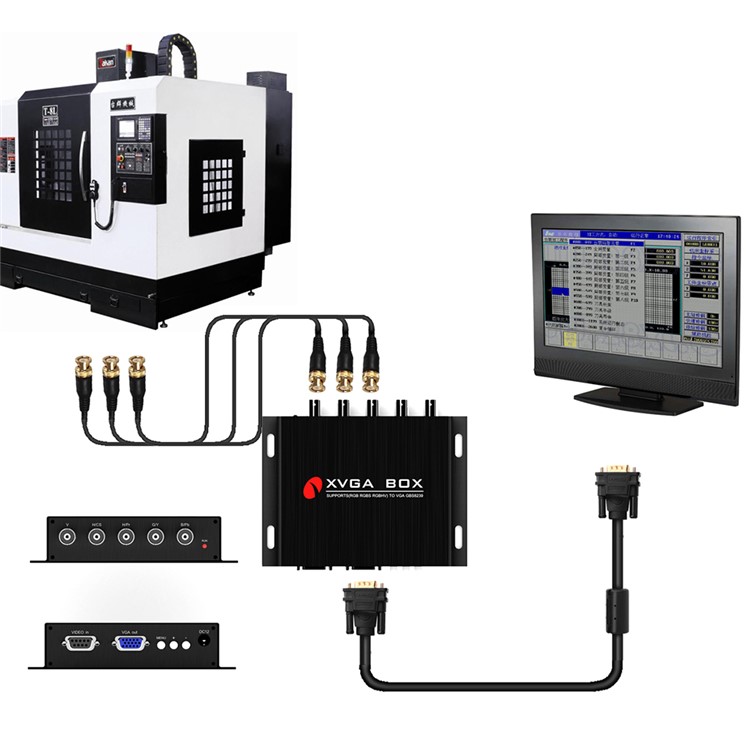

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-5

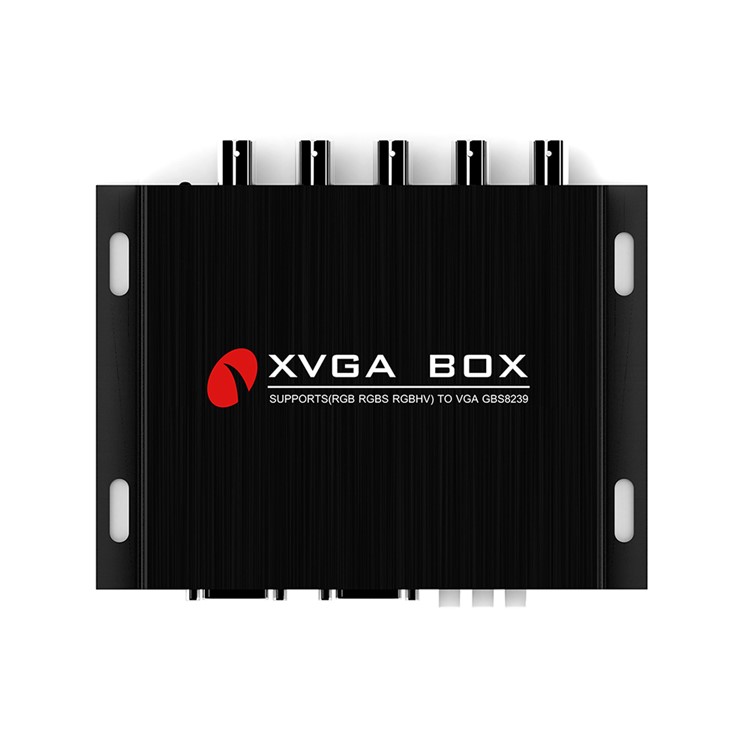

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-6

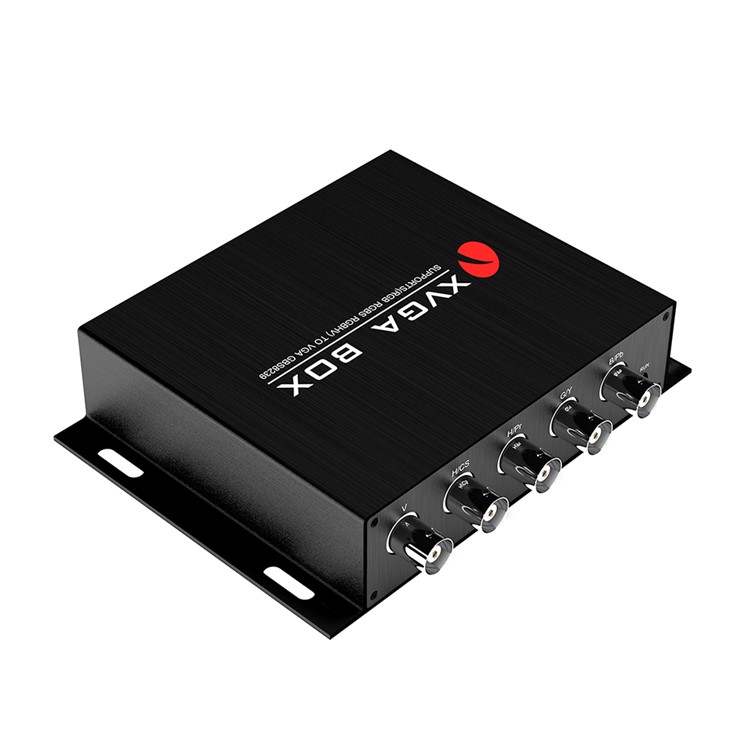

GBS8239 XVGA Box RGB RGBHV to VGA Industrial Converter Monitor Replacement Video Intelligent Converter - EU Plug-7
