Price:
$ 69.78

Free Shipping

For just $ 69.78 , buy DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD from the wholesale webshop online.

Specifications

Certificate CE, FCC

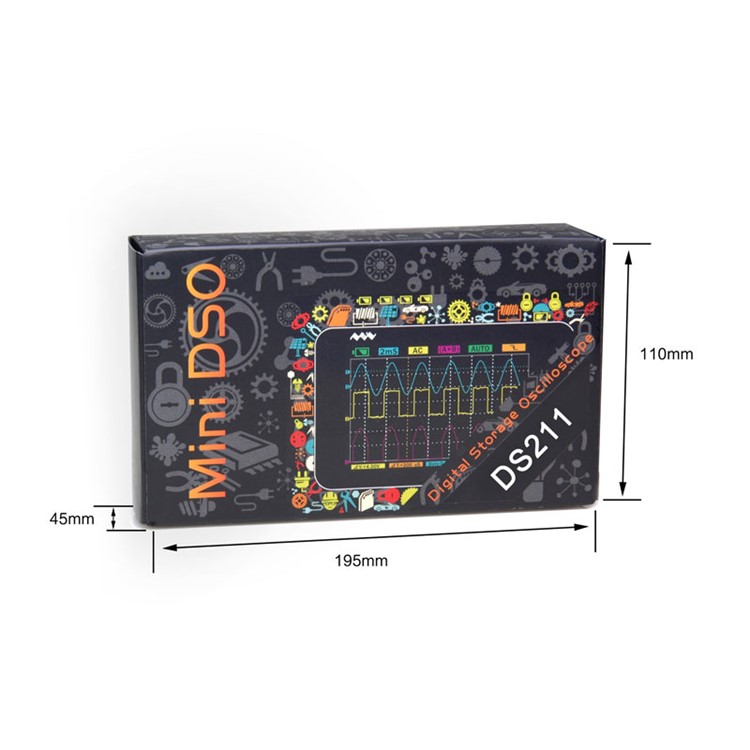

Retail Packaging Colored Box
Gross Weight 0.215kg
Volume Weight 0.216kg
Length 19.500cm
Width 11.000cm
Height 4.500cm
Weight 0.192kg
With Retail Packaging Yes

Product Description

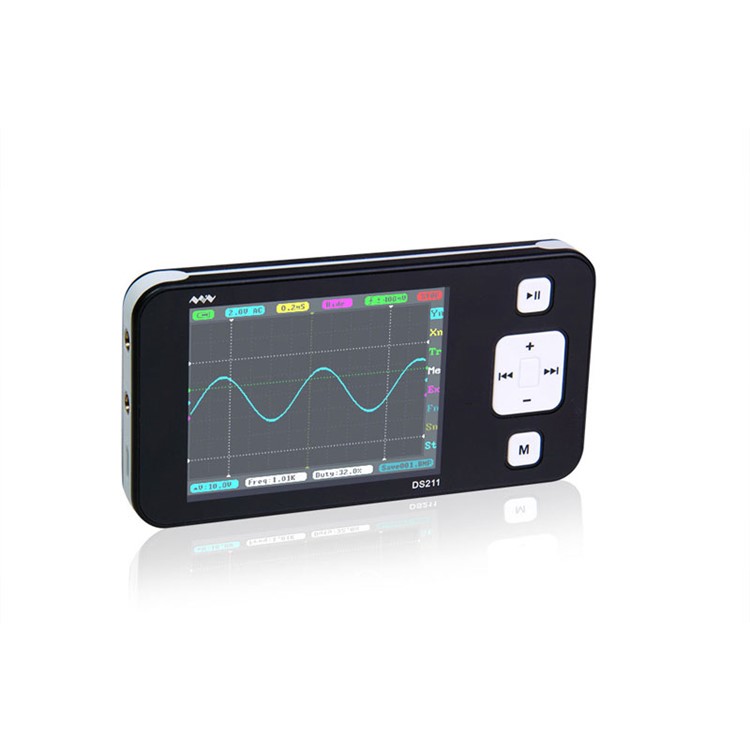

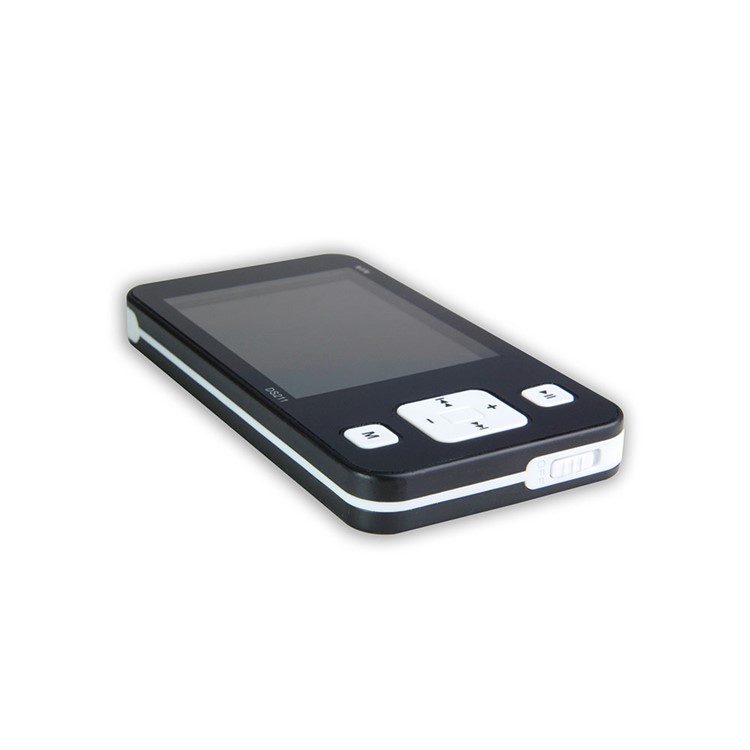

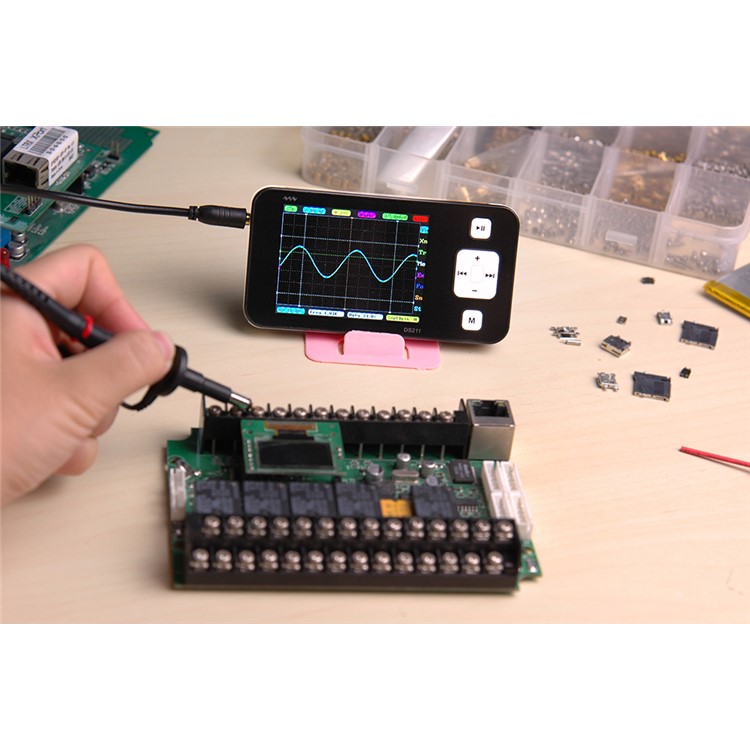

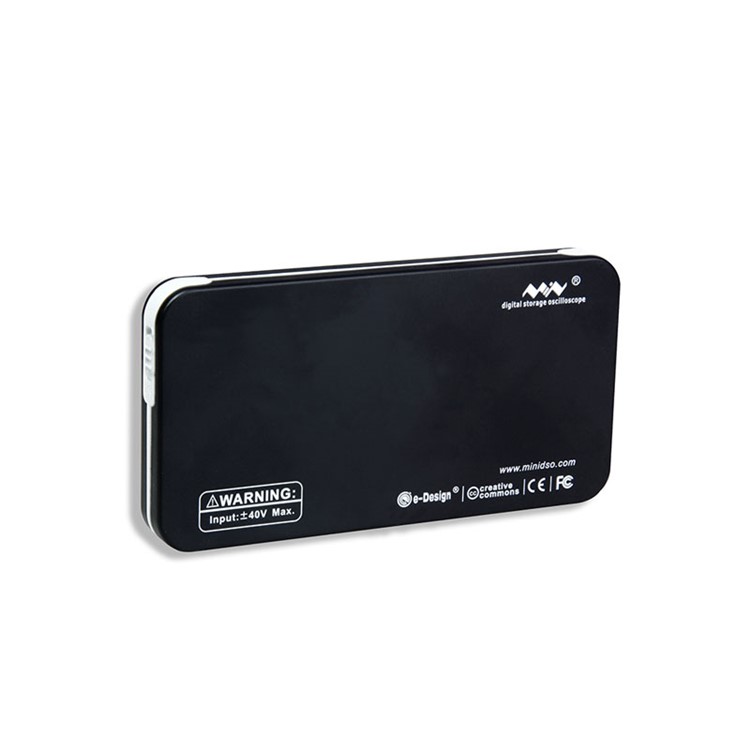

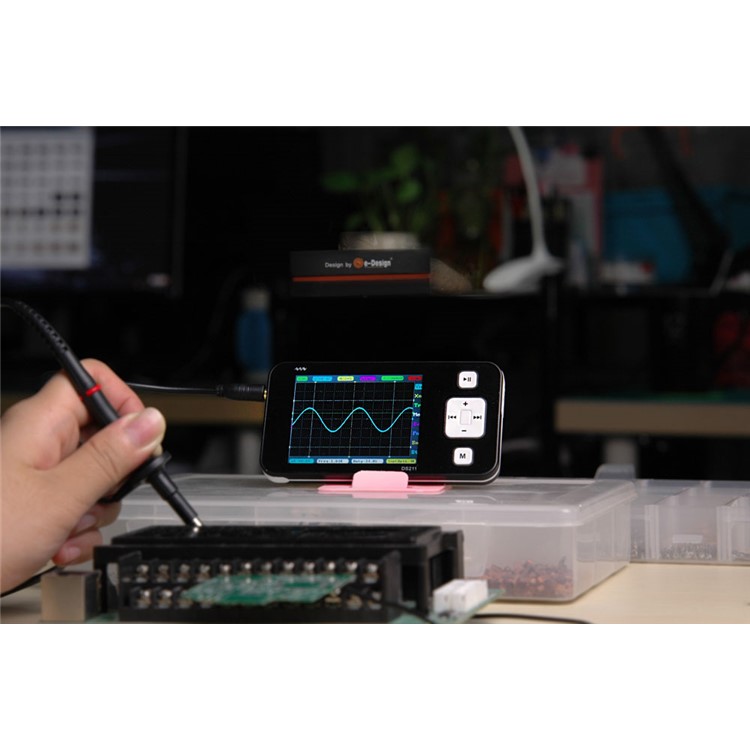

DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD
  • 2.8" color TFT LCD display with 320×240 pixels

  • Recharging through mini USB port

  • Internal 500mAh lithium battery

  • Rising/falling edge trigger

  • Store file as BMP, DAT, BUF, or CSV format

  • Use built-in flash disk to save/read waveform image

  • Mini pocket sized, compact and lightweight

Specifications:

  • Model: DS211

  • MCU: STM32F103VC

  • Channel: 1 analog channel and 1 digital channel

  • Coupling: DC/AC

  • Max sampling rate: 1 MSa/s

  • Analog broadband: 200kHz

  • Max sampling memory depth: 8K

  • Analog input impedance: >500KΩ

  • Max input voltage: ±40Vpp(x1 probe)

  • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)

  • Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 sequence step)

  • Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp

  • Output test signal: 10Hz—1MHz (1-2-5 sequence step)

  • Synchronous mode: auto, normal, single, scan

  • Auto measurement: frequency/duty cycle, DC RMS voltage/Vpp /Vmax/Vmin

  • Storage: 8MB

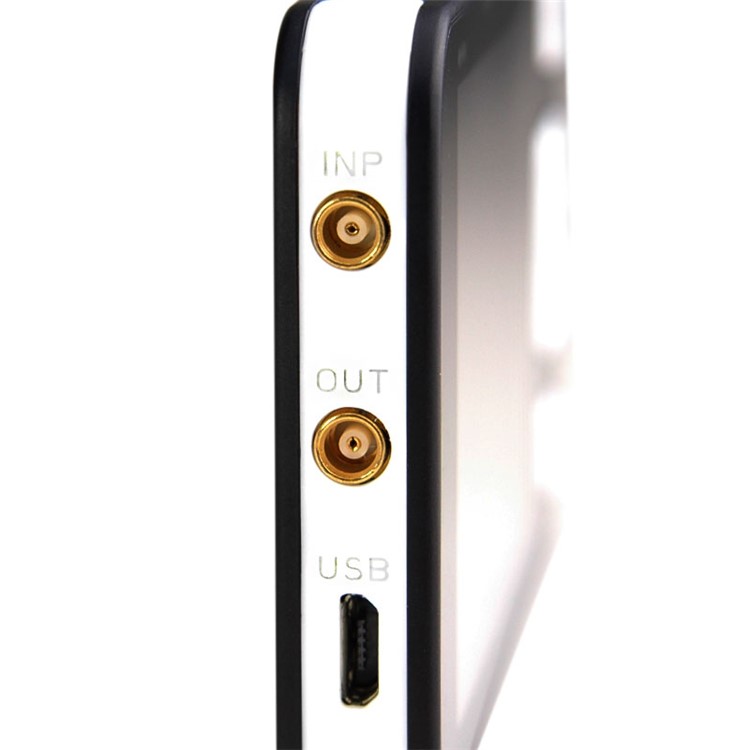

  • USB connector: Mini USB

  • Battery: 550mAh

  • Screen size: 2.8 inch

  • Screen resolution: 320×240

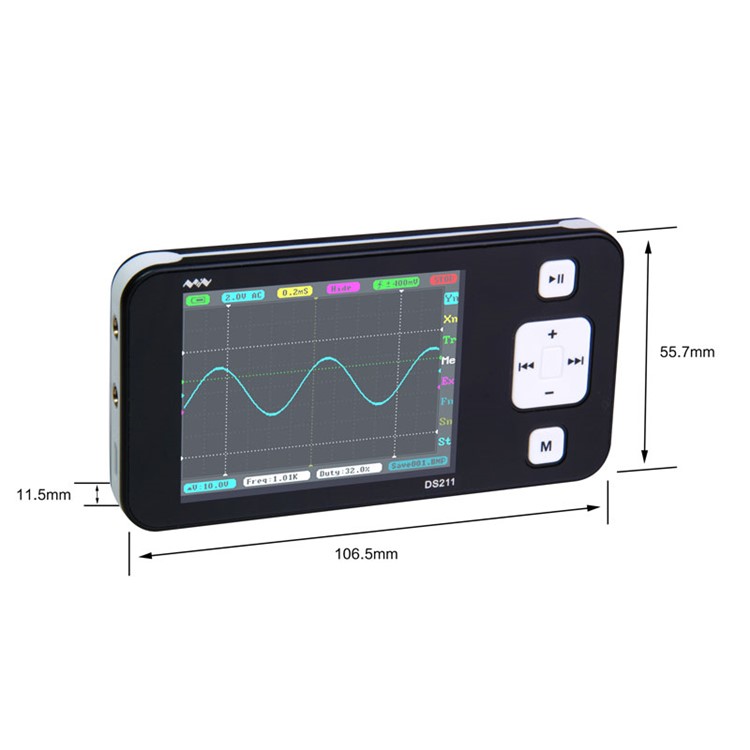

  • Dimension: 106×55.7×11.5mm

  • Weight: 65g

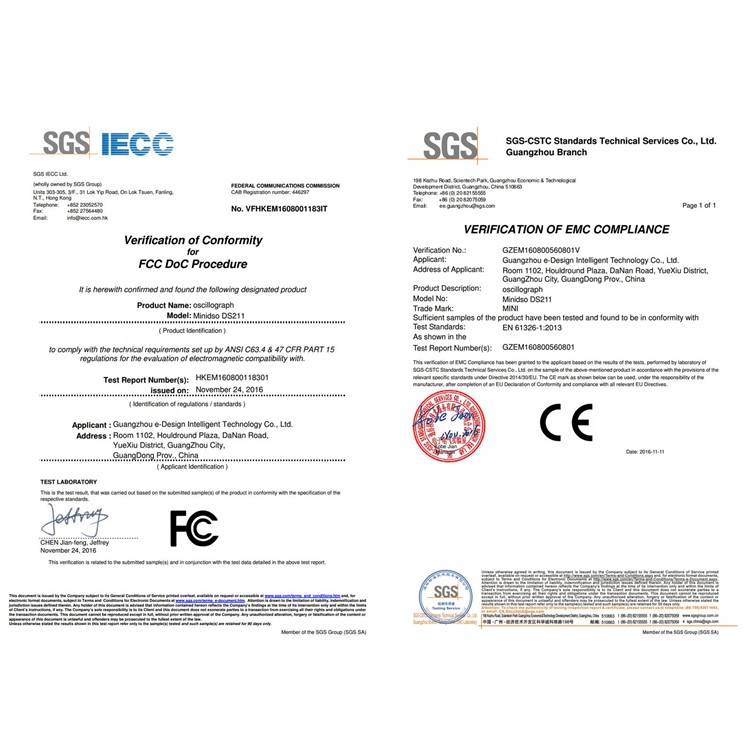

  • Certification: CE FCC

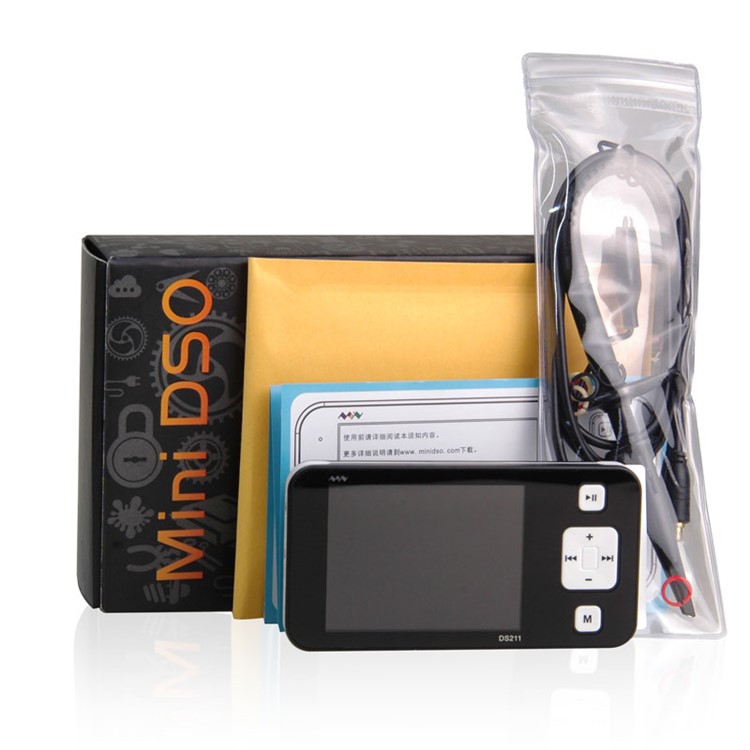

Package included:

  • 1 x DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD
  • 1 x Oscilloscope Probe
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-1
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-2
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-3
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-4
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-5
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-6
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-7
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-8
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-9
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-10
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-11
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-12
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-13
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-14
DS211 Mini DSO Digital Storage Oscilloscope 2.8 inch TFT LCD-15
