Price:
$ 147.32

Free Shipping

For just $ 147.32 , buy DS203 Portable 3-inch LCD Display Touch Screen 4 Channel Digital Storage Oscilloscope – Black from the wholesale webshop online.

Specifications

Certificate CE, FCC
Color Black

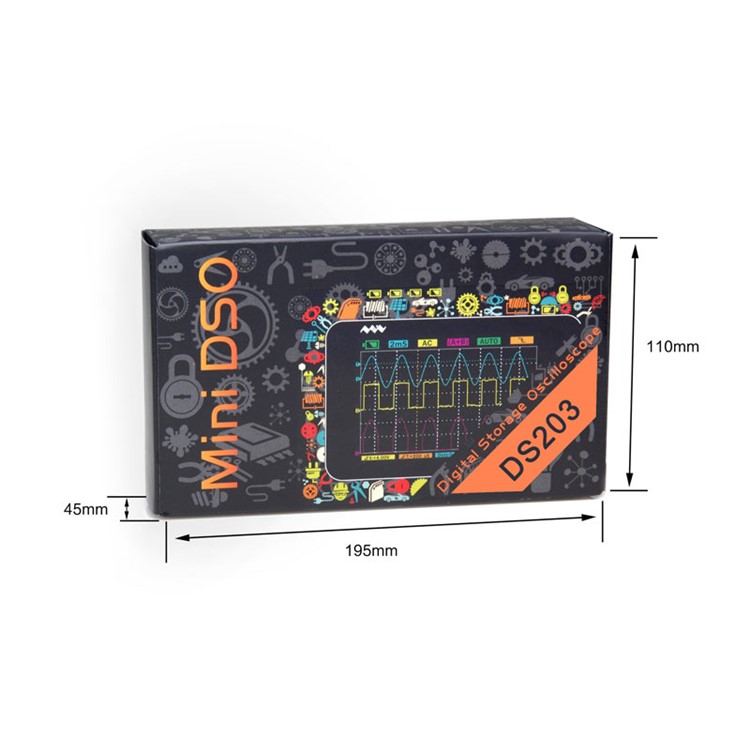

Retail Packaging Colored Box
Gross Weight 0.330kg
Volume Weight 0.216kg
Length 19.500cm
Width 11.000cm
Height 4.500cm
Weight 0.295kg
With Retail Packaging Yes

Product Description

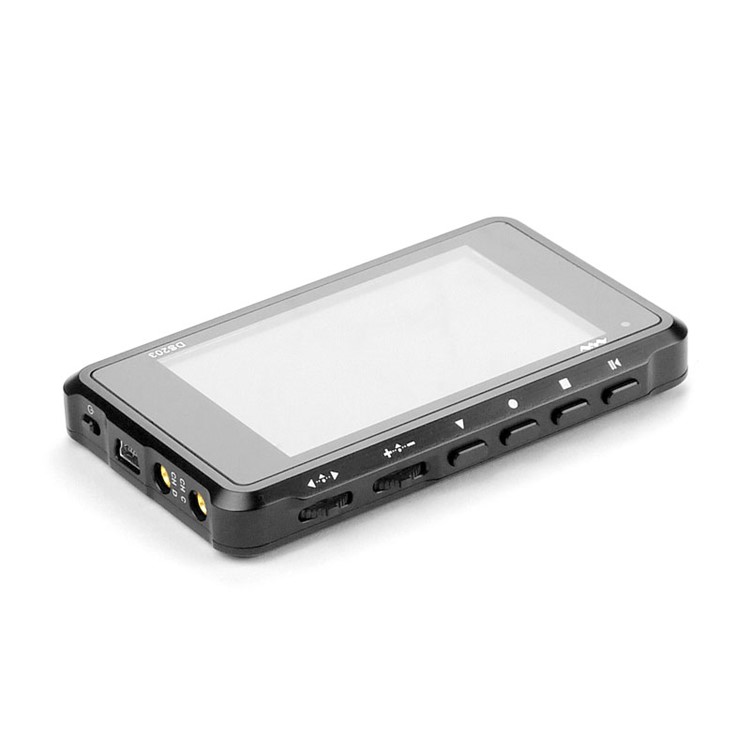

DS203 Portable 3-inch LCD Display Touch Screen 4 Channel Digital Storage Oscilloscope – Black

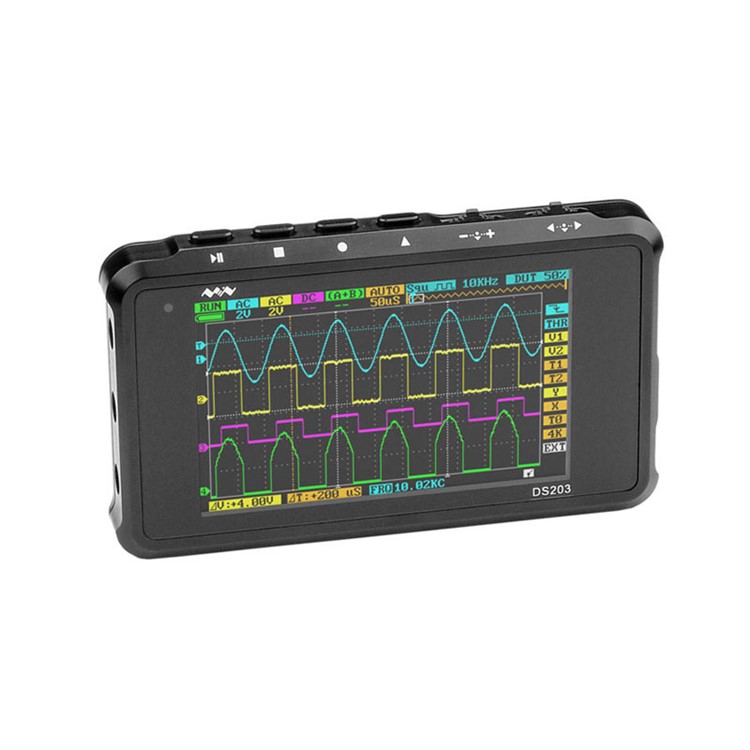

  • 3" full color TFT LCD large display (400X240 pixels)

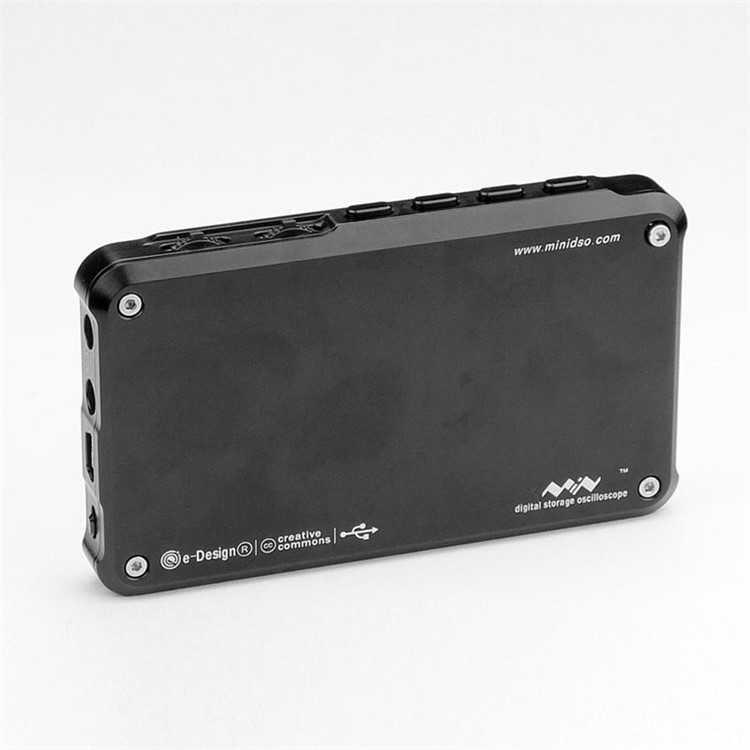

  • Rectangular metal housing case, compact and portable

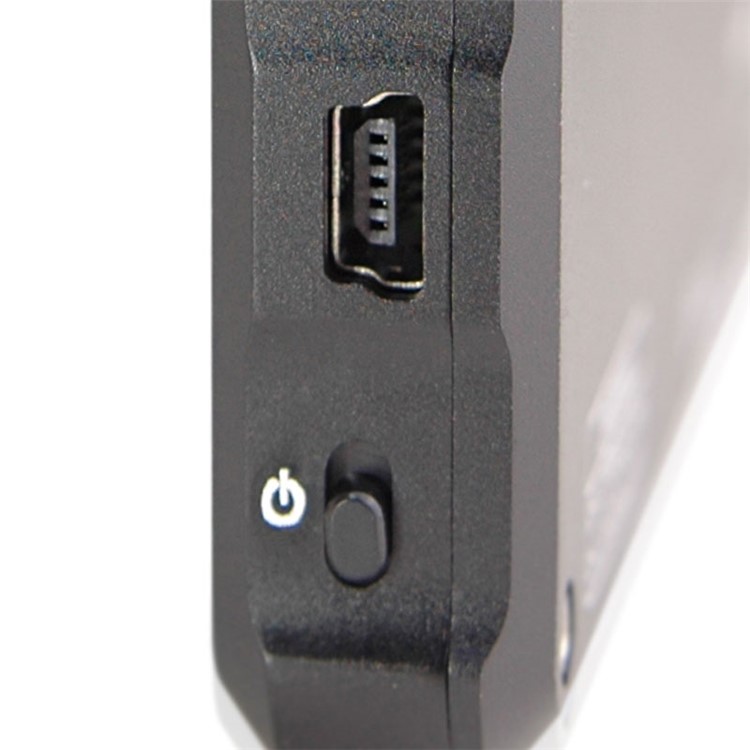

  • Internal 1000mAh lithium battery, recharging through mini USB port

  • Store file as BMP, DAT, BUF, or CSV format

  • Synchronous mode: auto, normal, single, none, scan

  • Inbuilt 8MB U disk storage for waveform data and images

  • Rising/falling edge trigger, positive/negative pulse width trigger

  • Auto measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg

  • Math waveforms: [CH_A] + [CH_B], [CH_A]-[CH_B], [CH_C]|[CH_D], [CH_C] and [CH_D], RecA, RecB, RecC, RecD.

  • Inbuilt signal generator/10Hz ~ 8MHz square wave (duty adjustable) or 10Hz ~ 20KHz sine/square/triangle/saw tooth wave

Specification:

  • Model: DS203

  • ADC: AD9288

  • Coupling: AC/DC

  • CPU: ARM Cortex M3

  • FIFO and control: FPGA

  • Analog bandwidth: 8MHz

  • Max sample rate: 72MSa/s

  • Analog input impedance: 1MΩ

  • Max sample memory depth: 4K

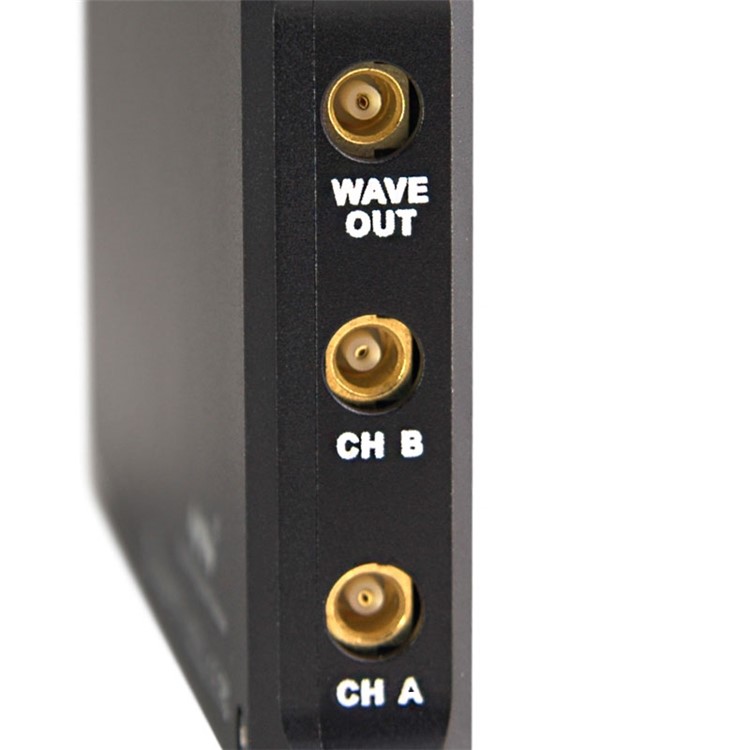

  • 2-analog channel: [CH_A], [CH_B]

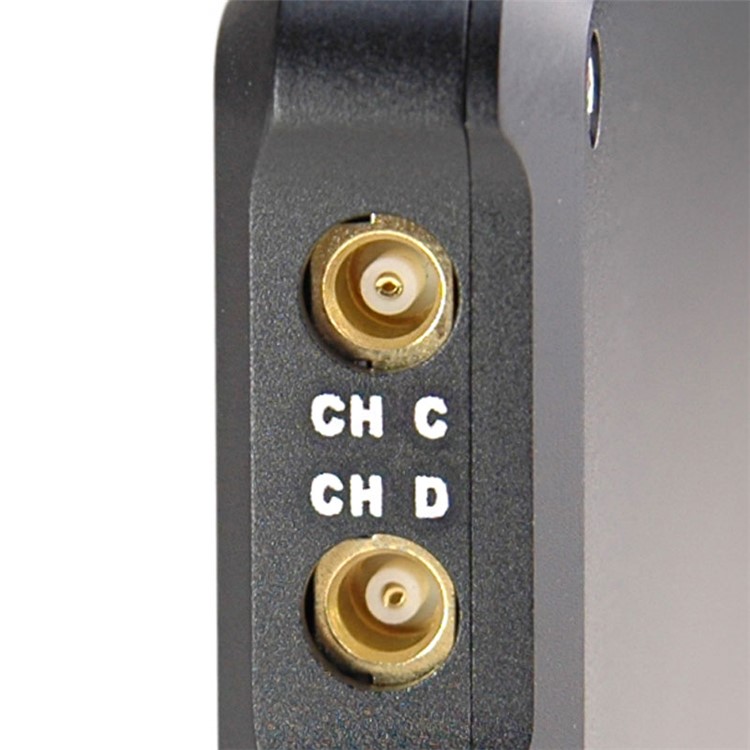

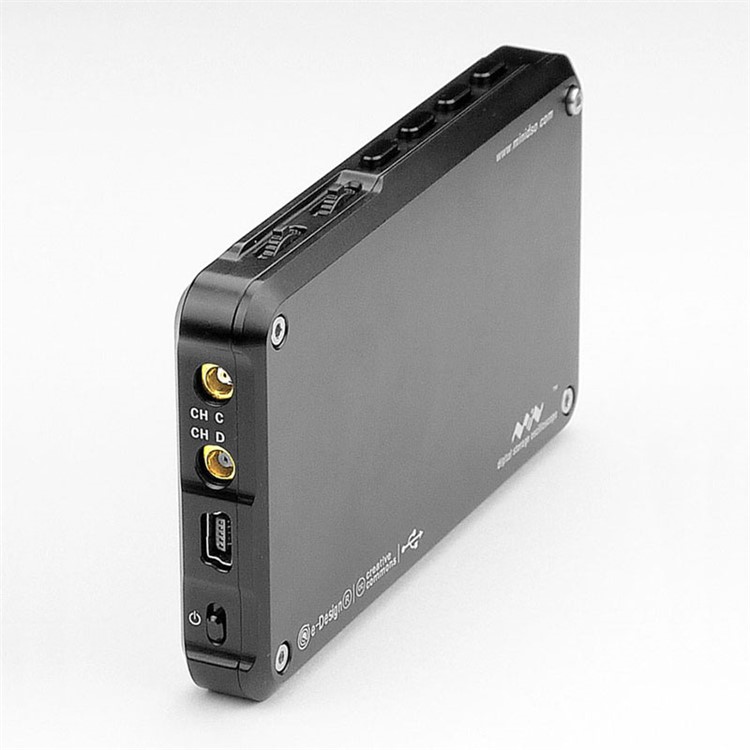

  • 2-digital channel: [CH_C], [CH_D]

  • Max input voltage: ±40V(X1 probe)

  • Vertical sensitivity: 50mv/Div~10V/Div (1-2-5 sequence step)

  • Horizontal sensitivity: 0.1uS/Div~2S/Div (1-2-5 sequence step)

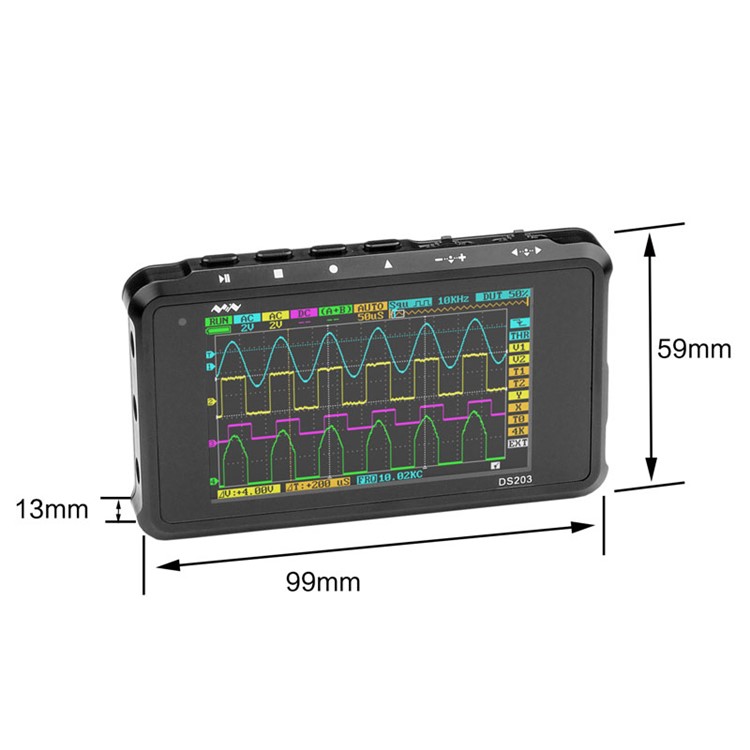

  • Size: 99 x 13 x 59mm

  • Weight: 119g

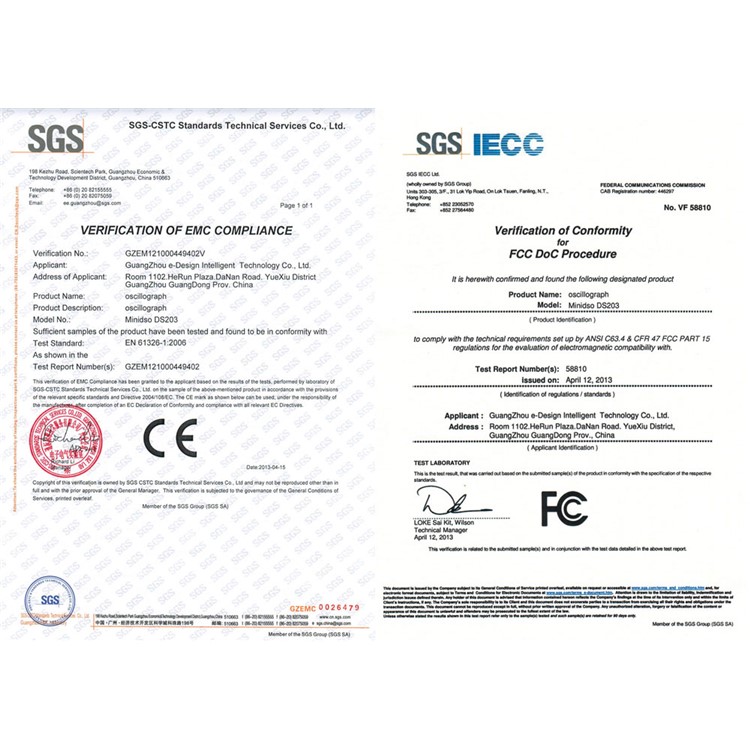

  • Certificate: CE and FCC

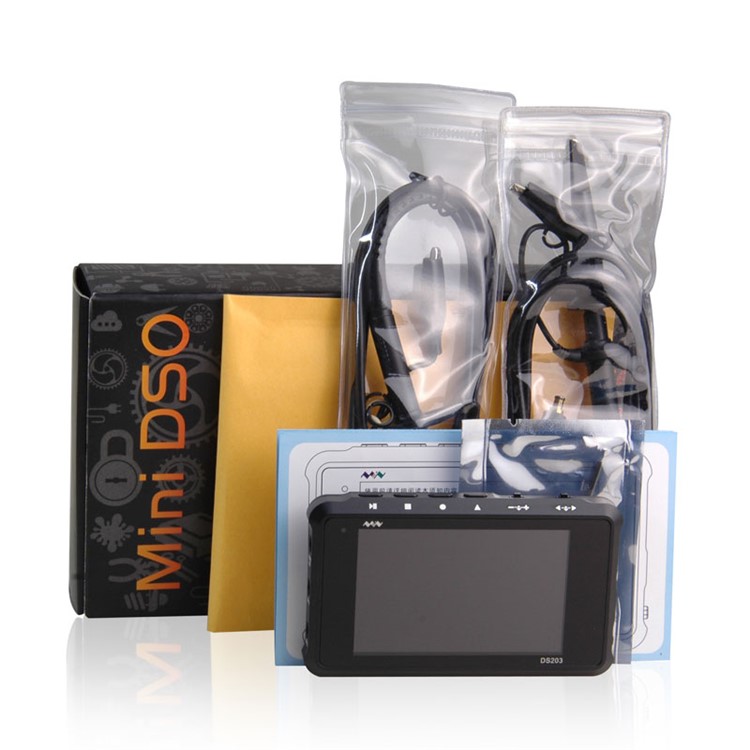

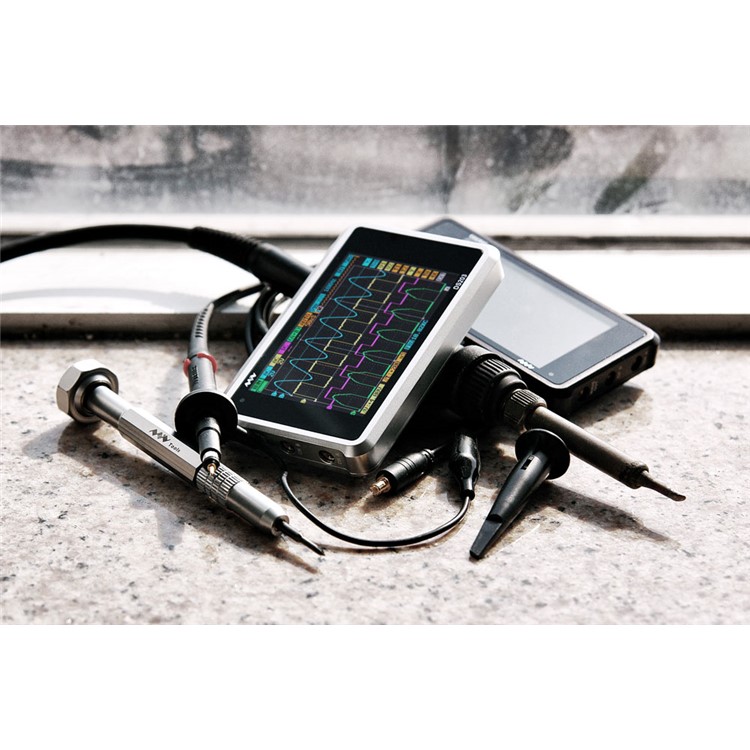

Package included:

  • 1 x DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope
  • 1 x X10 Probe
  • 1 x X1 Probe
  • 1 x Screwdriver
  • 1 x User Manual
