Price:
$20.63

Free Shipping

For just $20.63 , buy Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control from the wholesale webshop online.

Product Description

Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control
  • This product is designed for professional audio signal processing

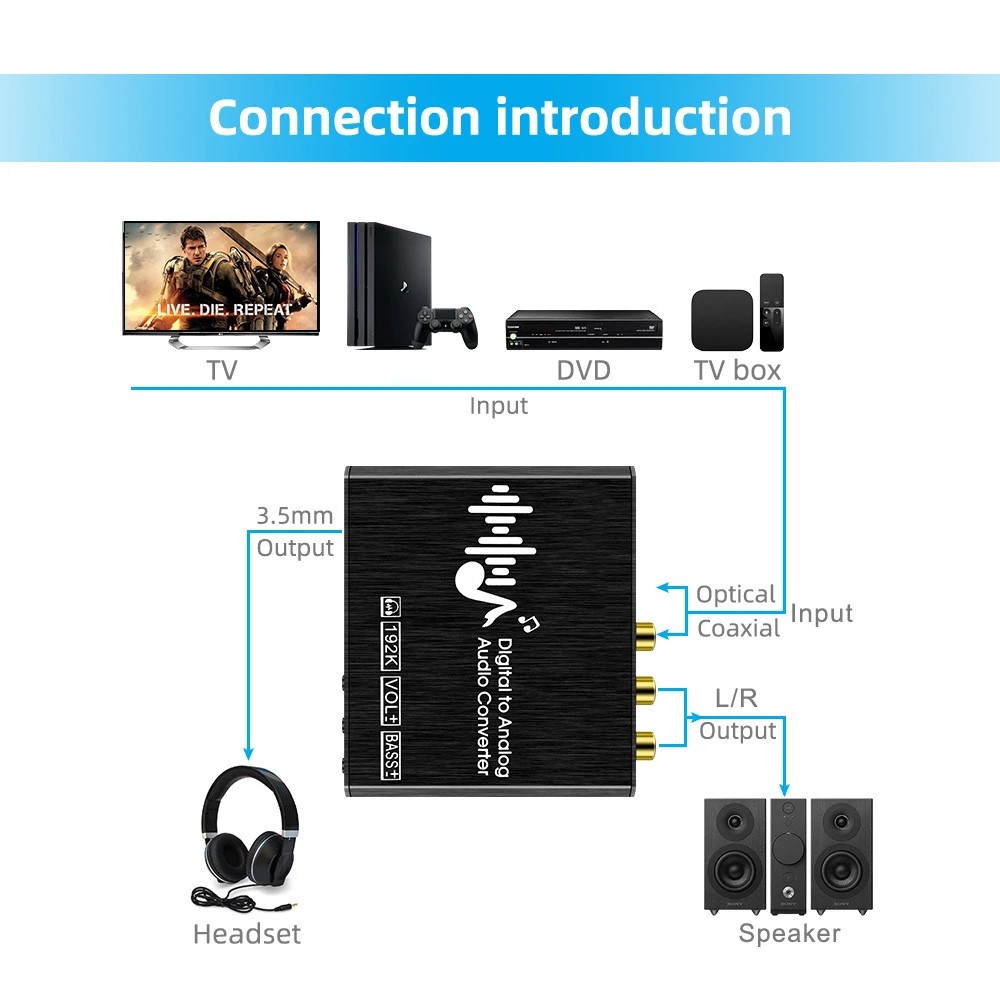

  • You can easily convert the Coaxial or Optical interface to an RCA analog audio interface and a 3.5mm headphone jack

  • The professional audio amplifier chip and volume adjustment knob can directly drive the earphones and adjust the output volume

  • The innovative designed bass adjustment function of 192KHz DAC converter can provide shocking stereo sound, heavy bass effect, and create a perfect environment different from the sound field

  • One optical and one coaxial input interface. Connect to DVD, HD player and other devices

  • One RCA output interface, connected to the power amplifier system

  • One channel 3.5mm audio output interface, connected to headphones

  • Eliminate the noise when there is no input signal, and automatically mute when the non-audio signal is input

  • Support 192KHz 24bit sampling rate

  • Support volume adjustment

  • Support bass adjustment

  • Metal shell, durable and anti-interference

Specification:

  • Support Audio Format: PCM

  • Separating Degree(1KHZ): 94DB

  • Response Frequency: 20Hz~20KHz -0.2db

  • Signal-to-Noise Ratio(SNR): -100DB

  • Total Harmonic Distortion(THD+N): 10Hz~20KHz 0.25-0.065%

  • Blocking Time: 0.577Fs

  • Sampling Rate: 32~192 KHz

  • Bit Rate: 16~24 Bit

  • Earphone output level(Adjust the bass to maximum): 3V

  • RCA output level(Adjust the bass to maximum): 9V

  • Earphone Output Power(Adjust the bass to maximum): (32Ω)30mW

  • Earphone Output Impedance: 0.8Ω

  • RCA Output Impedance: 450Ω

  • Working Voltage: +5V

  • Maximum Voltage: +6V

  • Maximum Power Consumption: 75mA

  • Operating Temperature Range: -10-70℃

  • Storage Temperature Range: -60-150℃

  • Operating Humidity Range: 10% – 80%RH(No Condensation)

  • Storage Humidity Range: 5 – 90%RH(No Condensation)

  • Size: 95mm x80mm x16mm

  • Net weight: 110g

Note:

  • 1. Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment.

  • 2. All parts should avoid strong vibration, impact, and falling.

  • 3. Please do not touch the power adapter plug with wet hands.

  • 4. Please hold the plug when unplugging. Do not pull the power cable directly.

  • 5. Please turn the unit off when it is not in use. (Please pull out the power plug when it is not in use for a long period of time.)

  • 6. Please do not open the cover and do not touch the inside parts.

  • 7. Please use the original factory power cable or adaptor.

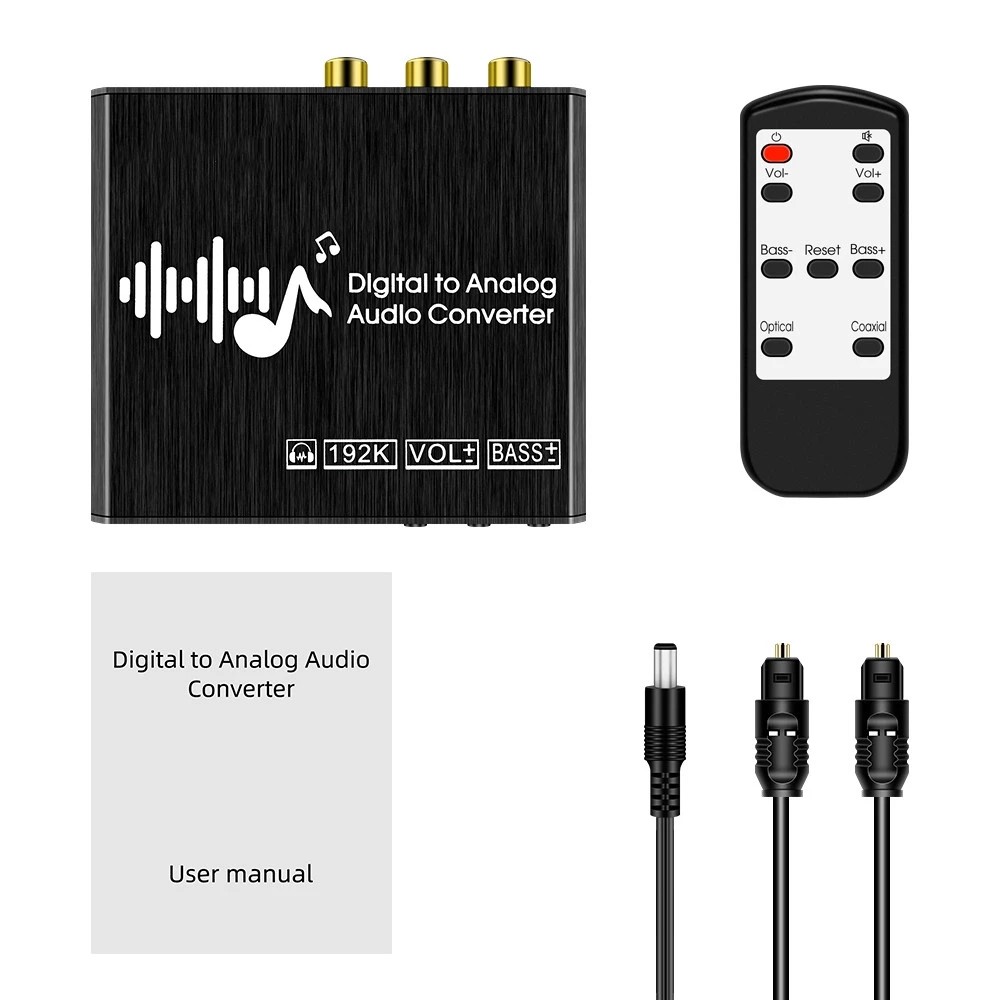

Package included:

  • 1 x Digital to Analog Converter
  • 1 x Remote Control(No Batteries)
  • 1 x Optical Cable
  • 1 x English User Manual

Specifications

Brand N/A
Retail Packaging Colored Box
User Manual (Language) English
Gross Weight 0.319kg
Volume Weight 0.274kg
Package Length 17.000cm
Package Width 12.000cm
Package Height 6.000cm
Package Weight 0.285kg
With Retail Packaging Yes
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-1
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-2
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-3
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-4
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-5
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-6
Digital to Analog Audio Converter 192KHz 3.5mm Headphone Jack DAC Converter with Optical Cable Remote Control-7
