Price:
$12.19

Free Shipping

For just $12.19 , buy CS-095B1 Winter Motorcycle Electric Heating Grip ATV Electric Hot Heated Warm Hand Grips Handlebar Cover from the wholesale webshop online.

Product Description

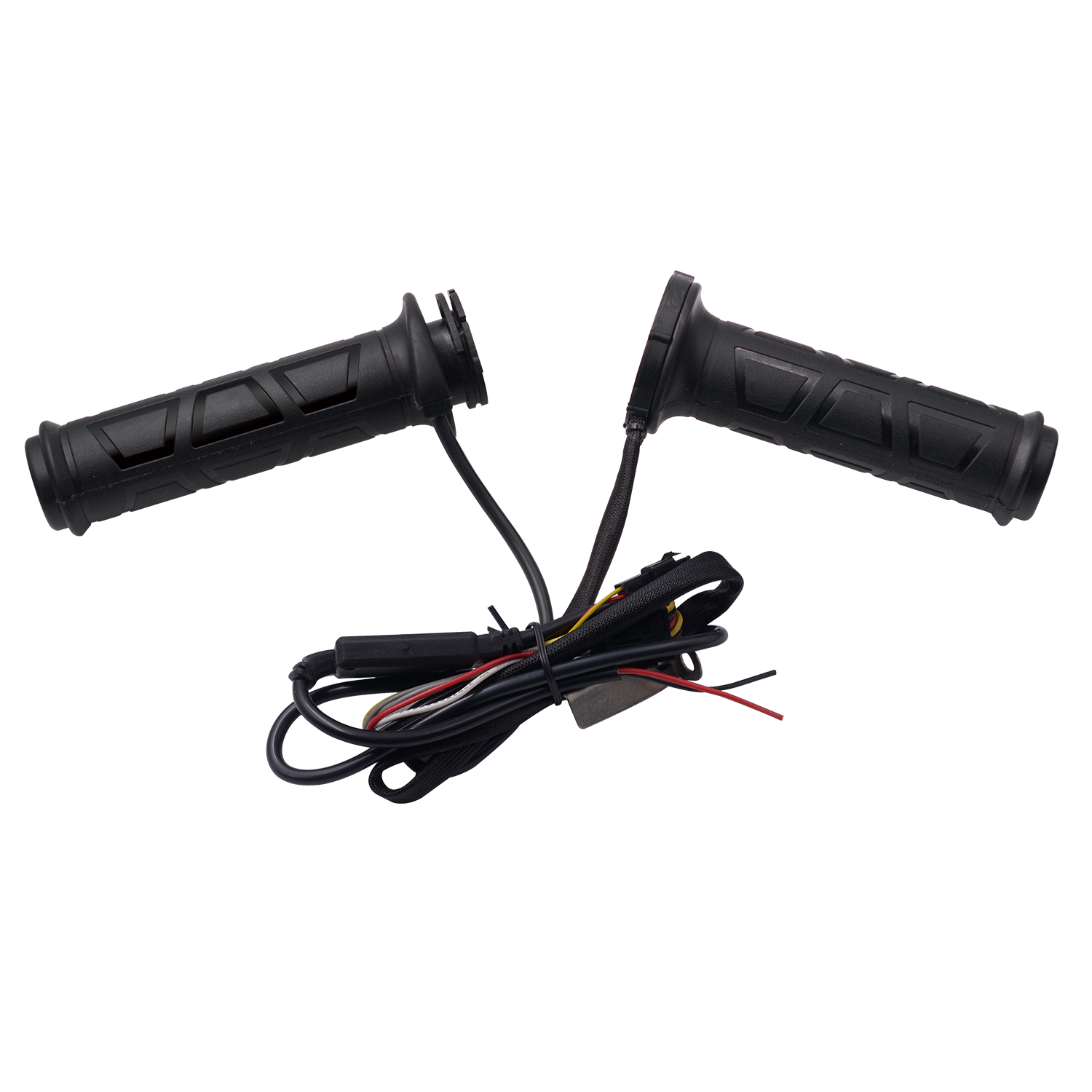

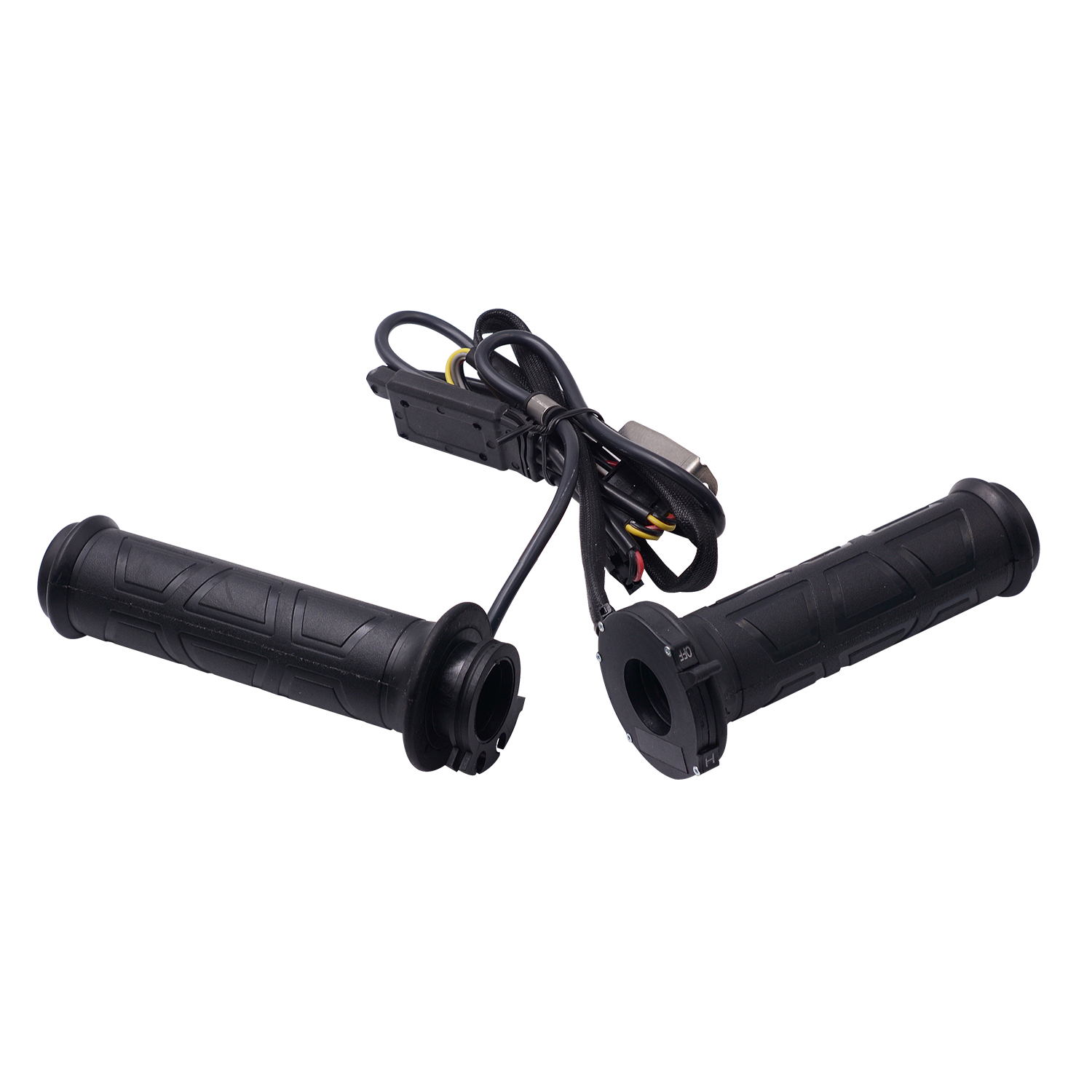

CS-095B1 Winter Motorcycle Electric Heating Grip ATV Electric Hot Heated Warm Hand Grips Handlebar Cover
  • 12V voltage, 22mm handlebar inner diameter, suitable for most motorcycles

  • High/low temperature, the handle temperature can be adjusted at will (50℃-70℃ adjustable)

  • Double throttle cable buckle, wider installation range

  • Portable design, does not affect the installation handle

Specifications:

  • Product: electric heating handle

  • Model: CS-095B1

  • Weight: 248.8g

  • Material: Nitrile rubber

  • Input voltage: DC 12V

  • Adjustable power: 12-24W

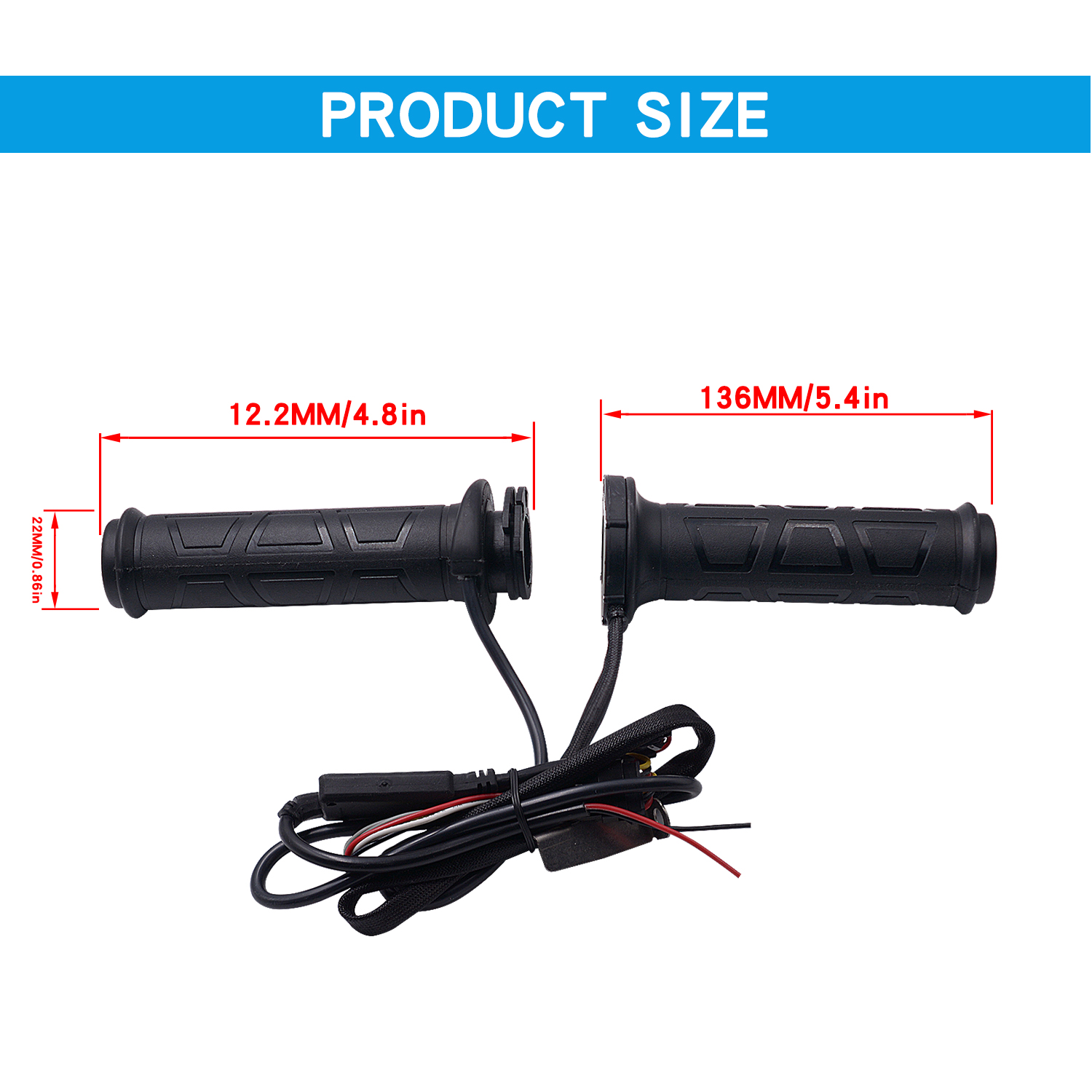

  • Inner diameter: 2.2cm

  • Temperature: low temperature: 50 degrees, high temperature: 70 degrees

  • Handle type: electric heating handle

  • Switch: Adjustable

  • Applicable models: 12V motorcycles with a handlebar diameter of 22mm

Install:

  • 1. Remove the original handlebar.

  • 2. Wet the inner hole with soapy water with the left hand, and the twisting range should not be too large during installation.

  • 3. When installing the balance iron on the left hand handle, adjust the position of the balance iron to be slightly separated from the handle, and do not squeeze the handle when tightening the screw.

  • 4. In use, the left hand handle slides on the steel pipe and removes the balance iron.

  • 5. Red wire – positive, black wire – negative.

  • 6. When the left-hand handle is installed, the power cord should leave enough extra wire for rotation.

Note:

  • 1. When installing the left handle, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.

  • 2. For models with balance iron, please adjust the installation position of the balance iron, do not squeeze the handle when tightening the screws, and the balance iron and the handle are slightly separated.

Package included:

  • 1 x Heating Grip

Specifications

Brand N/A
Retail Packaging Colored Box
Gross Weight 0.308kg
Volume Weight 0.188kg
Package Length 14.500cm
Package Width 10.500cm
Package Height 5.500cm
One Package Weight 0.275kg
With Retail Packaging Yes
