Price:
$ 53.73

Free Shipping

For just $ 53.73 , buy COTIER Home Security CCTV System 8CH 1080P 3 in 1 AHD DVR (A8/1U-MH) – EU Plug from the wholesale webshop online.

Specifications

Brand Cotier
Certificate CE
Home Safety Type Analog Cameras
Plug EU Plug
Retail Packaging White Paper Box
With Stand Yes
Gross Weight 1.008kg
Volume Weight 1.325kg
Length 29.000cm
Width 25.500cm
Height 8.000cm
Weight 0.900kg
With Retail Packaging Yes

Product Description

COTIER Home Security CCTV System 8CH 1080P 3 in 1 AHD DVR (A8/1U-MH) – EU Plug
  • High compatible system with amazing DVR/HVR/NVR 3-in-1

  • Support four analog video encoding, support high-definition video mixing analog inputs + network, support pure HD network video input

  • Compression Algorithm Ideal: H.264 compression algorithm, 30% decrease of stream due to advanced space-time filtering technology

  • Record mode: manual>alarm>motion detection>timing

DVR Specifications:

Model

A8/1U-MH





System

Main processor

Hi3521A

Operating system

embedded Linux

System resources

Simultaneously multi-channel real-time recording, playback, network operation, USB backup



Interface

Operator interface

Support 16-bit true color graphical menu interface and mouse operation

Preview

1/4/8/9









Video

Codec

H.264

Monitor quality

VGA, HDMI: HD

Playback quality

AHD-H/AHD-M

Encode ability

8*1080N/8* AHD-H@12fps

Decode ability

8*1080N/4* AHD-H@12fps

Multi-mode input

Analog: 8*AHD-H; 8*1080N
Hybrid: N/A

Network only: 8*1080P; 16*960P; 4*3M; 4*5M

Motion detection

Each screen can be set to 192 (16*12) detection areas; multi-level sensitivity can be set (Limited local channel)



Audio

Compression

G.711A

Intercom

Support



Record & Playback

Record mode

Manual>alarm>motion detection>timing

Local playback

4ch(local input mode)

Search mode

Search by time, calendar, event, channel

Storage & Backup

Video storage

HDD, network

Backup mode

Network, USB hard disk, USB burner, SATA burner

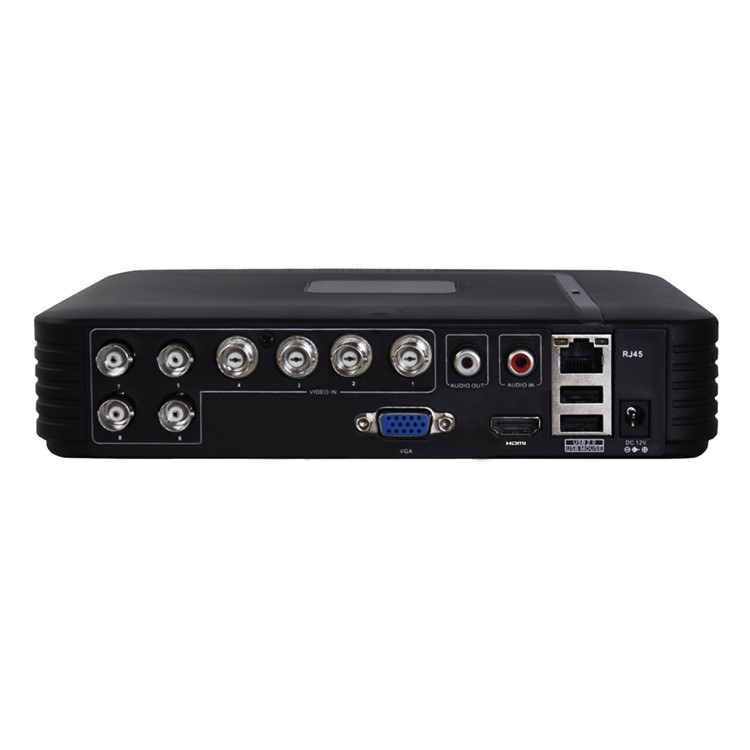

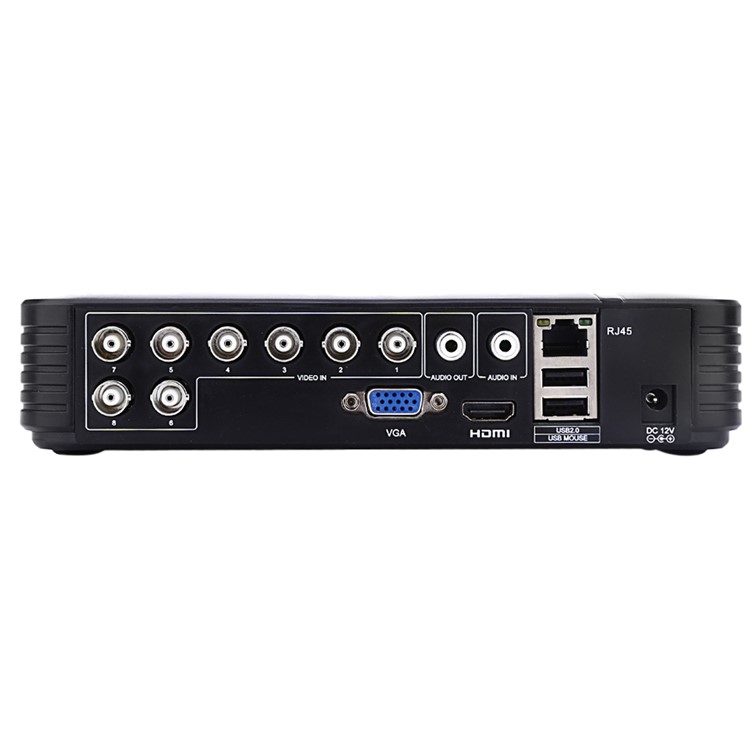

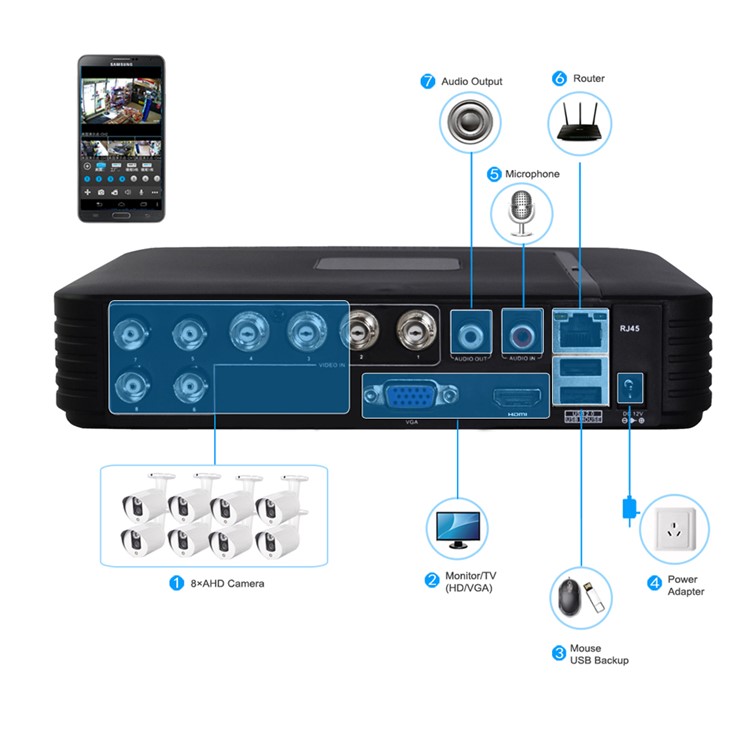

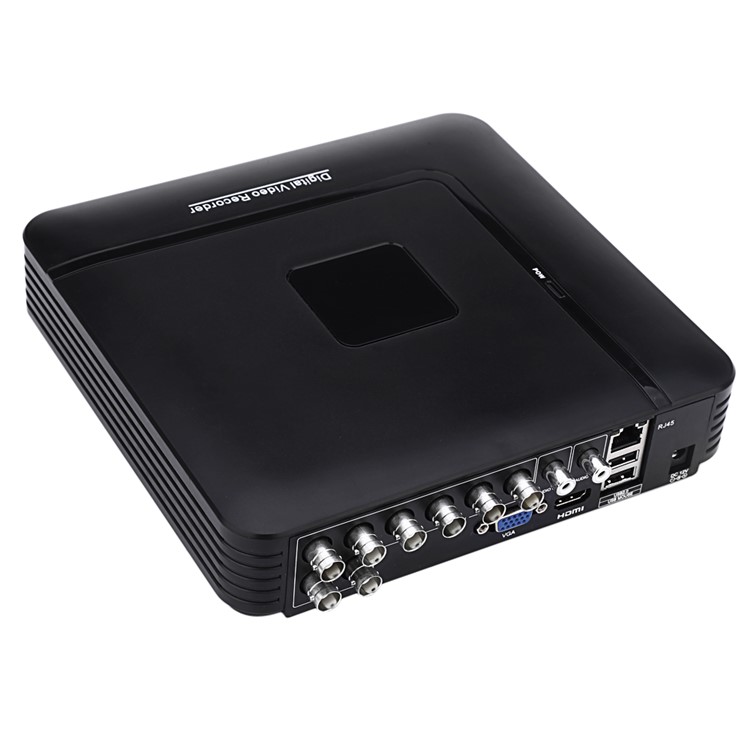

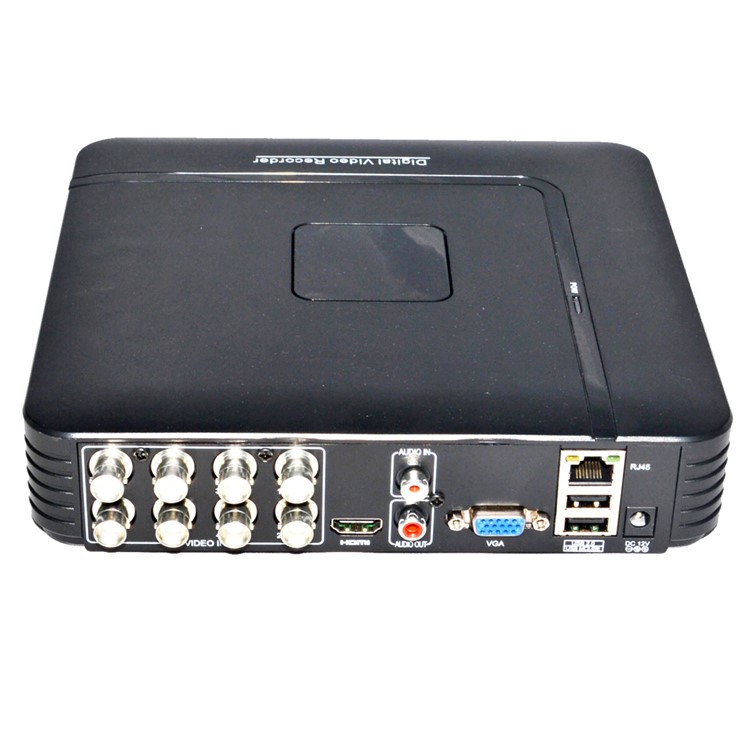

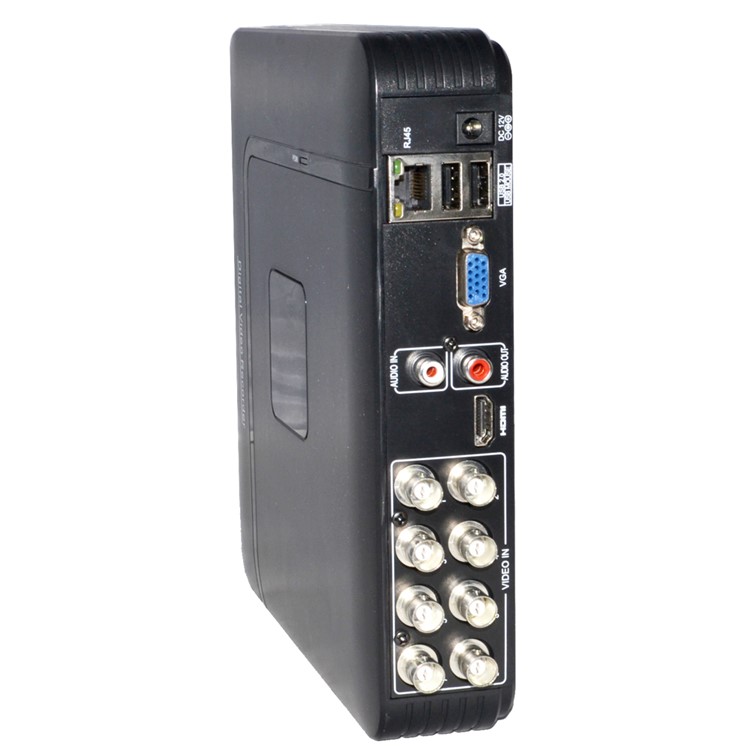

External Interface

Video input

8ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio input

1ch or 4ch RCA

Audio output

1ch RCA

Alarm input

0( Can be extended to 4ch)

Alarm output

0( Can be extended to 1ch)

Network interface

RJ45 10M/100M

PTZ control

0 or 1*RS485, support kinds of PTZ protocols

USB

2*USB 2.0 ports

HDD

1 or 2*SATA ports (Max 6TB/per)

Wireless

3G, WIFI (extend via USB)



General

Power supply

12V/2A or 12V/4A

Power consumption

<15W (without HDD)

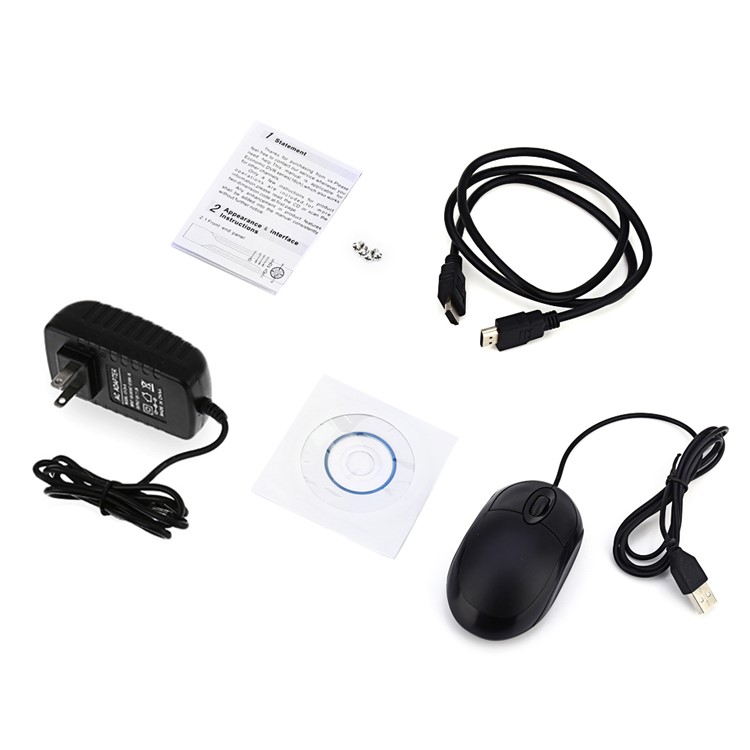

Package included:

  • 1 x COTIER Home Security CCTV System 8CH 1080P 3 in 1 AHD DVR (A8/1U-MH)
