Price:
$45.68

Free Shipping

For just $45.68 , buy 10KHz to 220MHz 20 Bands Superheterodyne Receiver SDR Transceiver RF Generator VFO Radio Debugger from the wholesale webshop online.

Product Description

10KHz to 220MHz 20 Bands Superheterodyne Receiver SDR Transceiver RF Generator VFO Radio Debugger

This is a VFO (Variable Frequency Oscillator) project that can be used for DIY self-made devices such as superheterodyne receivers, DCR transceivers, SDR transceivers or Ham QRP transceivers. It also has bar graph indicators for signal strength (S-Meter) and 20 Band presets. And can also be used as an RF/clock generator.

  • It has 10kHz to 220MHz working ranges
  • 0.5PPM high precise Tcxo clock, the frequency is more accurate
  • Tuning step of 1Hz, 10Hz, 1kHz, 5kHz, 10kHz and 1MHz
  • Intermediate frequency (IF) offset (+ or -) is adjustable
  • 20 band presets (shortcuts) for BCB and HAM frequencies
  • Equipped with generator function mode
  • RX/TX mode selector for Homebrew QRP transceivers
  • The bar graph of the signal meter through the analogs input (ADC)
  • It can be used as a local oscillator on Homebrew radio receivers (such as superheterodyne, SDR, direct conversion and Homebrew QRP transceivers)
  • Can be used as a simple RF/clock generator for calibration reference or clock generation
  • And also can be used as a common 128×64 I2C OLED SSD1306 display and Si5351 module
  • I2C data transmission, only need 2 lines it can be connected to the display, with high stability and accuracy of frequency generation

Specifications:

  • Name: SDR Transceiver
  • Item size: 90 * 100 * 40mm / 3.54 * 3.94 * 1.57in
  • Item weight: 200g / 7.05ounce

Package included:

  • 1 x SDR Transceiver
  • 1 x Type-C Cable

Specifications

Gross Weight 0.294kg
Volume Weight 0.272kg
Package Length 17.500cm
Package Width 12.600cm
Package Height 5.500cm
One Package Weight 0.262kg
With Retail Packaging No
TP10310346467A-1
TP10310346467A-2
TP10310346467A-3

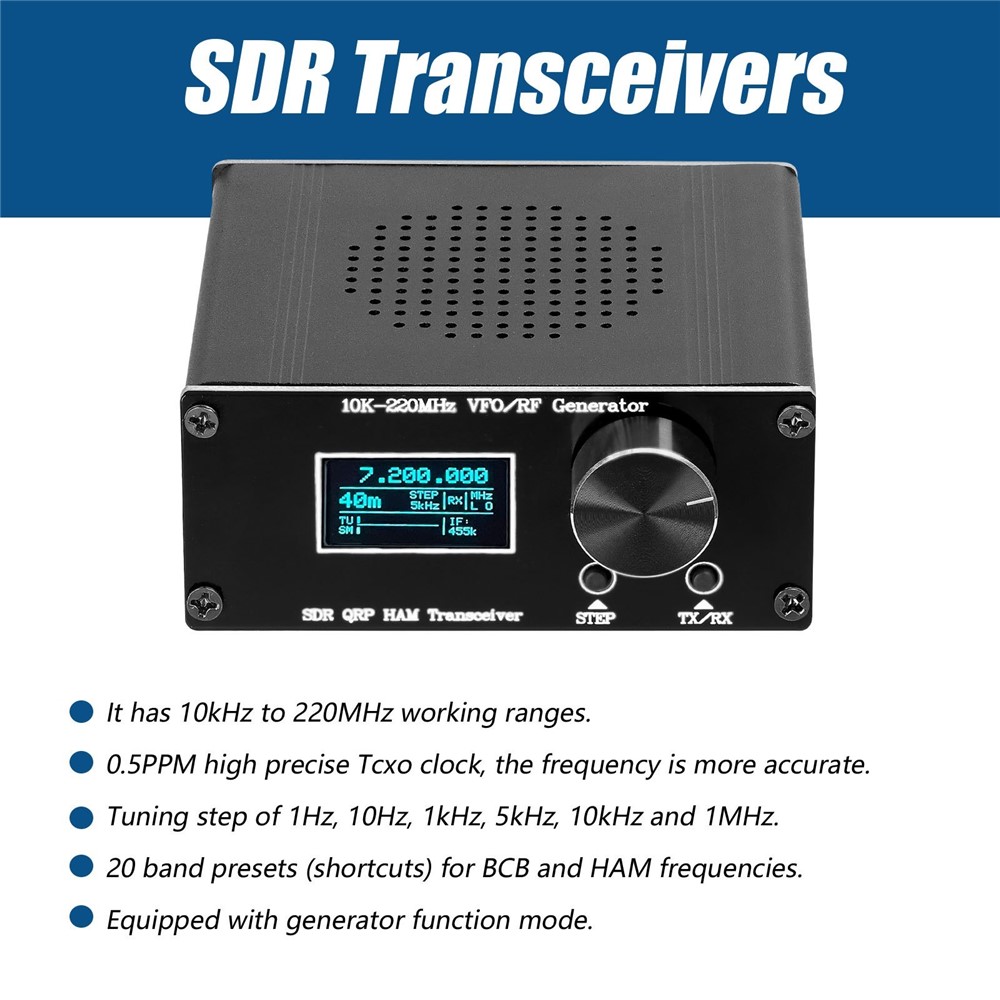

TP10310346467A-4

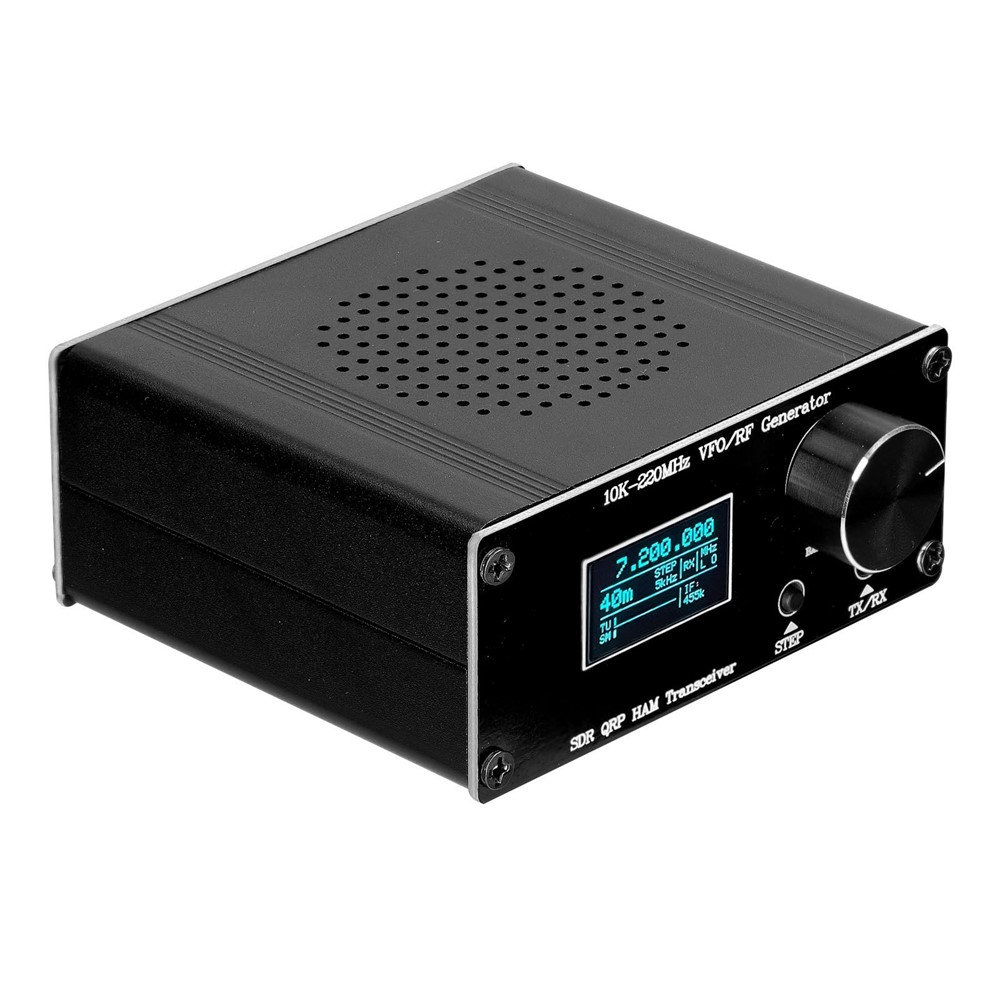

TP10310346467A-5
TP10310346467A-6
TP10310346467A-7
