RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens – PAL

Price:
$ 39.76

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 39.76 , buy RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens – PAL from the wholesale webshop online.

Specifications

Retail Packaging White Paper Box

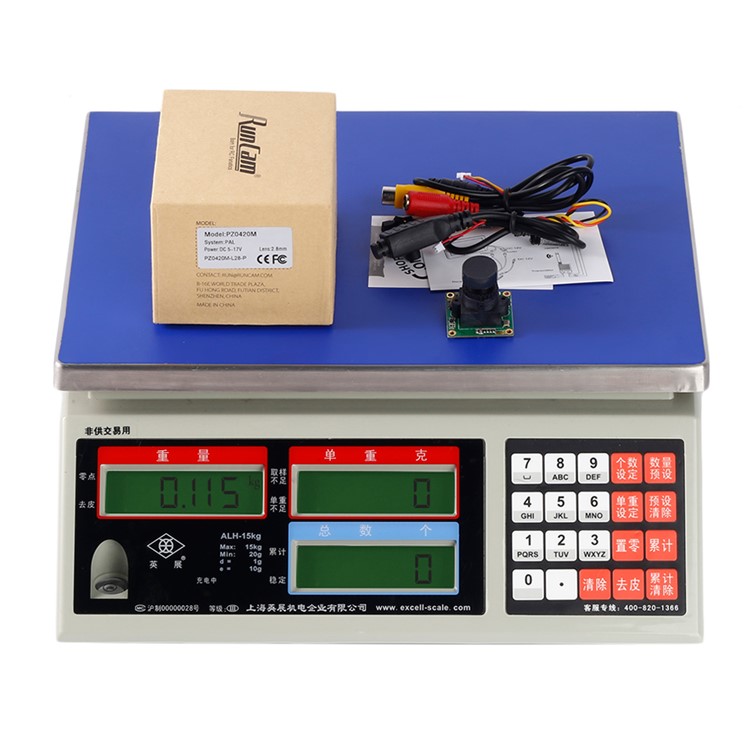

Gross Weight 0.129kg
Volume Weight 0.097kg
Length 9.600cm
Width 7.500cm
Height 6.000cm
Weight 0.115kg
With Retail Packaging Yes

Product Description

RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens – PAL
  • This is an optimized version of PZ0420

  • It still keeps 600TVL resolution and excellent color rendition, supporting DC 12V operating voltage

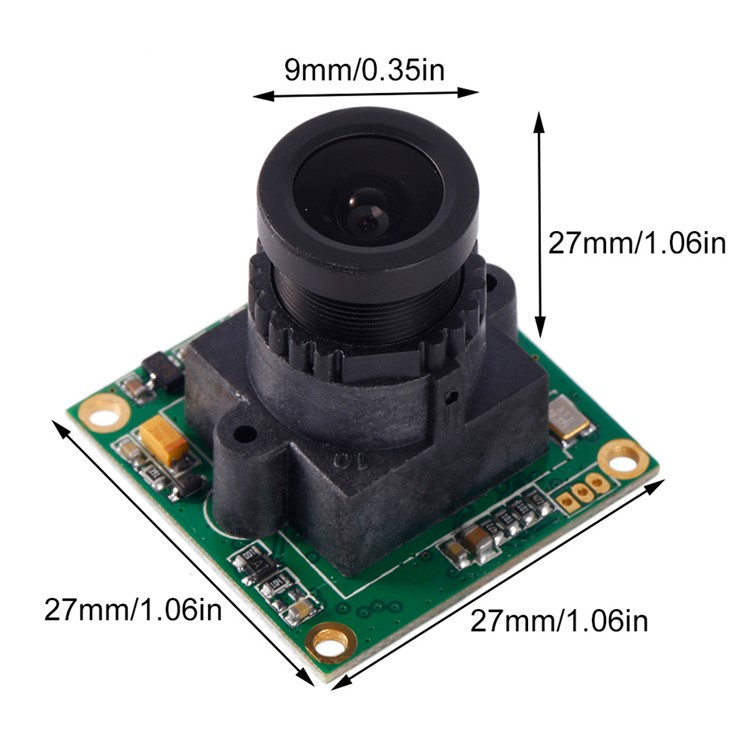

  • The size is reduced to 27*27mm, which can reduce air resistance for FPV aircraft

  • Digital Wide Dynamic Range(D-WDR)

  • Anti-exposure function support car license recording (HLC)

  • It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight

Specifications:

  • Brand: RUNCAM

  • Model: PZ0420M-L28

  • Image Sensor: 1/3 Sony Super HAD II CCD

  • Horizontal Resolution: 600TVL

  • Effective Pixel: PAL: 753(H)*582(V)

  • Signal System: PAL

  • Synchronization: Internal

  • Auto White Balance: Manual/Auto/Auto Tracking

  • S/N Ratio: >60dB(AGC OFF)

  • Electronic Shutter Speed: PAL: 1/50 to 1/100,000sec

  • Auto Gain Control: Off/Low/Mid/High Optional

  • Back Light Compensation (BLC): Off/BLC/Anti-exposure

  • Motion Detection (MD): On/Off (multi-level sensitivity)

  • Min. Illumination: 0.01Lux/1.2F

  • Shading Area: 8

  • Video Output: 1.0Vp-p 75 ohm RCA output

  • Power: DC 5 to 17V

  • Supply Current: 170mA-30mA

  • Operation Temp.: -10 degree Celsius to +50 degree Celsius

  • Operation Environ.: 10% to 90%

  • Edge Light Compensation: Yes

  • Display Mode: LED monitor/CRT monitor

  • IR Image Optimizer: Anti-exposure of the object in the middle

  • DNR: 2DNR

  • Day/Night Switch: Auto/Color/B&W/Outside Control (position start and end controllable)

  • Day/Night Time Switch: 1 to 30 Switchable time

  • OSD: Chinese/English Menu

  • White Dot Repair (DPC): Yes

  • Image Adjust: Yes

  • Function Control: OSD

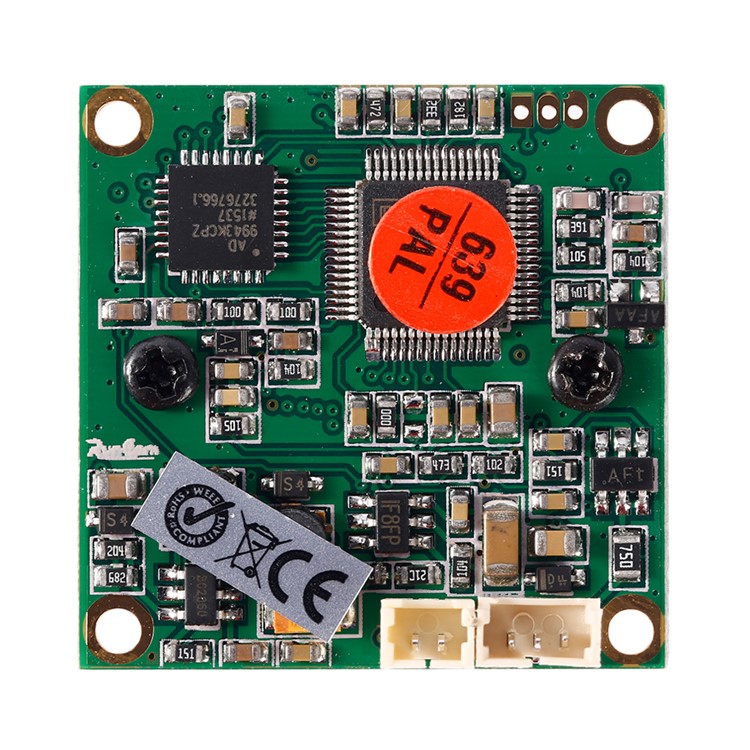

  • Board Size: 28 x 28mm

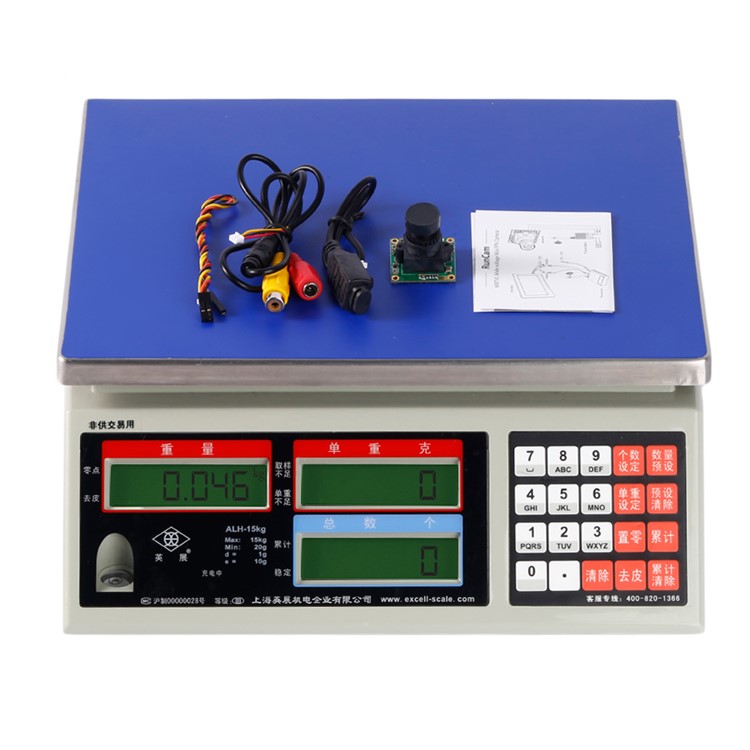

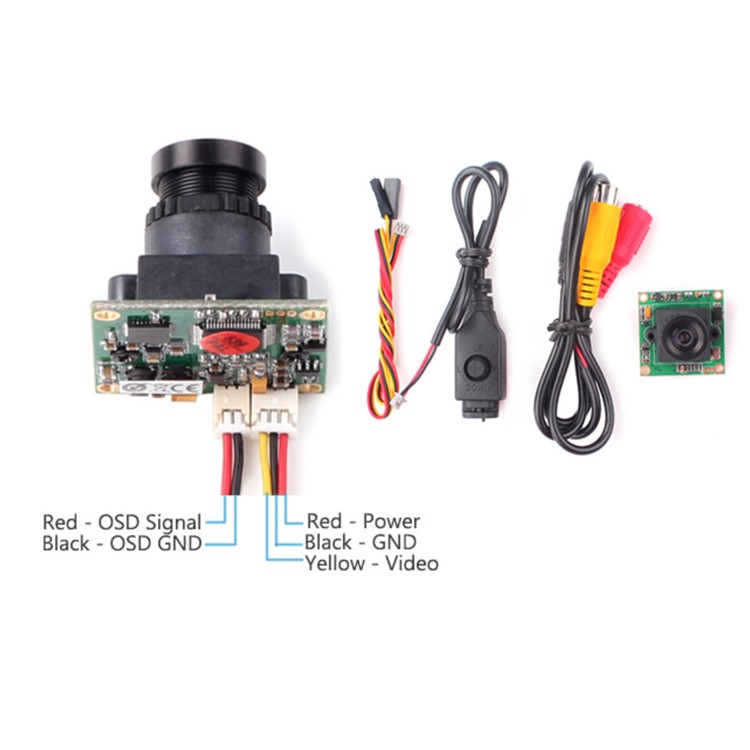

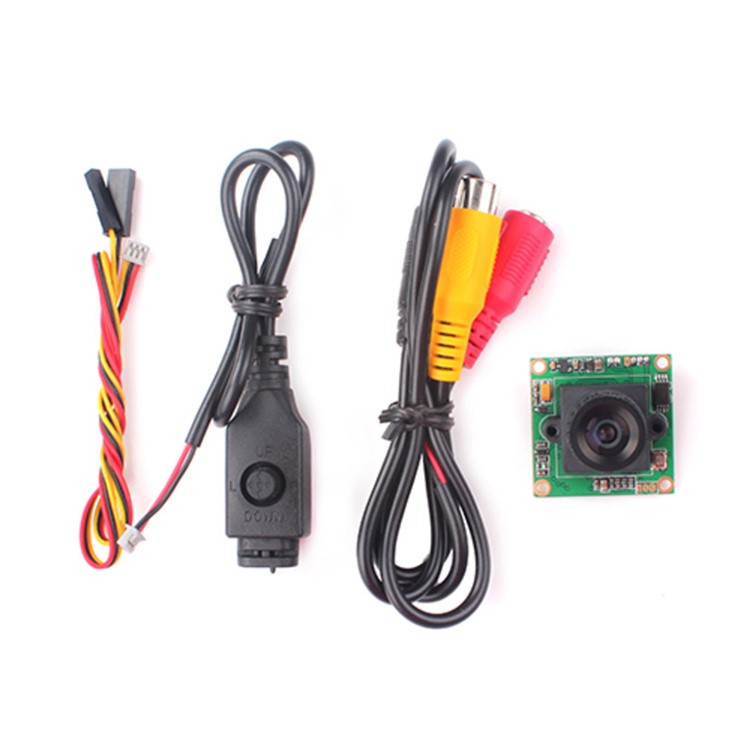

Package included:

  • 1 x Camera
  • 1 x OSD Menu
  • 1 x Cable
  • 1 x FPV Cable

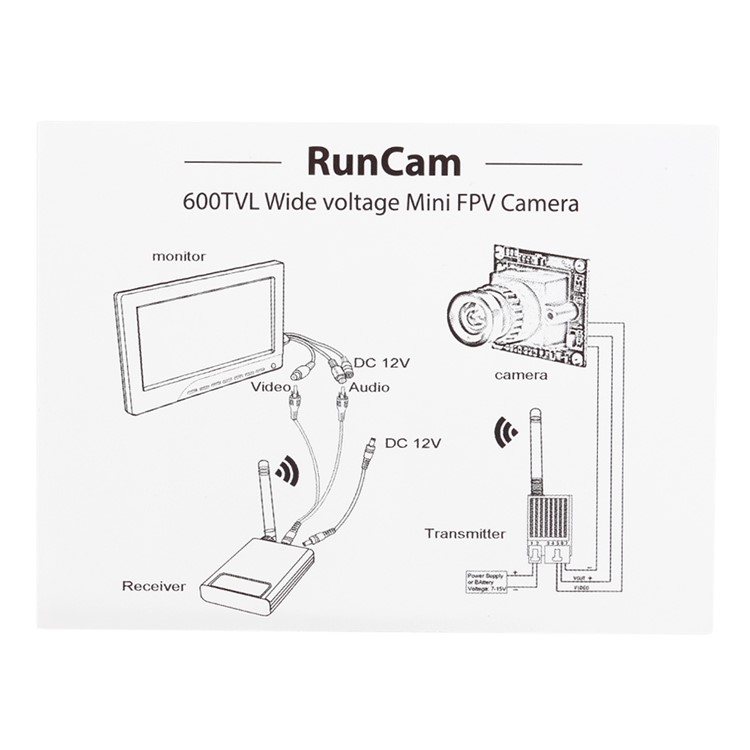

  • 1 x Manual

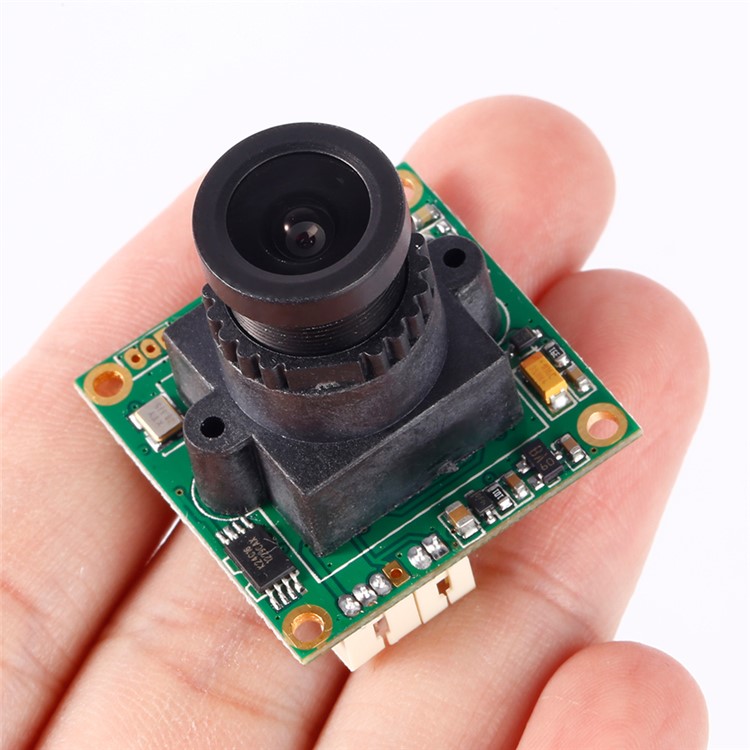

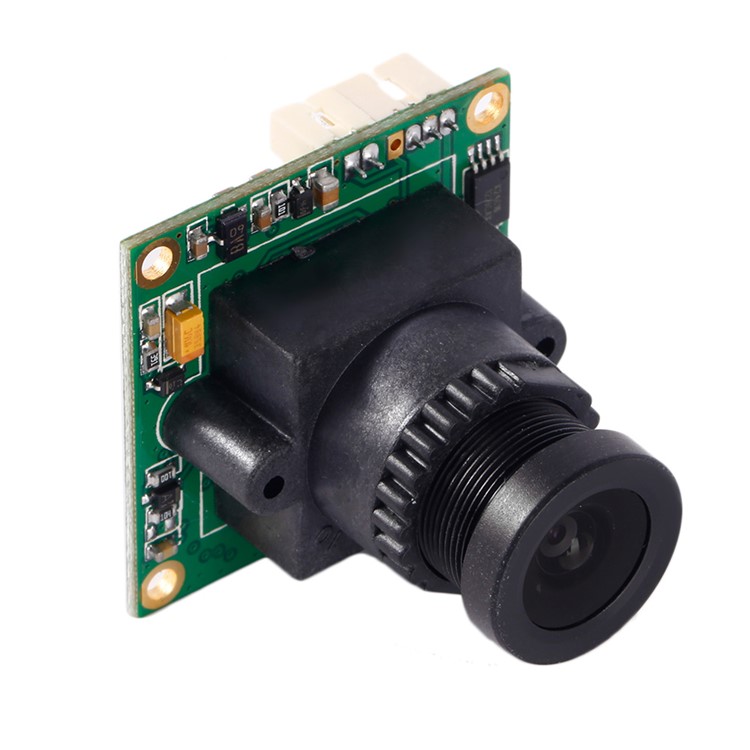

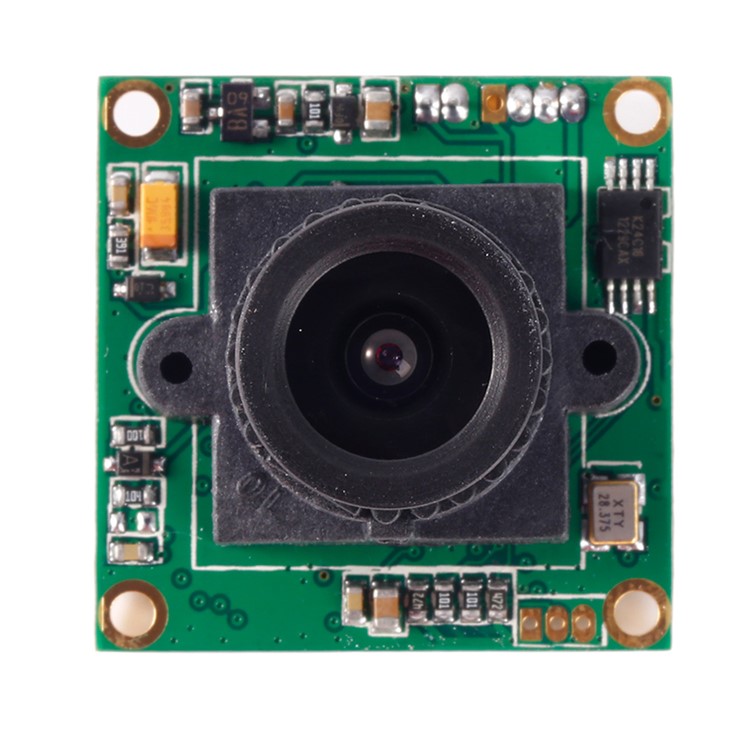

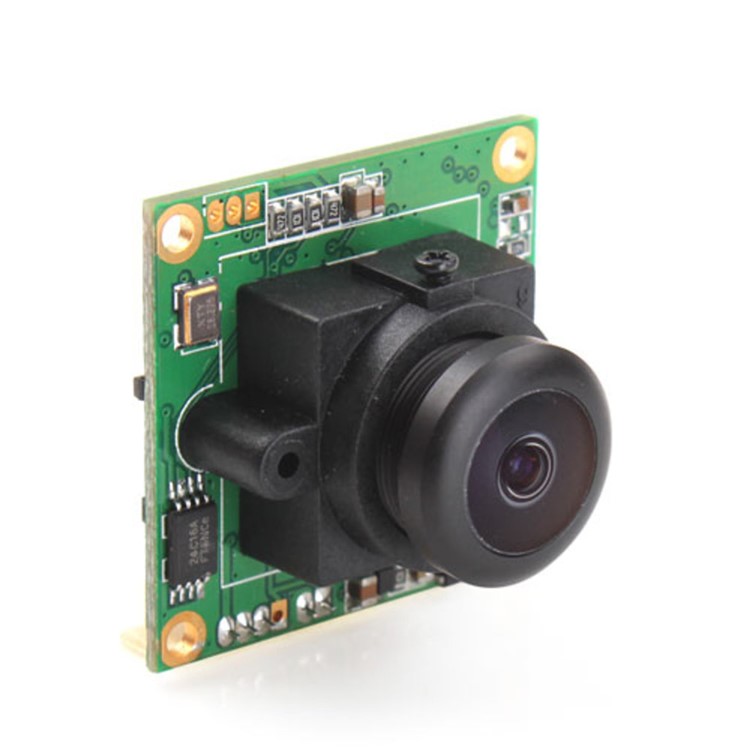

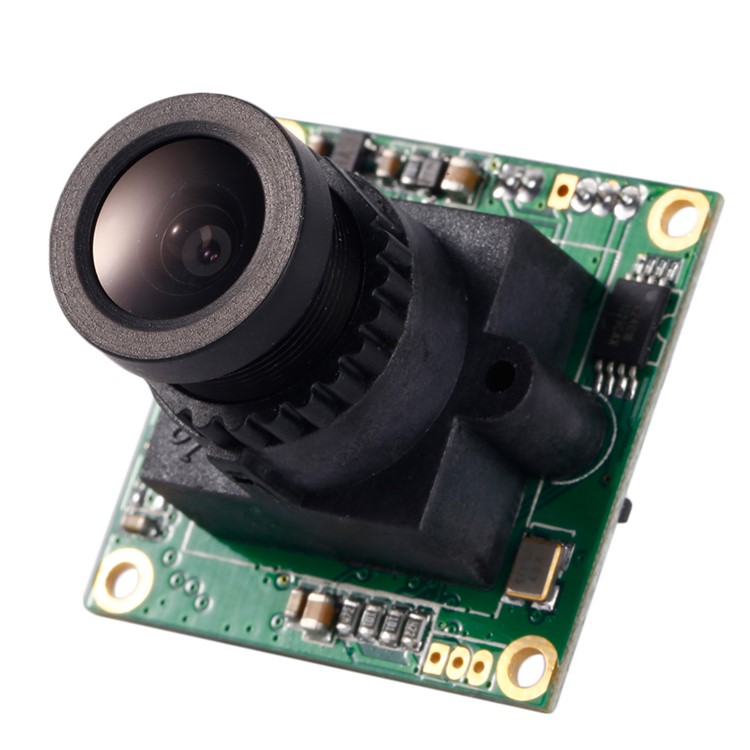

RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-1
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-2
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-3
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-4
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-5
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-6
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-7
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-8
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-9
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-10
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-11
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-12
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-13
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-14
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-15
RUNCAM PZ0420M-L28 600TVL Wide Voltage IR Sensitive DC 5-17V Mini FPV Camera 2.8mm Lens - PAL-16
