RUNCAM PZ0420M-L28 2.8MM 864.3M 600TVL DC 5-17V Wide Voltage IR Sensitive Mini FPV Camera – NTSC

Price:
$ 39.76

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 39.76 , buy RUNCAM PZ0420M-L28 2.8MM 864.3M 600TVL DC 5-17V Wide Voltage IR Sensitive Mini FPV Camera – NTSC from the wholesale webshop online.

Specifications

Retail Packaging Colored Box
Gross Weight 0.138kg
Volume Weight 0.097kg
Length 9.600cm
Width 7.500cm
Height 6.000cm

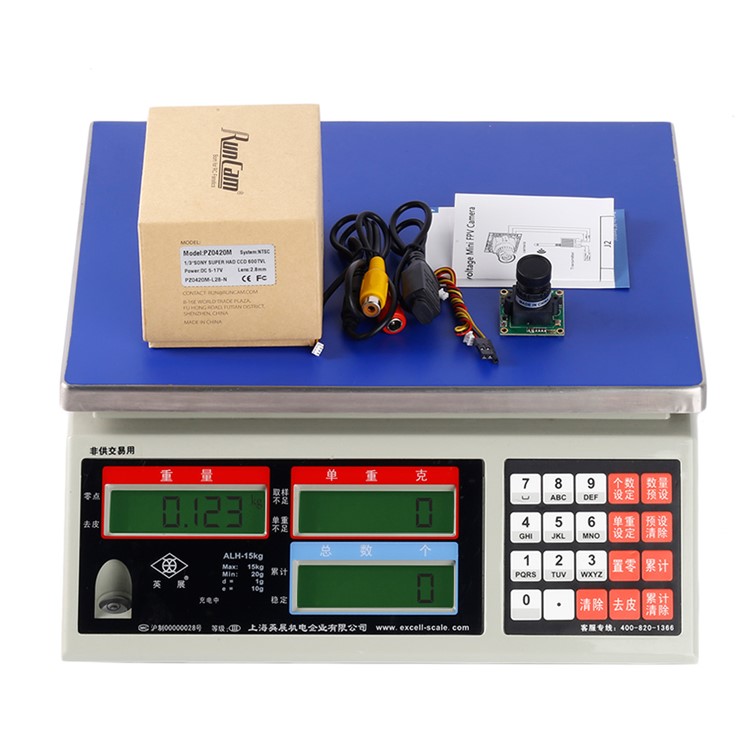

Weight 0.123kg
With Retail Packaging No

Product Description

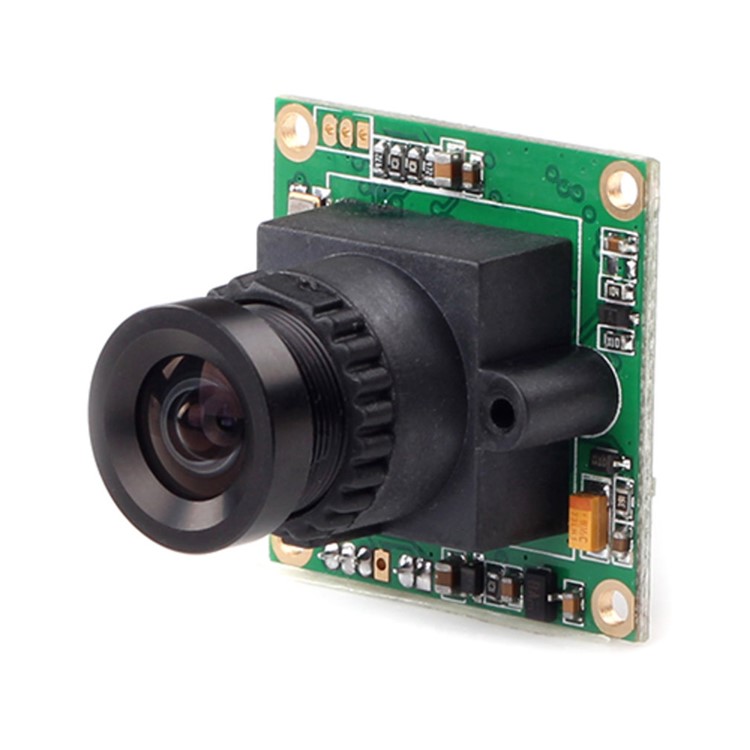

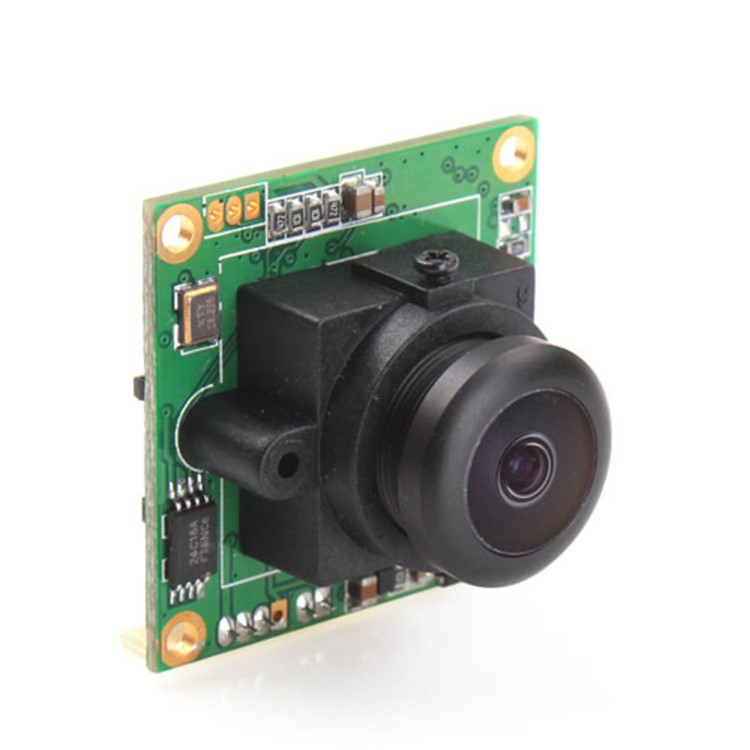

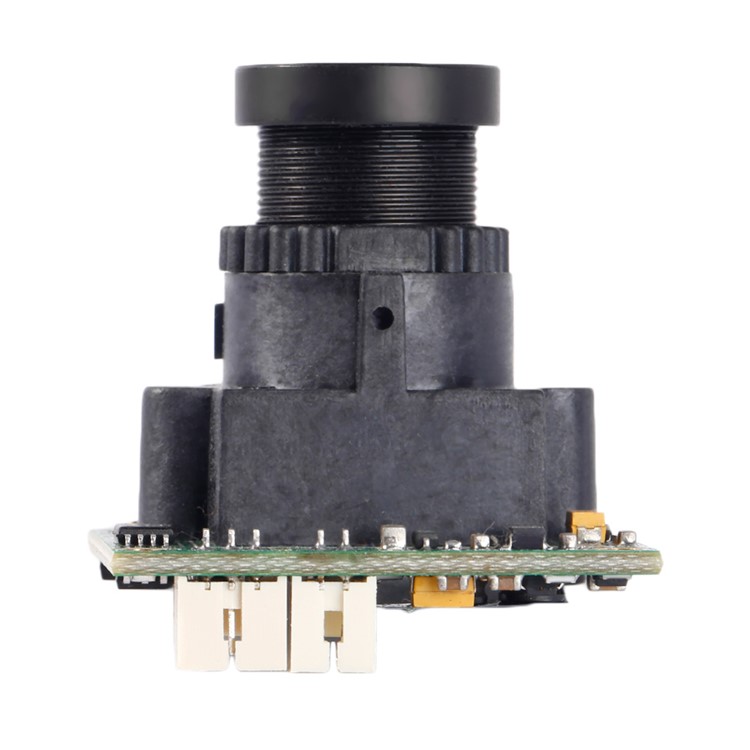

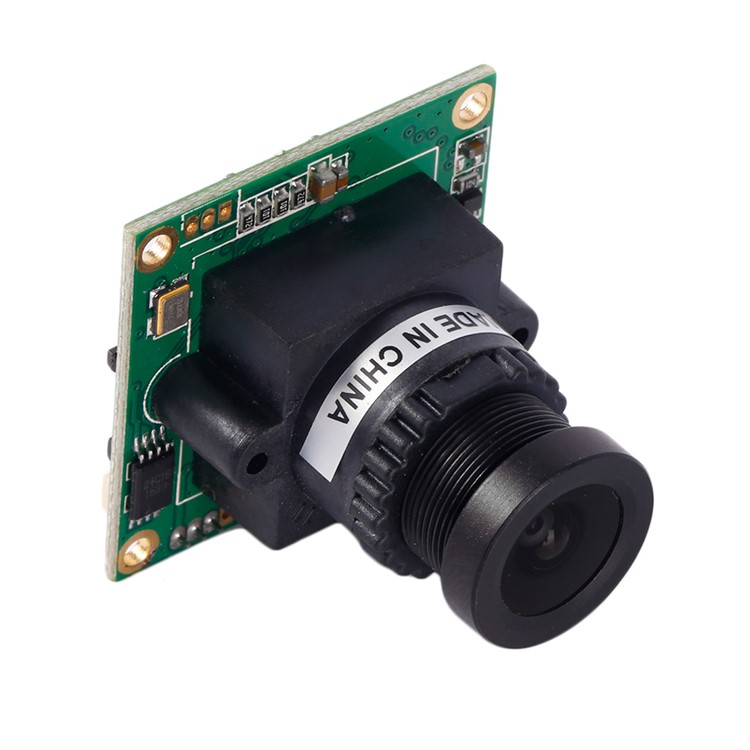

RUNCAM PZ0420M-L28 2.8MM 864.3M 600TVL DC 5-17V Wide Voltage IR Sensitive Mini FPV Camera – NTSC
  • This is an optimized version of PZ0420

  • It still keeps 600TVL resolution and excellent color rendition, supporting DC 12V operating voltage

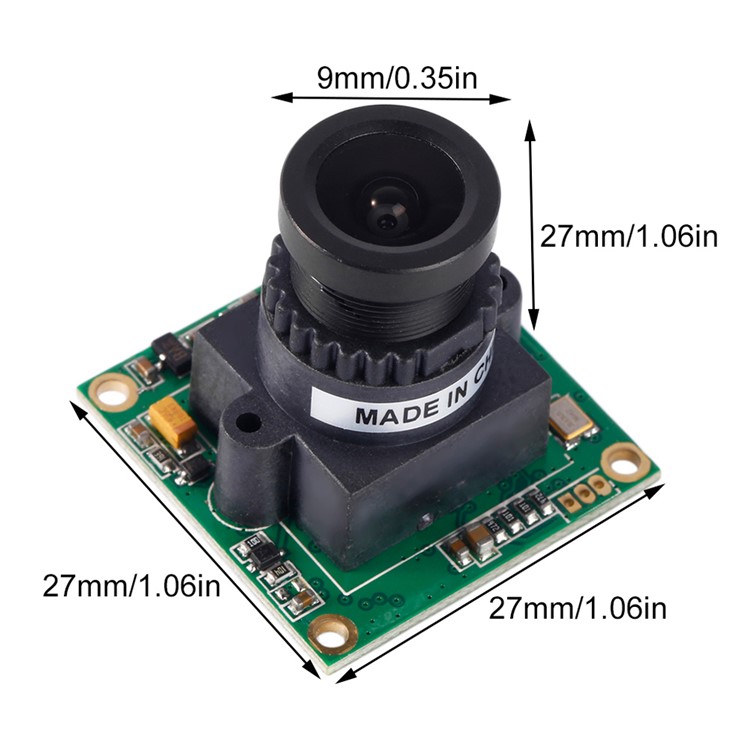

  • The size is reduced to 27*27mm, which can reduce air resistance for FPV aircraft

  • Digital Wide Dynamic Range(D-WDR)

  • Anti-exposure function support car license recording (HLC)

  • It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight

Specifications:

  • Brand: RUNCAM

  • Model: PZ0420M-L28

  • Image Sensor: 1/3 Sony Super HAD II CCD

  • Horizontal Resolution: 600TVL

  • Effective Pixel: NTSC: 768(H)*494(V)

  • Signal System: NTSC

  • Synchronization: Internal

  • Auto White Balance: Manual/Auto/Auto Tracking

  • S/N Ratio: >60dB(AGC OFF)

  • Electronic Shutter Speed: NTSC: 1/60 to 1/100,000

  • Auto Gain Control: Off/Low/Mid/High Optional

  • Back Light Compensation (BLC): Off/BLC/Anti-exposure

  • Motion Detection (MD): On/Off (multi-level sensitivity)

  • Min. Illumination: 0.01Lux/1.2F

  • Shading Area: 8

  • Video Output: 1.0Vp-p 75 ohm RCA output

  • Power: DC 5 to 17V

  • Supply Current: 170mA-30mA

  • Operation Temp.: -10 degree Celsius to +50 degree Celsius

  • Operation Environ.: 10% to 90%

  • Edge Light Compensation: Yes

  • Display Mode: LED monitor/CRT monitor

  • IR Image Optimizer: Anti-exposure of the object in the middle

  • DNR: 2DNR

  • Day/Night Switch: Auto/Color/B&W/Outside Control (position start and end controllable)

  • Day/Night Time Switch: 1 to 30 Switchable time

  • OSD: Chinese/English Menu

  • White Dot Repair (DPC): Yes

  • Image Adjust: Yes

  • Function Control: OSD

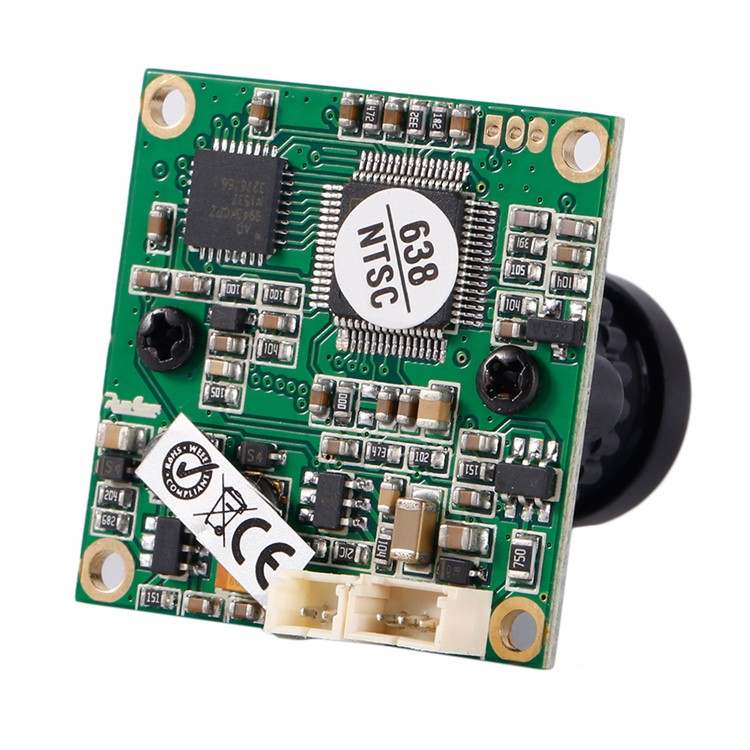

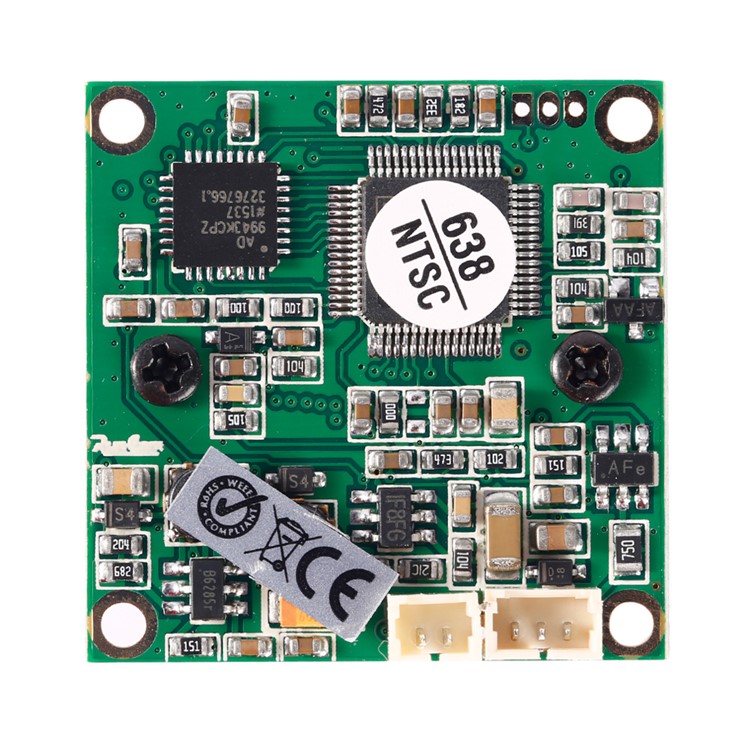

  • Board Size: 28 x 28mm

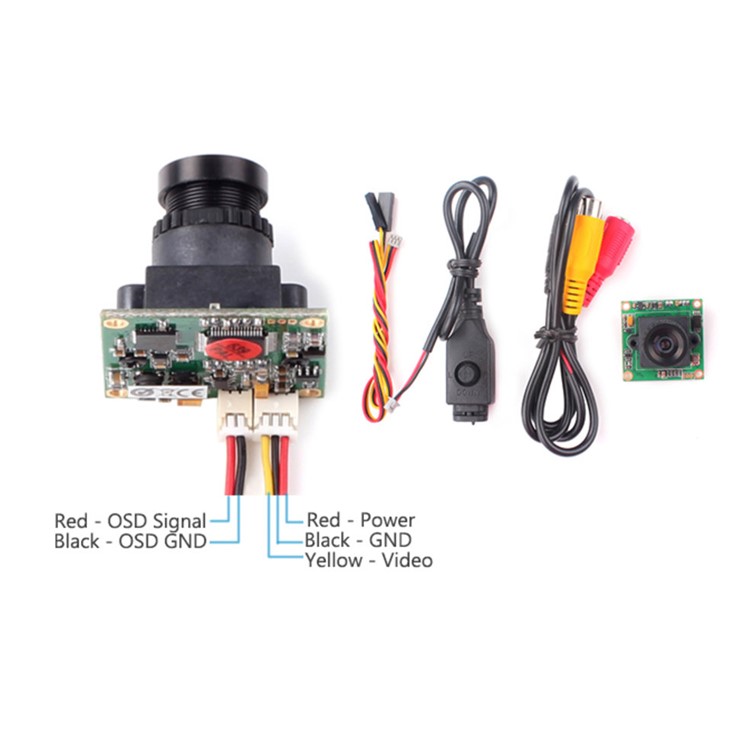

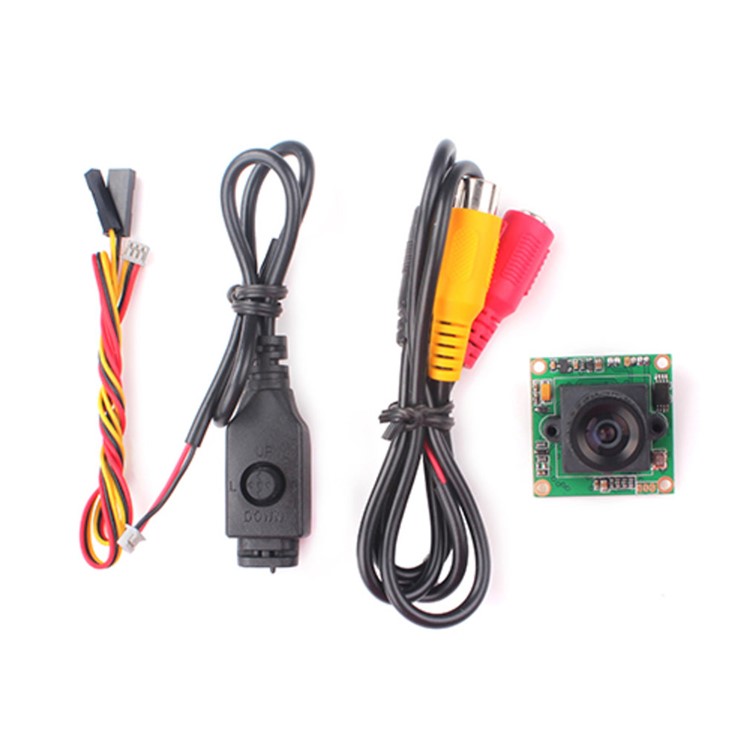

Package included:

  • 1 x Camera

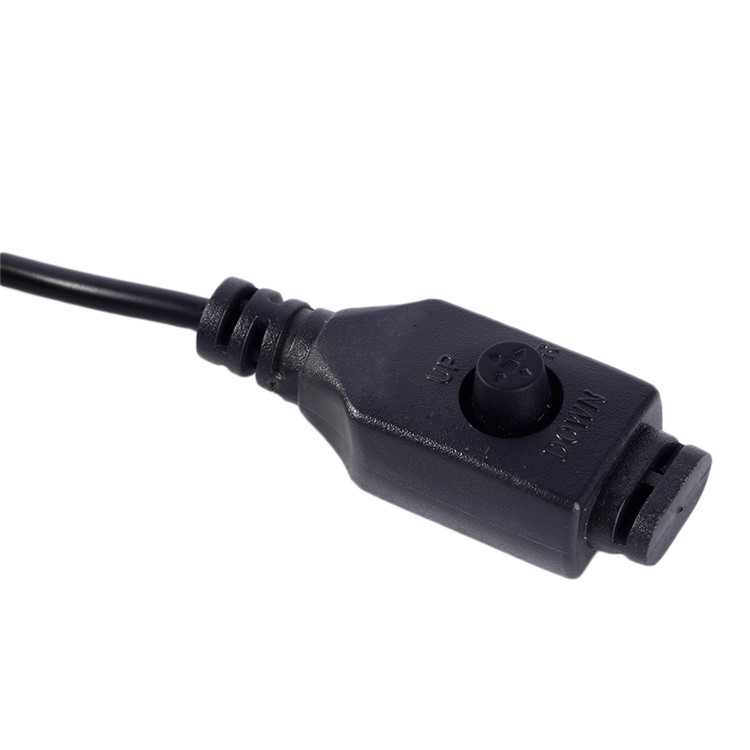

  • 1 x OSD Menu

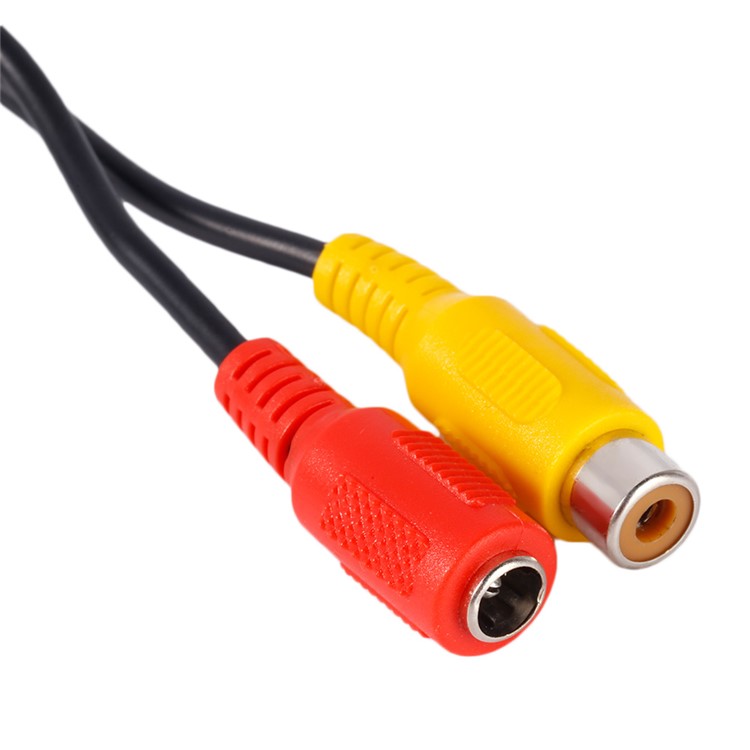

  • 1 x Cable

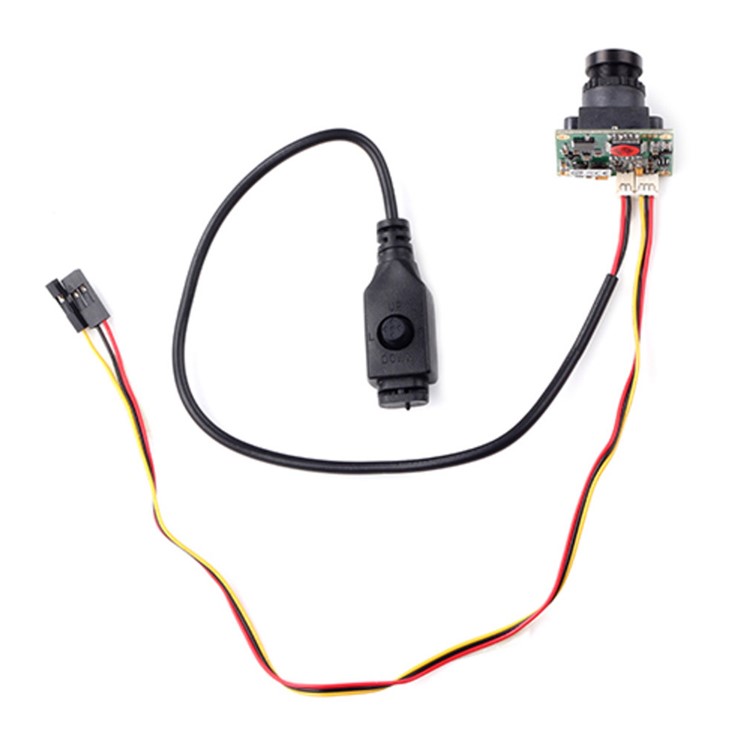

  • 1 x FPV Cable
  • 1 x Manual
