Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR – Green

Price:
$ 18.69

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 18.69 , buy Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR – Green from the wholesale webshop online.

Specifications

Color Green
Port USB 2.0
Retail Packaging Simple PP Bag
Gross Weight 0.045kg
Volume Weight 0.022kg
Length 15.000cm
Width 6.500cm
Height 1.000cm
Weight 0.040kg
With Retail Packaging Yes

Product Description

Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR – Green
  • 25 MHz to 1760 MHz receiver

  • Adopt R820T2+RTL2832U chip

  • Support SDR

  • Ideal for computer-based software such as SDR, HDSDR, SDR-Radio, linrad, GQRX or SDR Tap on Android

  • Compatible with windows, macos, linux, android, embedded Linux computers

  • Suitable for a variety of applications, including universal wireless scanning, air traffic control, radio public security, trunking walkie-talkie, POCSAG, APRS

  • Note: A USB 2.0 Port is required. Although it can compatible with most USB 3.0 port, we cannot guarantee that this item will work on all USB 3.0 ports, please make sure your PC has a USB 2.0 port.

Specification:

  • Frequency stability: 0.5PPM (max)

  • Phase noise @1kHz offset: -138dBc/Hz (or better)

  • Phase noise @10kHz: -150dBc/Hz (or better)

  • Phase noise @100kHz: -152dBc/Hz (or better)

Features:

  • RTL2832U Demodulator/USB interface IC

  • R820T2 tuner IC

  • 0.5 PPM, ultra-low phase noise TCXO

  • RF-suitable voltage regulator

  • Shielded primary inductor

  • Integrated custom heatsink

  • Female SMA antenna input

  • Through-hole direct sampling pads on PCB

Package included:

  • 1 x Premium RTL2832U+R820T2 1 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR

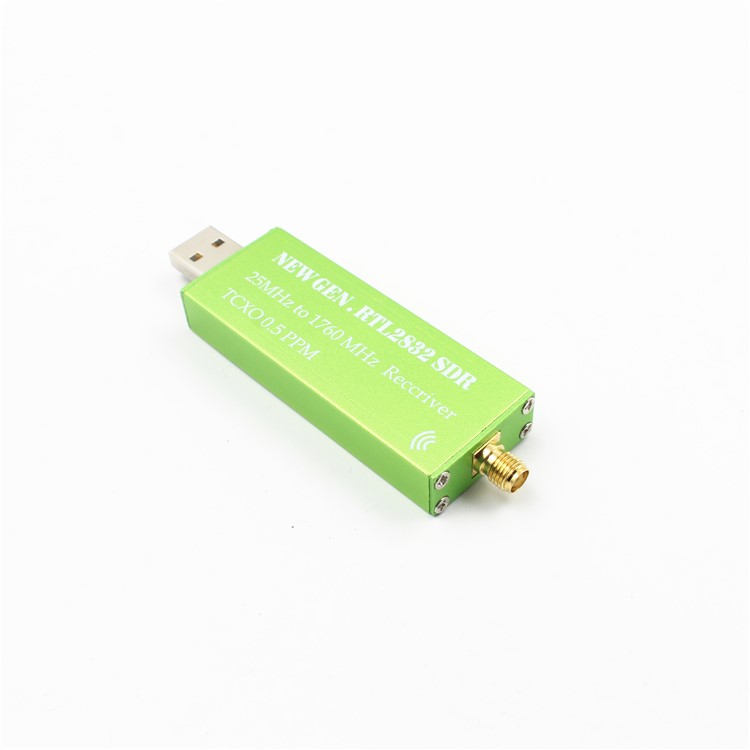

Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR - Green-1

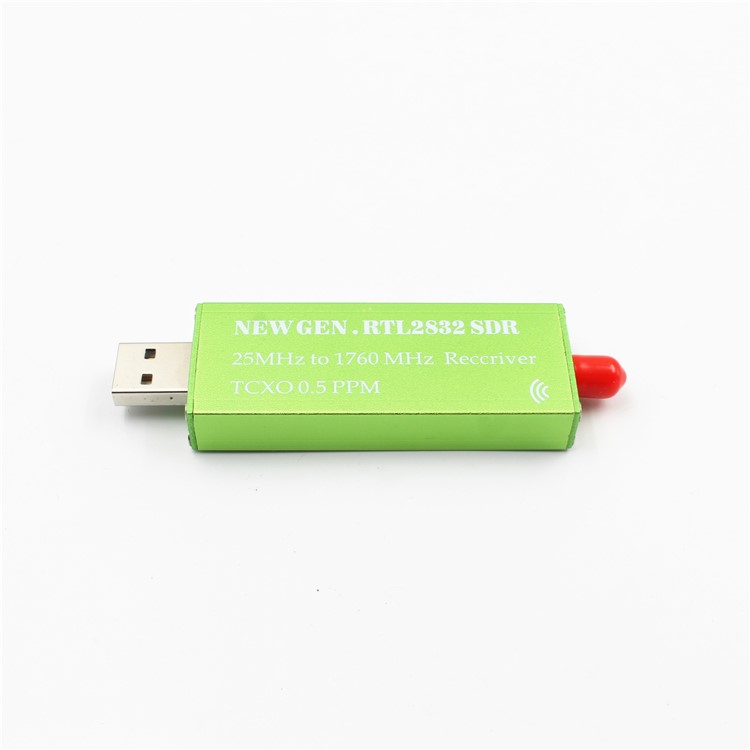

Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR - Green-2

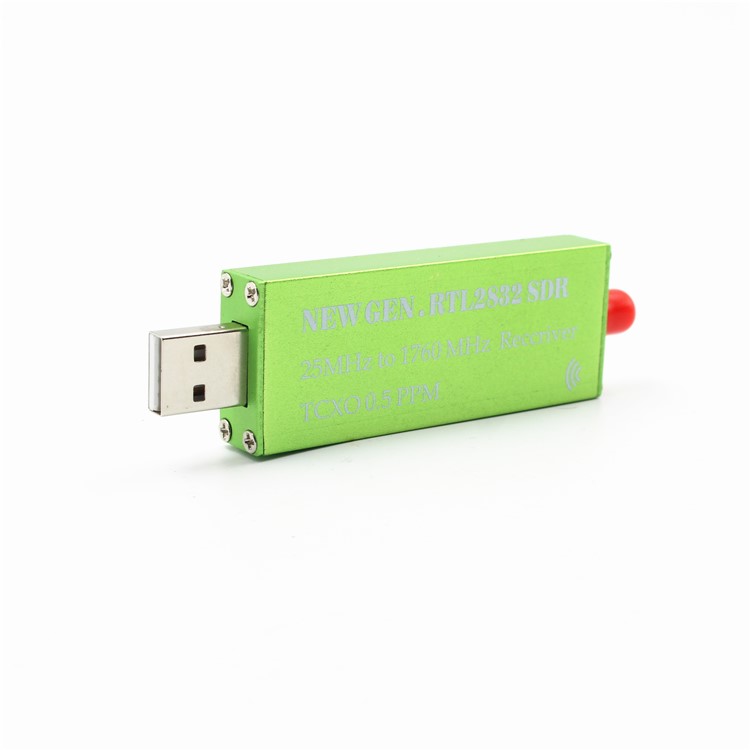

Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR - Green-3

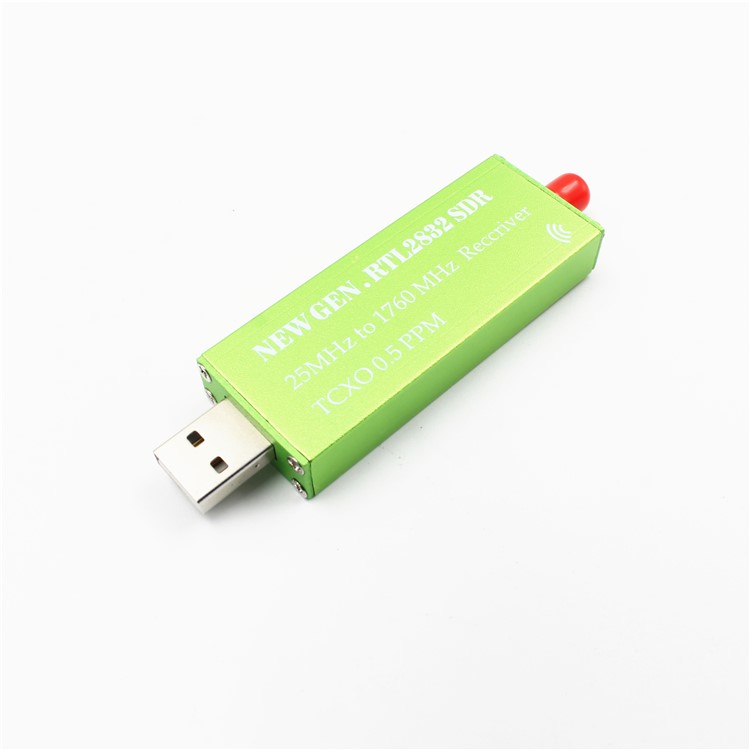

Premium RTL2832U+R820T2 0.5 PPM Metal Case 25MHz to 1760MHz Receiver TCXO Supporting SDR - Green-4

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
