NAZE32 Brush Flight Control Board for RC Quadcopter Support 4-Axis 6-Axis

Price:
$ 11.08

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 11.08 , buy NAZE32 Brush Flight Control Board for RC Quadcopter Support 4-Axis 6-Axis from the wholesale webshop online.

Specifications

Retail Packaging Simple PP Bag
Gross Weight 0.007kg
Volume Weight 0.008kg
Length 11.500cm
Width 7.900cm
Height 0.400cm

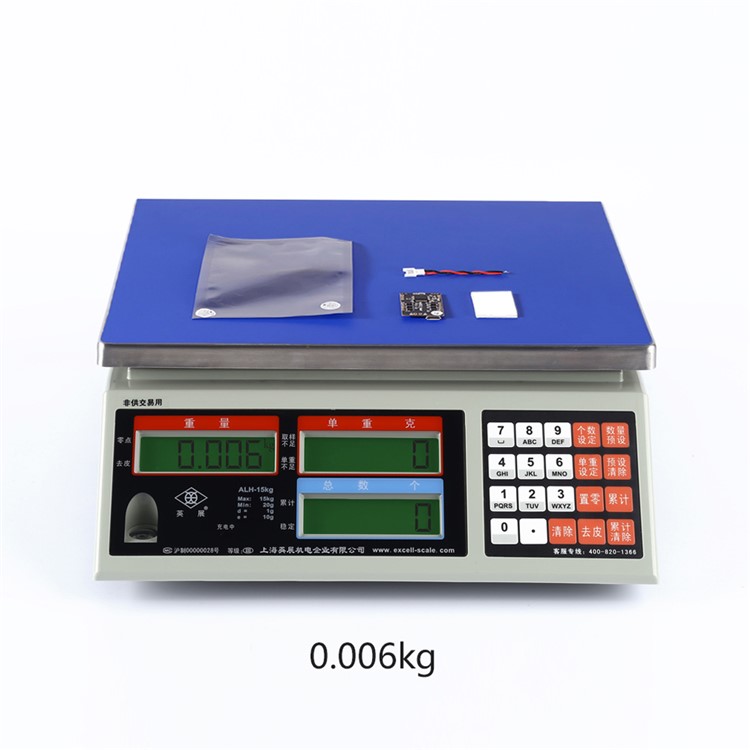

Weight 0.006kg
With Retail Packaging Yes

Product Description

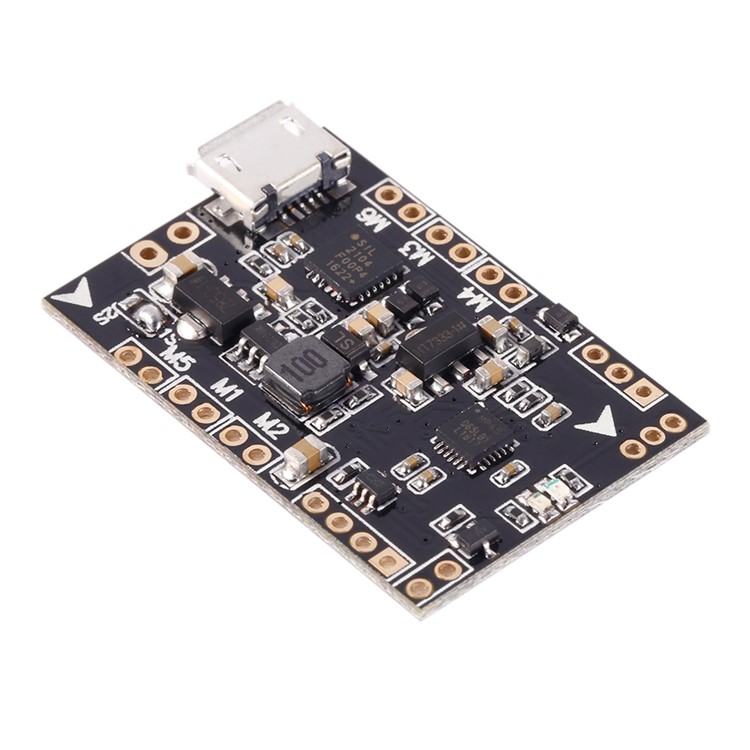

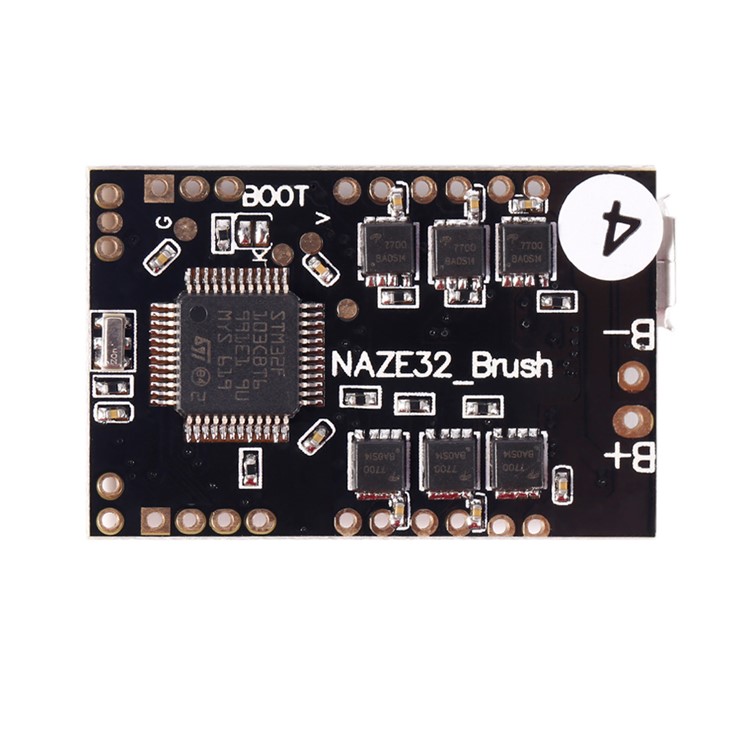

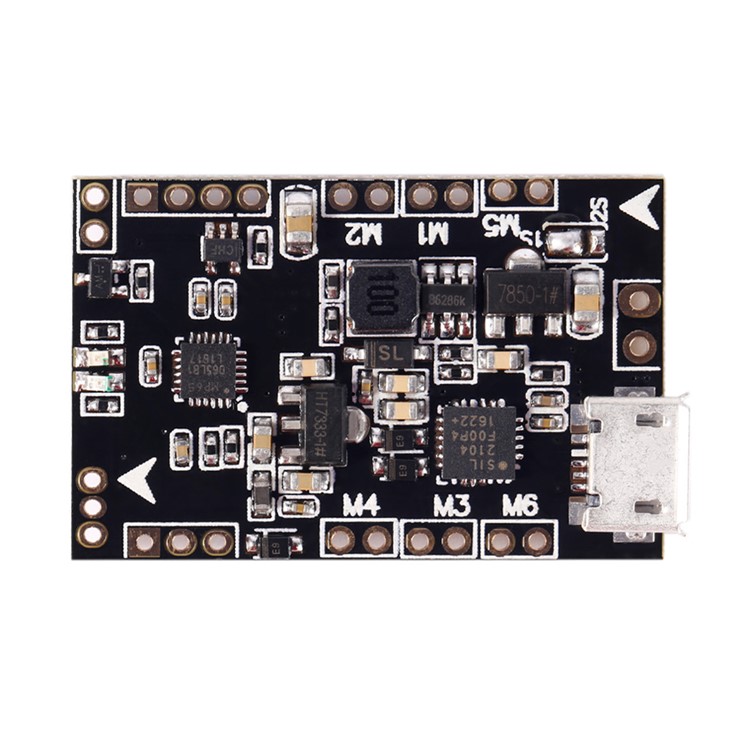

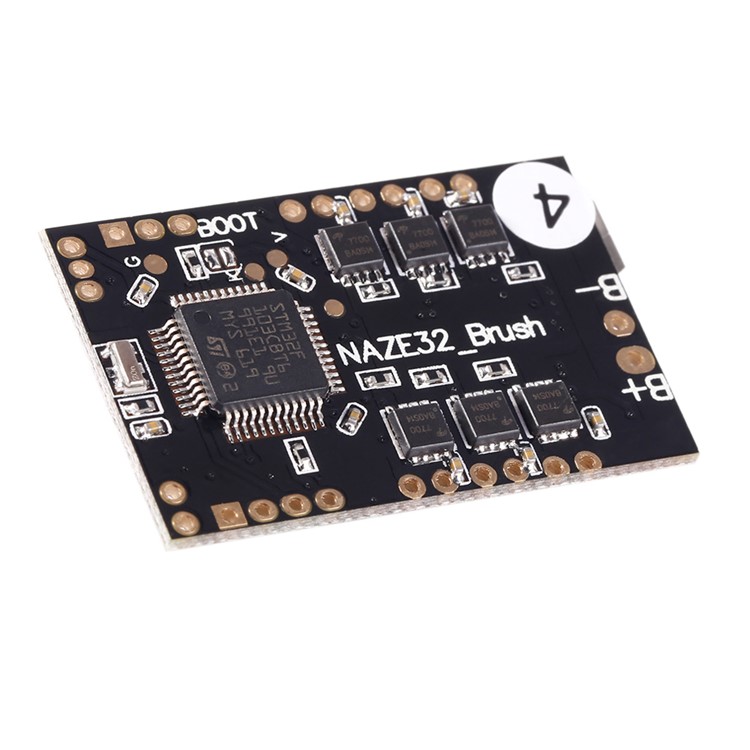

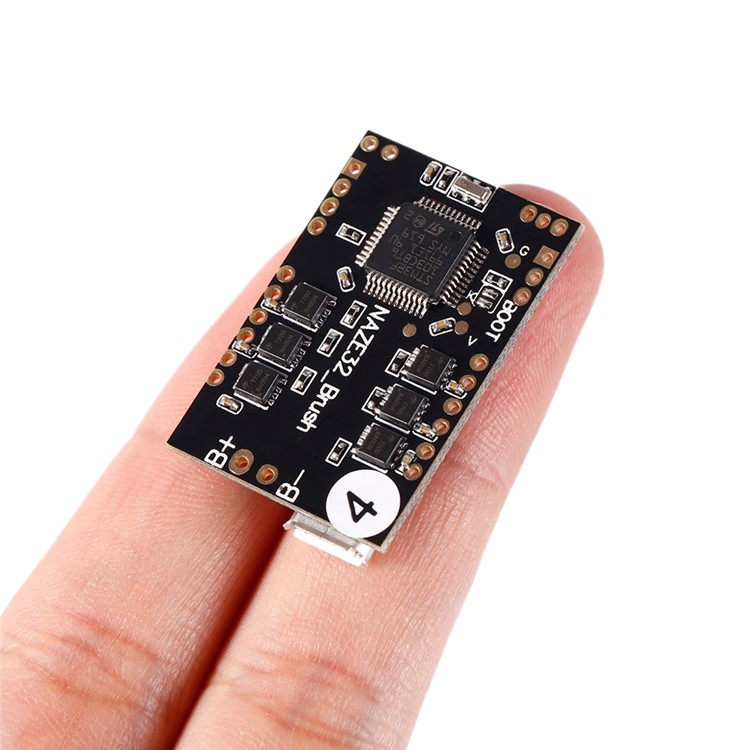

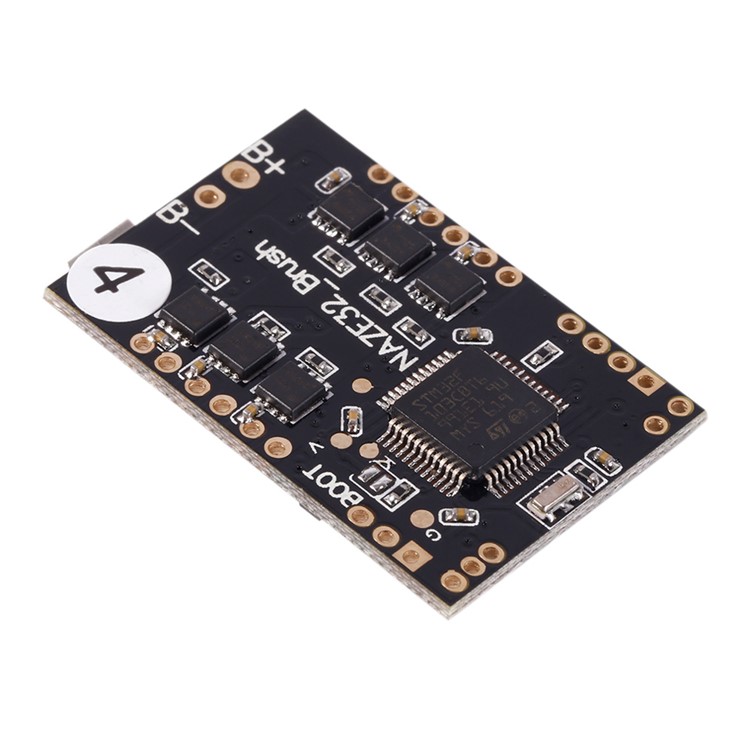

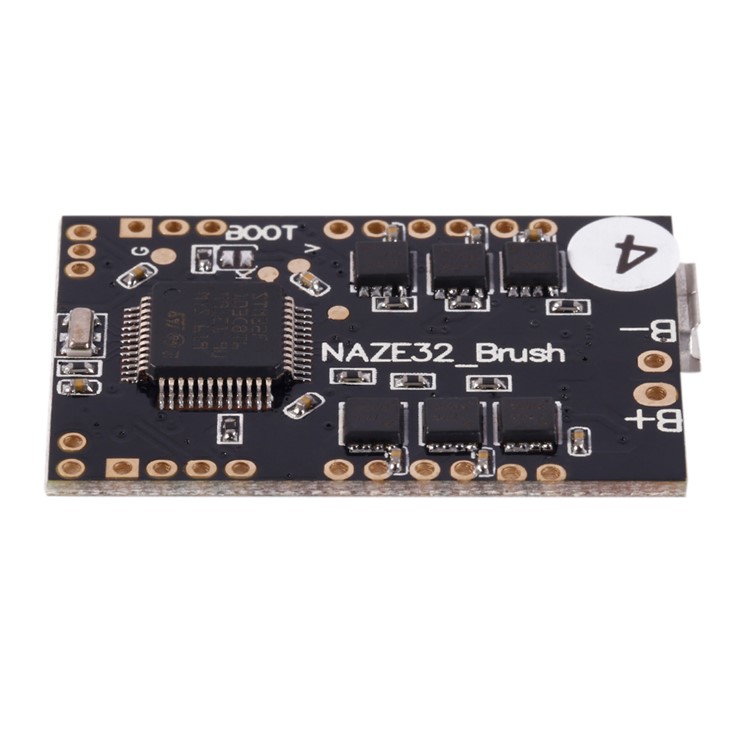

NAZE32 Brush Flight Control Board for RC Quadcopter Support 4-Axis 6-Axis
  • NAZE32_BRUSH is in the revision on the basis of NAZE32 flight control, it is a 32bit brush controller base on NAZE32 firmware

  • The flight control supports 1S(4.2V) and 2S(8.4V) power supply, 2S power can bring flying experience more violence

  • Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V

  • With a large current NMOS transistors, operating current of up to 10A or more

  • Support for PPM, SBUS, DSM receiver input signal

  • With battery voltage detection and buzzer interface

  • In support of the world almost all hollow cup motor, including 1020 coreless motor. Support 6 motor

Note:

  • Before applying power, pay attention to the battery voltage selection.

  • The default shipping is 1S (4.2V). When using 2S, first need to disconnect the short contacts 1S, and then put the two pads on the 2S.

  • Prohibit shorted together the three pads at the same time.

Specification:

  • Item Name: ACRO NAZE32_BRUSH Flight Control Board

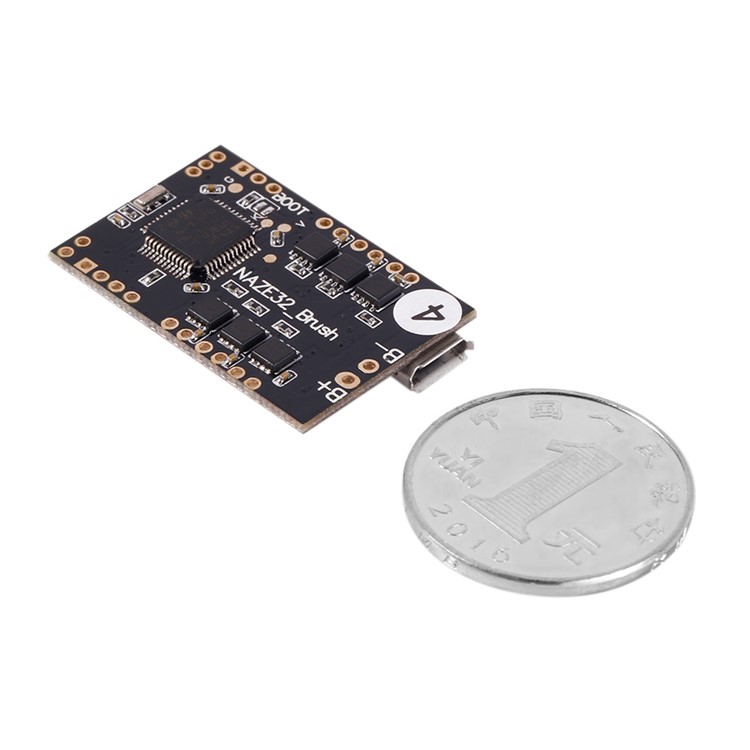

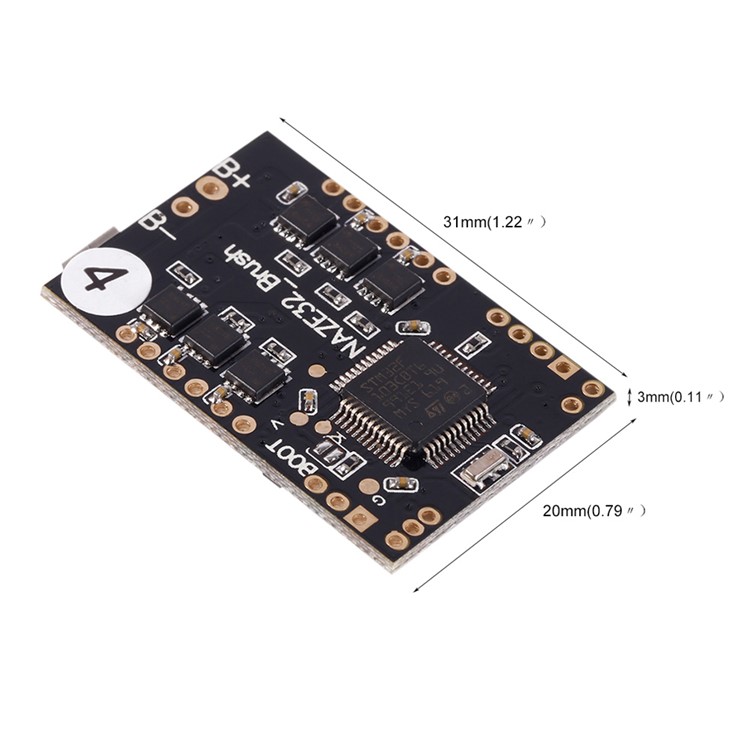

  • Dimension: 20 x 31mm

  • Thickness: 3mm

  • Board weight: 3g

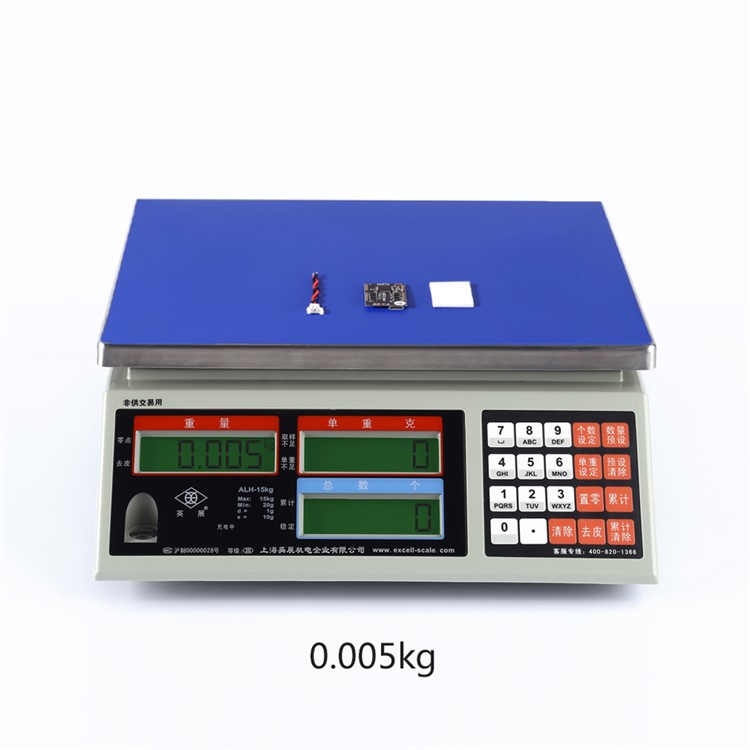

  • Total weight: 5g

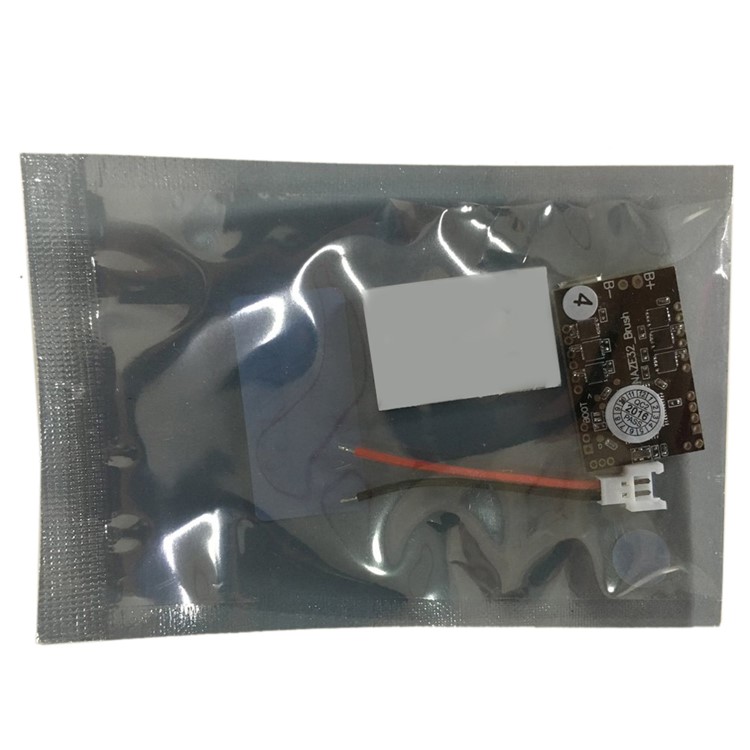

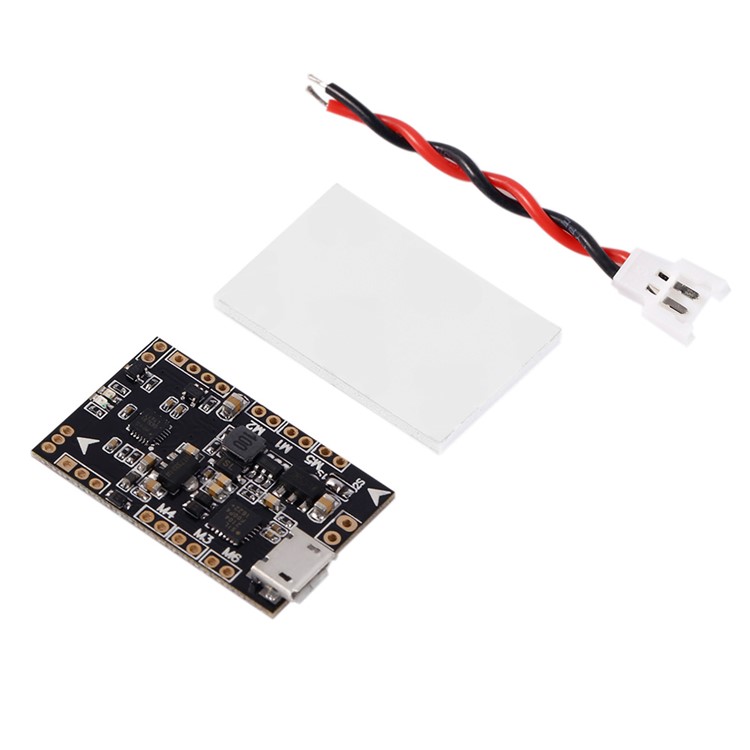

Package included:

  • 1 x NAZE32 Brush Flight Control Board

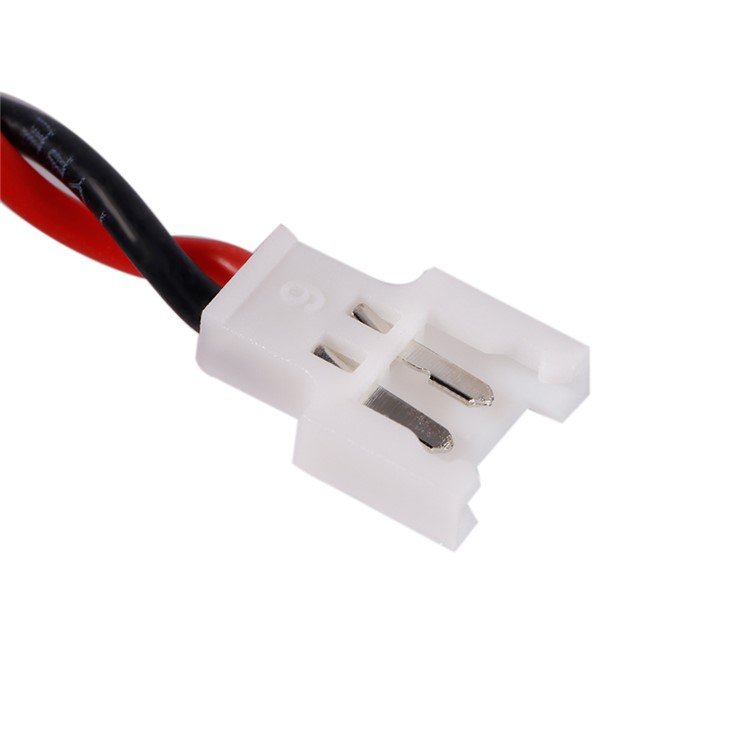

  • 1 x Cable
  • 1 x Small Plate
