Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit – EU Plug

Price:
$ 21.49

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 21.49 , buy Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit – EU Plug from the wholesale webshop online.

Specifications

Plug EU Plug
Port HDMI
Retail Packaging Paper Box
Gross Weight 0.263kg
Volume Weight 0.030kg
Length 10.400cm
Width 5.900cm
Height 2.200cm
Weight 0.235kg
With Retail Packaging Yes

Product Description

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit – EU Plug

The mini HDMI to SDI converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

  • Shows HDMI source on SDI display

  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s

  • Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60

  • Supports SDI output distance up to 100m (3G-SDI), 200m (HD-SDI), or 300m (SD-SDI)

  • Converts HDMI signal to SDI:

  • -480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

  • -720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

  • -1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Specifications:

  • Input Port: 1 x HDMI

  • Output Port: 1 x BNC (SDI/HD-SDI/3G-SDI)

  • SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s

  • In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60

  • Power Supply: DC 5V

  • ESD Protection Human Body Model: ±8kV (air-gap discharge), ±4kV (contact discharge)

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F °C

  • elative Humidity: 20 ~ 90% RH (Non-condensing)

  • Power Consumption (Max): 5W

  • Dimension: 104mm x 59mm x 22 mm

  • Weight: 72g

Package included:

  • 1 x HDMI Audio Extractor

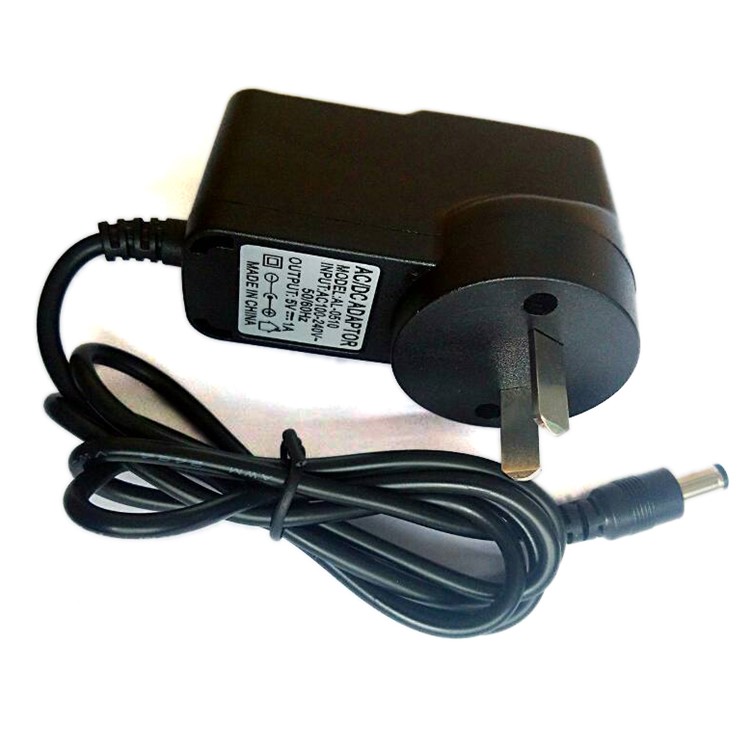

  • 1 x 5V 1A DC Power Adapter
  • 1 x User Manual

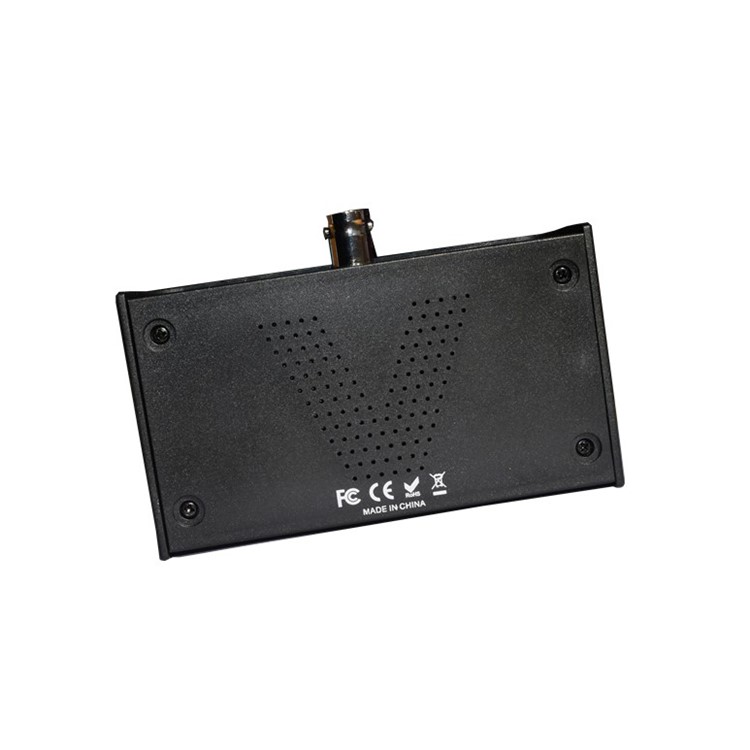

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-1

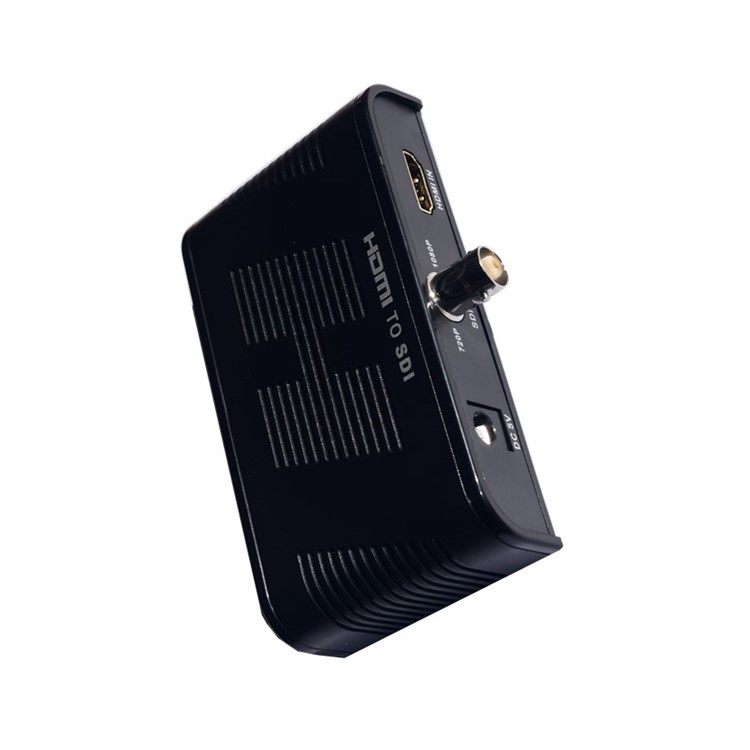

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-2

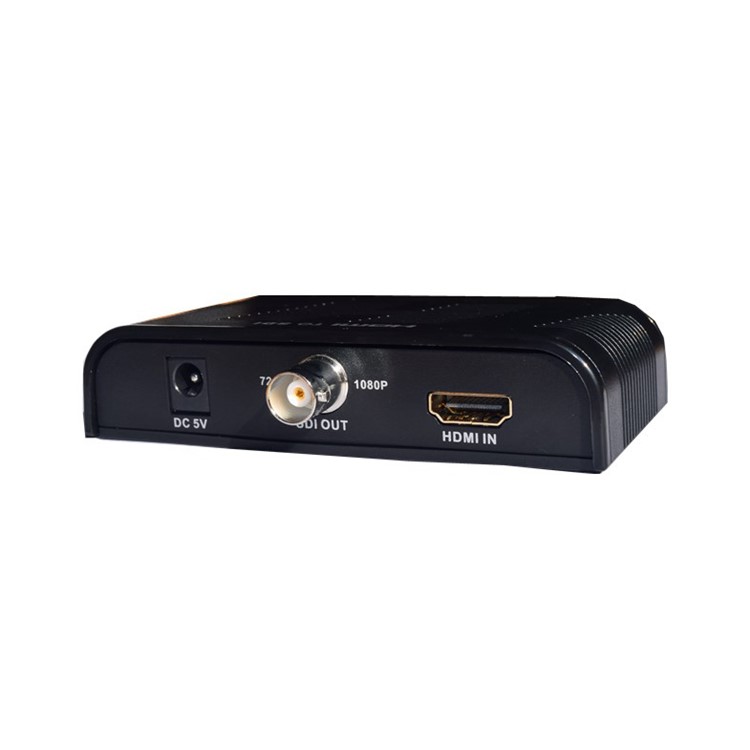

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-3

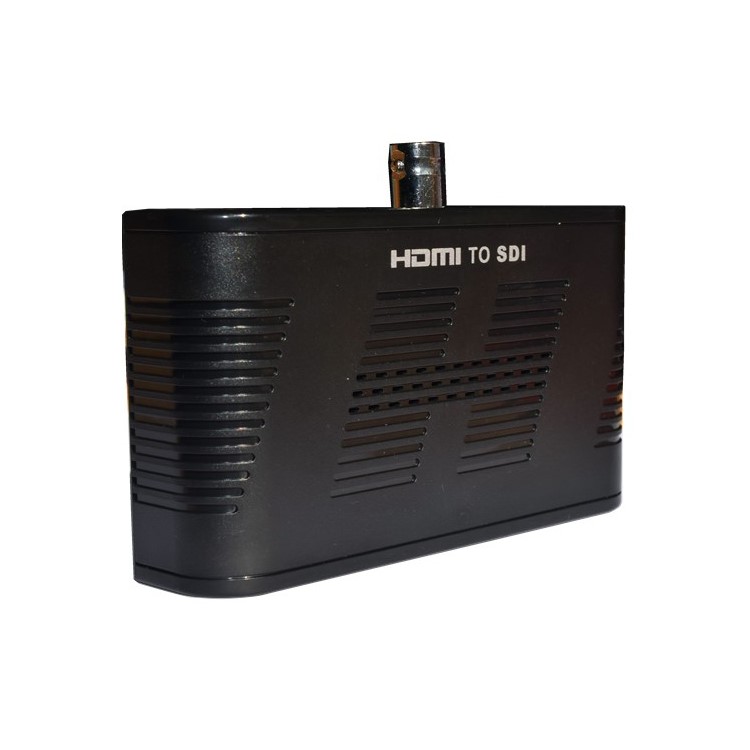

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-4
Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-5

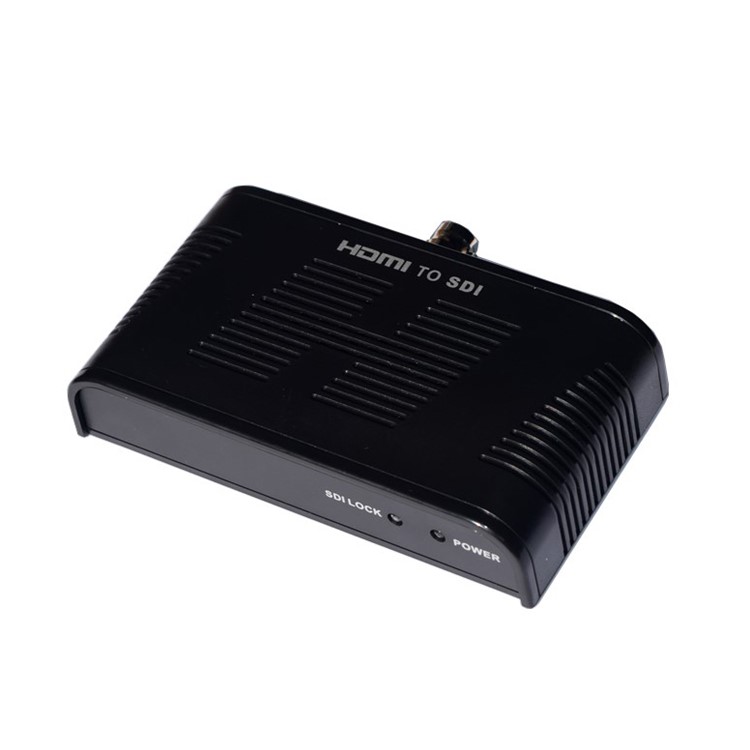

Mini HDMI to SDI Converter SD-SDI/HD-SDI/3G-SDI 1080P 2.970 Gbit - EU Plug-6
