Micro Storage Board Mciro for SD TF Card Memory Shield Module SPI of Arduino

Price:
$ 0.70

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 0.70 , buy Micro Storage Board Mciro for SD TF Card Memory Shield Module SPI of Arduino from the wholesale webshop online.

Specifications

Gross Weight 0.006kg
Volume Weight 0.168kg
Length 10.000cm
Width 15.000cm
Height 5.000cm
Weight 0.005kg
With Retail Packaging No

Product Description

Micro Storage Board Mciro for SD TF Card Memory Shield Module SPI of Arduino
  • Support TF Card, Micro for SDHC card (high-speed card)

  • The level conversion circuit board that can interface level is 5V or 3.3V

  • Communication interface is a standard SPI interface

  • Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground

  • VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin

  • 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, TF card supply

  • Level conversion circuit: TF card into the direction of signals into 3.3V, TF card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal

  • TF card connector: yes since the bomb deck for easy card insertion and removal

  • Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination

Specifications:

  • Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board

  • Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm

  • Control Interface: GND, VCC, MISO, MOSI, SCK, CS

  • Size: 4.5*2.3cm

Package included:

  • 1 x TF Storage Board

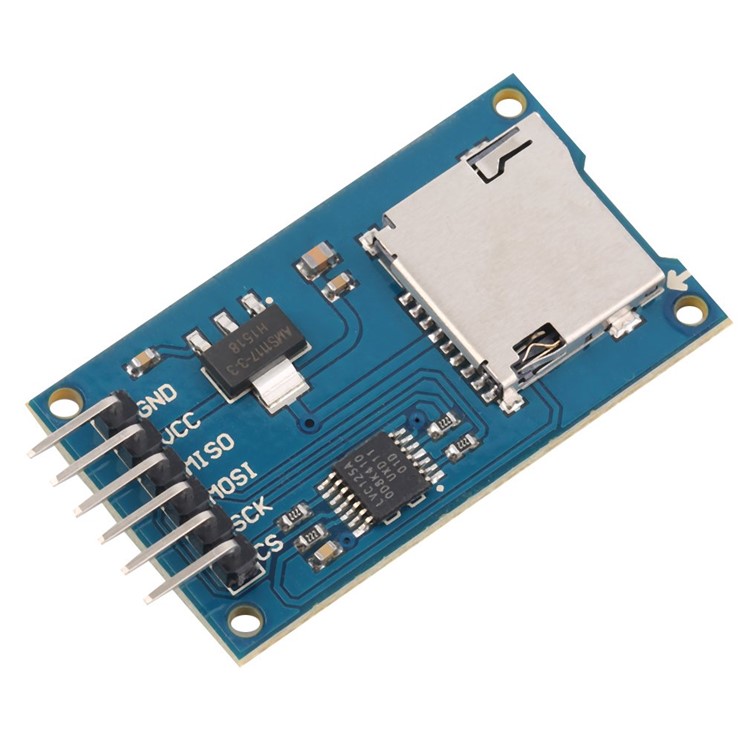

Y1710200086A-1

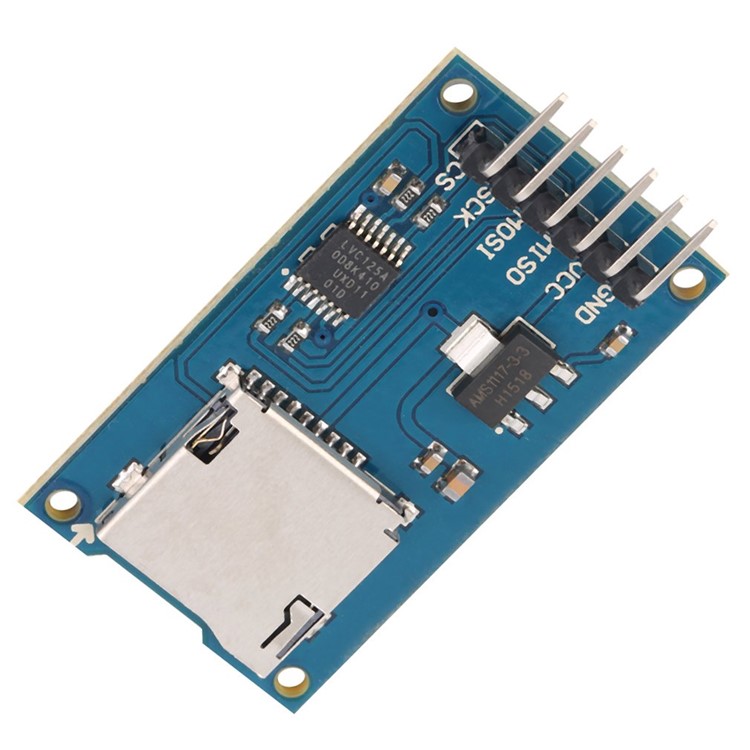

Y1710200086A-2

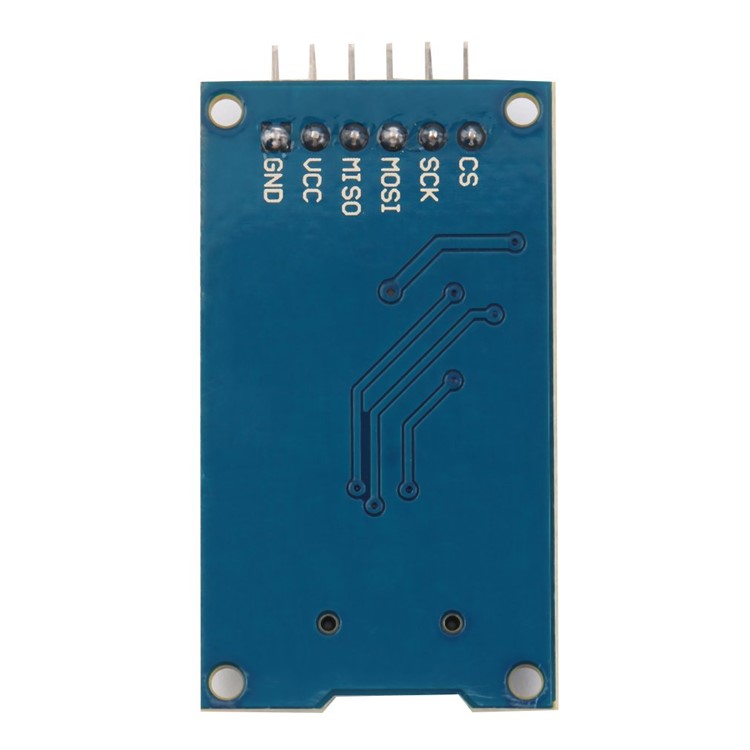

Y1710200086A-3

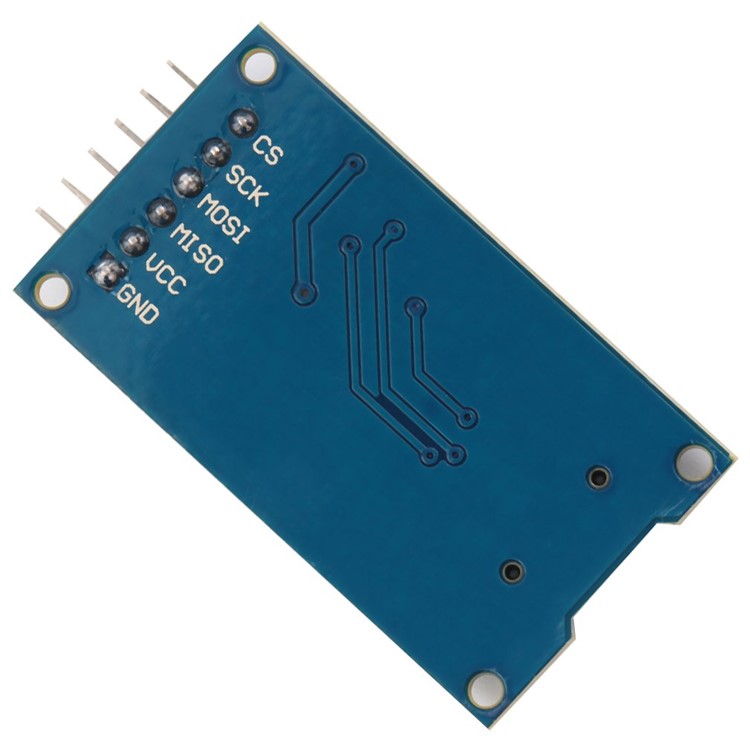

Y1710200086A-4

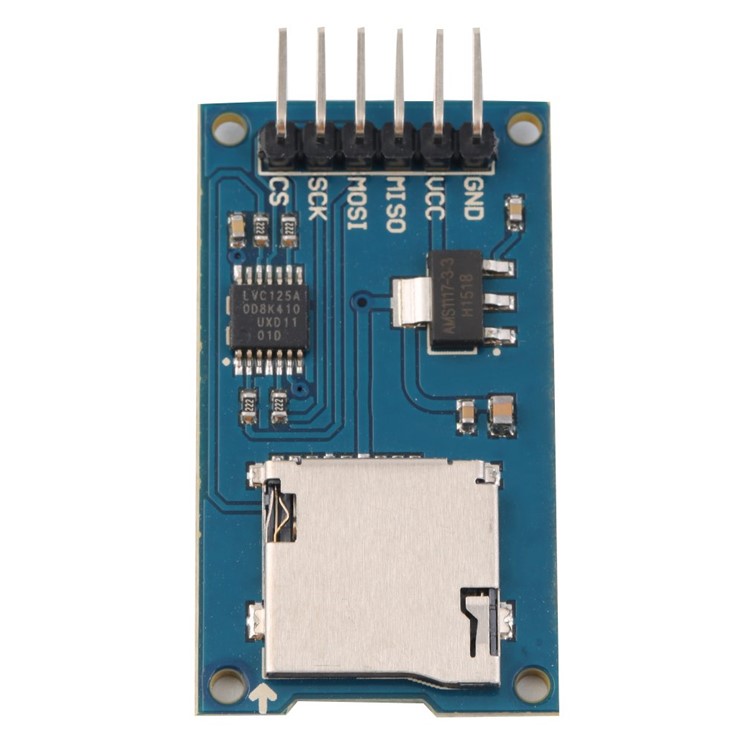

Y1710200086A-5
