KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester – Red

Price:
$ 6.07

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 6.07 , buy KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester – Red from the wholesale webshop online.

Specifications

Color Red
Retail Packaging Plastic Box
Gross Weight 0.090kg
Volume Weight 0.022kg
Length 10.000cm
Width 5.000cm
Height 2.000cm
Weight 0.080kg
With Retail Packaging Yes

Product Description

KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester – Red

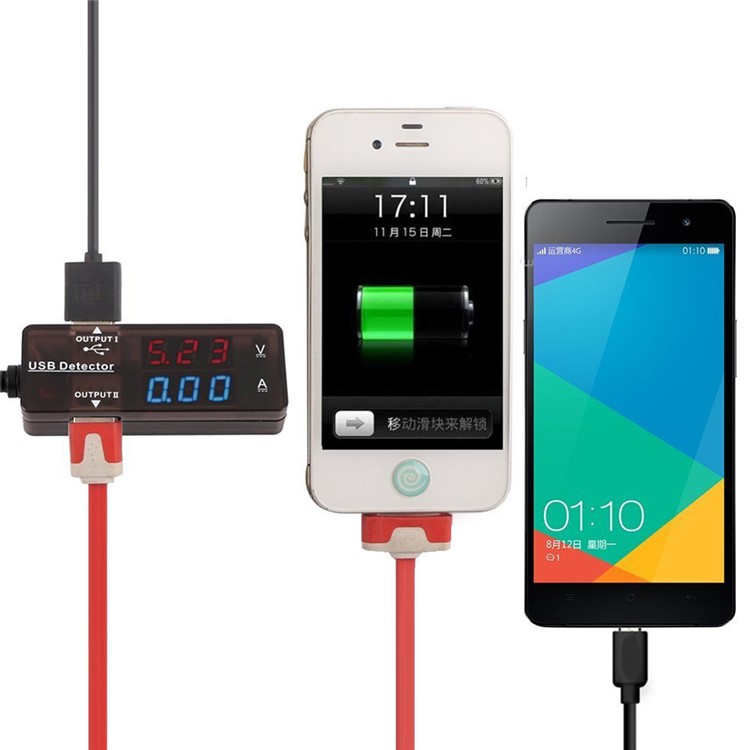

  • Dual display design, easy to monitor the charge voltage and current of your digital USB device to ensure the optimal charge rate

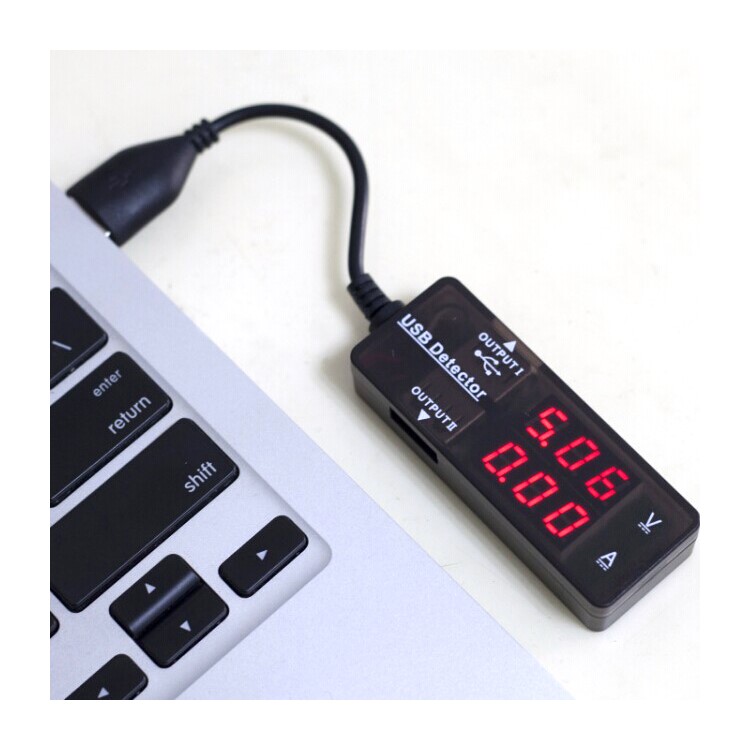

  • Simultaneously displaying of Amp and Volt in real-time

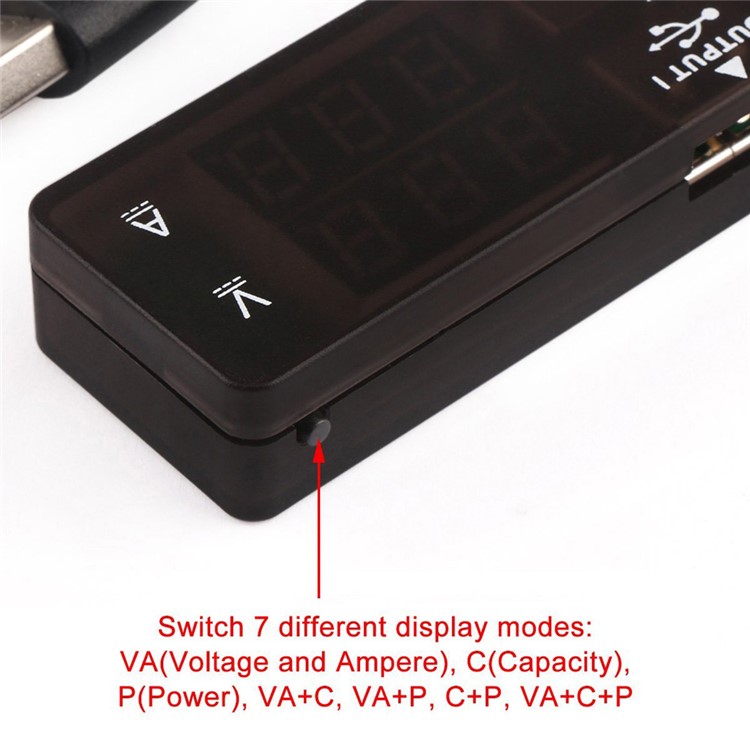

  • 7 mode USB monitor – Digital multimeter can be used to measure Voltage, current, capacity, and power going to your phone/battery pack and choose 7 different modes the by one button

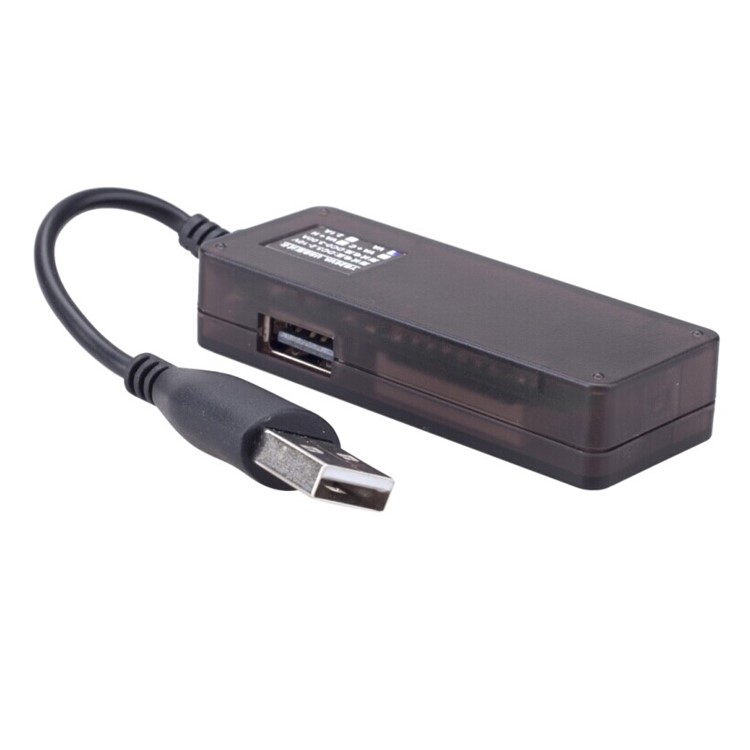

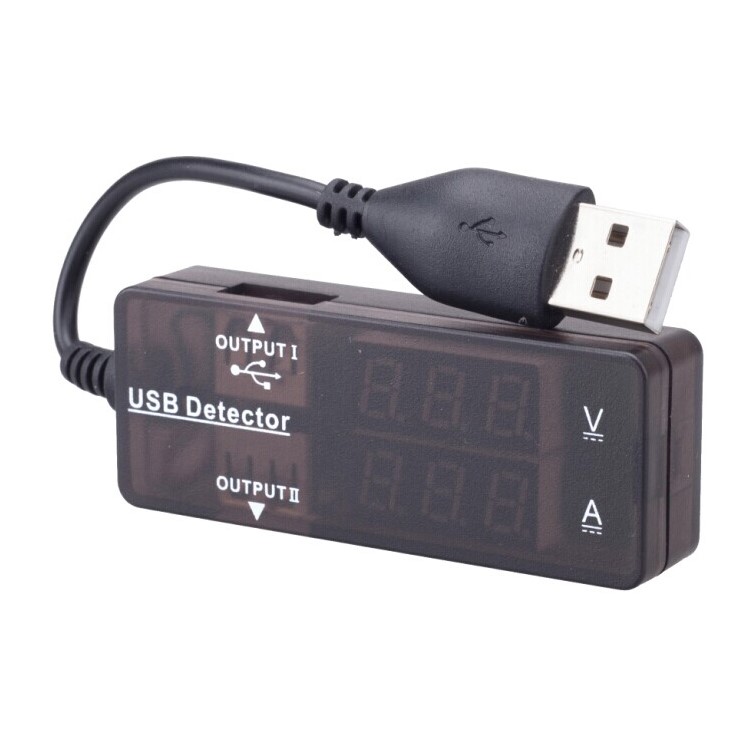

  • Dual USB output – Output I 1 is dedicated for both data sync and battery charging; Output Port 2 has built-in circuit for accelerated large current fast charging

Technical parameters:

  • Supply voltage, test voltage: DC 3.2 – 10V

  • Test Current: 0 – 3A (10A Maximum, If more than 3A, can not work continuously)

  • Operating Current: <20mA

  • Display: 0.28" LED, Red/Blue

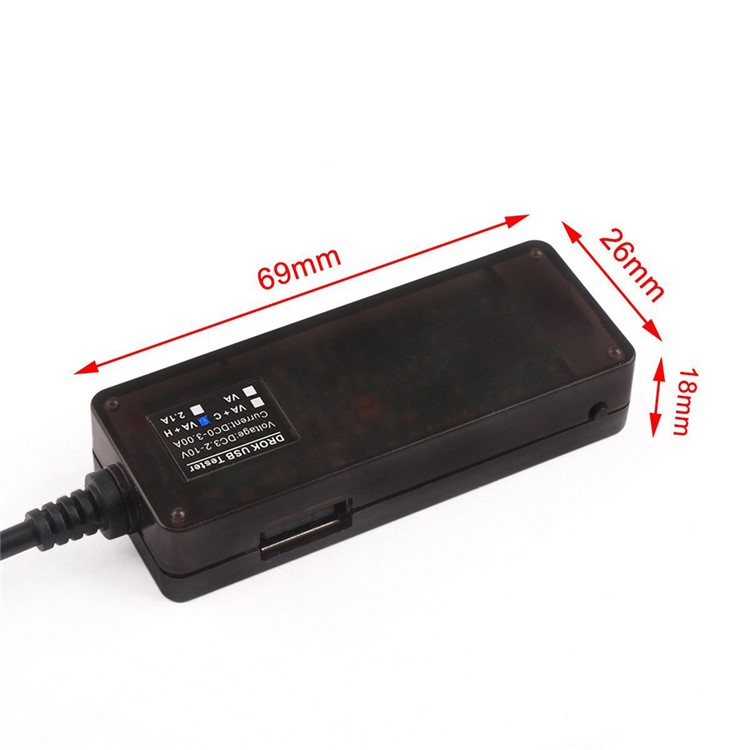

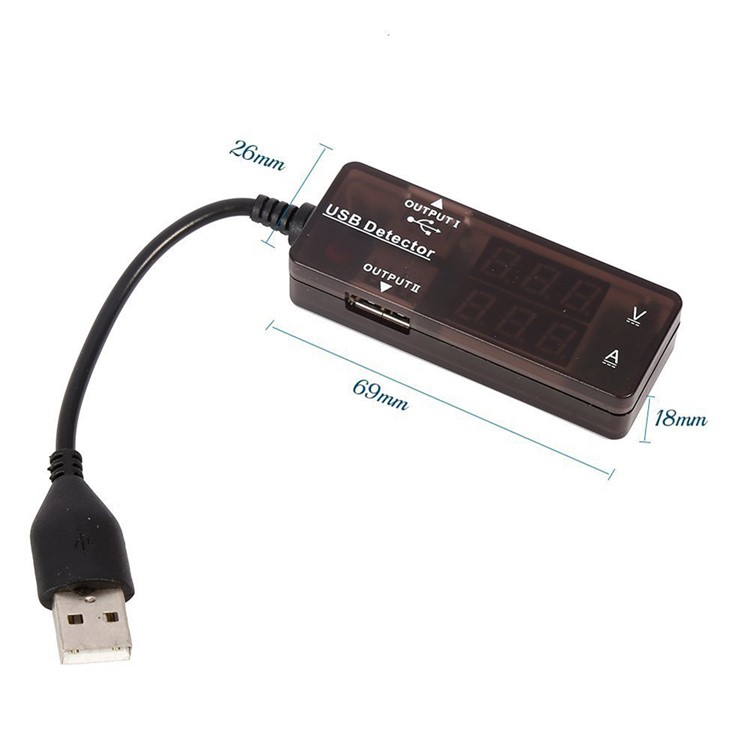

  • Product Dimensions: 69 x 26 x 18mm

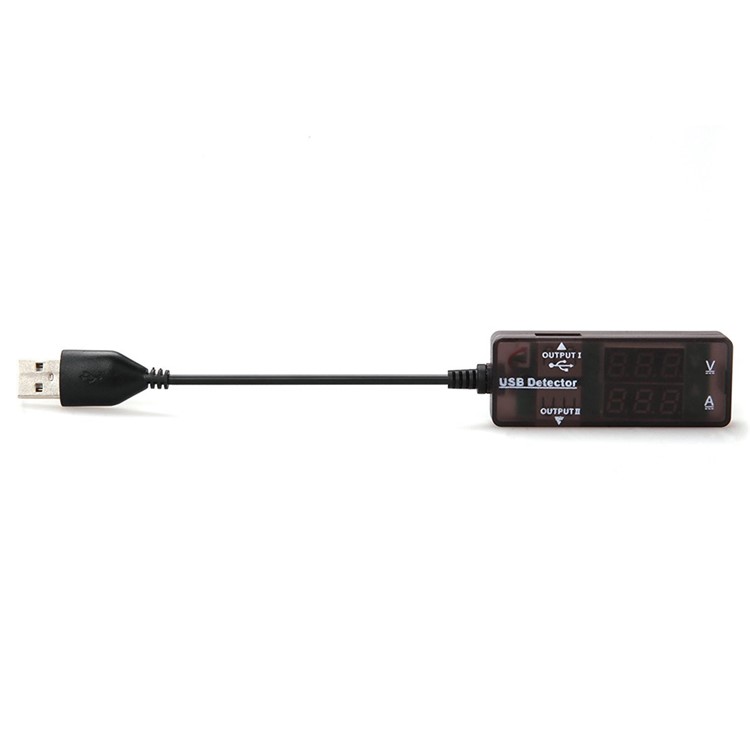

  • USB extension cable: about 120mm

  • Measuring rate: >= 500mS / times

  • Accuracy: 1% (+/- 2 digits)

Extreme working conditions:

  • Low supply voltage: +3.2 V

  • Maximum supply voltage: +10 V

  • Working temperature: -10 to +65 centigrade

  • Operating Humidity: 10 to 80% (non-condensing)

  • Working pressure: 80 – 106kPa

  • Sun exposure: no direct exposure

Package included:

  • 1 x KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester
  • Accessory only, device not included
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-1
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-2
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-3
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-4
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-5
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-6
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-7
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-8
KONNWEI KW203 USB 2.0 Digital Multimeter, Ammeter Voltmeter Capacitance and Watt Meter, 7 Modes Multi Tester - Red-9
