KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool

Price:
$ 5.44

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 5.44 , buy KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool from the wholesale webshop online.

Specifications

Certificate CE
Retail Packaging White Paper Box
Gross Weight 0.056kg
Volume Weight 0.028kg
Length 5.000cm
Width 5.000cm
Height 5.000cm
Weight 0.050kg
With Retail Packaging Yes

Product Description

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool
  • Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

  • Clear trouble codes and turn off the MIL ("Check Engine" light)

  • Display current sensor data, including:

  • Engine RPM

  • Calculated load value

  • Coolant temperature

  • Fuel system status

  • Vehicle speed

  • Short term fuel trim

  • Long term fuel trim

  • Intake manifold pressure

  • Timing advance

  • Intake air temperature

  • Air flow rate

  • Absolute throttle position

  • Oxygen sensor voltages/associated short term fuel trims

  • Fuel system status

  • Fuel pressure

Specification:

  • Voltage: 12V

  • Working Temperature: -60°C~+60°C

  • Weight: 0.04kg

  • Supported Protocols:

  • ISO9141-2(5 baud init, 10.4Kbaud)

  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

  • ISO14230-4 KWP (fast init, 10.4 Kbaud)

  • ISO15765-4 CAN (11bit ID, 500 Kbaud)

  • ISO15765-4 CAN (29bit ID, 500 Kbaud)

  • ISO15765-4 CAN (11bit ID, 250 Kbaud)

  • ISO15765-4 CAN (29bit ID, 250 Kbaud)

  • SAE J1939 CAN (29bit ID, 250*Kbaud)

  • USER1 CAN (11*bit ID, 125*Kbaud)

  • USER2 CAN (11*bit ID, 50*kbaud)

Package included:

  • 1 x KONNWEI B3 ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool
  • 1 x CD

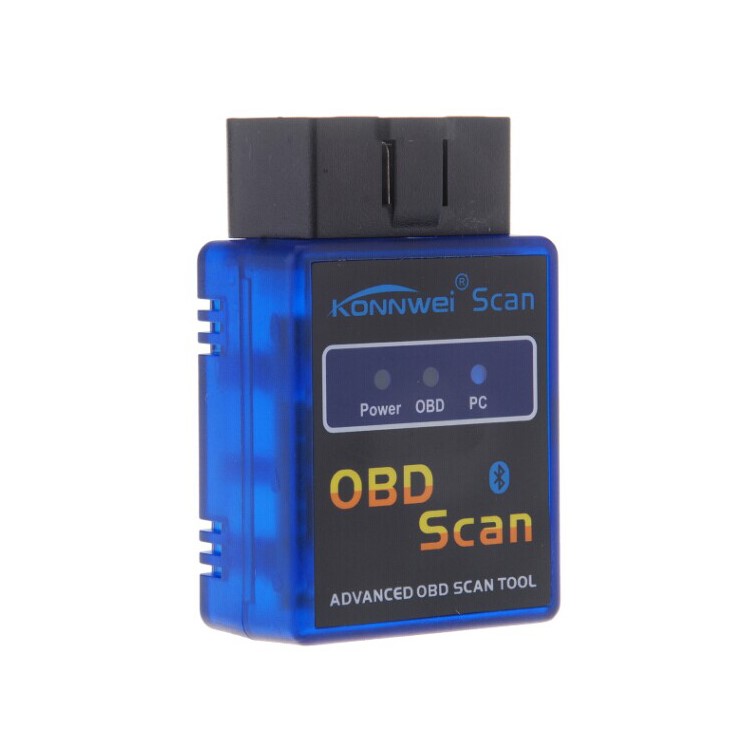

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool-1

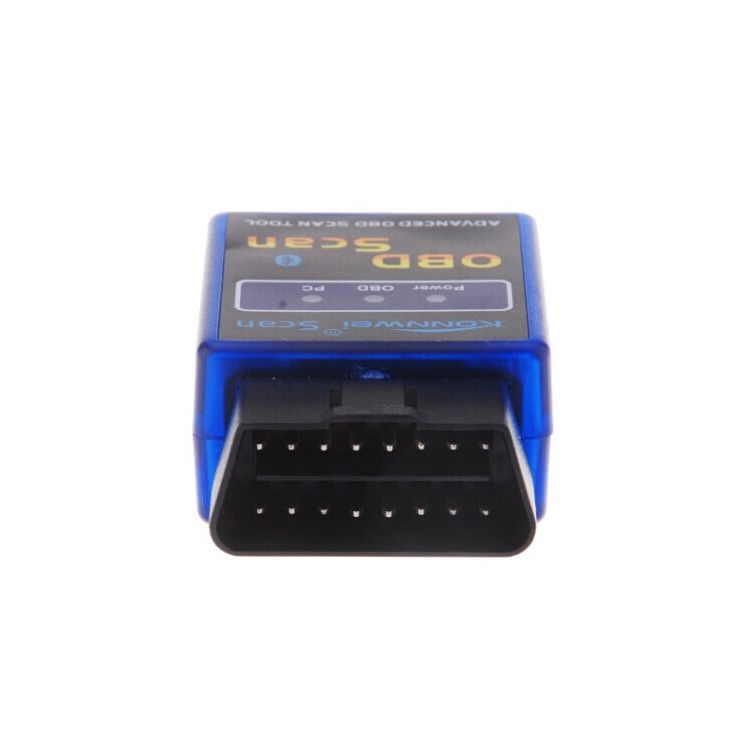

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool-2

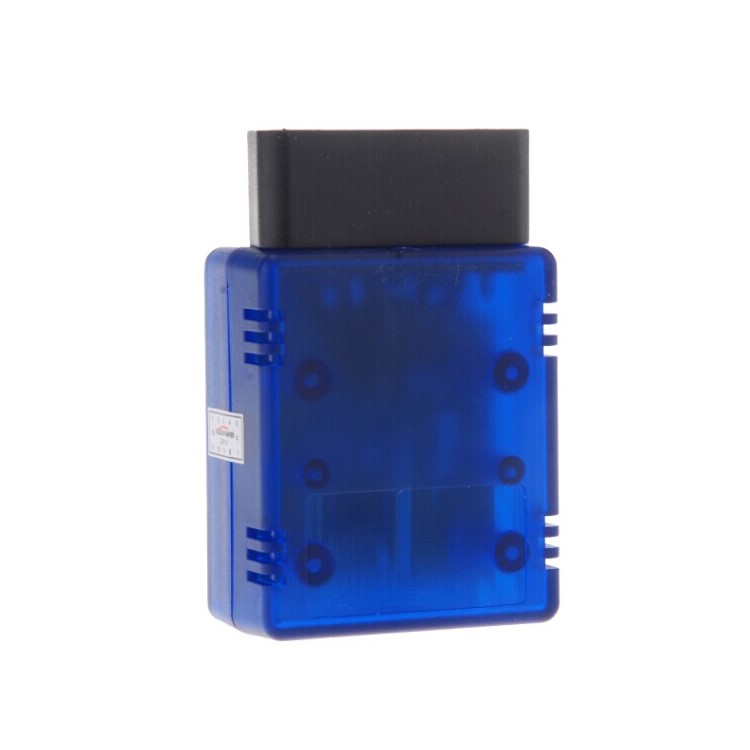

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool-3

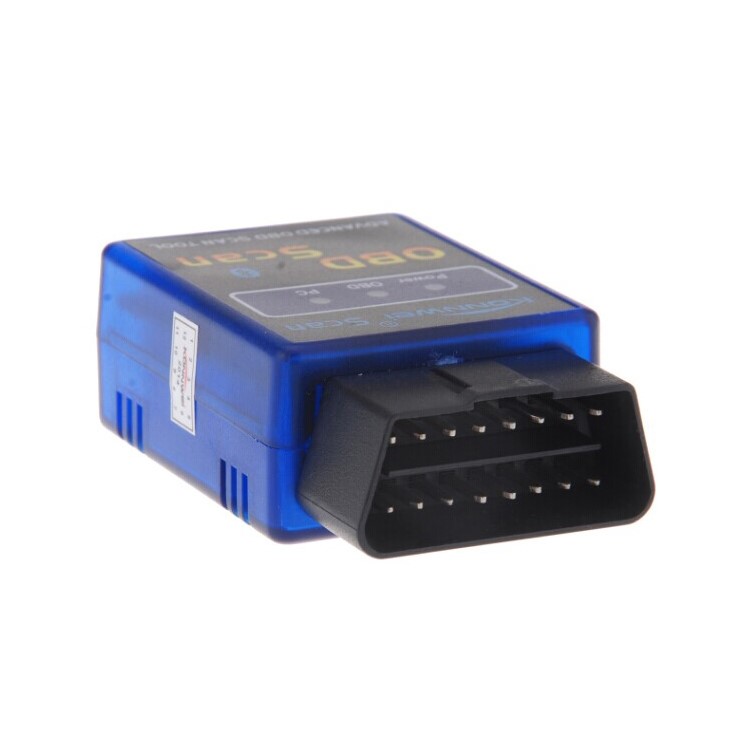

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool-4

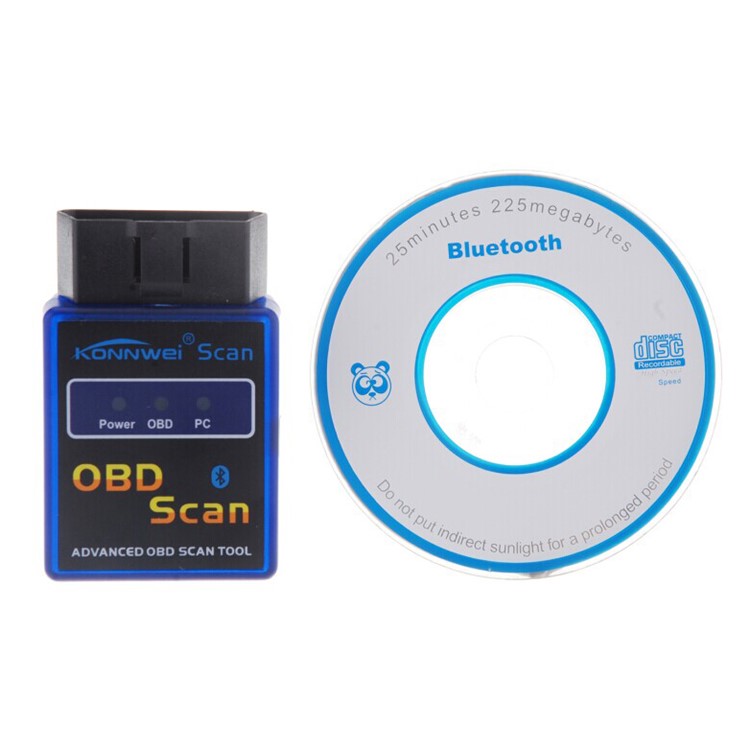

KONNWEI ELM327 Bluetooth Scanner OBD2 Auto Fault Diagnostic Tool-5
