Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) – 110V

Price:
$ 224.96

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 224.96 , buy Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) – 110V from the wholesale webshop online.

Specifications

Voltage AC 110V
Gross Weight 11.200kg
Volume Weight 10.487kg
Length 44.000m
Width 38.000m
Height 28.000m
Weight 10.000m

Product Description

Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) – 110V

This is an intelligent mobile phone refurbishment machine tool. It uses to cut LCD screen digitizer assembly, separating LCD screen digitizer assembly and middle frame.

  • There are 2 positioning locks to fix blade position

  • Total 3-axis, two for sliding and one for positioning

  • With vertical and horizontal trimming micrometers

  • Equipped with a protective cover on the blade, safe to use

  • Spring design clamp, clips automatically, easy to operate

  • The blade is replaceable, open the protective cover and replace it with a new blade (not included)

  • Large platform, compatible for all mobile phones

  • Note: We will send you a free power adapter according to your country.

Operation:

  • 1, The first step is to align the position. Put the mobile phone on the platform, align the blade on the LCD screen.

  • 2, Then adjust the vertical and horizontal trimming micrometer, align the position again. Please move the blade back and forth and clamp tightly.

  • 3, After finishing prepared work, you can turn on the power switch and rotary switch, the machine will start to cut the LCD screen. You need to adjust of micrometer downward when the machine cutting the LCD screen. Move the blade back and forth, until it finish the cutting work.

  • 4, Follow the steps above and cut other 3 sides.

  • 5, After finish the cutting work, you can take the LCD screen from middle frame by a small knife.

Compatible with:

  • iPhone 7 / 7 Plus

  • iPhone 6s Plus/6s

  • Samsung Galaxy Note7/S7/S7 Edge

  • Huawei P9 Plus/P9 Lite/P9

  • Most mobile phones on the market

Package included:

  • 1 x Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine
  • 1 x Power Charger

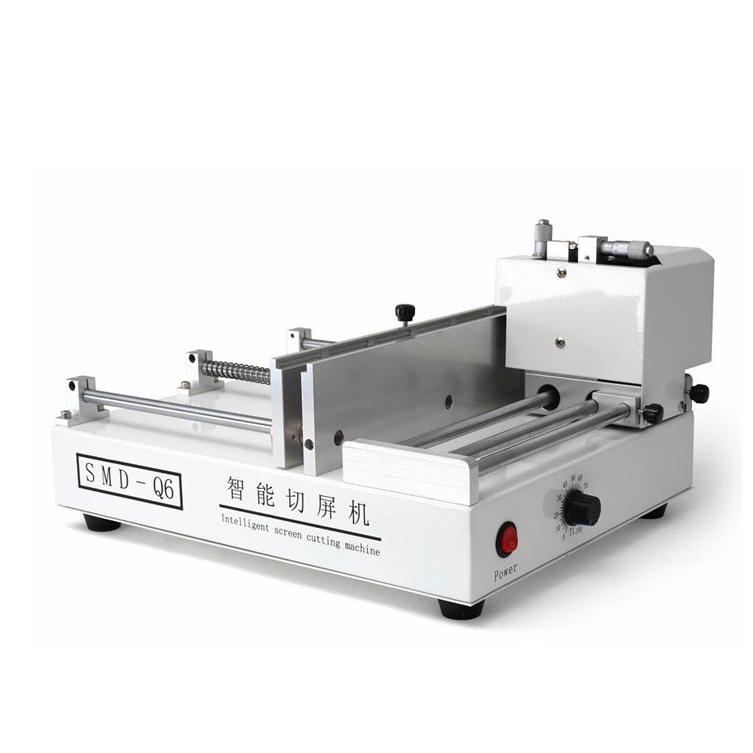

Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) - 110V-1

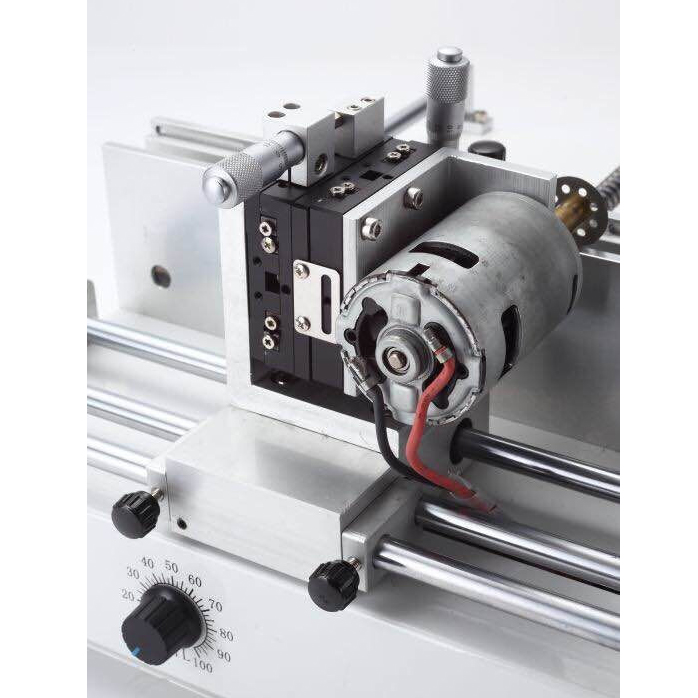

Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) - 110V-2

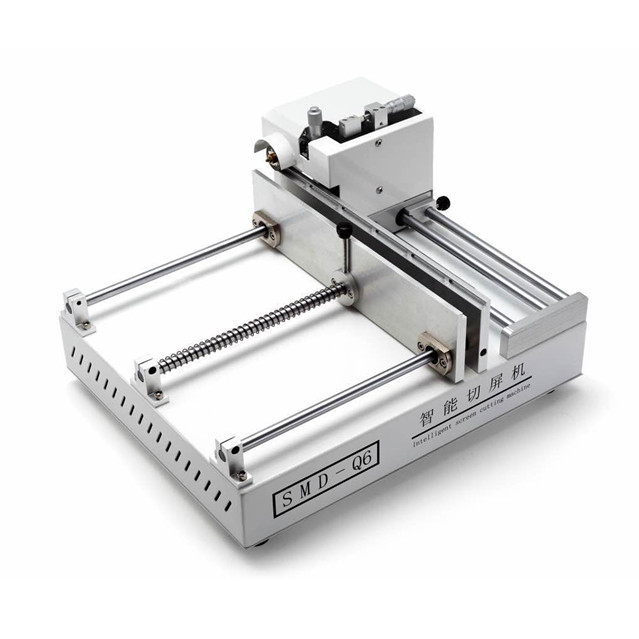

Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) - 110V-3

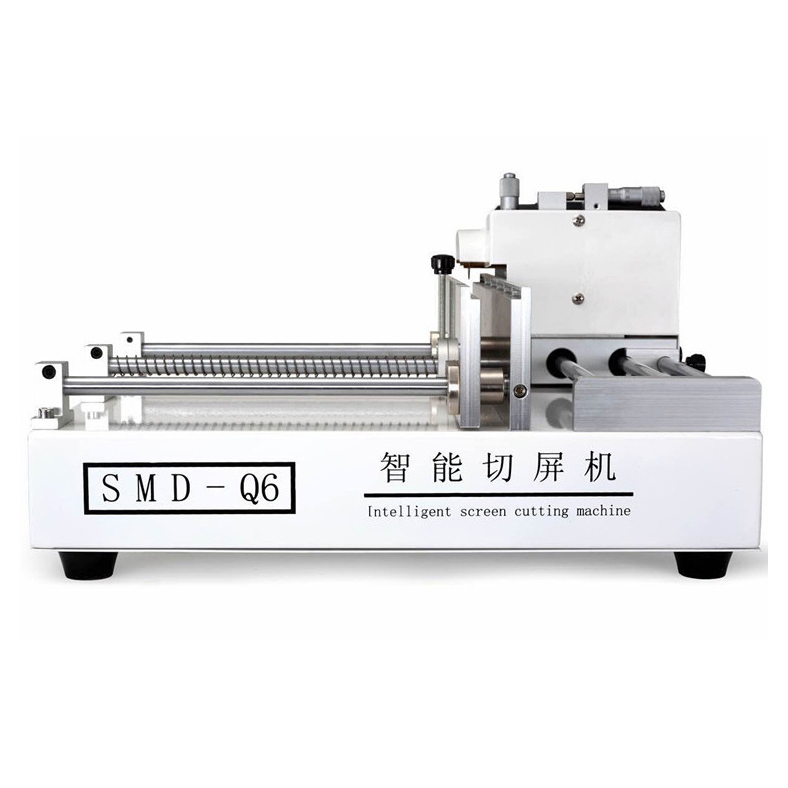

Intelligent LCD Screen Digitizer Assembly & Middle Frame Cutting Machine (SMD-Q6) - 110V-4
