HDMI TO HDMI+ Audio (SPDIF+R/L) Stereo Analog Audio Converter Separator – EU Plug

Price:
$ 13.10

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 13.10 , buy HDMI TO HDMI+ Audio (SPDIF+R/L) Stereo Analog Audio Converter Separator – EU Plug from the wholesale webshop online.

Specifications

Plug EU Plug
Port HDMI, RCA, Toslink
Retail Packaging Paper Box
Gross Weight 0.358kg
Volume Weight 0.025kg
Length 8.500cm
Width 6.500cm
Height 2.000cm
Weight 0.320kg
With Retail Packaging Yes

Product Description

HDMI TO HDMI+ Audio (SPDIF+R/L) Stereo Analog Audio Converter Separator – EU Plug

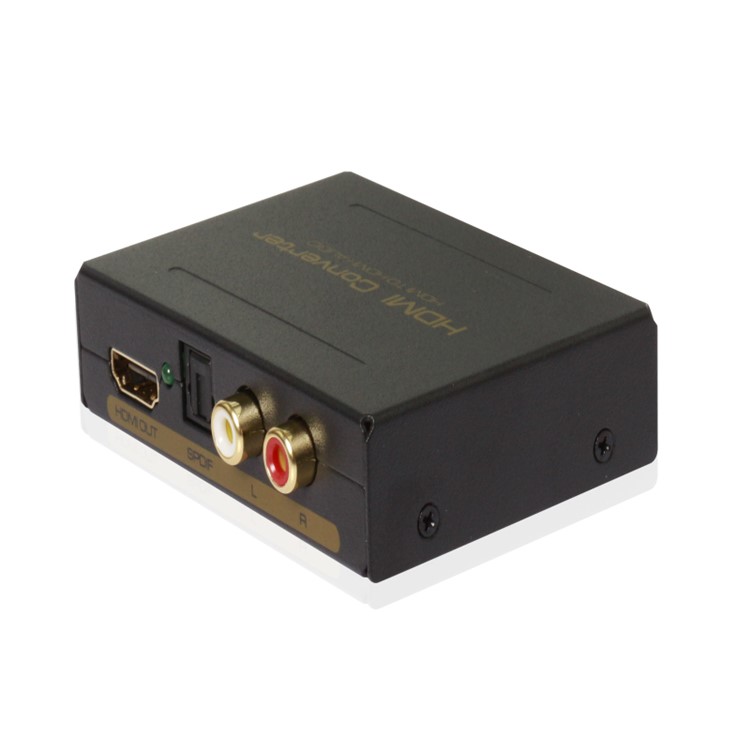

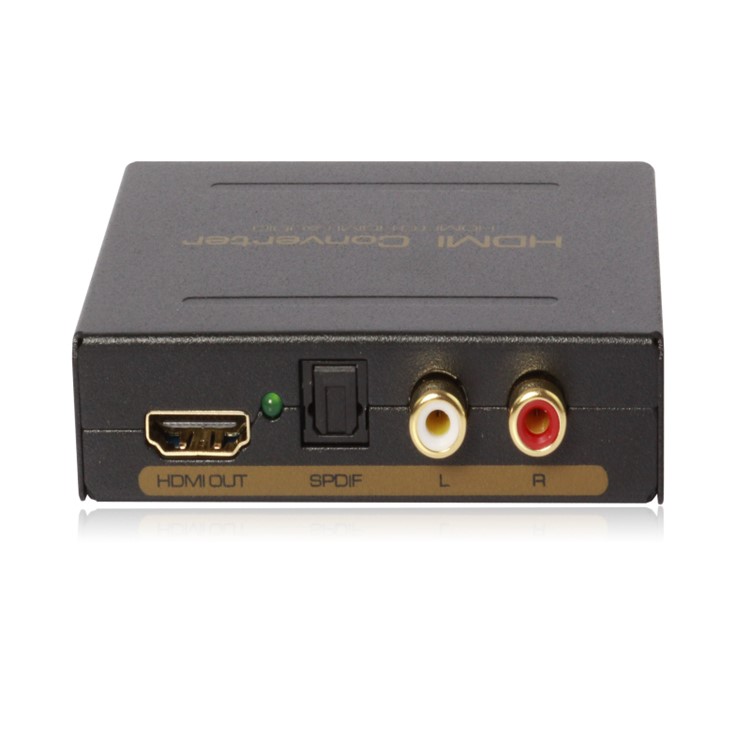

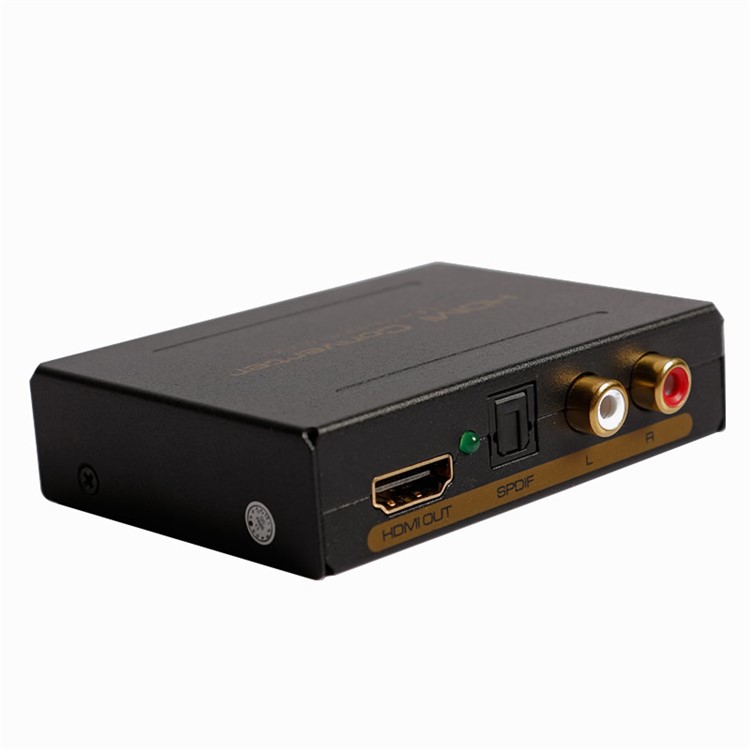

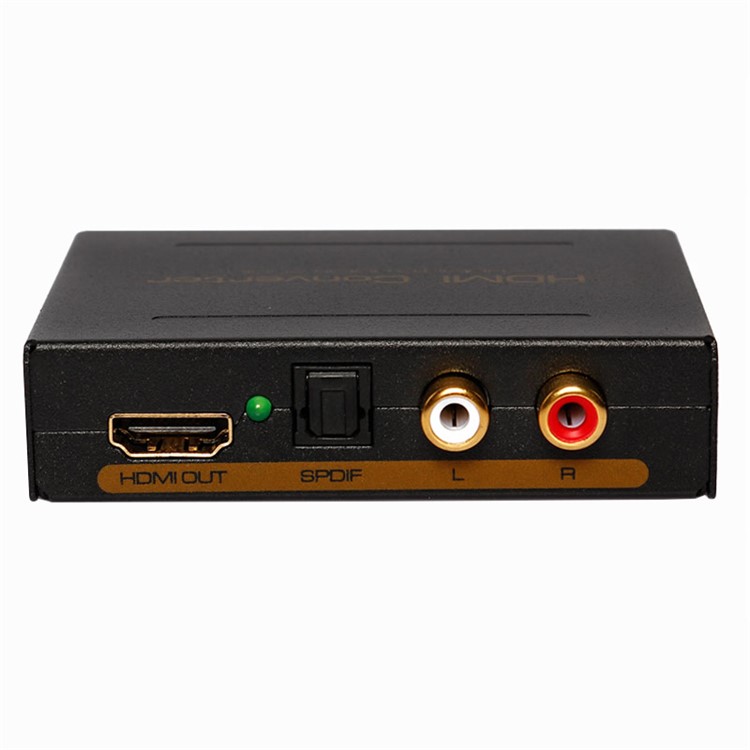

  • One HDMI input to one HDMI output, one SPDIF audio output and one RCA R/L stereo audio output

  • SPDIF output supports Upto DD / DTS 5.1CH and DD+ Audio; RCA Analog L/R output supports 2CH PCM stereo sudio

  • Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color

  • Input Resolution: up to 1080P(50/60Hz)

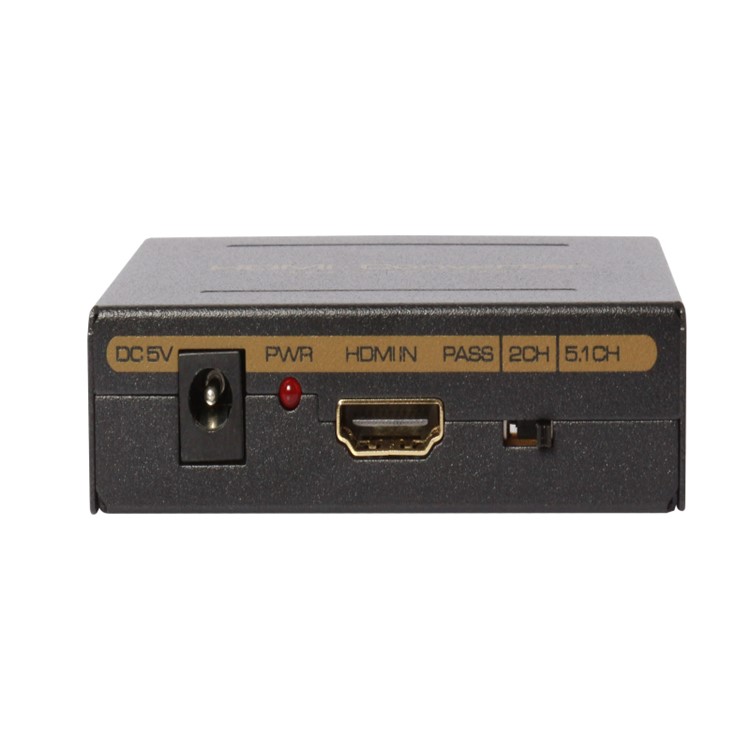

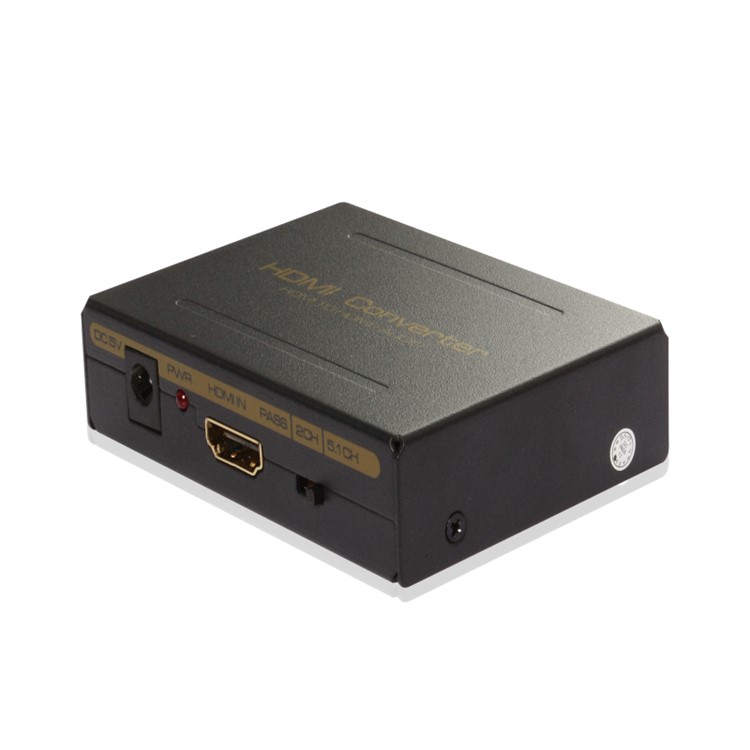

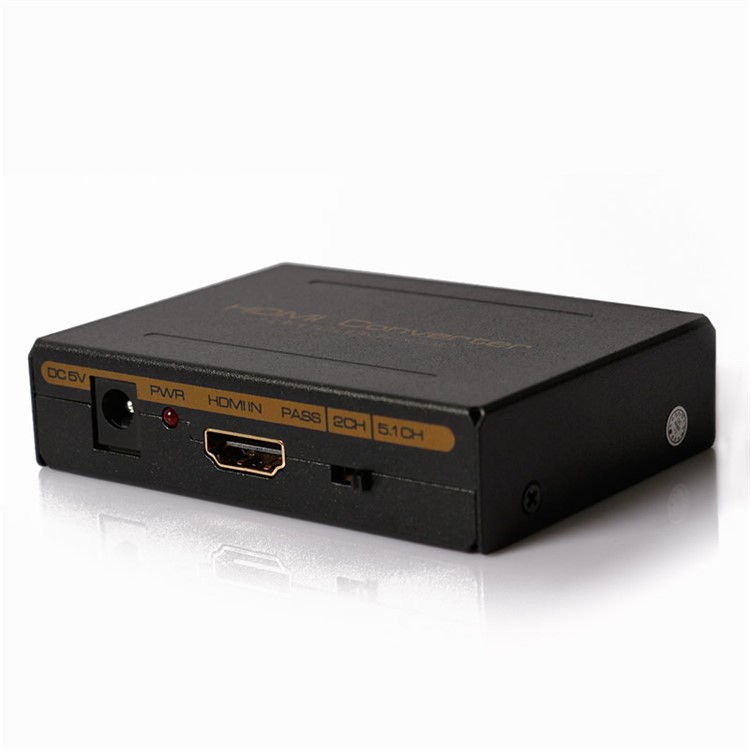

  • HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options

  • Audio EDID Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output

Specification:

  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

  • Support video color format: 24bit/deep color 30bit, 36bit

  • Audio output: L/R+SPDIF

  • Max bandwidth: 225MHz

  • Max baud rate: 6.75Gbps

  • Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

  • Input/Output DDC signal: 5Volts p-p (TTL)

  • Input cable distance: ≤15m AWG26 HDMI standard cable

  • Output cable distance: ≤20m AWG26 HDMI standard cable

  • Max working current: 500mA

  • Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

  • Operating Temperature range: (-15 to +55℃)

  • Operating Humidity range: 5 to 90%RH (No Condensation)

  • Dimension (L x W x H): 84.5 x 61.8 x 2 mm

  • Weight: 135g

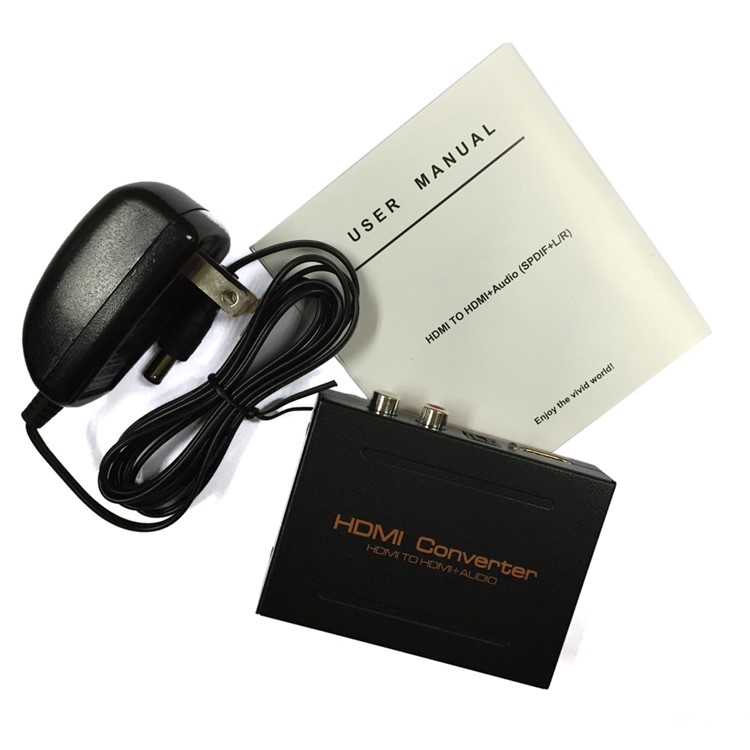

Package included:

  • 1 x HDMI TO HDMI+ Audio (SPDIF+R/L) Stereo Analog Audio Converter Separator

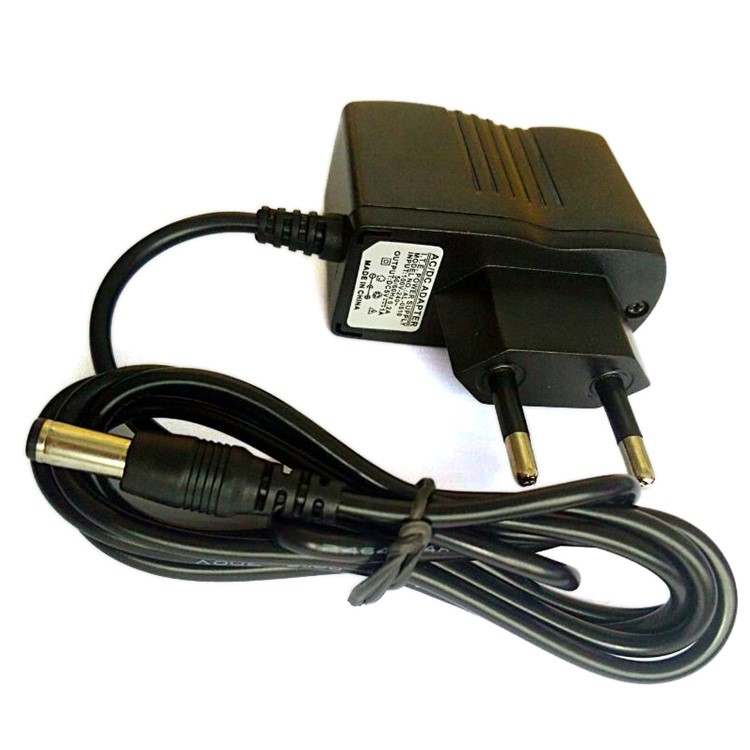

  • 1 x 5V/1A Power Adaptor
  • 1 x User Manual
