DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen

Price:
$ 151.20

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 151.20 , buy DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen from the wholesale webshop online.

Specifications

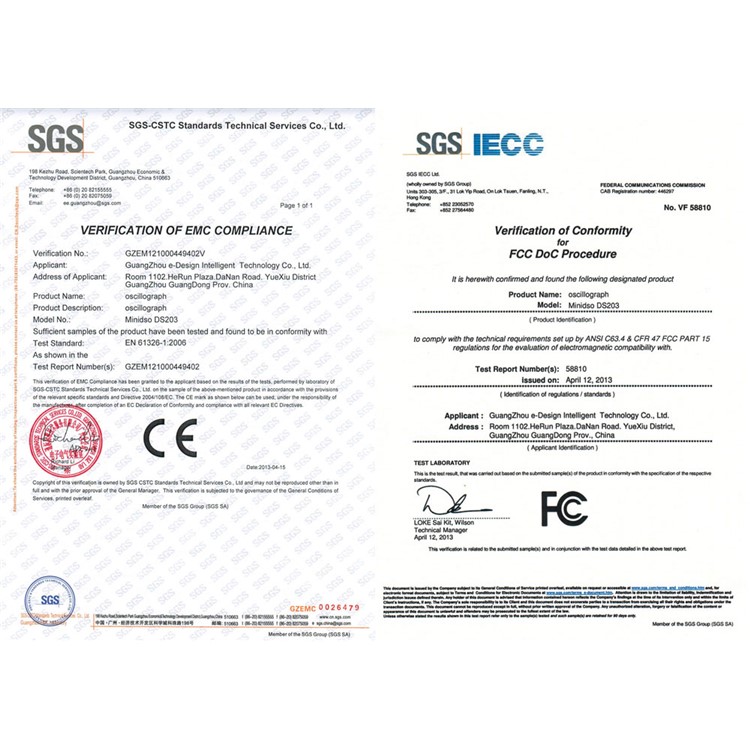

Certificate CE, FCC

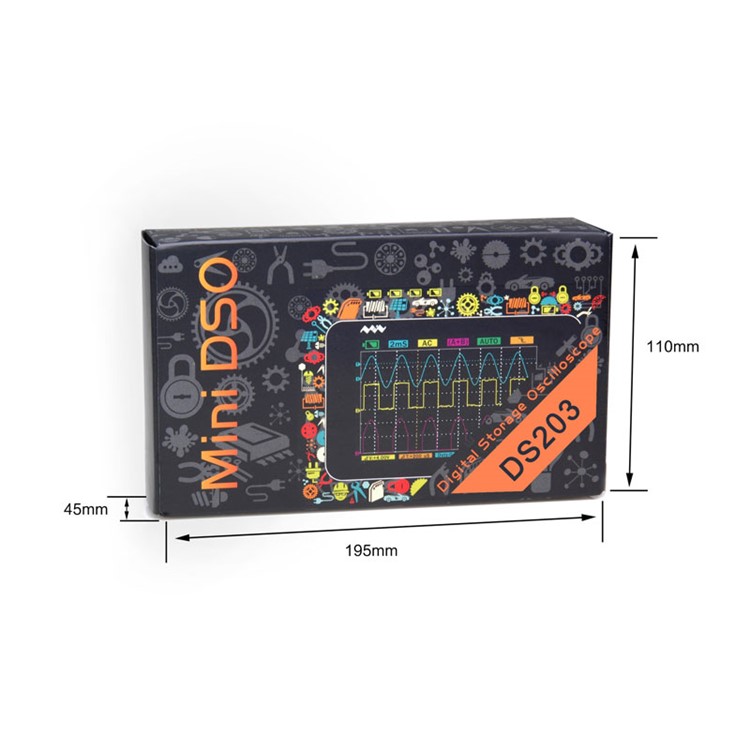

Retail Packaging Colored Box
Gross Weight 0.330kg
Volume Weight 0.216kg
Length 19.500cm
Width 11.000cm
Height 4.500cm
Weight 0.295kg
With Retail Packaging Yes

Product Description

DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen
  • Full color 3" TFT LCD display, 400×240 pixels

  • 8 MHz ADC bandwidth,8-bit precision

  • 2 analog channels: (CH_A, CH_B) and 2 digital channels (CH_C, CH_D)

  • Integrated Square/Sine/Triangle/Sawtooth signal generator

  • Calculation channels: [CH_A]+[CH_B], [CH_A]-[CH_B], Logic OR [CH_C]|[CH_D], Logic

  • AND [CH_C]&[CH_D], REC_A, REC_B, REC_C, REC_D

  • Maximum sampling rate of a single analog channel, 72 MS/s

  • Maximum record length of any channel, 4096 points.

  • Waveforms and upgrade firmware can be stored in built-in 2M USB disk

  • Rechargeable battery powered by USB connection

  • Comprehensive user interface through 6 buttons/switches and colored menu control system

  • 2 mcx 1X/10X oscilloscope probes

Specification:

  • Model: DS203

  • MCU: STM32F103VC

  • ADC: AD9288

  • Channel: 2 analog channels and 2 digital channels

  • Analog bandwidth: 8MHz

  • Max sample rate: 72MSa/s

  • Max sample memory depth: 4K

  • Horizontal sensitivity: 0.1uS/Div~2S/Div (1-2-5 sequence step)

  • Vertical sensitivity: 50mv/Div~10V/Div (1-2-5 sequence step)

  • Input impedance: 1MΩ

  • Coupling: AC/DC

  • Storage: 8MB

  • USB connector: Mini USB

  • Battery: 1000mAh

  • Screen size: 3 inch

  • Screen resolution: 400×240

  • Dimension: 99x59x13mm

  • Weight: plastic case: 100g, metal case: 119g

  • Certification: CE FCC

Package included:

  • 1 x Oscilloscope
  • 1 x X10 Probe
  • 1 x X1 Probe
  • 1 x Screwdriver

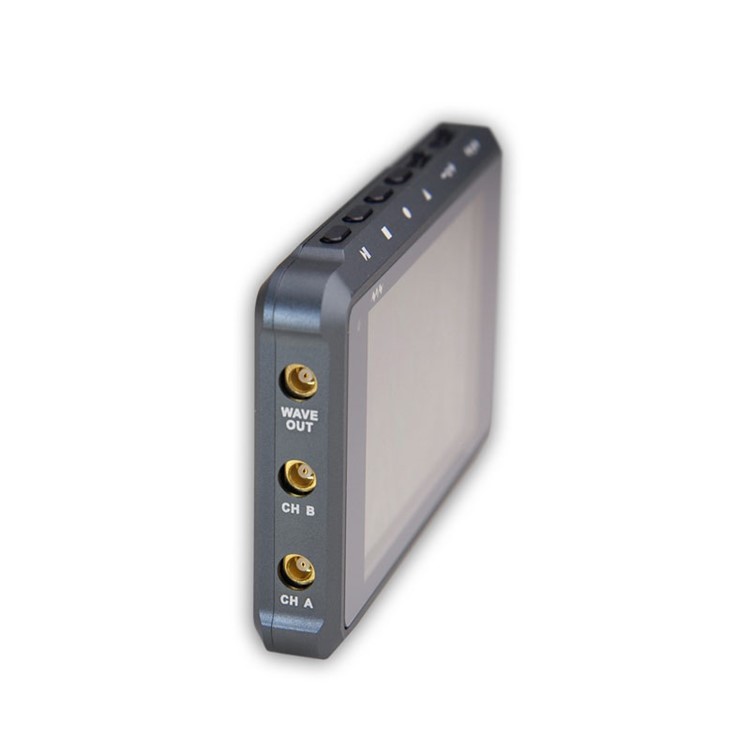

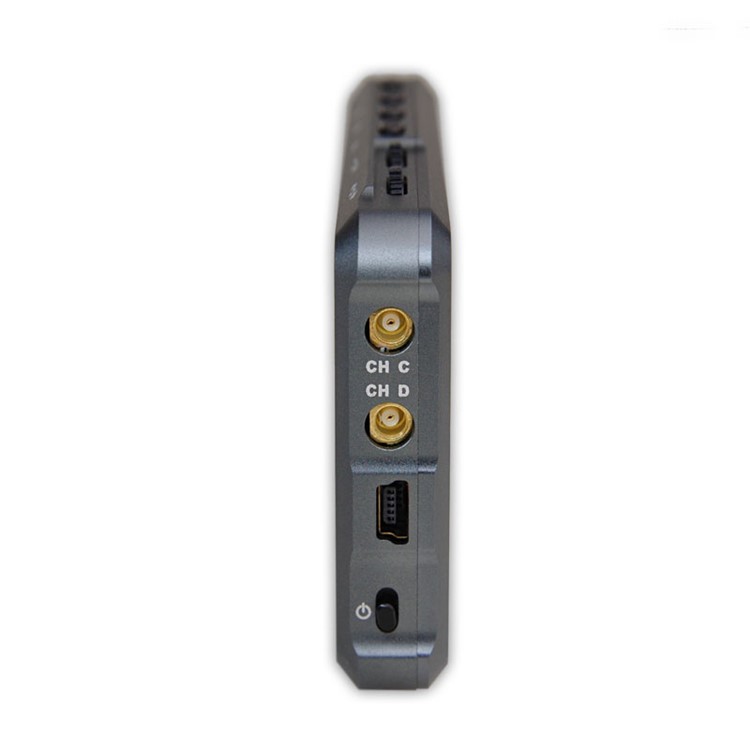

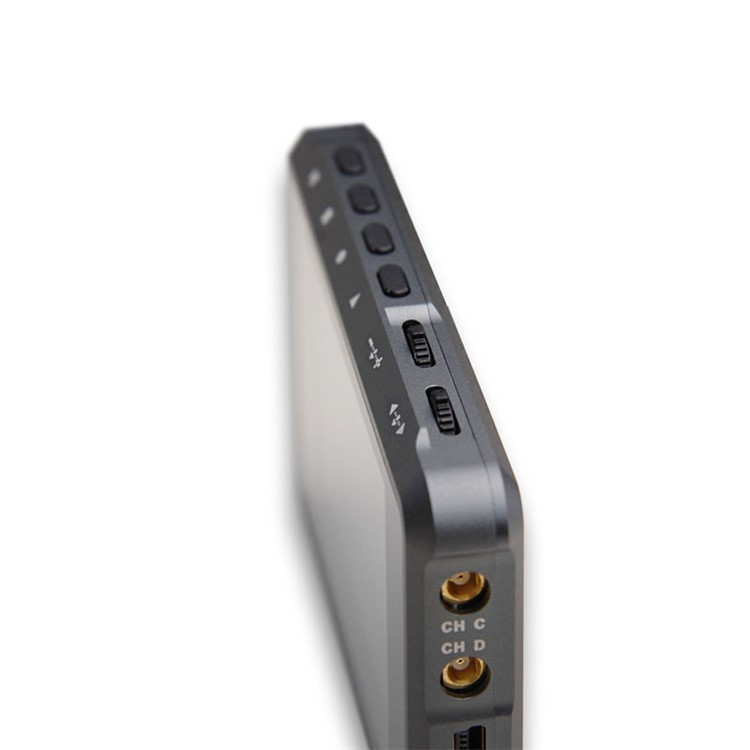

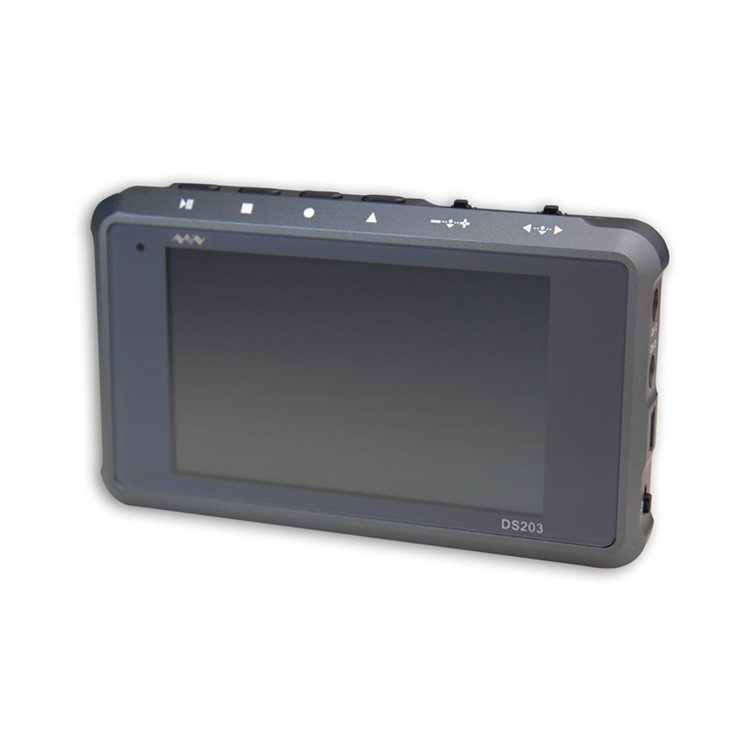

DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-1
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-2
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-3
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-4
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-5
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-6
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-7
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-8
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-9
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-10
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-11
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-12
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-13
DS203 4-Channel Digital Storage Oscilloscope 3 inch TFT LCD Screen-14
