DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope – Black

Price:
$ 83.35

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 83.35 , buy DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope – Black from the wholesale webshop online.

Specifications

Certificate CE, FCC
Color Black

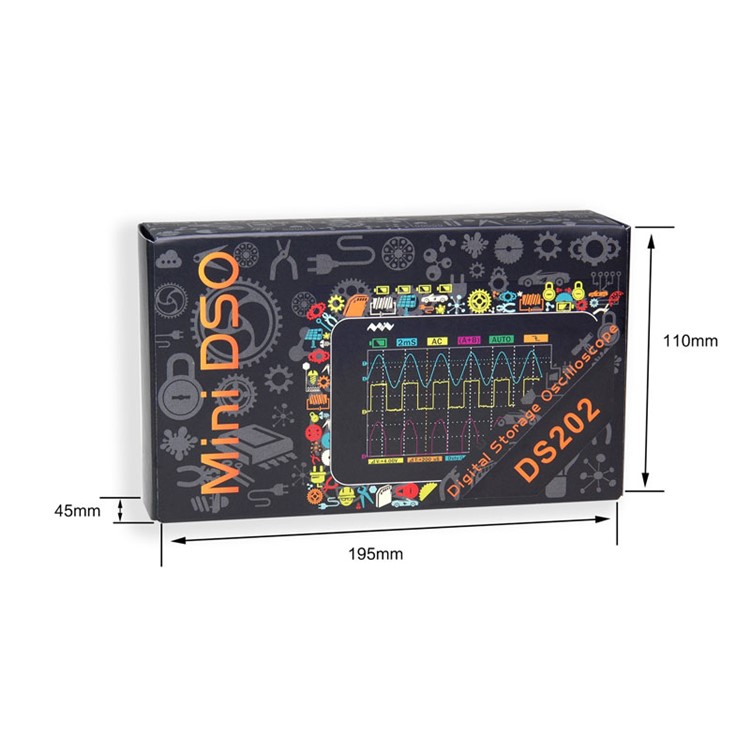

Retail Packaging Colored Box
Gross Weight 0.280kg
Volume Weight 0.216kg
Length 19.500cm
Width 11.000cm
Height 4.500cm
Weight 0.250kg
With Retail Packaging Yes

Product Description

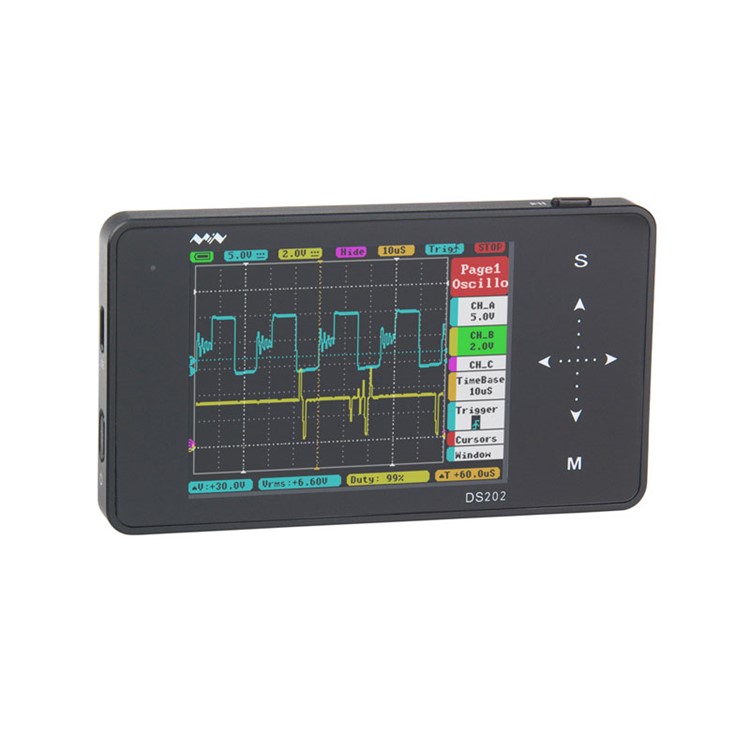

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope – Black
  • Rising/Falling edge trigger

  • Store file as BMP, DAT, BUF, or CSV format

  • Math waveforms: -A, -B, A+B, A-B, Rec A, RecB, RecC

  • Synchronous mode: Auto, Normal, Single, None, Scan

  • Inbuilt 8MB U disk storage for waveform data and images

  • Modes of vertical precise, horizontal precise measurement and triggering threshold

  • Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg

  • Inbuilt signal generator/10Hz~1MHz square wave (duty adjustable) or 10Hz ~ 20KHz Sine/Square/Triangle/Sawtooth wave

  • 2.8" full color TFT LCD display (320 x 240 pixels) capacitive touchscreen, supporting swipe gestures

  • Internal 550mAh Lithium battery

  • Recharging through Micro USB port

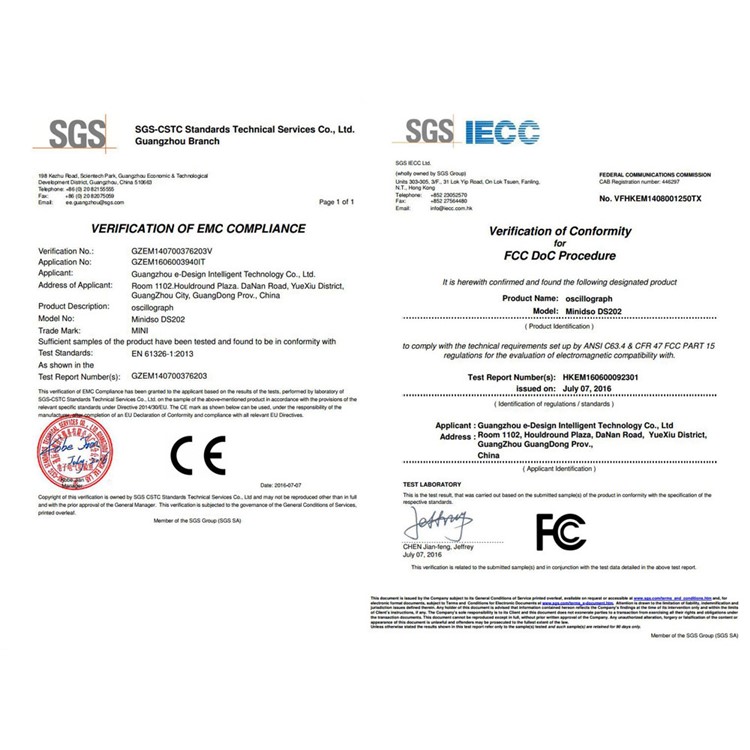

  • Compliant with EU certification CE FCC

Specification:

  • Model: DS202

  • Coupling: AC/DC

  • Analog bandwidth: 1MHz

  • Max sample rate: 10MSa/s

  • Analog input impedance: 1MΩ

  • Max sample memory depth: 8K

  • Max input voltage: ±40V(X1 probe)

  • Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)

  • Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)

  • Battery: 550mAh lithium battery

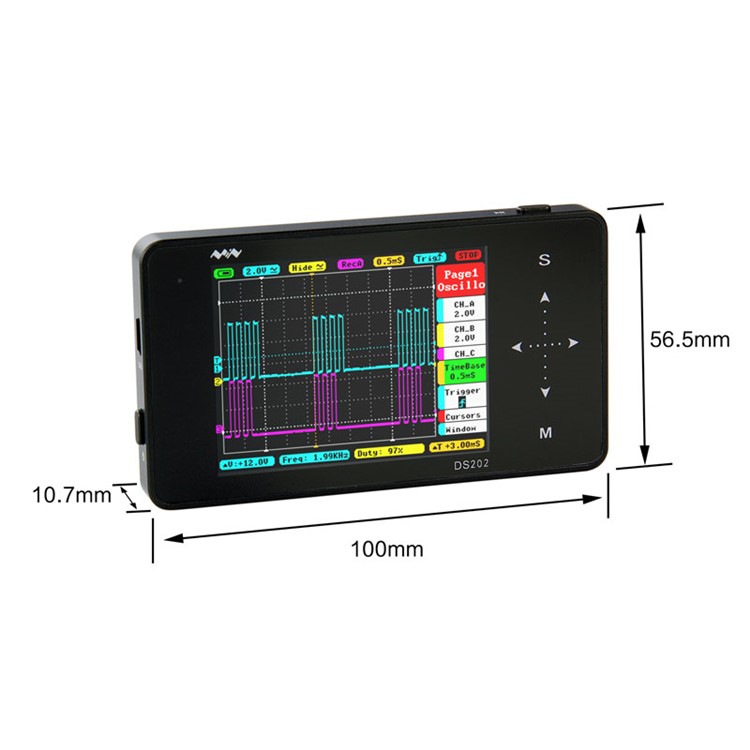

  • Dimension: 100mm x 56.5mm x 10.7mm

  • Weight (with Battery): 90g

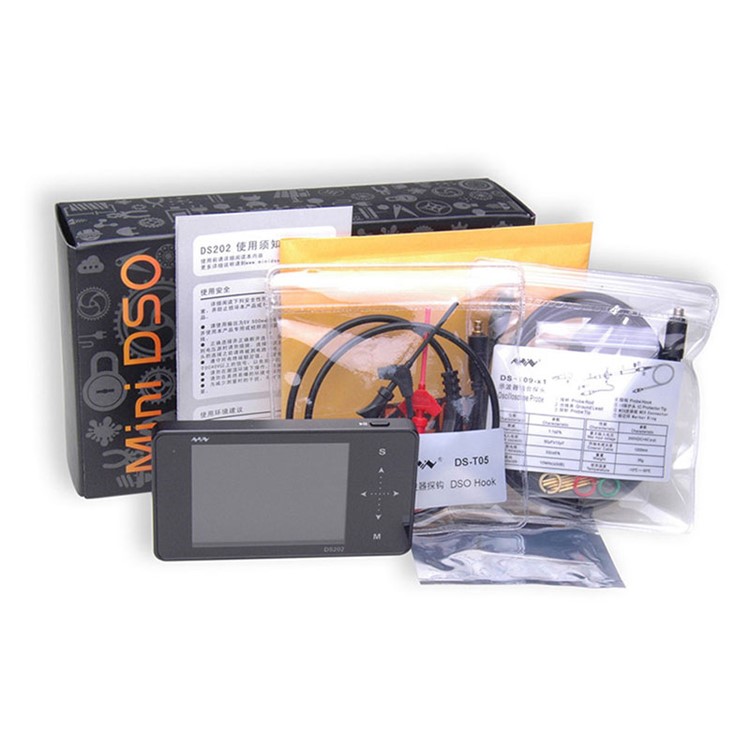

Package included:

  • 1 x DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope
  • 1 x Probe
  • 1 x Cable
  • 1 x English User Manual
DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-1
DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-2

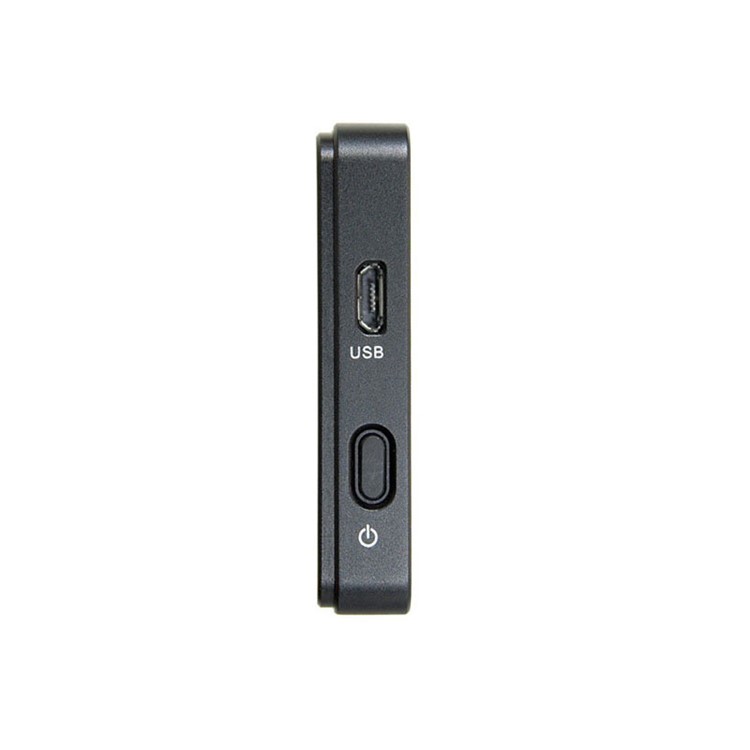

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-3

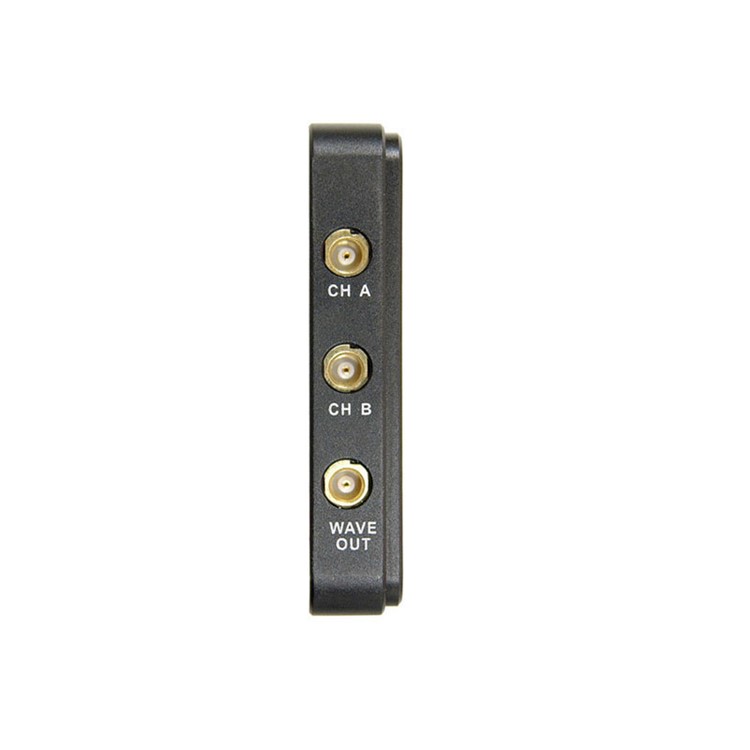

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-4

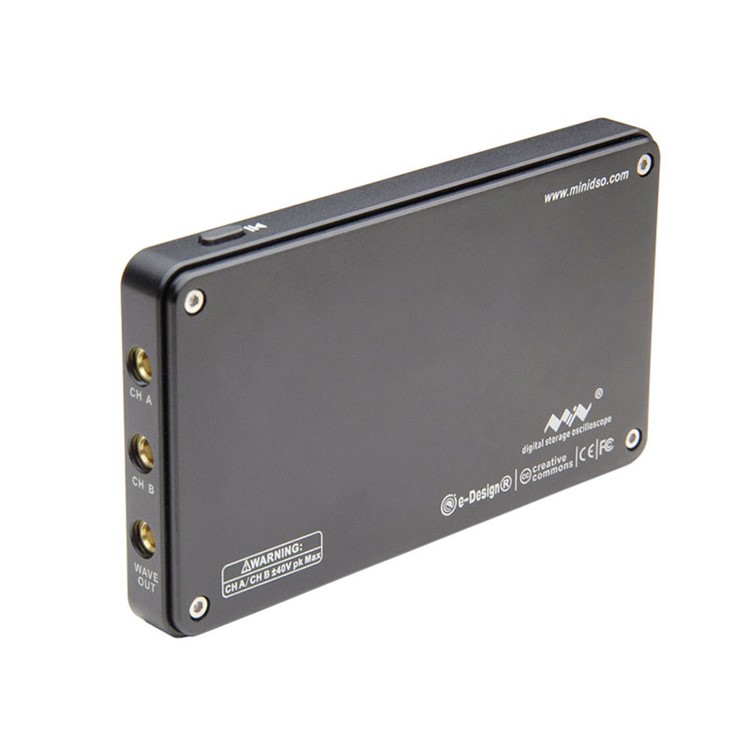

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-5

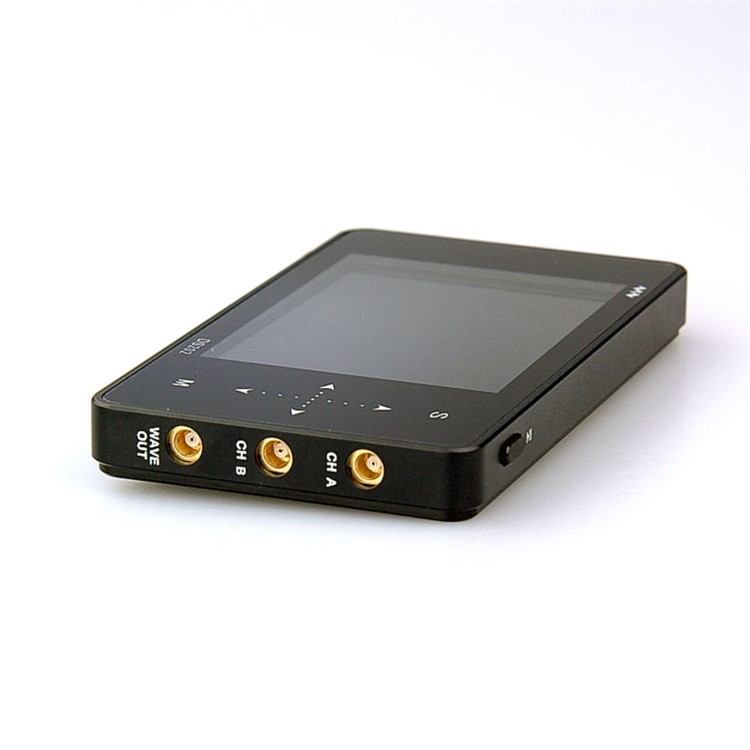

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-6

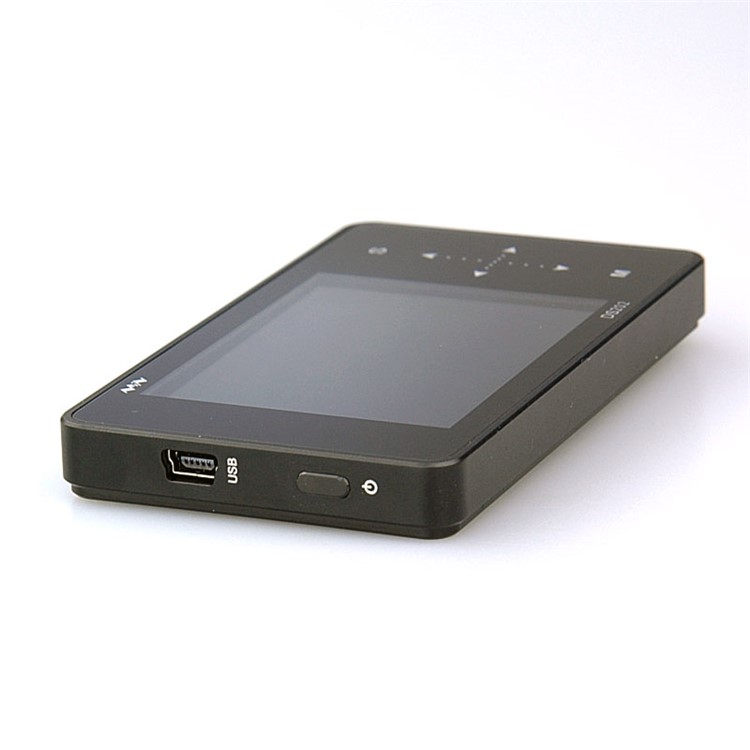

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-7
DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-8
DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-9

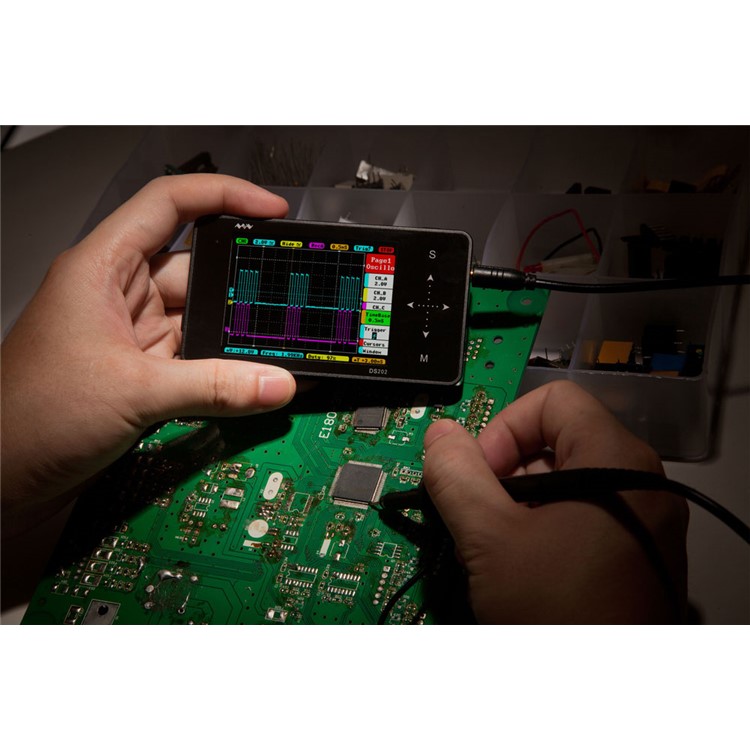

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-10

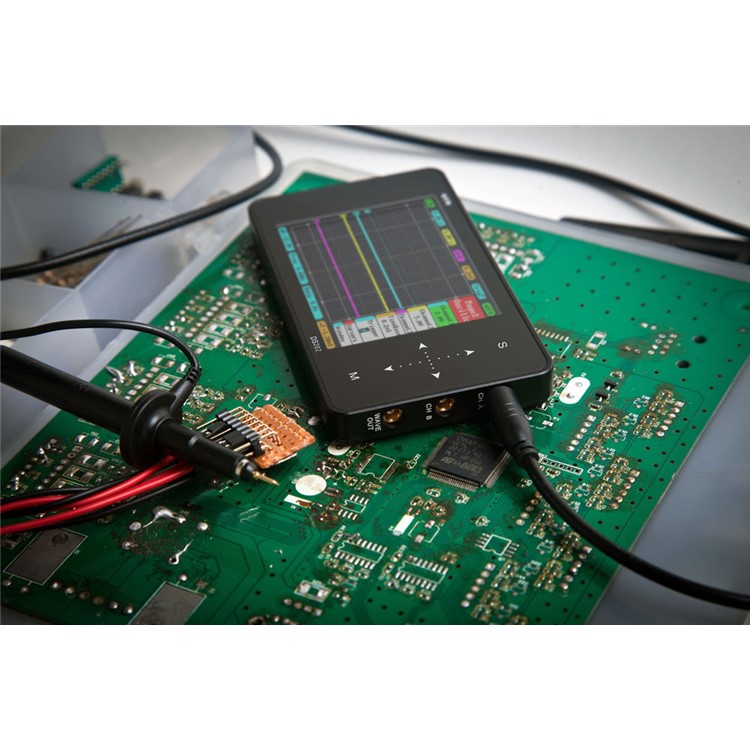

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-11
DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-12

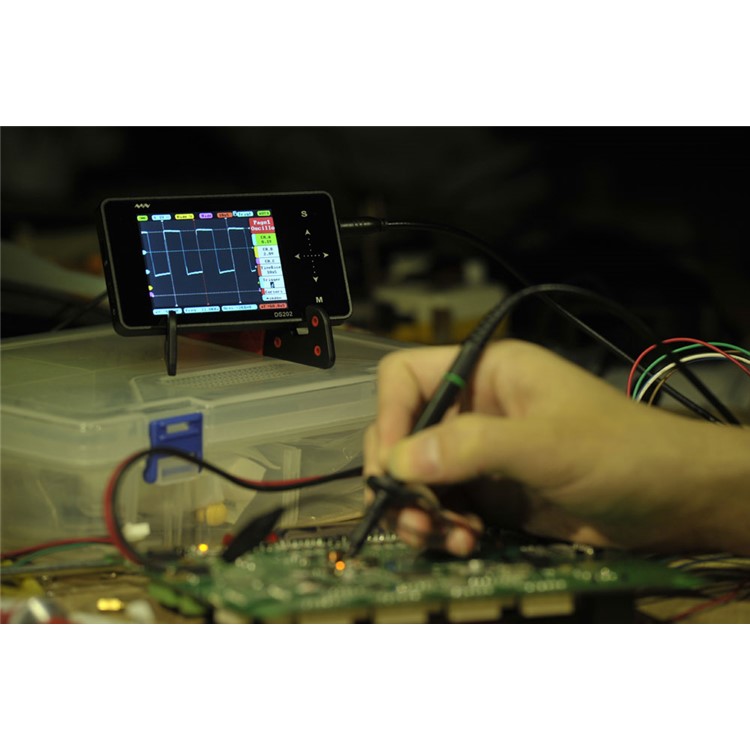

DS202 Portable Mini Handheld Touch Screen Digital Storage Two Channel Oscilloscope - Black-13
