Digital Optical Coaxial to Analog R/L RCA Audio Decoder

Price:
$ 14.88

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 14.88 , buy Digital Optical Coaxial to Analog R/L RCA Audio Decoder from the wholesale webshop online.

Specifications

Port Toslink
Retail Packaging Paper Box
Gross Weight 0.146kg
Volume Weight 0.021kg
Length 7.500cm
Width 5.500cm
Height 2.300cm
Weight 0.130kg
With Retail Packaging Yes

Product Description

Digital Optical Coaxial to Analog R/L RCA Audio Decoder

Digital optical coaxial to analog R/L RCA audio decoder is designed for either home or professional audio switching. It converts coaxial or Toslink signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This converter is small in size and quite easy to install.

  • Supports DTS and Dolby double decoding

  • Converts coaxial or Toslink digital audio signals to analog L/R audio

  • Supports sampling rate at 32, 44, 48 and 96KHz

  • 24-bit SPDIF incoming bit stream on left and right channels

  • Provides electromagnetic-noise-free transmission

  • Easy to install and simple to operate

Specification:

Signal Inputs/Output

Input Audio

Coaxial or SPDIF

Output Audio

L/R audio

Connector

Input audio connector

Toslink, Coaxial

Output audio connector

2 x RCA(R/L)

Sampling rate

32, 44, 48 and 96KHz

Mechanical

Size(L-W-H)

73 x 55 x 22mm

Weight(Net)

92g

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0°C  to +70°C

Operating Humidity

10% to 85%RH (no condensation)

Storage Temperature

-10°C  to +80°C

Storage Humidity

5% to 90% RH (no condensation)

Power Requirement

External Power Supply

5V DC@2A

Power Consumption

0.5 watts(max)

Regulatory Approvals

Converter Unit

FCC, CE, UL

Power Supply

UL, CE, FCC

Accessories Adapter

AC Power Adapter

US standard, UK standard and so on

User Manual

English Version

Package included:

  • 1 x Digital Optical Coaxial to Analog R/L RCA Audio Decoder
  • 1 x USB Cable
  • 1 x User Manual

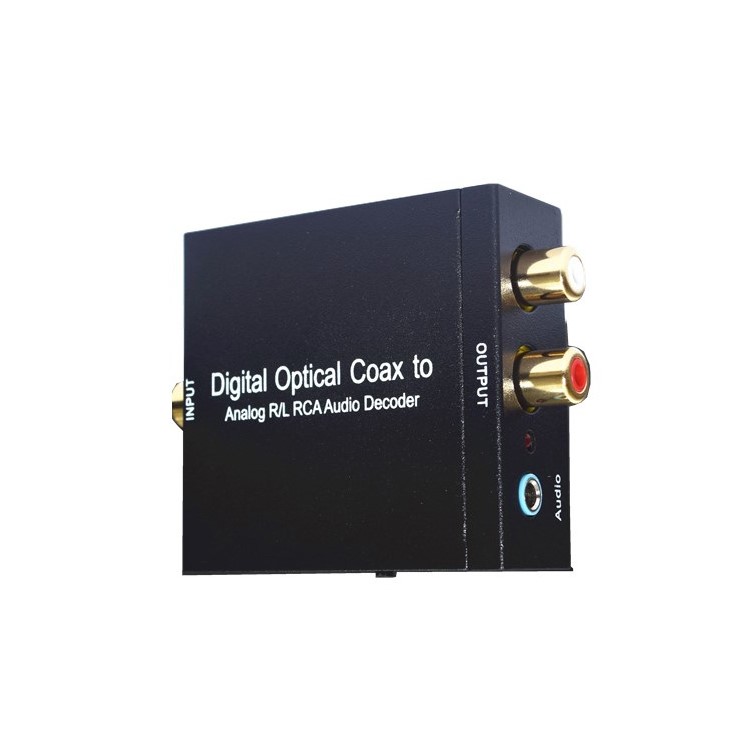

Digital Optical Coaxial to Analog R/L RCA Audio Decoder-1
Digital Optical Coaxial to Analog R/L RCA Audio Decoder-2

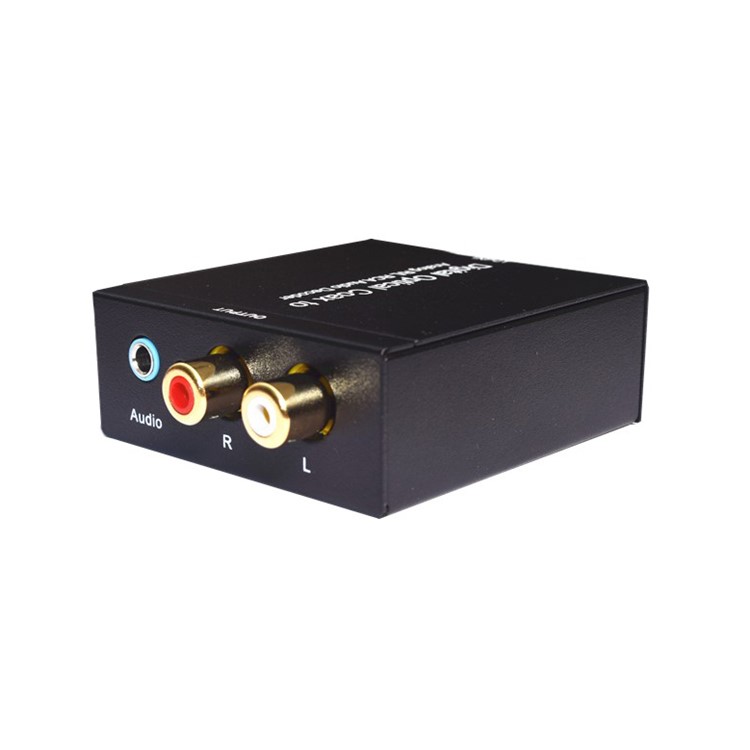

Digital Optical Coaxial to Analog R/L RCA Audio Decoder-3

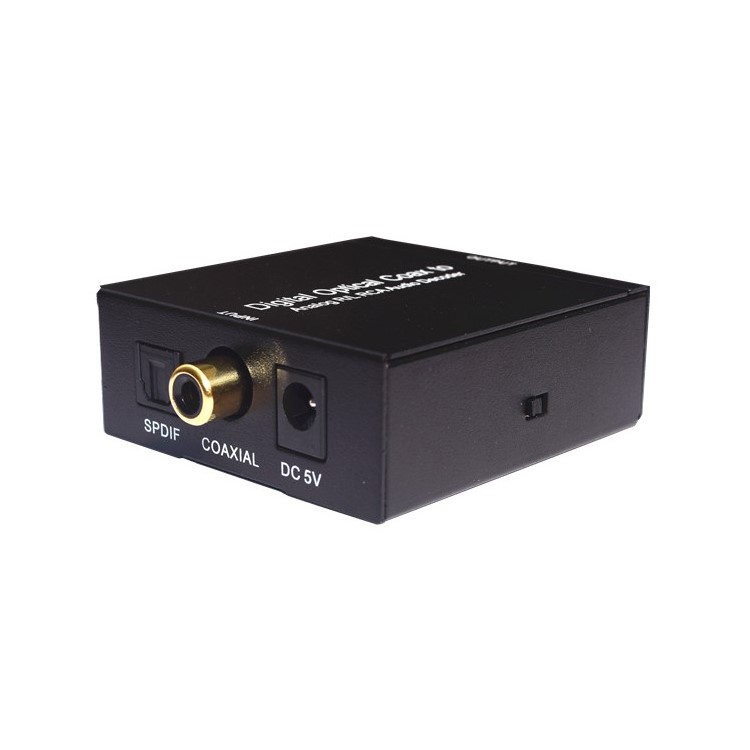

Digital Optical Coaxial to Analog R/L RCA Audio Decoder-4

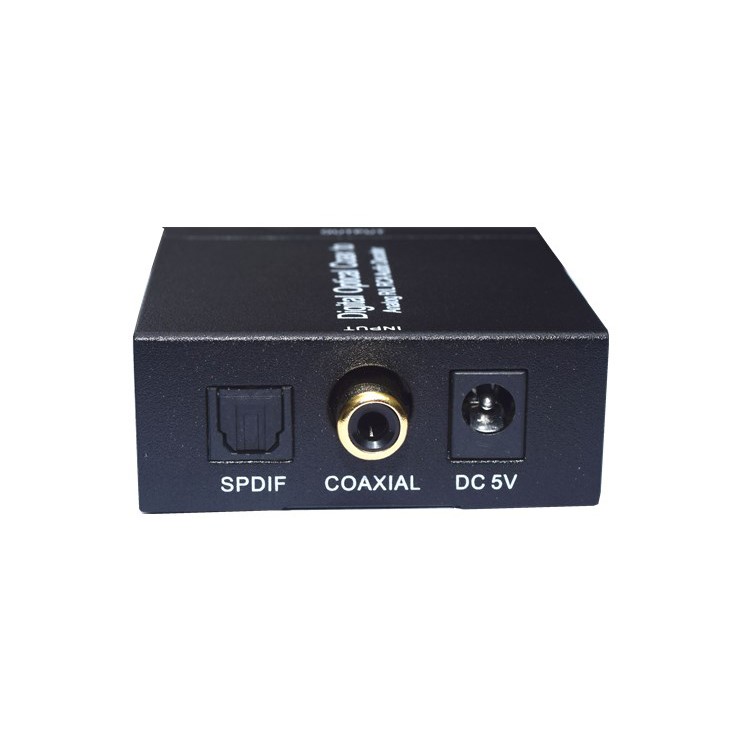

Digital Optical Coaxial to Analog R/L RCA Audio Decoder-5

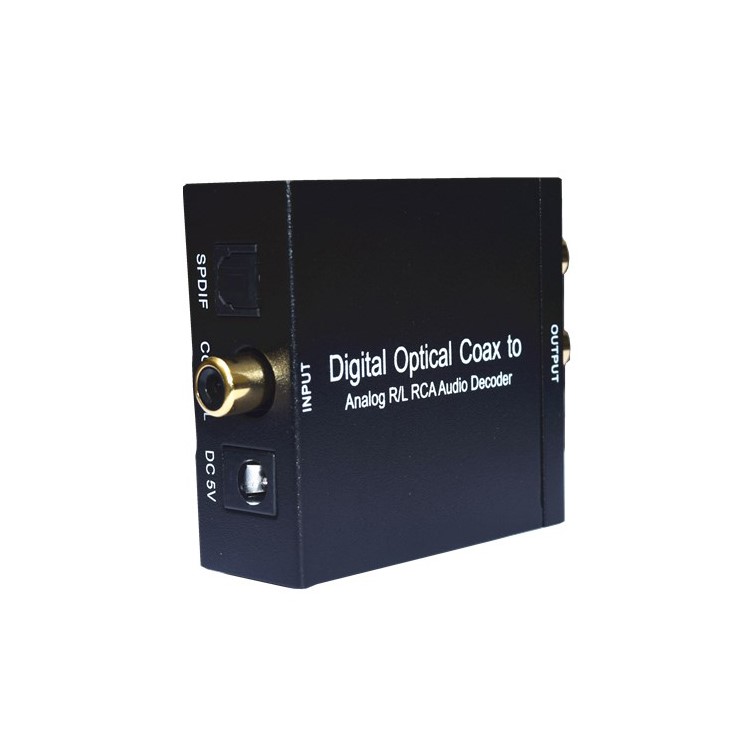

Digital Optical Coaxial to Analog R/L RCA Audio Decoder-6
Digital Optical Coaxial to Analog R/L RCA Audio Decoder-7
