4×1 HDMI Switcher 4 Input 1 Output with CVBS Output – US Plug

Price:
$ 32.24

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
For just $ 32.24 , buy 4×1 HDMI Switcher 4 Input 1 Output with CVBS Output – US Plug from the wholesale webshop online.

Specifications

Plug US Plug
Port HDMI, Others
Retail Packaging Paper Box
Gross Weight 0.564kg
Volume Weight 0.069kg
Length 17.000cm
Width 7.200cm
Height 2.500cm
Weight 0.504kg
With Retail Packaging Yes

Product Description

4×1 HDMI Switcher 4 Input 1 Output with CVBS Output – US Plug

This is a high-performance HDMI switcher with four HDMI inputs and one output HDMI switch, which provides CVBS and L/R outputs.

  • Supports multiple HDMI inputs and outputs

  • The output ports support CVBS and L/R outputs

  • Supports 36/30/24 bit

  • Supports CEC to HDMI output

  • Supports digital audio formats, DTS and Dolby True HD/LPCM7.1/AC3/DTS/DSD

Specification:

  • Video bandwidth: 300MHz/10.2Gbps

  • Input port: 4 x HDMI (female)

  • Output port: 1 x HDMI (female) 1 x CVBS (L/R)

  • Output resolution: 480i ~ 1080 P 50/60

  • HDMI cable: 1080P/12-bit (15 meters)

  • HDMI cable: 1080P/12-bit (15 meters) ± 8 KV (air gap discharge) ± 4 KV (air gap discharge)

  • Chassis material: metal

  • Screen printing: black

  • DC power supply: 5V/1A

  • Power consumption: 1.5W

  • Operating temperature: 0 ° C ~ 40 °C/32 °F ~ 104 °F

  • Storage temperature: 20 ° C ~ 60 °C/- 4 °F ~ 140 °F

  • Relative humidity: 20% to 90% RH (non-condensing)

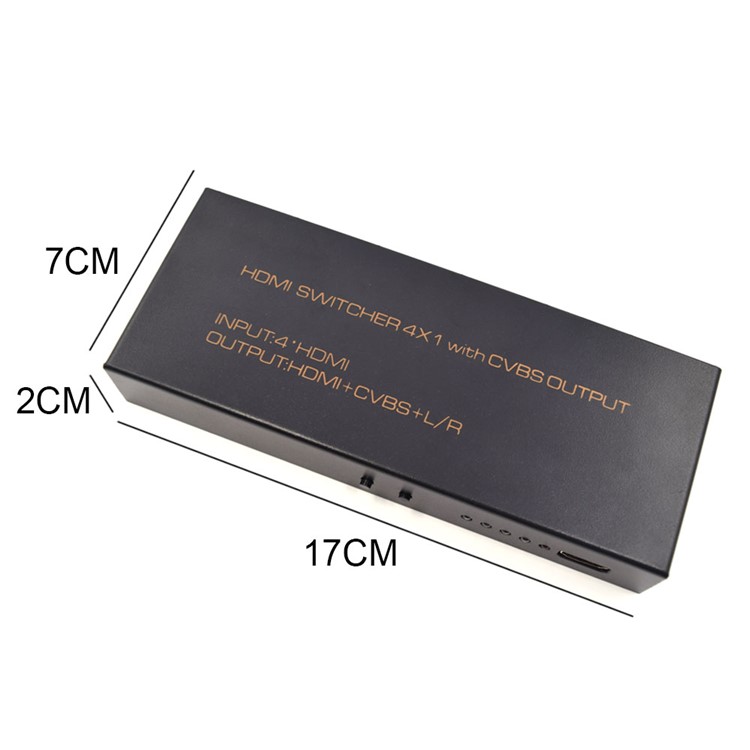

  • Size: 17 x 7 x 2cm

  • Weight: 305g

Package included:

  • 1 x HDMI Switcher 4 Input 1 Output with CVBS Output
  • 1 x US Plug Adapter

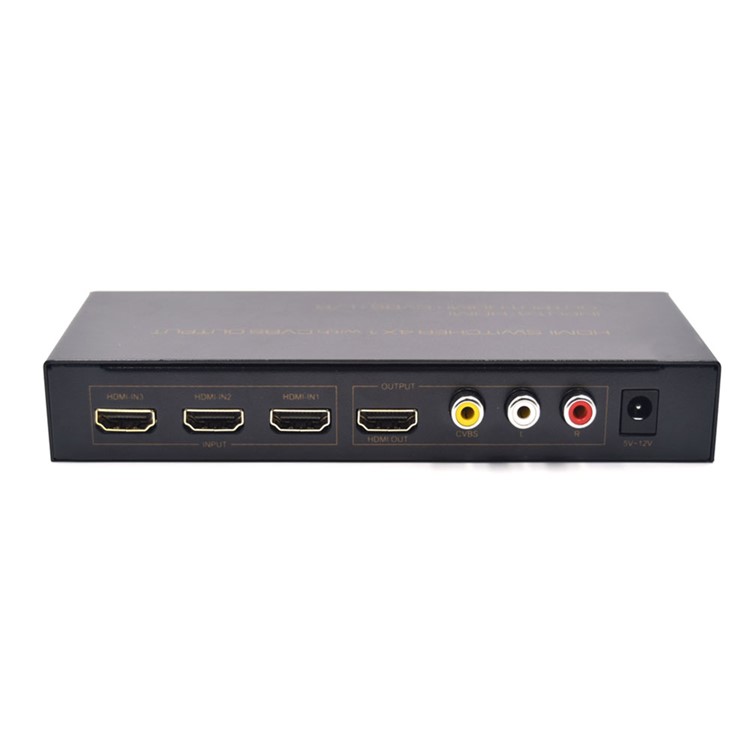

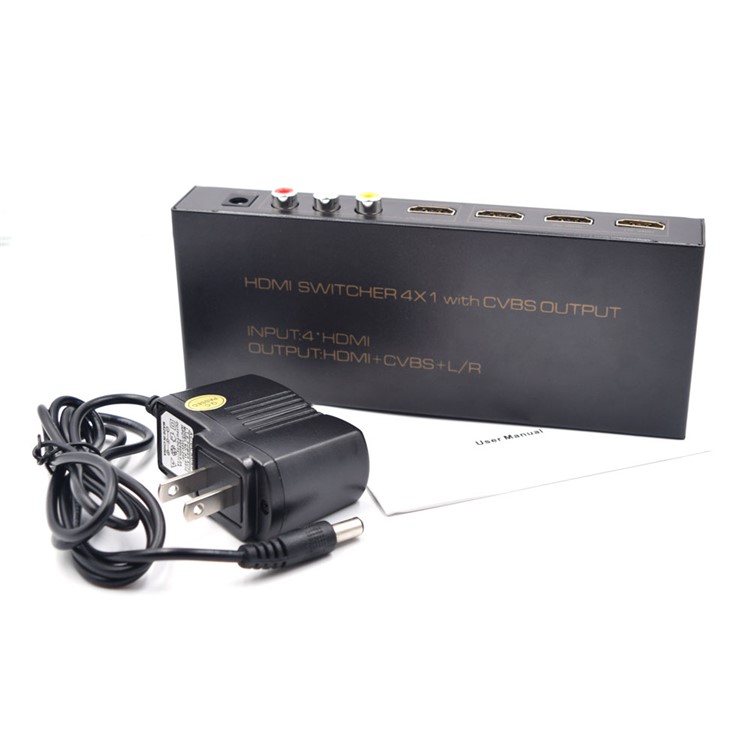

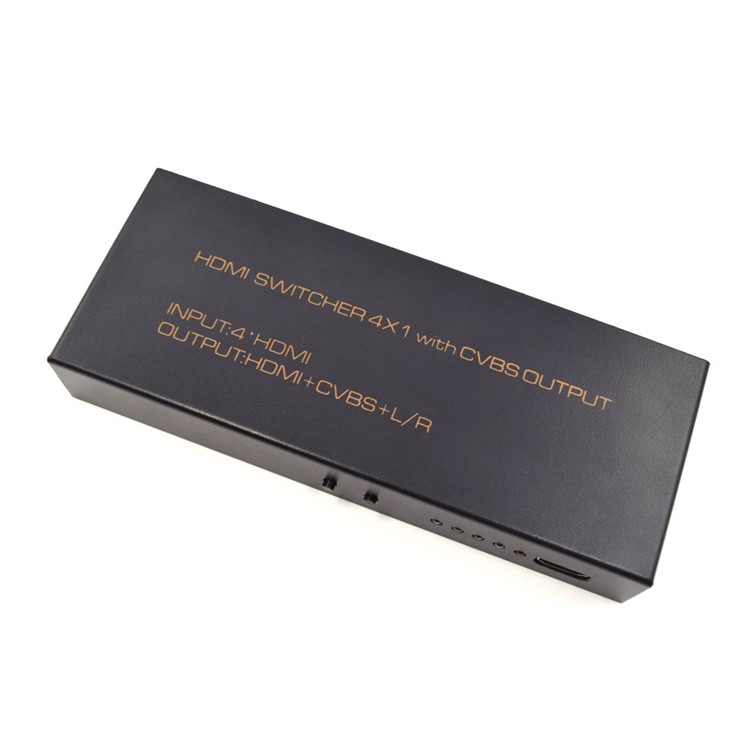

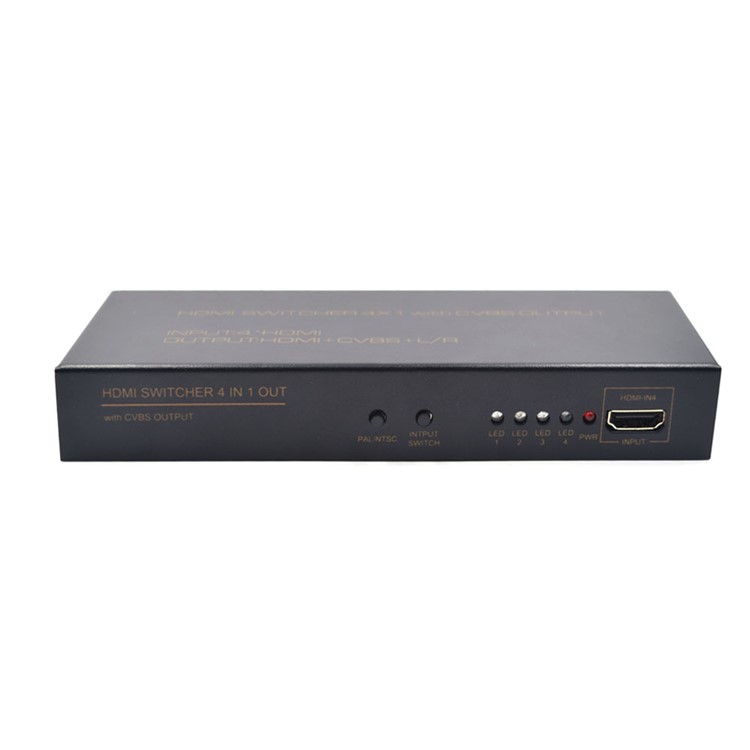

4x1 HDMI Switcher 4 Input 1 Output with CVBS Output - US Plug-1
4x1 HDMI Switcher 4 Input 1 Output with CVBS Output - US Plug-2
4x1 HDMI Switcher 4 Input 1 Output with CVBS Output - US Plug-3
4x1 HDMI Switcher 4 Input 1 Output with CVBS Output - US Plug-4
4x1 HDMI Switcher 4 Input 1 Output with CVBS Output - US Plug-5
